Headlamp wiring help

MerrittSi

New Member

Posts

5

Location

Urmston

• Aug 26, 2019

• #1

1985 90 CSW
Head lamps, side lights not wired up.
Existing loom in place, but I’m struggling to put it all together.
Please, can anybody help.
Sure it’s a simple straightforward job, once you know and I’m sure there will be many of you happy to help me.

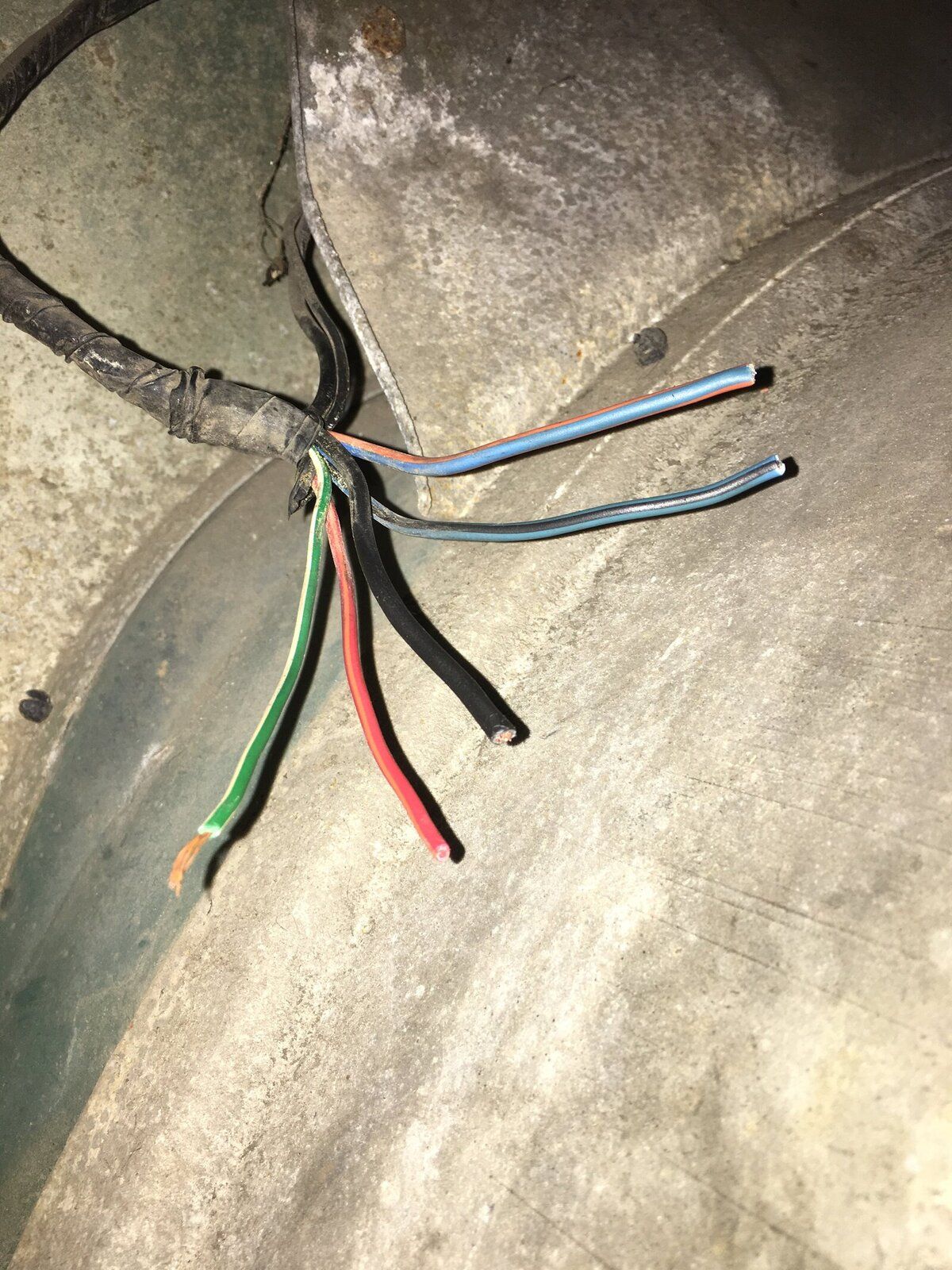

So basically I need to know which of the three headlamp wires connect too, then the side light red wire.
Thanks



marjon

Well-Known Member

Full Member

Posts

16,837

Location

Bulgaria

• Aug 26, 2019

• #2

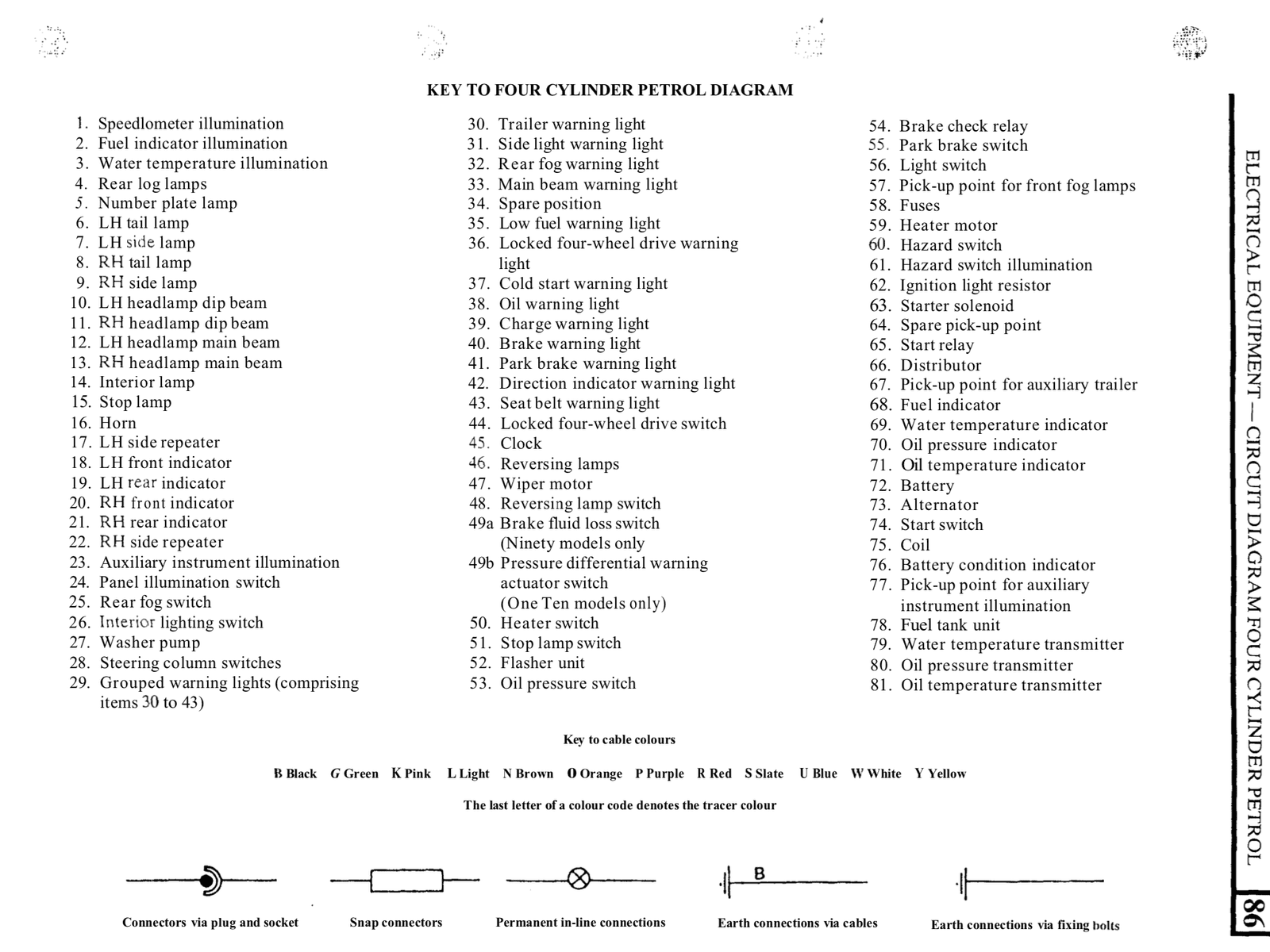

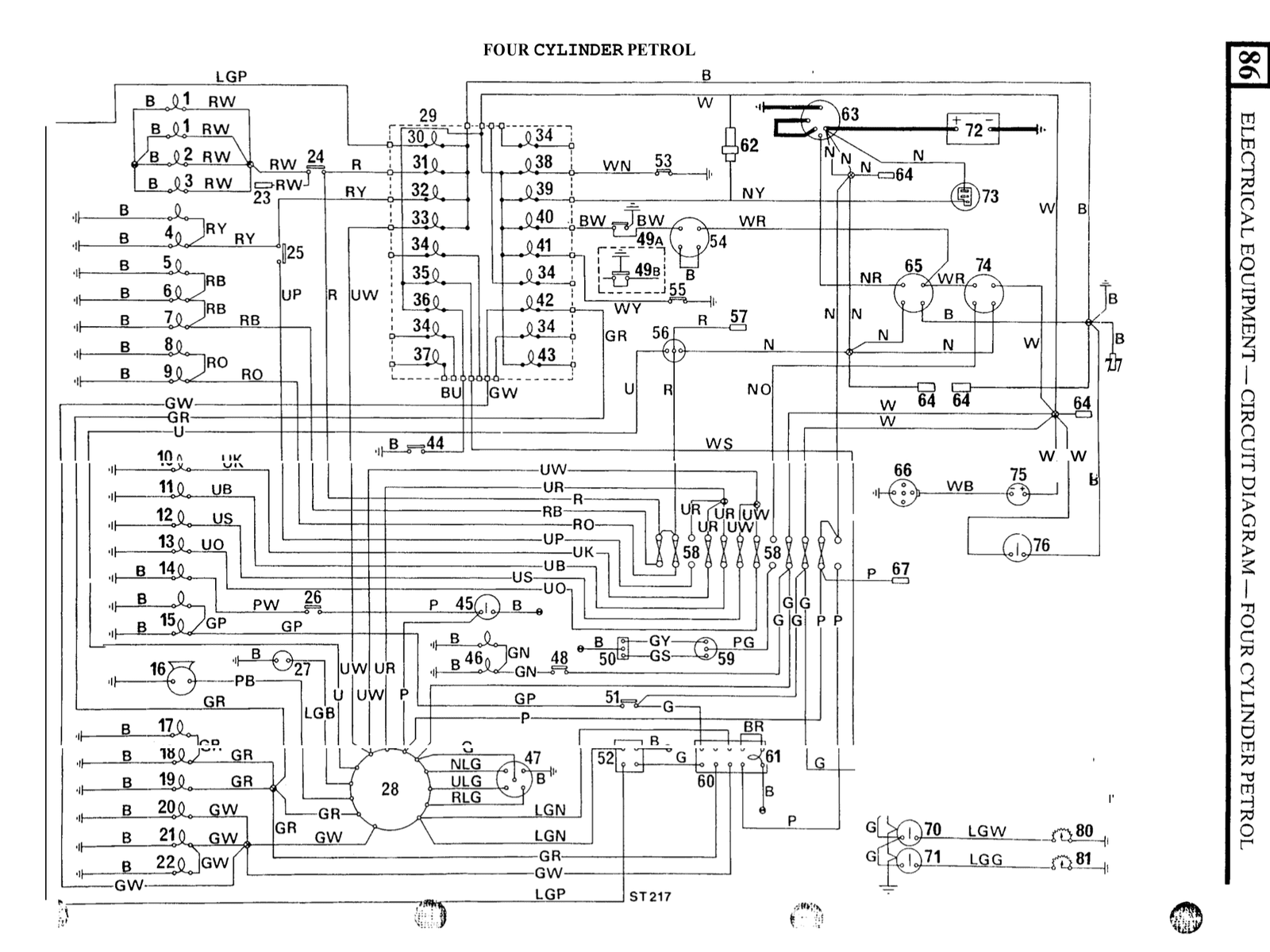

See if these help. Attached. They are from an old manual. (84 I think)

get out your DVM and check each line to switch/ fuse. For continuity first.

Not as difficult as you think , think you have separate fuse for dip ,main beam, indicator.

Good luck don’t rush and make your own diagram as you go and then it will help make more sense.

J



Attachments

•

  196.3 KB · Views: 113
•

  176 KB · Views: 90

dieseldog69

Well-Known Member

LZIR Despatch Agent

Posts

9,105

Location

Roaming the UK on assignments

• Aug 27, 2019

• #3

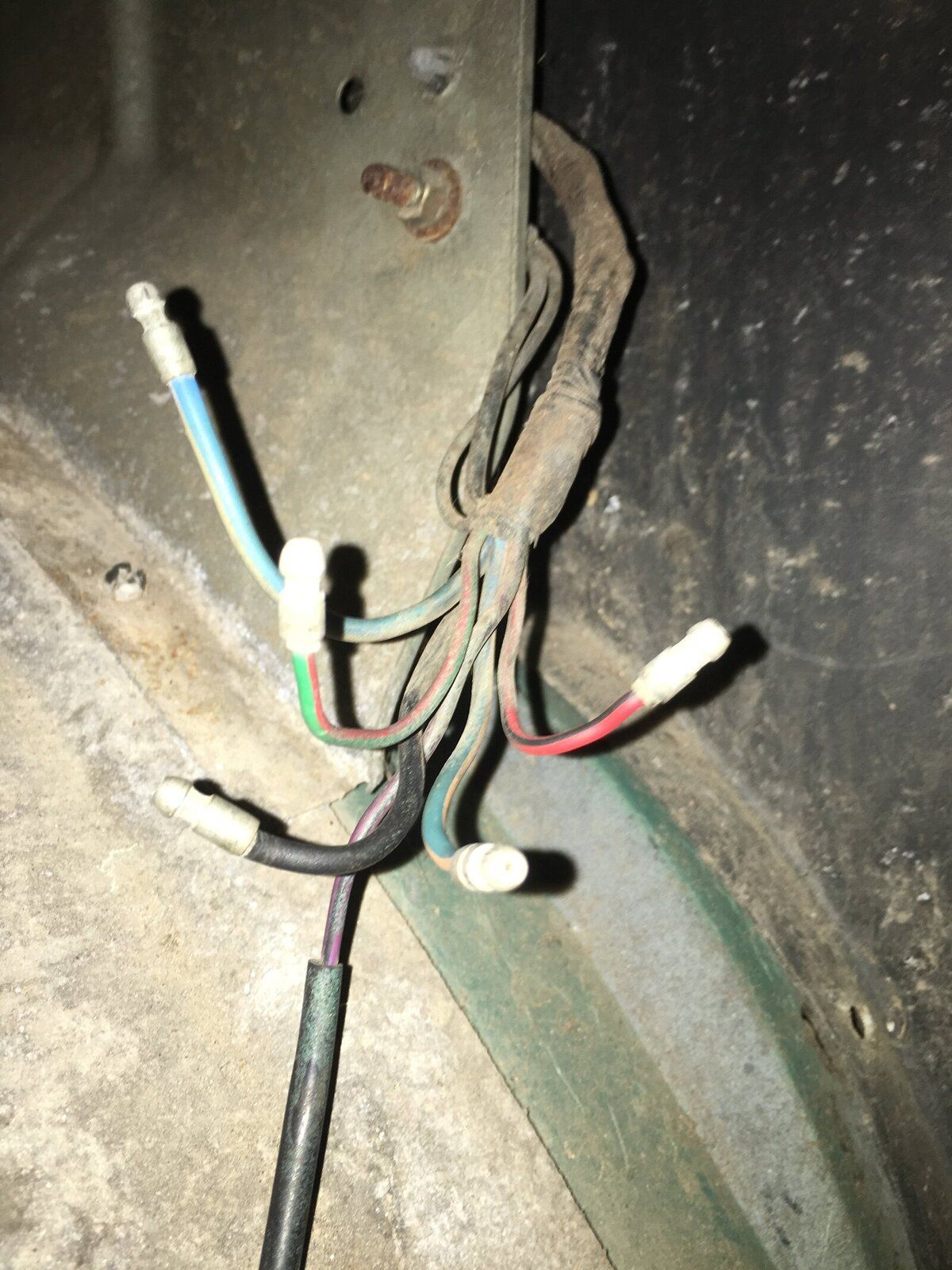

The blue ones and the black one goes to the headlight and the green ones go to the sidelight.



MerrittSi

New Member

Posts

5

Location

Urmston

• Aug 28, 2019

• #4

And let there be light! Thanks for the guidance, great help. Changed bullets and connectors whilst at it.
Cheers.
