fuel pressure sensor harness location?

gmzez

New Member

Posts

81

Location

Oxfordshire

• Mar 3, 2010

• #1

Does or has anyone changed the harness that feeds the pressure sensor fitted on the common rail? What i want is an idea of where the end connection fits (not the plug end that fits to the sensor). I've been told theres a plastic connector box fitted on the engine,, but where? thanks in advance..



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Mar 3, 2010

• #2

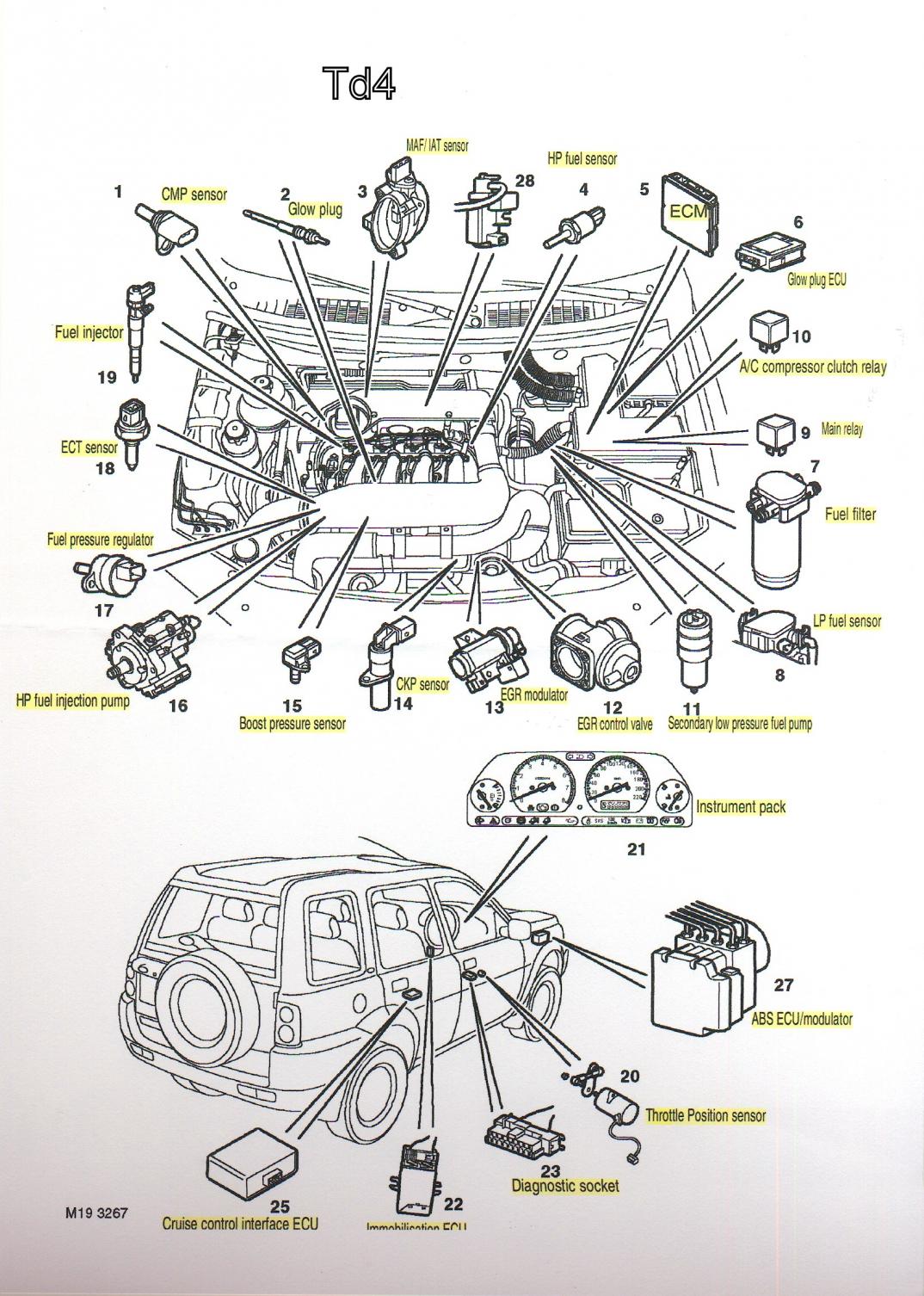

C0604 ECM :doh:



Attachments

•

  247.9 KB · Views: 7,425

gmzez

New Member

Posts

81

Location

Oxfordshire

• Mar 3, 2010

• #3

Thanks for the Diag.... I have been told the cable from the pressure sensor (18" long) goes to a plastic box on the engine. Its this (if there is one) I need to locate..Just need a second opinion on this one........Thanks again.....
