fuel fuel fuel every where

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
H

h12ssy

New Member
Posts
100
Location
swansea
help
have a disco 2 facelift model td5.
have changed the fuel pressure reg as per urban panzers thred ,ok took some time and yes i needed a few plasters but all went ok..
started and ran the unit on the drive un til hot sounde lige a new toy and no diesel leaks so put top cover on engind snd parked it on the rossd resdy to go out..
now the fun begins :
put er indoors in snd the germsn shepherd climbed in and turned the key,
besring in mind we are all togged up going out for the pm .
engine starts put in gear to move off engine cuts out crank wont start ok poss an airlock no probs go thro all the motions to bleed the bugger ,still wont start eventually get out and **** theres is ****ing diesel every where even running in the gutter to the drain .....sbout 2 gallons
open bonnet and lo and behold the pipe from the tank has come off the fuel pres reg
she goes in door ranting and raving about the mess ,i go and change any way to cut a long story the cilp on connector isnt very secure can be pulled off ...
any ideas of is it time for the dealer ?????????????

regards
steve

Is it the pipe from the rear that clips onto the shouldered pipe on the FPR ?.

It must have been given some stick to break it !.

Is it possible that the retaining part of the fitting hasnt popped back ?.

Del

If youre sure the clip is broken, than i assume its a new complete pipe.
However, I will stand aside just in case someone has come up with a sneaky repair !.

Just to add, that getting the " quick release " off at the rear is a real pain.

Del.

Sometimes they "feel" and look like they are on, but a small tug and off they come again.

Give it a real "firm" push on whilst slightly "wiggling" it, you may find it goes on better, and again test it with a good pull. I doubt its broken, the retainer inside has 4 legs that clip over the pipe flare, unlikely that all of them are busted, if any, the black collar plays no part in the fitting of the pipe, its there to purely release it for removal.

There are two sets of pipes listed in Microcat:

VIN up to 3A828006 - P/No WJP108270
VIN from 3A828007 - P/No WJP500070

The later one is about £40 for the two pipes as an assembly.

The earlier one is obsolete, I have seen one on Google for £188 + VAT!

Peter

50 pence said:
If youre sure the clip is broken, than i assume its a new complete pipe.
However, I will stand aside just in case someone has come up with a sneaky repair !.

Just to add, that getting the " quick release " off at the rear is a real pain.

Del.
Click to expand...

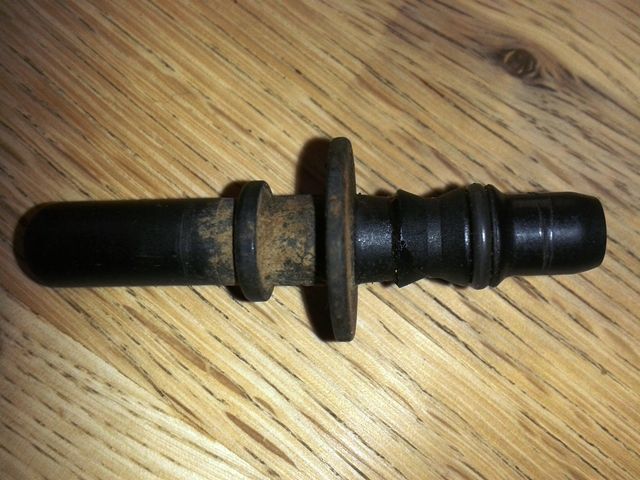

The rear connection broke on mine while trying to get the "quick release" off when replacing the tank pipes. Trying to find a suitable replacement connector to avoid a new hose assembly from Rimmer Bros: Hose - Vent - Genuine Land Rover at www.rimmerbros.co.uk (ouch)


Attachments

  • 20140831_170451-1.jpg
    59.8 KB · Views: 178
