front center diff mount poly KHC500070 how to ?

everton · Jan 12, 2017

hi ,going to put a one of these poly bush into center diff mount ,ive changed the mount before but the complete part, ive not used poly bush before . how do you remove the old bush from the bracket and push the new polybush into bracket holder

tonytherunner · Jan 12, 2017

BURN IT .....

Arctic2 · Jan 12, 2017

They should come in two half's cut out you old bush then insert and push together the poly bush using a G clamp as below, a little rubber grease also helps

everton · Jan 12, 2017

Ive not had the bush yet but it dont look like a two part type .

everton · Jan 12, 2017

Is it hacksaw old bush out then knock it out of the bracket mount

Nodge68 · Jan 12, 2017

everton said:
Is it hacksaw old bush out then knock it out of the bracket mount

Yep. Cut the old bush in half with a hacksaw. It will come out easily, once its tension is removed.
The poly bush is in 2 parts that are pressed in from each side. The steel distance tube is then pushed in

Madmustang · Jan 25, 2017

everton said:

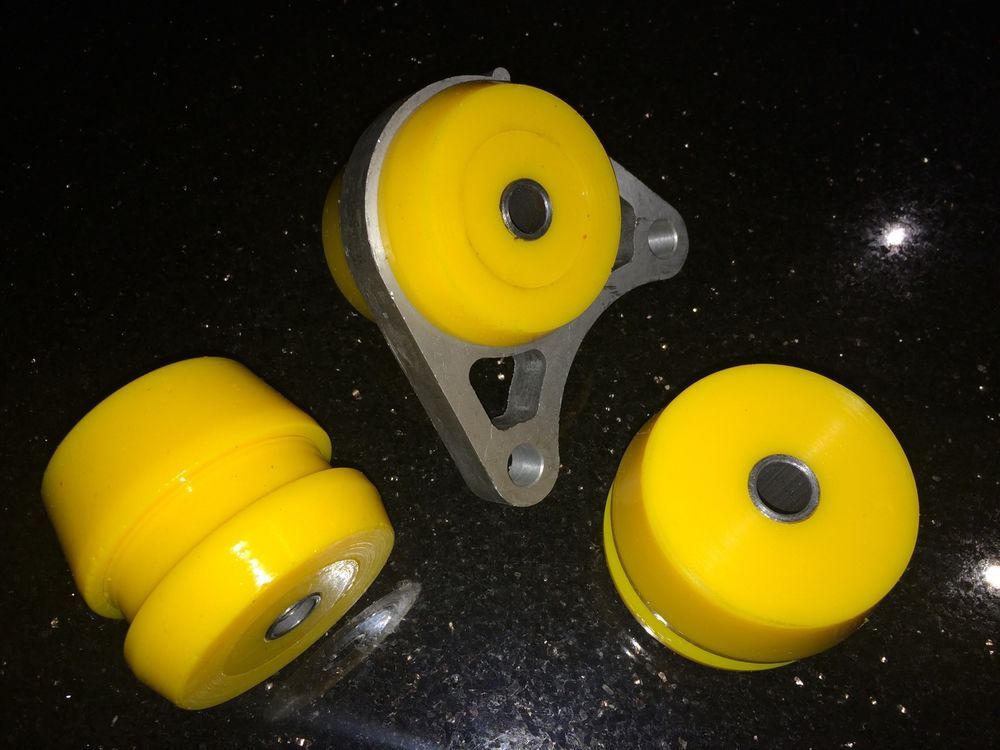

View attachment 115089 hi ,going to put a one of these poly bush into center diff mount ,ive changed the mount before but the complete part, ive not used poly bush before . how do you remove the old bush from the bracket and push the new polybush into bracket holder

YouTube the question and you will see how the yanks do it. Then pick your preferred method
