Freelander2 rear suspension advice

L

Luv my landy

New Member

Posts

3

Location

Sheffield

• Mar 22, 2019

• #1

Hi I've had my freelander2 for about 3 year's now and touch wood not had any real problems. I noticed a few weeks ago a rubber appendage to the rear suspension arm. Looking at the off side I notice it's missing. Looked in Haynes Manuel it doesn't show one or what it does. Could anyone advise me .



marjon

Well-Known Member

Full Member

Posts

16,848

Location

Bulgaria

• Mar 22, 2019

• #2

Welcome

I am sorry I can’t help, but somebody familiar with FL will be along soon to help.

If you post a pic of said appendage it may help too

J



L

Luv my landy

New Member

Posts

3

Location

Sheffield

• Mar 22, 2019

• #3

View attachment 173196



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Mar 22, 2019

• #4

If you mean this part

Then it's a mass damper. It's there to reduce a resonance in the suspension or drive train.



L

Luv my landy

New Member

Posts

3

Location

Sheffield

• Mar 23, 2019

• #5

Nodge68 said:

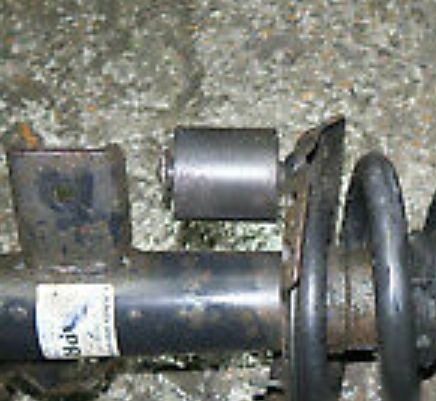

If you mean this part View attachment 173199
Then it's a mass damper. It's there to reduce a resonance in the suspension or drive train.

Click to expand...

Yeah that's the one. Could this missing cause kids to be travel sick riding in back. Funny it's not shown in any Manuel new shockers don't come with one but can't source one on it's own. Anyway thanks for that at least I know what it is now.



NeilTD4

Active Member

Posts

385

Location

Warwickshire

• Mar 23, 2019

• #6

It is available separately, the part number appears to be LR041112 which superceded LR007800.
You'll probably need the bolt too which is stated as BOLT HEXAGONAL HEAD, M6 X 14MM. A few part numbers pop up for this one, so I'm not 100 certain which is the correct one I'm afraid.



Last edited: Mar 23, 2019

Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Mar 23, 2019

• #7

Luv my landy said:

Could this missing cause kids to be travel sick riding in back.

Click to expand...

No. It's job is to remove some sort of noise or vibration.

Worn shocks could cause travel sickness, or playing on smart devices will give the same feeling.



C

Craig_mate

Active Member

Posts

118

Location

Suffolk

• Feb 25, 2023

• #8

I just cut one of these vibration dampers off as some.clown had mounted it in the wrong hole and it had no clearance. HAVE YOU SEEN WHAT THEY'RE ASKING FOR THEM!? They're about £130 each! Might make one myself.



NeilTD4

Active Member

Posts

385

Location

Warwickshire

• Mar 4, 2023

• #9

I've since noticed they are both missing off my current 2011 FL2...

It may well have had new shocks before my time...



C

Craig_mate

Active Member

Posts

118

Location

Suffolk

• Mar 8, 2023

• #10

The damper itself is a really clever little unit. The combination of materials and fixing methods is quite smart. If I ever replace the shocks though, I'll be going without lol!
