Freelander 2 TD4 2.2 valve problem

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

nighthunter

New Member
Posts
1
Location
Czech Rep.
Hi friends, ive buyed an Freelander 2 2.2 TD4. It had one cylinder damaged due to an broken valve. I buyed it as it as i wanted to swap the engine. Ive swapped the engine but on the intake manifold there is some pressure/vacuum valve/switch wich i dont know where it has plug in harness. On the old engine looks like it was disconnected as the connector was wery clogged from inside from dust, but on my engine wich ive buyed used was the valve plugged in. Its clean from inside and there is seen where the connector rubber met the housing.
So my qestion is, can somebody write me wich wire colors go to this connector, or even a schematic of this engine control? On my harness i plugged all other connectors but im not seeing any free to match with it.

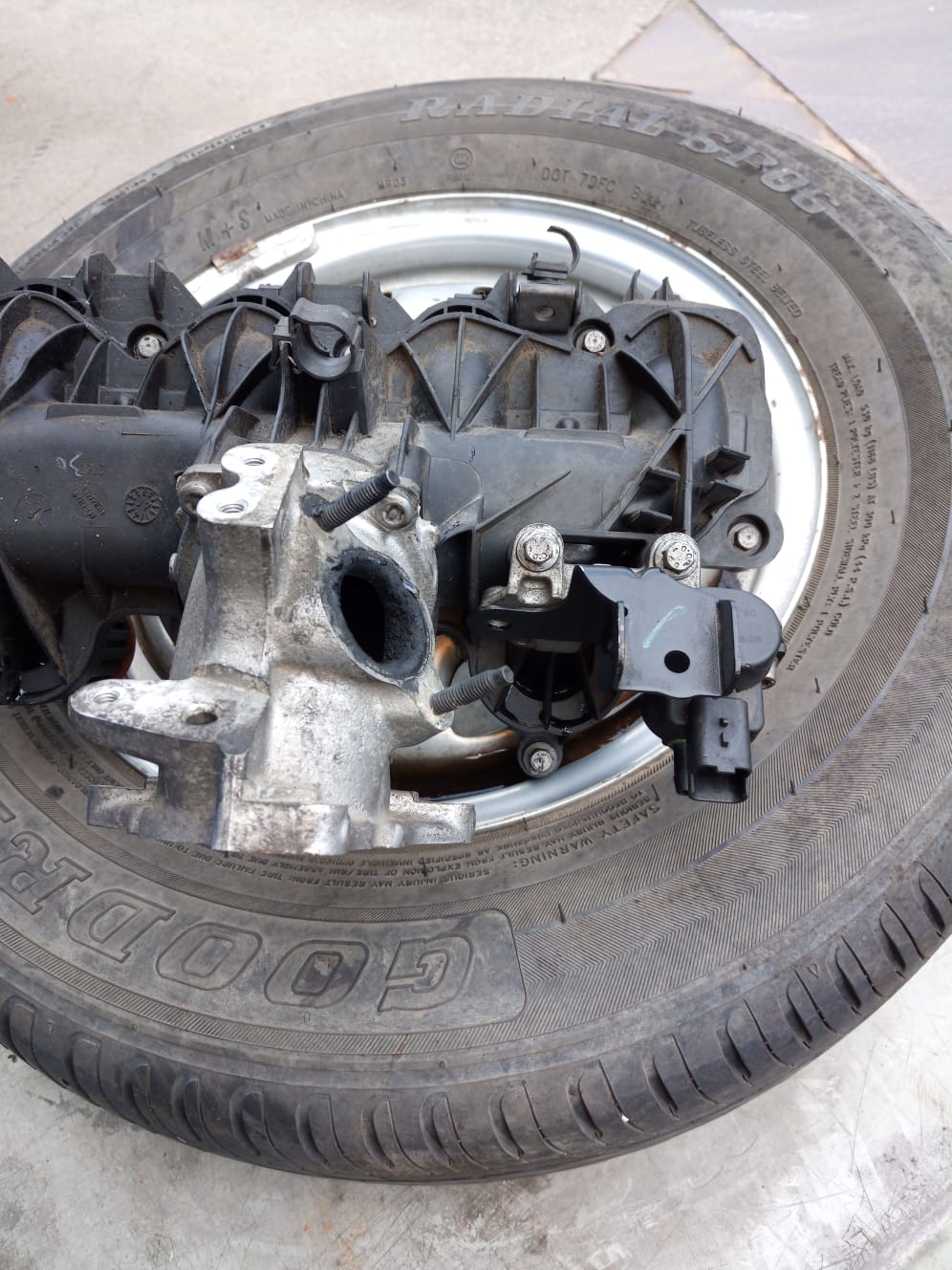

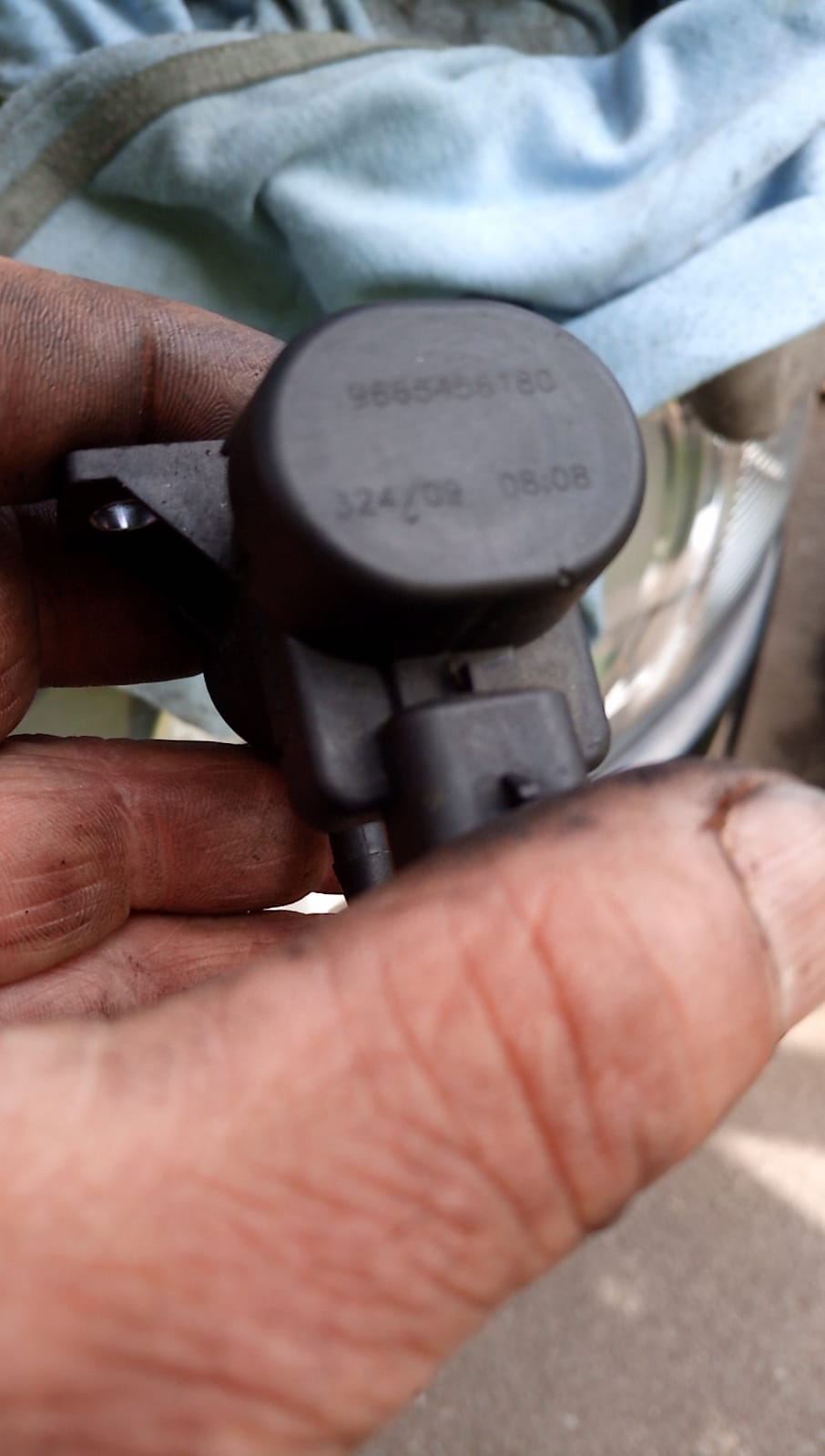

Im attached pictures of the solenoid.
Can somebody help me with this?


Attachments

  • IMG-20190508-WA0000.jpg
    183.9 KB · Views: 202
  • IMG-20190508-WA0001.jpg
    83.1 KB · Views: 179
