Hello all,
I am restoring a Freelander '02 TD4 and as I was installing front fogs, and removed front bumper, I found two harness cables, with 3 sockets, but I cannot find out what they serve for...
Any help would be great, as I don't know if the are loosen or if they simply exist... ;o)

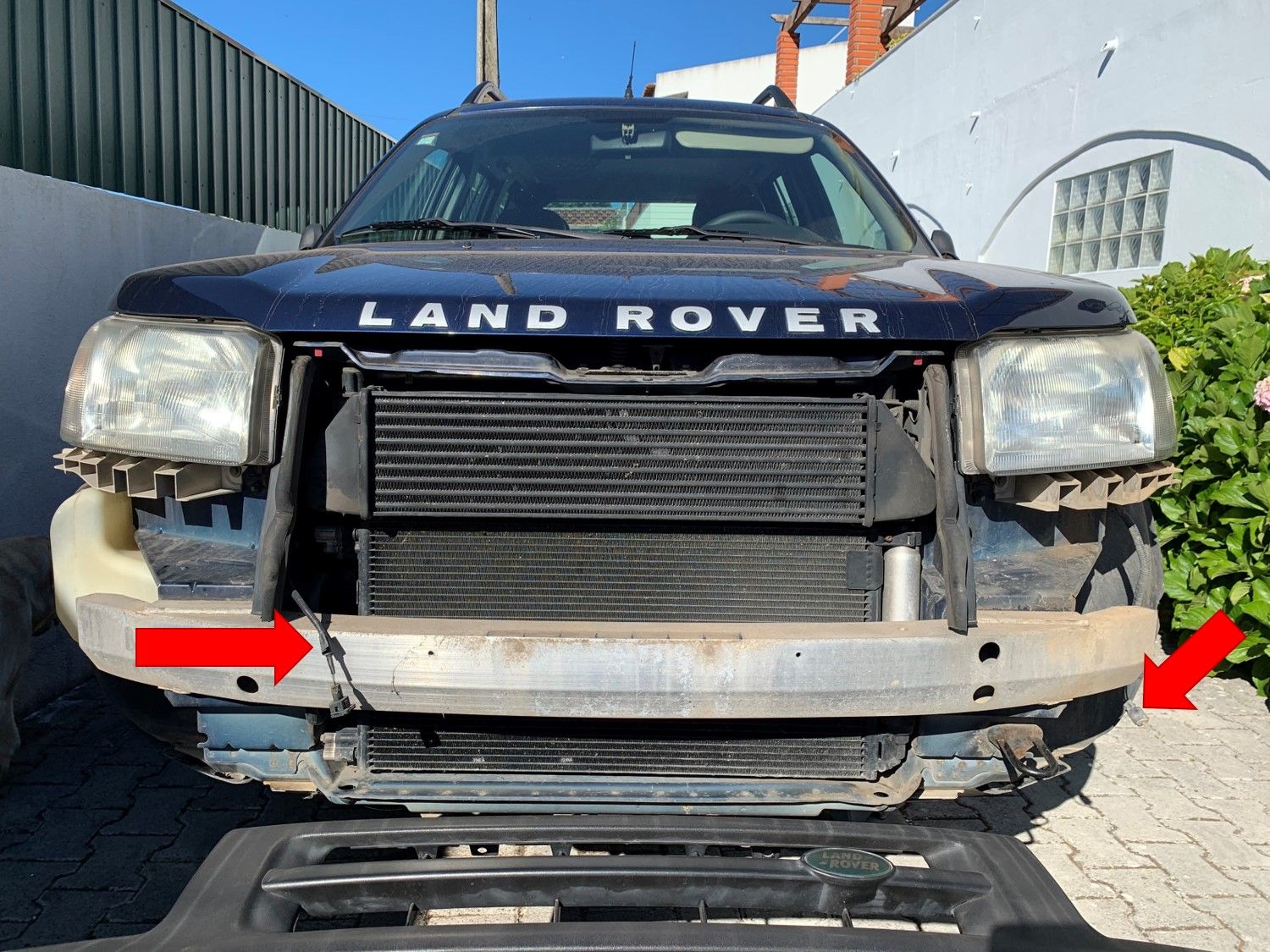

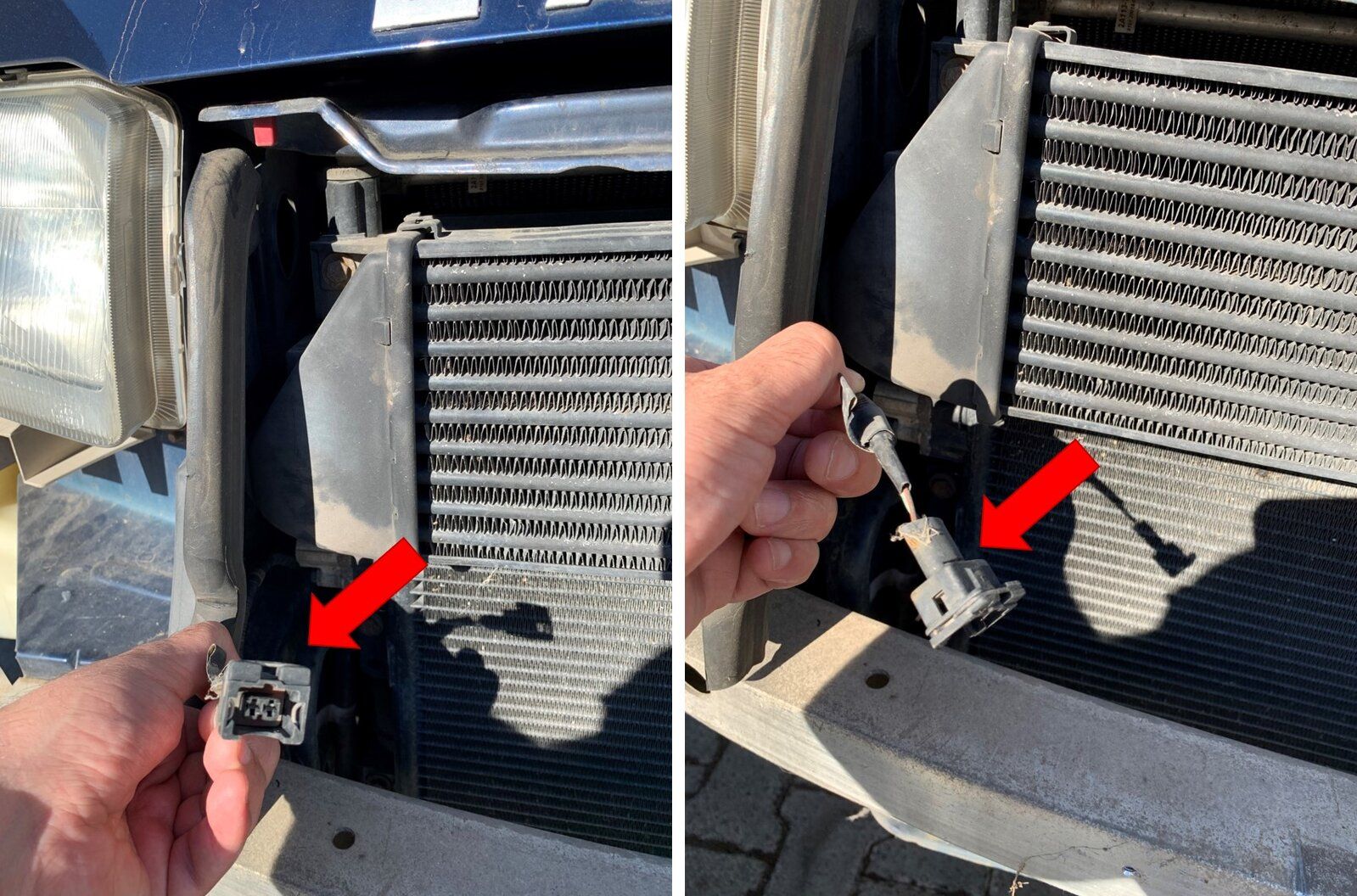

On the right side of the radiator, loom and socket.

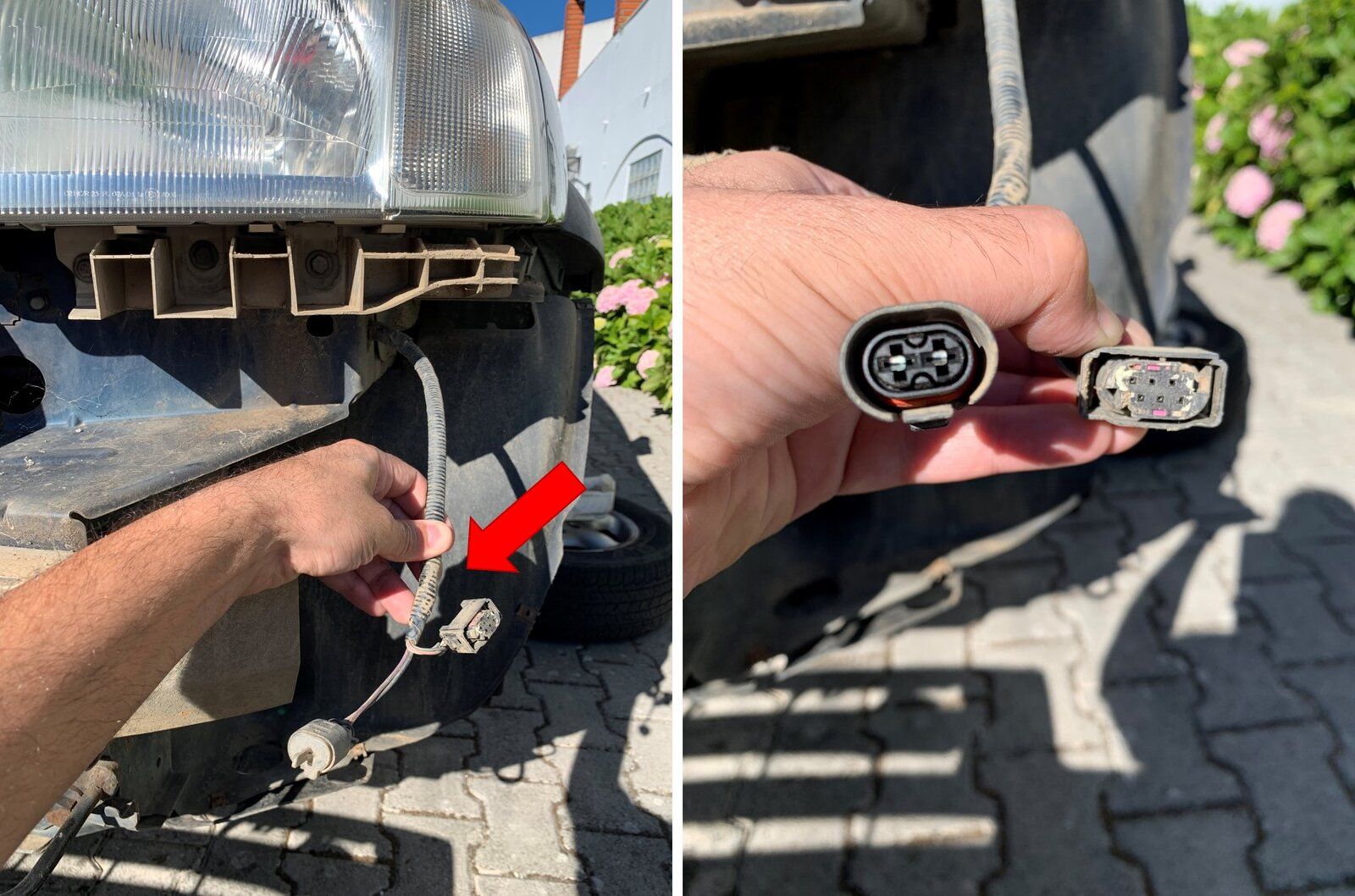

On the left side bellow front left headlight, loom and 2 sockets.

Thank you in advance, kind regards, Cadaval

I tried searching, but to be honest I don't even know what theme to search for, because just by front bumper loom cables it's too scattered to find anything.
But I'll try again to look for a thread that covers this topic.
Thank you,
Cadaval

Cadaval said:
I tried searching, but to be honest I don't even know what theme to search for, because just by front bumper loom cables it's too scattered to find anything.
Click to expand...
Post the wire colours here so I look them up, but looking at the positions, they're likely for the optional fuel burning heater.

Nodge68 said:
Post the wire colours here so I look them up, but looking at the positions, they're likely for the optional fuel burning heater.
Click to expand...

Thank you very much.

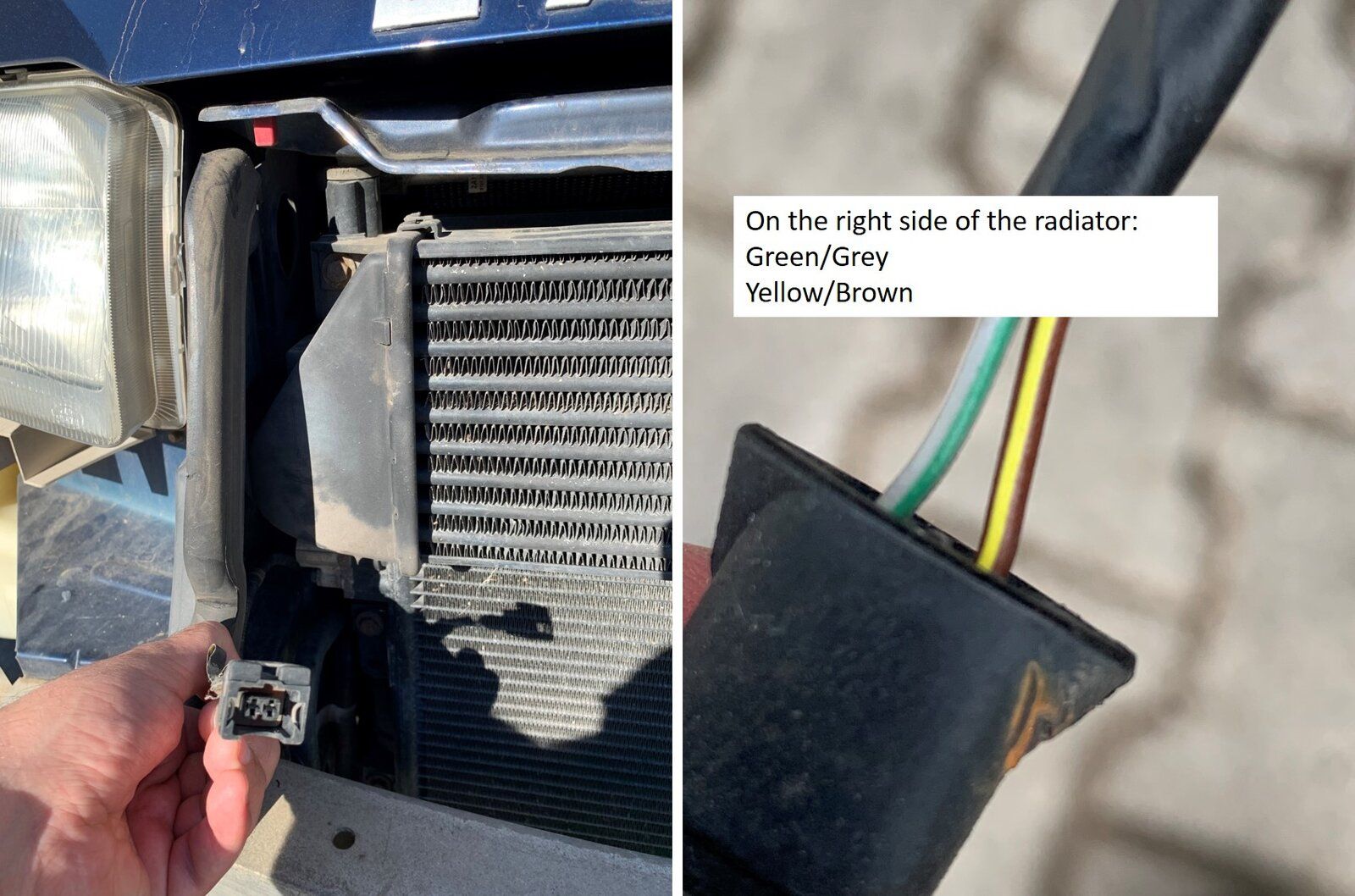

Here goes the wire colors.
On the left side bellow front left headlight, the loom with the socket with two cables, the cables seem to be thicker.





Thank you, regards,
Cadaval

Cadaval said:
Thank you very much.
Here goes the wire colors.

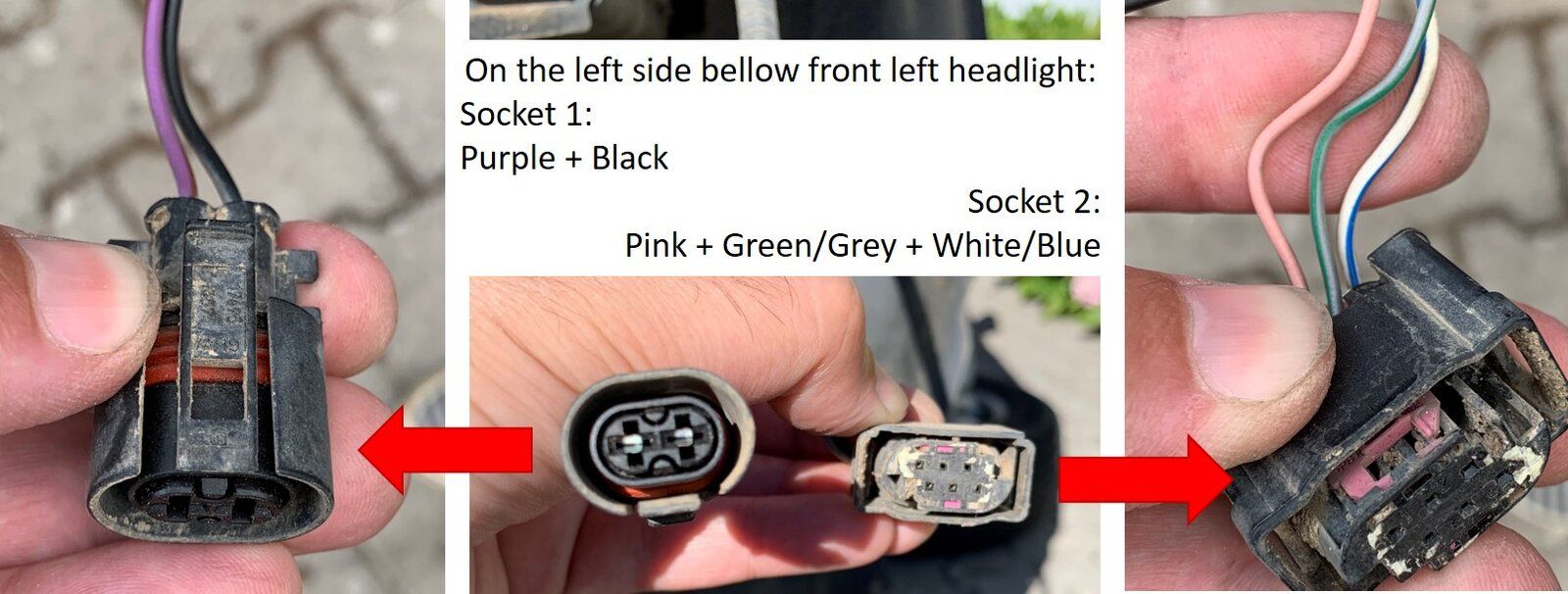

On the left side bellow front left headlight, the loom with the socket with two cables, the cables seem to be thicker.

View attachment 241837

View attachment 241838

Thank you, regards,
Cadaval
Click to expand...

The plug bottom right of the radiator is for the FBH temperature sensor.
The other 2 plugs on the LHS are definitely for the FBH power and control. You'll notice that the grey/green is wire seen at both places, which is the FBH temperature sensor input.

Hope this helps.

Nodge68 said:
The plug bottom right of the radiator is for the FBH temperature sensor.
The other 2 plugs on the LHS are definitely for the FBH power and control. You'll notice that the grey/green is wire seen at both places, which is the FBH temperature sensor input.

Hope this helps.
Click to expand...
Thank you very much for you explanation.
So, I will leave them as they are.
Thank you.
Cadaval
