Engine rebuild thread

Discussion in 'General Land Rover Forum' started by payydg, Nov 19, 2018.

< Previous Thread | Next Thread >
  1. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    79,663
    Likes Received:
    10,691
    Location:
    louth lincs

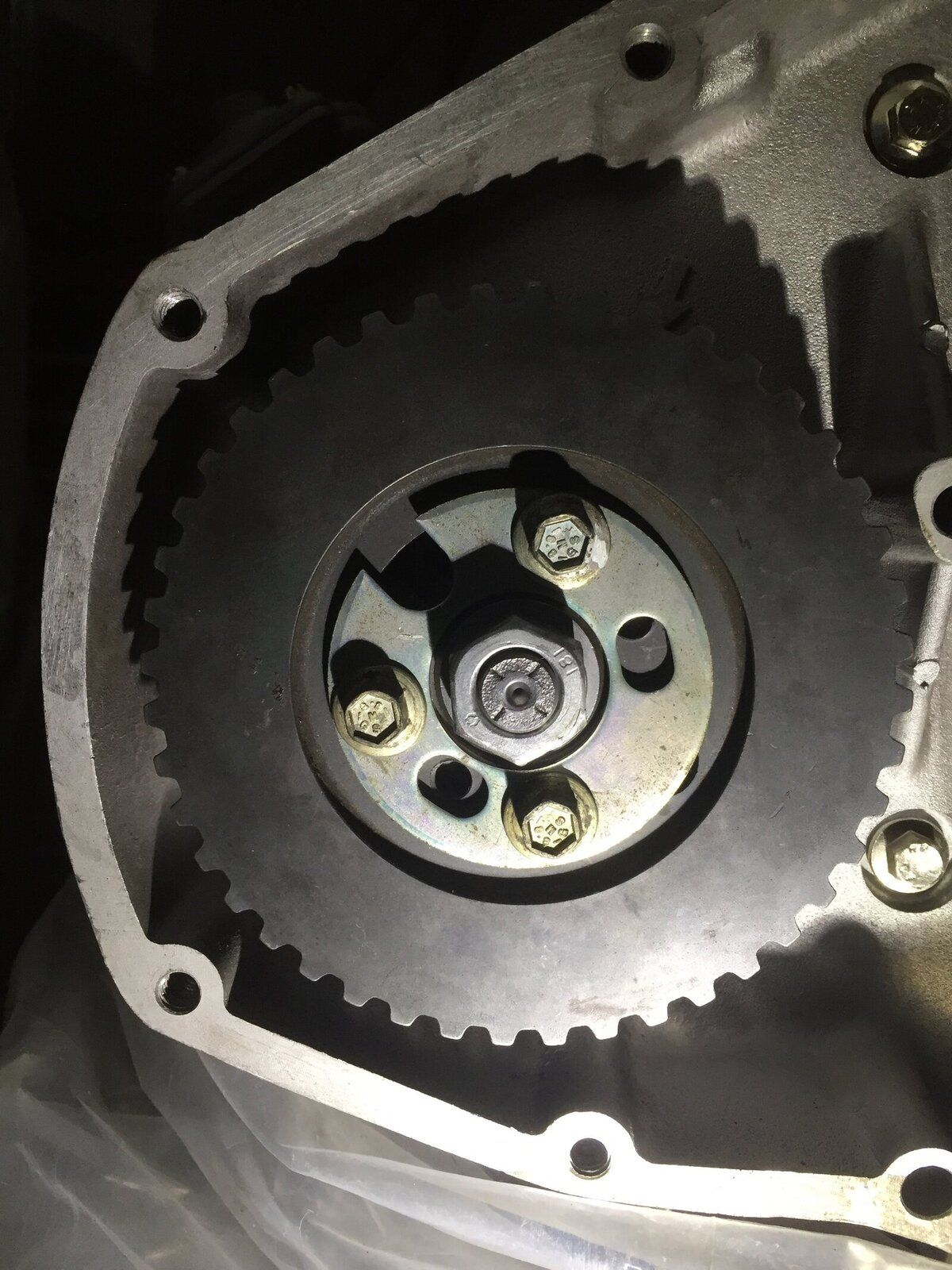

    holes only line up one way providing plate is right way round,when you fit the belt you need to ensure pulley slots allow enough advance ie clockwise movement to adjust the pump, the plate is also used for the cam

    payydg likes this.
  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,246
    Likes Received:
    5,246
    Location:
    Back in the UK, Sunny Hampshire.
    the cut out is where the timing pin goes through, the elongated holes in the plate is where the pulley bolts go through and the pulley should turn freely to allow you to time it all up.

    payydg likes this.
  3. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    79,663
    Likes Received:
    10,691
    Location:
    louth lincs
    its the pulley elongated holes bolts go through not the plate its fixed by the pin

  4. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Thanks all. I have to loosen the FIP lock bolt before the pump will rotate?

  5. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Gave the chassis and wheel arches a coat of paint just to protect the galv.

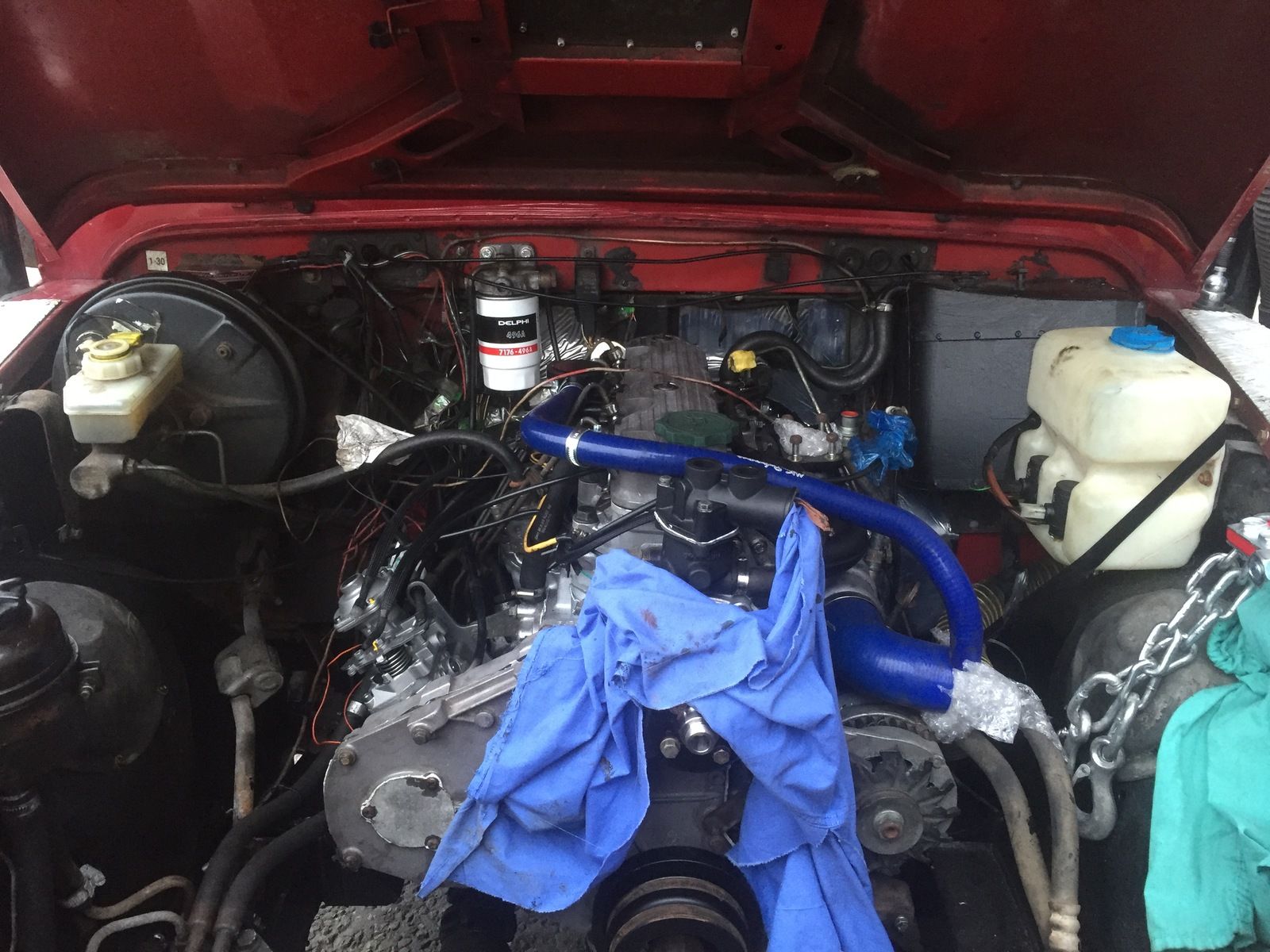

    F3D8CD02-5A91-442B-A800-DFC053D14802.jpeg B696B885-CA61-4695-9CE8-1DC124D58F96.jpeg

  6. boguing

    boguing Well-Known Member

    Joined:
    Mar 18, 2008
    Posts:
    3,639
    Likes Received:
    1,637
    Location:
    Dorking
    Not far now. I put my engine in today, you wouldn't believe how much easier it is without any bulkhead, gearbox, bodywork or radiator in the way. The downside is that all of the above are at least six feet and many bolts from where they need to be for next week.

  7. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    I feel your pain. It’s funny towards the end of a project I keep looking for things to do to keep it going. About time I just stuck the engine back in and got it back on the road.

  8. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Anyone know the part number for the bolts that hold the pulley to the FIP? Can seem to see them on the FIP diagram in the parts book

  9. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    79,663
    Likes Received:
    10,691
    Location:
    louth lincs
    fs108207l its an m8 x 20mm flange head bolt,apply loctite to the threads for the final tighten ie all 3 are tight but no loctite ,remove 1 at a time and add loctite then fully tighten

    payydg likes this.
  10. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,246
    Likes Received:
    5,246
    Location:
    Back in the UK, Sunny Hampshire.
    No, don't be silly, you have yet to color code each individual bolt head, stop looking for excuses to waste money on diesel :p

  11. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Haha! I did waste an evening making a spread sheet of things to check I’ve done up correctly before putting back in.

    dieseldog69 likes this.
  12. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,631
    Likes Received:
    2,138
    Location:
    North of the Wall
    Got to love a spreadsheet :D

  13. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Engine is in. It was a bloody nightmare getting to out the workshop, up two sets of steps, round my back garden and out the back.


  14. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,631
    Likes Received:
    2,138
    Location:
    North of the Wall
    Bet it was :eek: Well done, though! Massive achievement :)

    payydg likes this.
  15. boguing

    boguing Well-Known Member

    Joined:
    Mar 18, 2008
    Posts:
    3,639
    Likes Received:
    1,637
    Location:
    Dorking
    Too late now, but I discovered that a skateboard is not just another kids toy that need clearing up. They seem to be incredibly durable since I've used the same one to move gearbox/transfer boxes and a 600lb engine around on really rough concrete and it was just a cheapy. The lean/steer is handy too.

    dieseldog69 likes this.
  16. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    That’s interesting I used a 300kg trolley from B&Q and it crumpled like a tin can. It’s why it took us 5 hrs to move it about 50m

    dieseldog69 likes this.
  17. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Which way round do the pipes into the lift pump go? One has an arrow on it on the lift pump. Is this the one to the FIP?

  18. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,497
    Likes Received:
    2,727
    Location:
    Shropshire
    Arrow is direction of flow.
    No pipes go from LP to FIP, go to filter then FIP.

  19. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    My bad yep, so arrow to filter?

  20. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,430
    Likes Received:
    889
    Location:
    Aberdeenshire
    Wait I see, arrow on lift pump must be line from tank?

    Last edited: Apr 9, 2019
