Electrical help on td4 03 5dr

Allycat

Member

Posts

36

Location

Selby, North Yorkshire

• Jan 24, 2020

• #1

Hi all, can anyone assist with where these two wires have popped out from. More than confident that it’s the larger white plug but about 7 choices and don’t want to blow anything up. The wires are both green, but one has a blue trace.



andyfreelandy

Well-Known Member

Posts

5,587

Location

Devon

• Jan 25, 2020

• #2

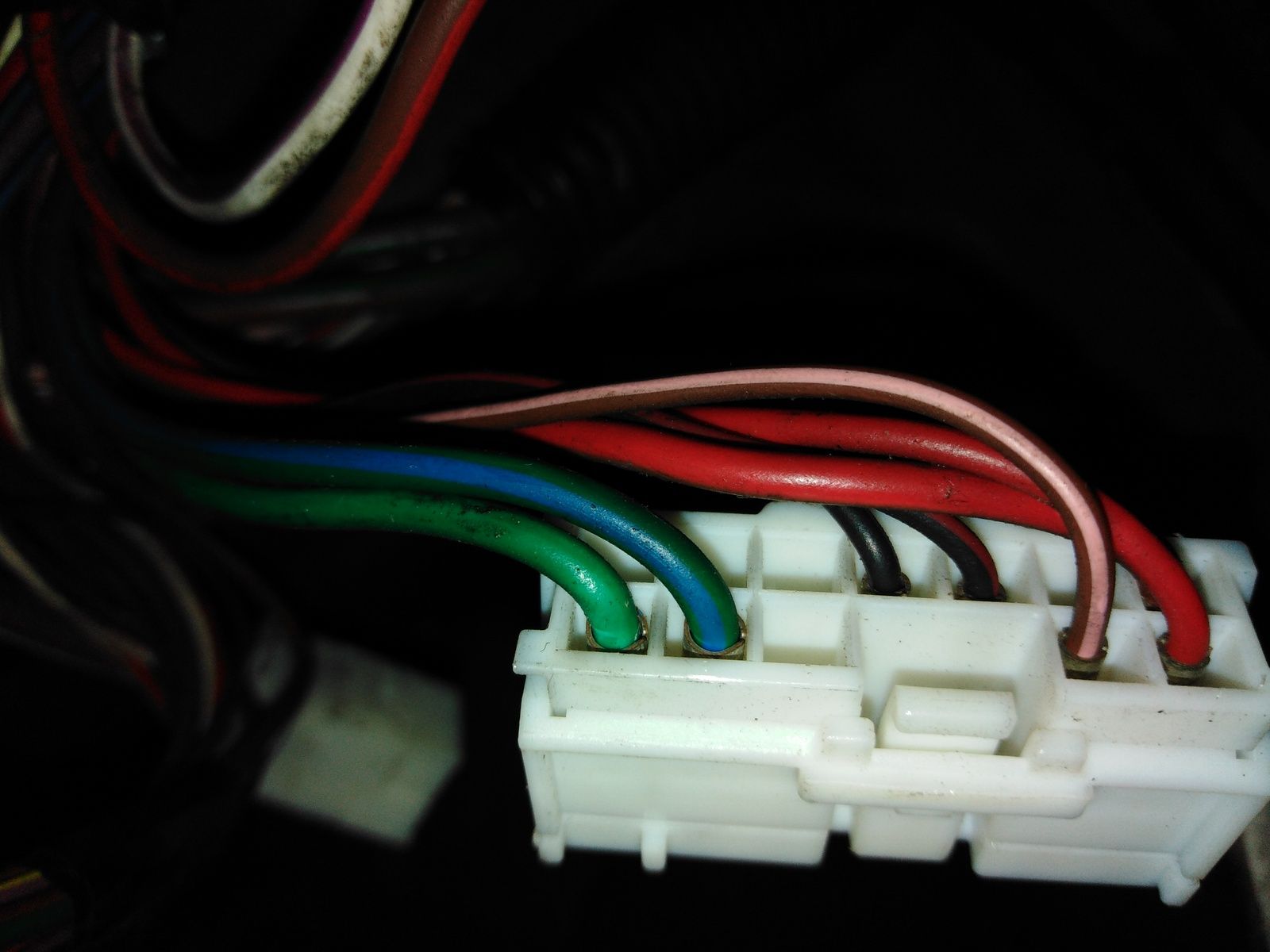

Hope this helps. 2003 TD4 5 door. Picture of plug that you think they came from showing the 2 wires!!!



Allycat

Member

Posts

36

Location

Selby, North Yorkshire

• Jan 25, 2020

• #3

andyfreelandy said:

Hope this helps. 2003 TD4 5 door. Picture of plug that you think they came from showing the 2 wires!!!

View attachment 198855

Click to expand...

Awesome Andy, that’s a real boost to the system, and it’s worked. Many thanks for your help.



GrumpyGel

Well-Known Member

Posts

26,490

Location

Christchurch, New Zealand

• Jan 25, 2020

• #4

So what are they for?



andyfreelandy

Well-Known Member

Posts

5,587

Location

Devon

• Jan 25, 2020

• #5

Whatever didn't work when they were out!!!



Allycat

Member

Posts

36

Location

Selby, North Yorkshire

• Jan 25, 2020

• #6

Spot on Andy
all up and running. So to answer GrumpyGel, the starter would crank the engine but wouldn’t fire into life. Strange noise when the key turned to position 2 , sounded like the doors unlocking but were already unlocked, yet the doors would lock and unlock by the fob anyway. Wires in, all issues sorted straight away. Nice one Andyfreelandy.
