Does my 200 disco have a window ecu ?

Evening all
As the the title says, basically my rear electric windows have stopped working and after a few searches on here I've read a lot about window ecu's being the cause of this but in all the threads ive read it's all been on 300tdi's just wondering if my L reg 200 will have one too
cheers

Not sure off the top of my head but the window ecu isn't actually a necessity. I've wired mine up without on including auto closure

The 200 series use a relay for the rear windows plus a second relay for the front windows.

Where would these relays be located ?

Lewis282 said:

Where would these relays be located ?

Click to expand...

Behind the drivers footwell kick panel.

cowasaki said:

Not sure off the top of my head but the window ecu isn't actually a necessity. I've wired mine up without on including auto closure

Click to expand...

how yu do auto closure? yu added a timer?

Awesome thanks a lot

The Mad Hat Man said:

how yu do auto closure? yu added a timer?

Click to expand...

UNIVERSAL 2 WINDOW CLOSURE SYSTEM / ROLLUP MODULE 4 CAR ALARM OR ON OWN | eBay

A unit like this basically cuts the positive feeds going to the motors and re-directs them through the unit which then work normally using the buttons.

On the unit you have two wires which are positive and negative triggers which you can then attach to something in order to trigger the closure. You could for example attach the negative trigger wire to ignition live. Then when you turn off the ignition the windows close themselves OR like mine attach it to the total closure output on the alarm system.

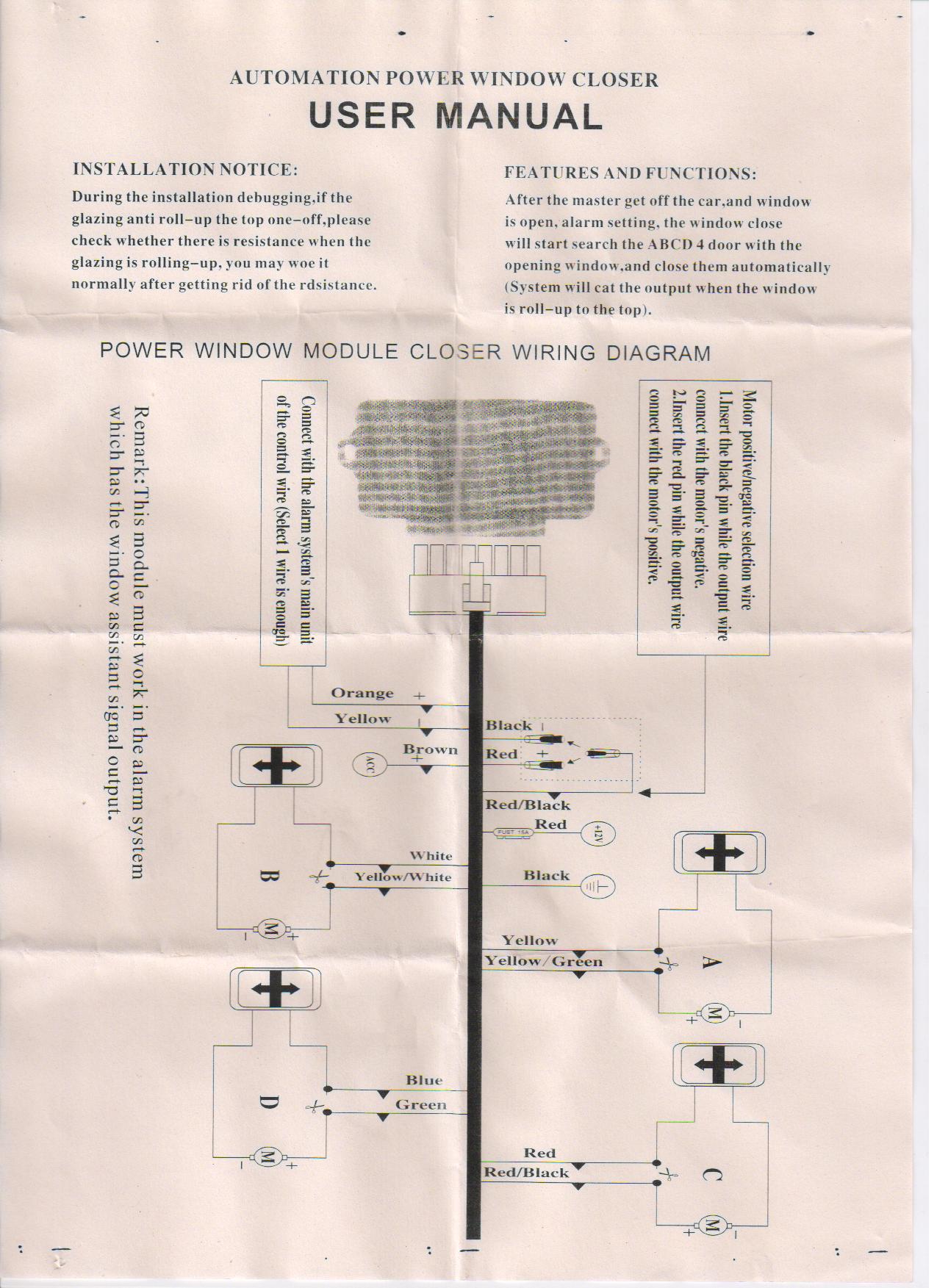

Here is an example:



Not bad for £8.99 inc postage

OR you might need the 4 window version

http://www.ebay.co.uk/itm/Automatic...102?pt=LH_DefaultDomain_3&hash=item27e71f002e

interesting Chinglish

That was just an example of instructions I found on the web. I normally use the neg trigger you can then fit a simple push button between the pos trigger and ign live to give the driver a "close all windows" button

or use the LG/P on W/10/3
