Disco 2 power steering pump

stevehamer said:

Hi all, I am after help with finding a replacement 'o' ring (correct size) for the coupling flange between the power steering fluid reservoir (right hand side of the engine bay) & the power steering pump. I would separate it & go to an engineering workshop however as I only have 1 car I cannot take it out & then get to a workshop. So was wondering if anyone knows what size it is?
I have asked at a dealership & they tell me I have to buy a new pump ..... but £150 is a little too much for me to spend on an o ring! lol.

Thanks in advance of your help, steve..

Click to expand...

neilly said:

Have a search here, you should hopefully find the part numbers from the drawings.
http://new.lrcat.com/#!/1232/39655/39656
Cheers

Click to expand...

stevehamer said:

Thank you for that however the part is not listed.

Click to expand...

neilly said:

I thought it was just pipes and jubilee clips.

Cheers

Click to expand...

stevehamer said:

Thank you for that however the part is not listed.

Click to expand...

jamesmartin said:

if its an o ring for the pas pump to coupling pipe theres no part listed,youd have to measure one

Click to expand...

stevehamer said:

Thanks for the reply, yes I just hoped someone might know the size so I don't have to strip it down then rebuild it so I can go & buy one then strip & rebuild again lol

Click to expand...

jamesmartin said:

you could buy one of these

Click to expand...

stevehamer said:

Hi all, I am after help with finding a replacement 'o' ring (correct size) for the coupling flange between the power steering fluid reservoir (right hand side of the engine bay) & the power steering pump. I would separate it & go to an engineering workshop however as I only have 1 car I cannot take it out & then get to a workshop. So was wondering if anyone knows what size it is?
I have asked at a dealership & they tell me I have to buy a new pump ..... but £150 is a little too much for me to spend on an o ring! lol.

Thanks in advance of your help, steve..

Click to expand...

Andy Warren said:

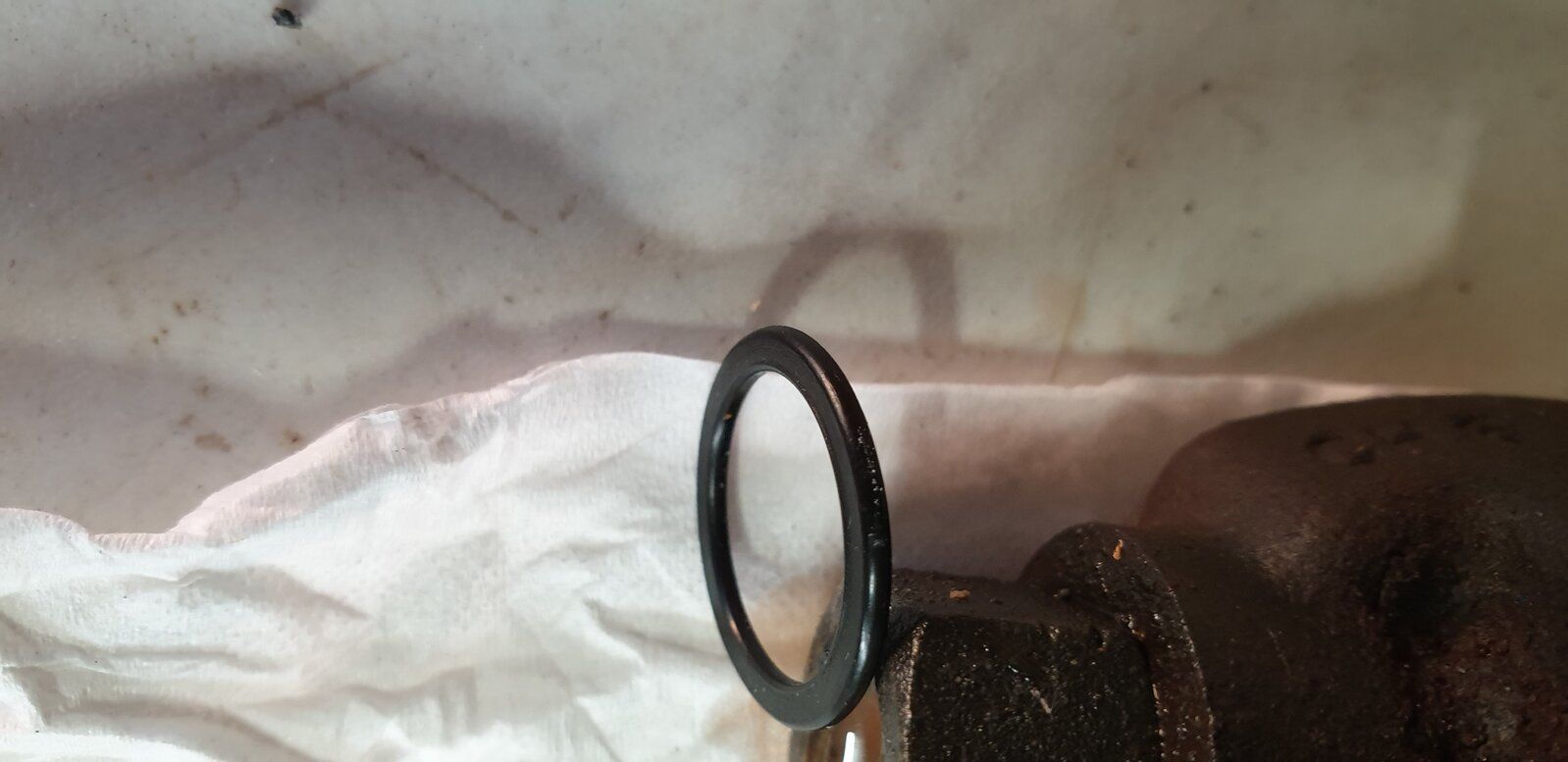

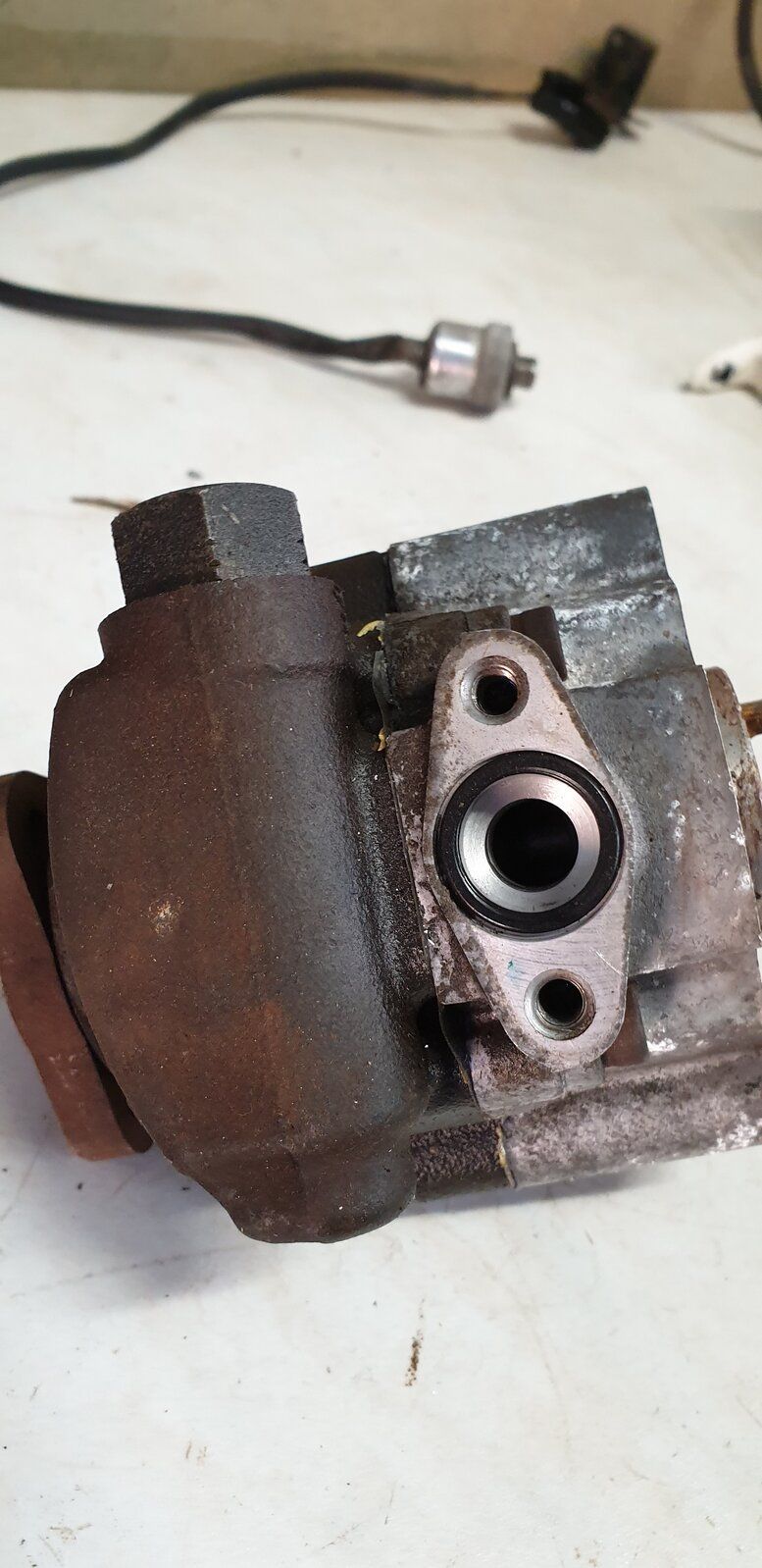

Hi Steve,did mine & my son's a couple of weeks ago, here's I think what you're referring to. O-ring is a bit flat probably been there since 01 & 166,000 miles here heeView attachment 215788 View attachment 215788 View attachment 215789

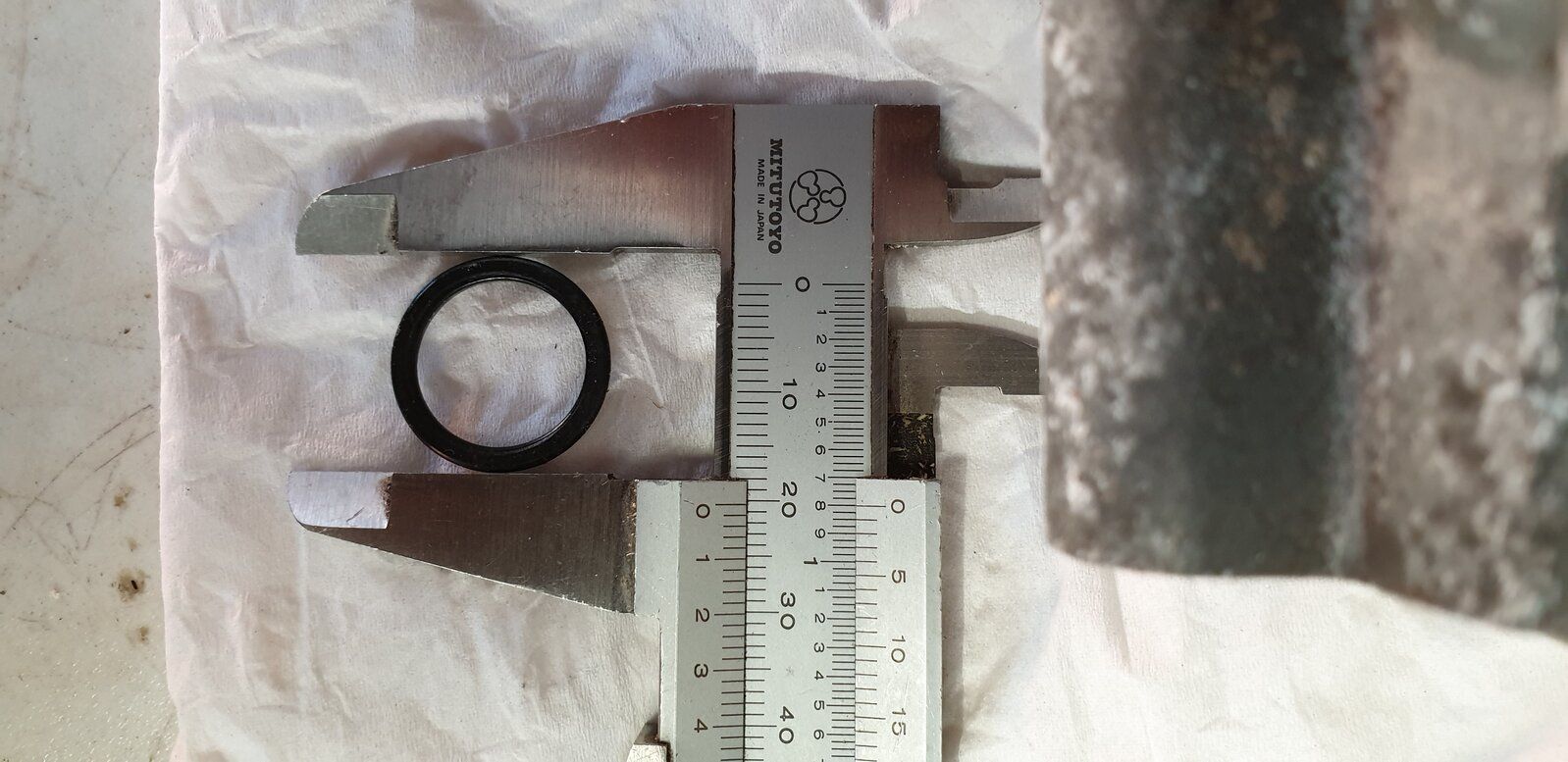

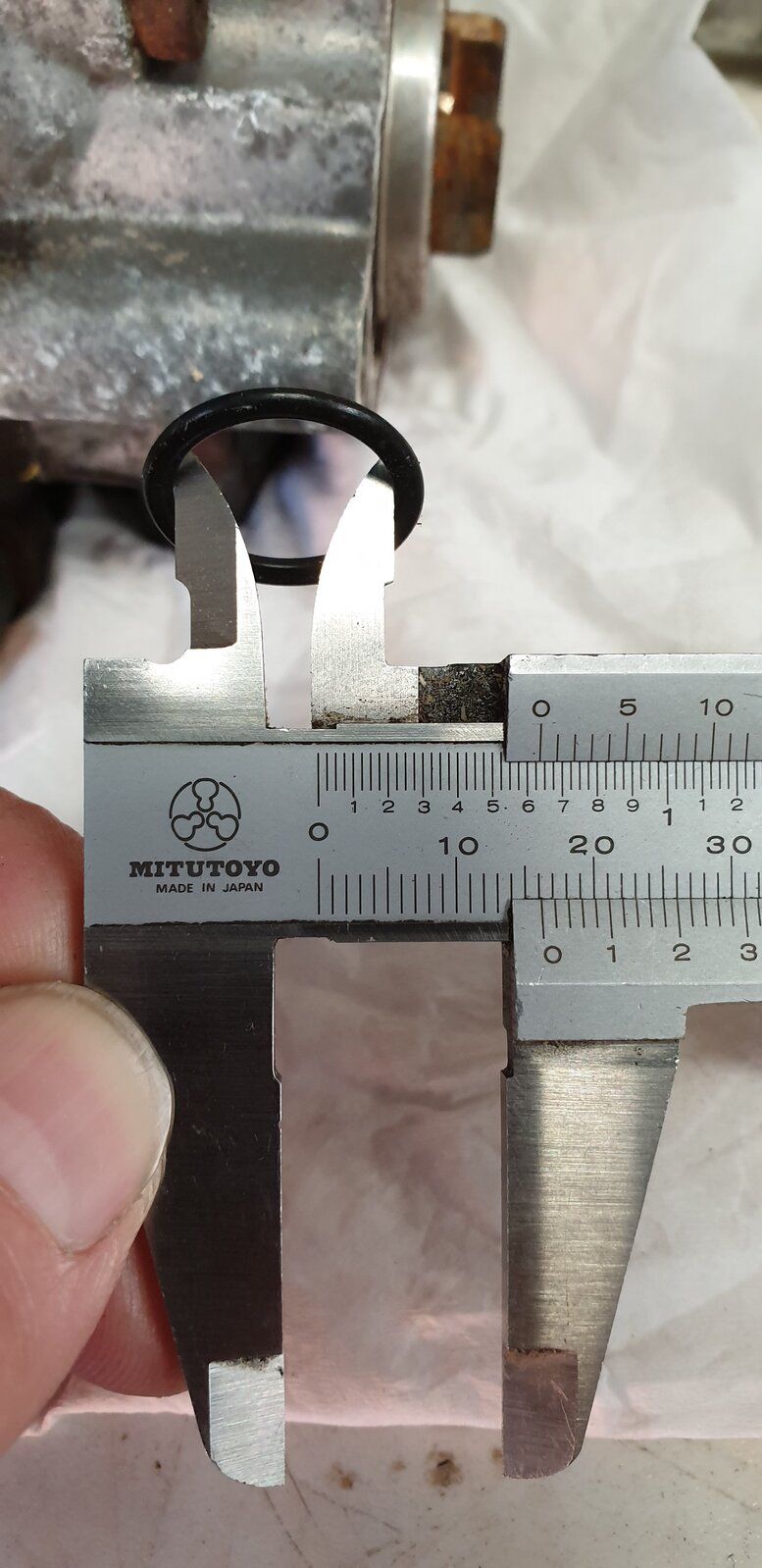

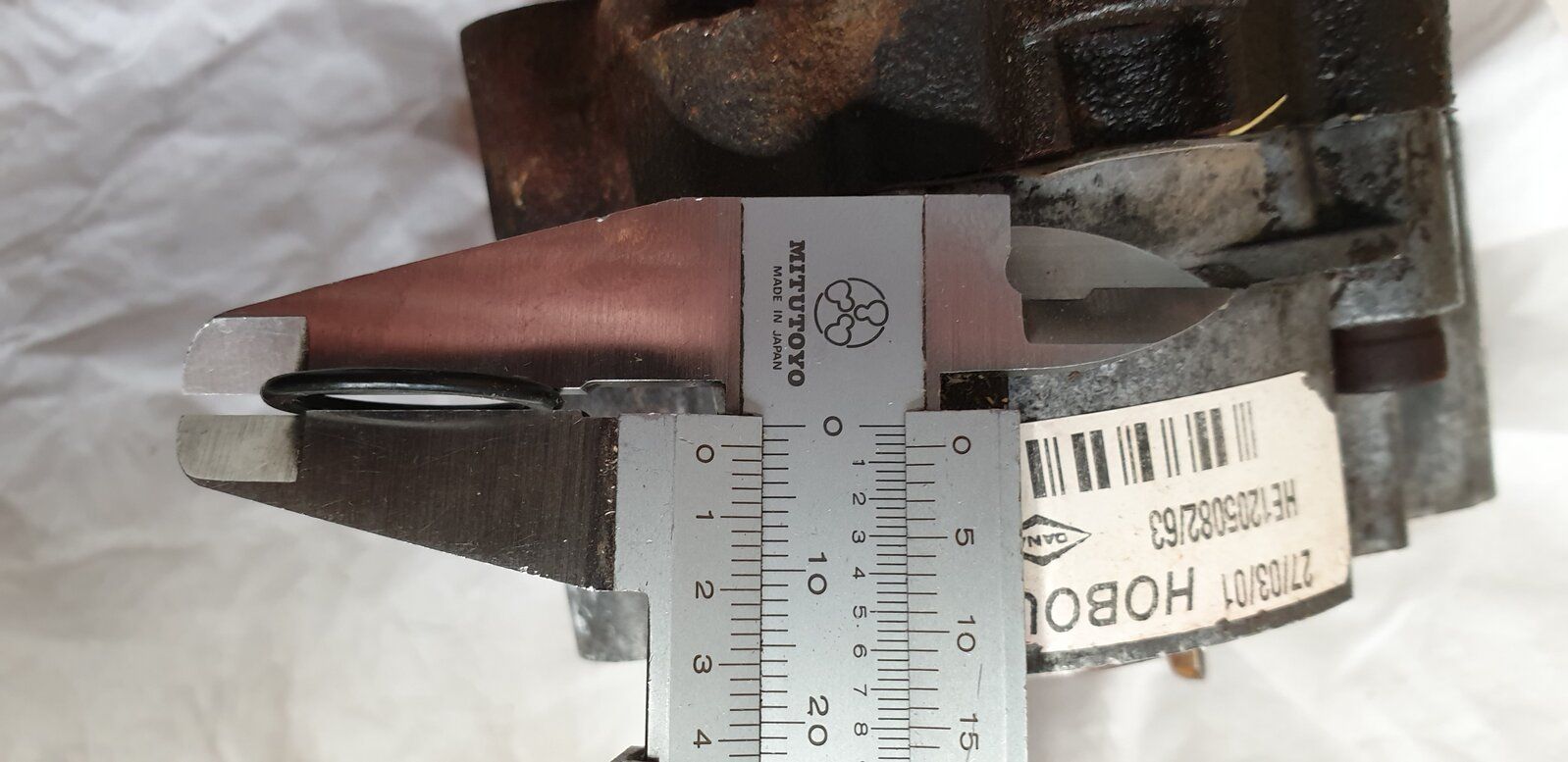

20x16x2 more than likely taking my rough measurements into account lol.
BTW mine & my son's leaked right besides that O-ring at the gasket where the two halves of the pump bolt together. Fingers crossed your's is just the O-ring. Our pumps were £100 each,not genuine of course.

Click to expand...
