P38A Diesel Auxillary Belt Tensioner

Discussion in 'Range Rover' started by Lukas018, Jun 5, 2020.

< Previous Thread | Next Thread >
  1. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Evening All,

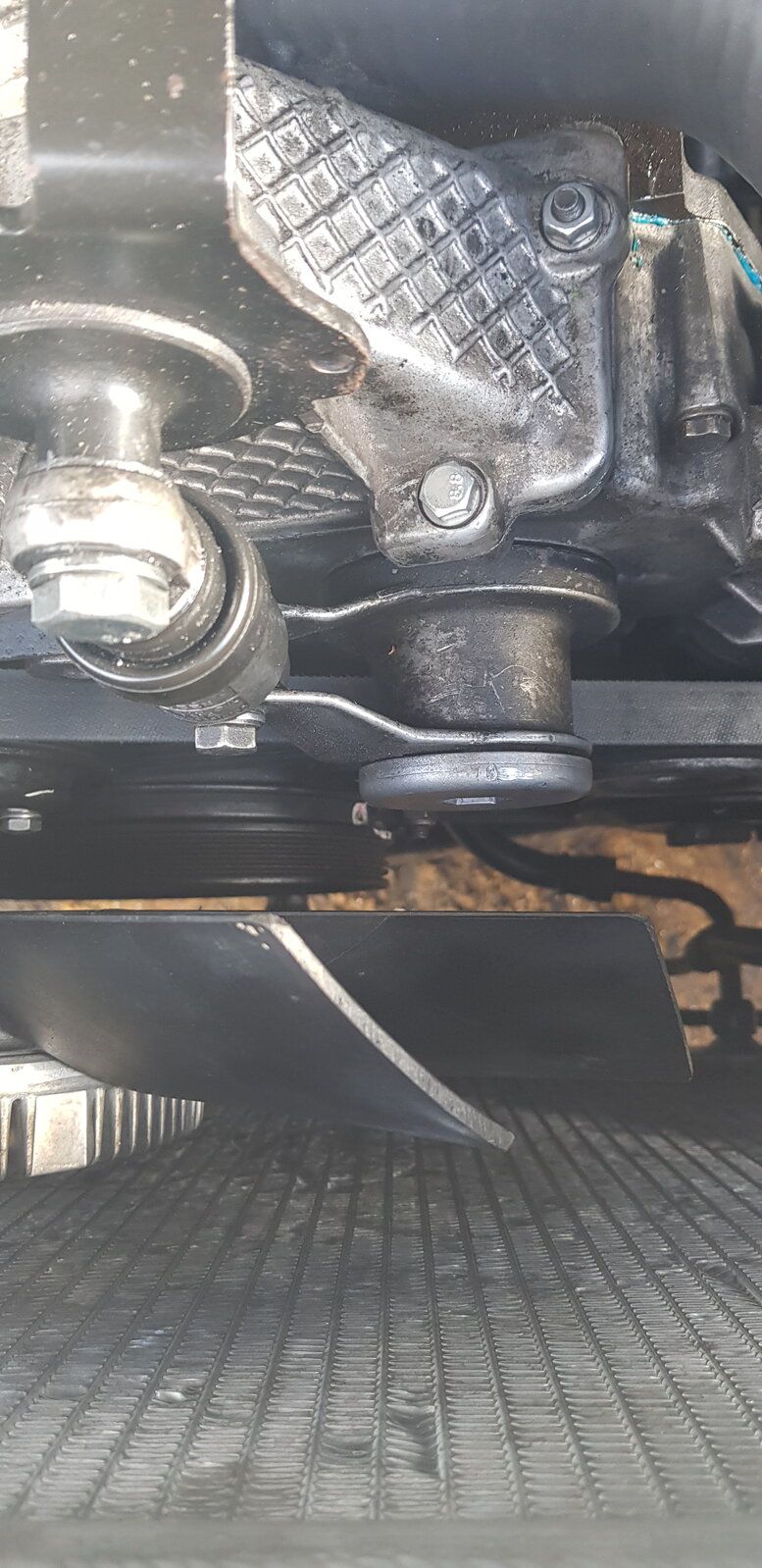

    I noticed when my engine was running the tensioner and arm were rocking up and down, more than I like, looks like there is too much movement between FIP cap and the arm, see photo.

    I torqued the cap to RAVE if go any further will crack it like I did the last one.

    Is there a washer or something that holds the arm in tighter or is the tensioner worn as I renewed it about a year ago?

    Thanks,


    Attached Files:

  2. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    It does move/pivot on the axis.
    tensioner shouldn’t be duff after a year? Cap shouldn’t be too tight, something may be jamming causing it to catch - I’d take belt off (careful with the fulcrum) and feel all the spinny bits like idlers/pulleys/pump see they are turning smoothly

  3. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    @RangeRoller dt thanks mate must be me will check it again.

    On another note the blowers when on full blast probably only got about 70% power on full blast it went full blast for a second and cut down in power. The HEVAC is new seems like where they not run for a while or is it them bloody white connectors in drivers footwell? I need to cut them out and wire them direct.

  4. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,884
    Location:
    Near Poitiers SW France
    Fan speed is reduced when the coolant is cold.

  5. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    Another thing worth mentioning, which has different views, is wether the tensioner should have oil in it like a ram. I’ve seen ones that say ‘keep this way up’ On them and mine had oil in it (but everything did after going upside down).
    I 3/4 filled mine with 10w40 I had for the engine when I stripped it all

    Grrrrrr likes this.
  6. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,884
    Location:
    Near Poitiers SW France
    I think they are like a spring loaded damper

  7. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    This was when the engine was warm mid-way on gauge left running for 20mins so I can do last stage of head bolt tightening. Air temp was ok. Think while car just needs good run.

  8. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    My one had that 'this way up'. From what your saying shall I remove it and check oil in it?

  9. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    I decided oil wouldn’t hurt anything but no oil would if required.
    I’d definitely take it off and check it shouldn’t be bouncing about and you may be covered for replacement (spare) if it fails before it’s time

  10. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Ok mate I will have a proper look and belt came loose a couple of times before thinking about it so gota go back through when I bought it.

  11. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    13,182
    Likes Received:
    6,536
    Location:
    heathrow
    The arms are known to crack and can cause the belt to come off.

  12. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    I renewed that as my old one snapped when I changed the belt.

  13. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    13,182
    Likes Received:
    6,536
    Location:
    heathrow
    Ok that rules that out then:D

  14. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,252
    Likes Received:
    659
    Location:
    Cornwall
    I had a similar problem and it was the little bushes on the ends of the tensioner were very worn. Well I dont know how old the tensioner was either so it probably had little dampening effect left in it. It was so bad that occasionally at start up the tensioner would pivot over centre and stay released.

    Lukas018 likes this.
  15. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,252
    Likes Received:
    659
    Location:
    Cornwall
    RangeRoller dt and Lukas018 like this.
  16. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    :p:D will take it off at some point think tensioner has had it

  17. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    I remember that :D
    is worst I’ve seen.

  18. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,644
    Location:
    Preston Lancs.
    The belt tensioner does tend to appear bounce a little as it takes up the run out on the crank vibration damper. Or as the belt is loaded and unloaded. That is quite normal. What is not normal is if it moves to excess, then you need to be looking at the state of the crank damper. Plus your engine will not be cooled properly with a missing fan shroud.

  19. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    +1 I tried few unorthodox methods to increase cooling, (removing acoustic shielding to help hotstart was the one that made Wammers chuckle) removing the fan shroud had a negative effect. Just kicks the air about instead of pulling it through. Some have little flaps on the sides too

    That reminds me - I never got round to drilling holes in the grille :eek::)

  20. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Ok movement is not excessive.

    Fan shroud yes it is important but my one has cracked and degraded so ordered a new one. Car not being driven as needs mot and track rod end.

    How would you diagnose faulty damper apart from excess movement on the belt?
