Confused

KarelP38 · Oct 17, 2012

Hi

I need help PLEASE.

I've done the shims on my 83 Classic. (Preload on the front diff)

I still get the shudder.

Can it be the steering, as I do have a bit of play.

What else can it be?

Saint.V8 · Oct 17, 2012

Not teaching to suck eggs,

You did preload correctly as the early models and later models with and without ABS differ in the preload amount.

KarelP38 · Oct 17, 2012

I hope so. The instructions that I got off the net said 16 pounds.
Mine is OLD, so non ABS.

Saint.V8 · Oct 17, 2012

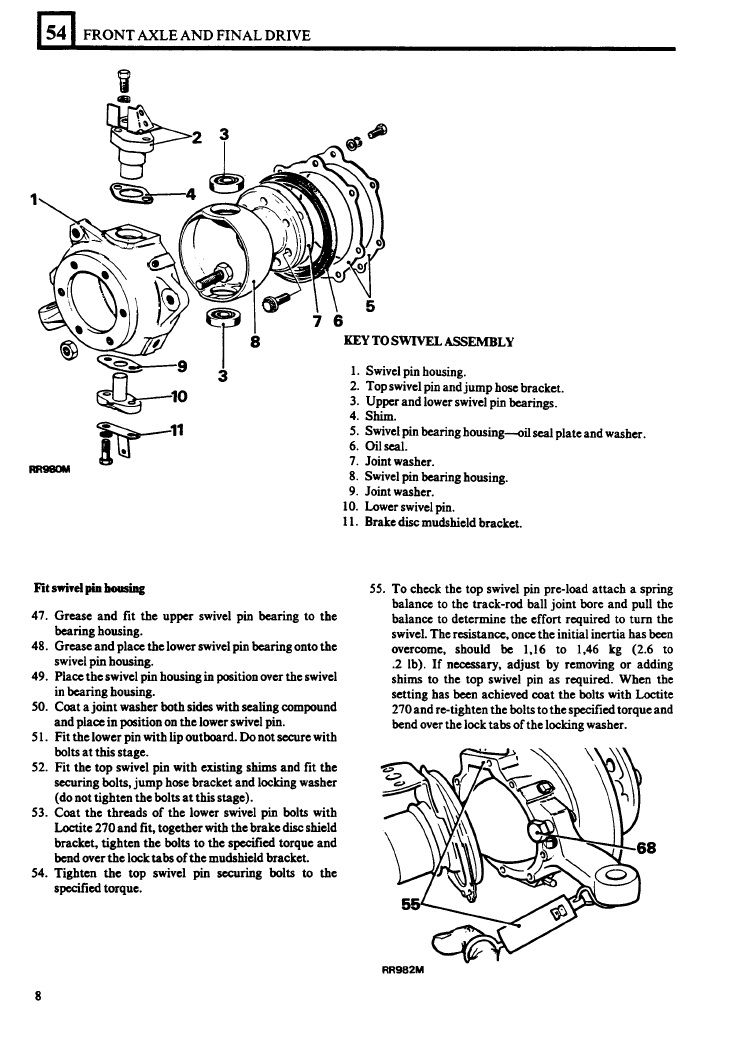

The earliest manual I have is for the '86 pre ABS model and that sets a preload way lower at about 2.6lbs pull without any of the steering arms attached.

wammers · Oct 17, 2012

Someone says diff pre load. Someone says ball joint bearing pre load which one is it?

jamesmartin · Oct 17, 2012

preload on swivel bearings is only 1kg or 2-3 lbs on swivels with a bearing top and bottom as rrc is 16 lbs will bugger the bearings and feel odd

wammers · Oct 17, 2012

Think he has got confused with pounds feet and inch pounds. 16 in lbs would be ok. 16 lb ft ain't.

KarelP38 · Oct 17, 2012

I think I'm a complete bloody idiot. I never did the bottom one. Always just did the top one.:frusty::frusty::frusty::frusty::frusty::frusty::frusty::frusty:
