Disco 2 Clutch replacement - Expert Advice needed please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
john snoo said:
I am confused to feck! It even says FTC4247 on it and so does the pic on BritCar, but they list it is 4622, but that might help me find one thanks! At those prices, it's a no go!

Stan - Ha , thats the kind of nitpicky I like! But I have no effing clue! I don't think so, looks like gouges caused by having no selector yoke bush in there for yonks. but you could be right, and of course I am worried now, so thanks for that :D
Click to expand...
gouges can be welded up then ground smooth with angle or bench grinder, its the reverse switch that causes it and eventually the wear stop the switch working
numbers written on parts are generally superceded in the yokes case to ftc4622 though you only need cage and snap ring,ill have some secondhand parts and yokes if you struggle finding them

Thanks for that. Not sure what you mean though when you say i only need 'cage and snap ring'. if you mean the yoke selector bush and snap ring, I have those. But the wear on the nipple (squared off instead of round) and the other wear concerns me. But it maybe shouldn't. Maybe I am better asking the question...

If I just file the nipple a tiny bit, just enough to make a it a bit more rounded where its worn square, and replace bush, will it drive nicely again?

I have no way to know how much difference it would feel on the gear change between the two options:

A) file and replace bush
B) replace whole yoke with new

If you have a yoke and its in better nick than mine I might buy one from you, is it easy for you to check if you have the same yoke as mine there in good usable nick?

thanks again

john snoo said:
Thanks for that. Not sure what you mean though when you say i only need 'cage and snap ring'. if you mean the yoke selector bush and snap ring, I have those. But the wear on the nipple (squared off instead of round) and the other wear concerns me. But it maybe shouldn't. Maybe I am better asking the question...

If I just file the nipple a tiny bit, just enough to make a it a bit more rounded where its worn square, and replace bush, will it drive nicely again?

I have no way to know how much difference it would feel on the gear change between the two options:

A) file and replace bush
B) replace whole yoke with new

If you have a yoke and its in better nick than mine I might buy one from you, is it easy for you to check if you have the same yoke as mine there in good usable nick?

thanks again
Click to expand...
pins replaceable ftc1488
ill have a look tomorrow

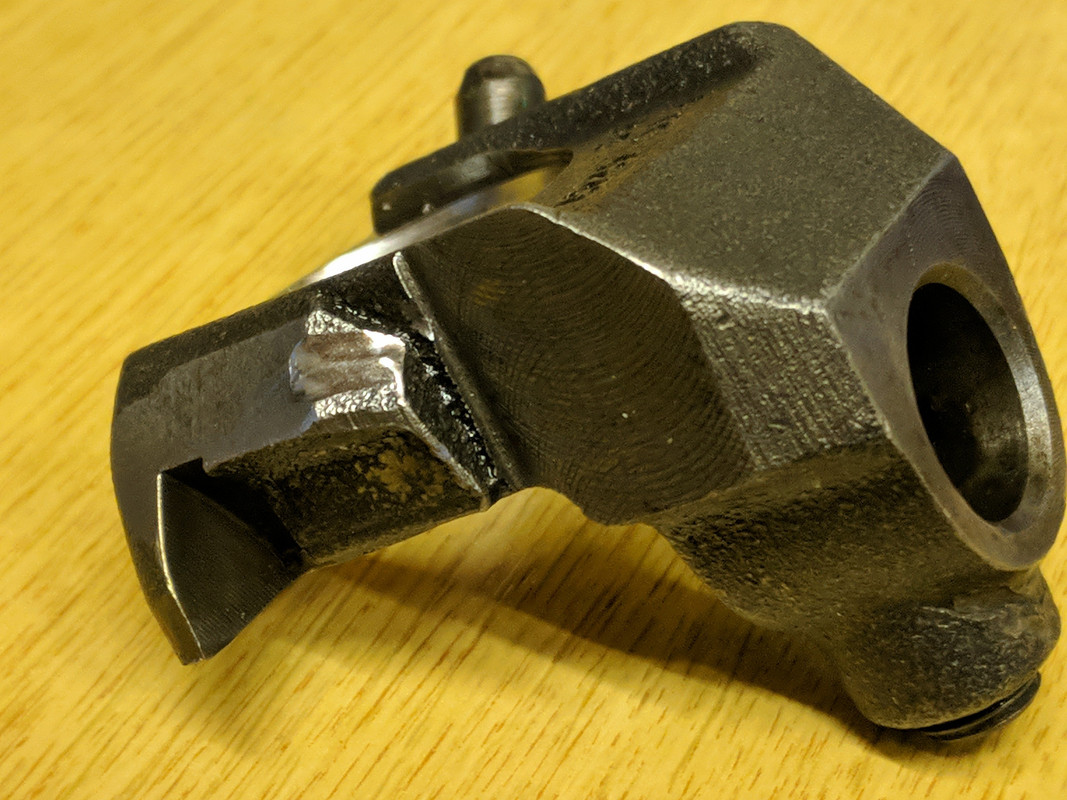

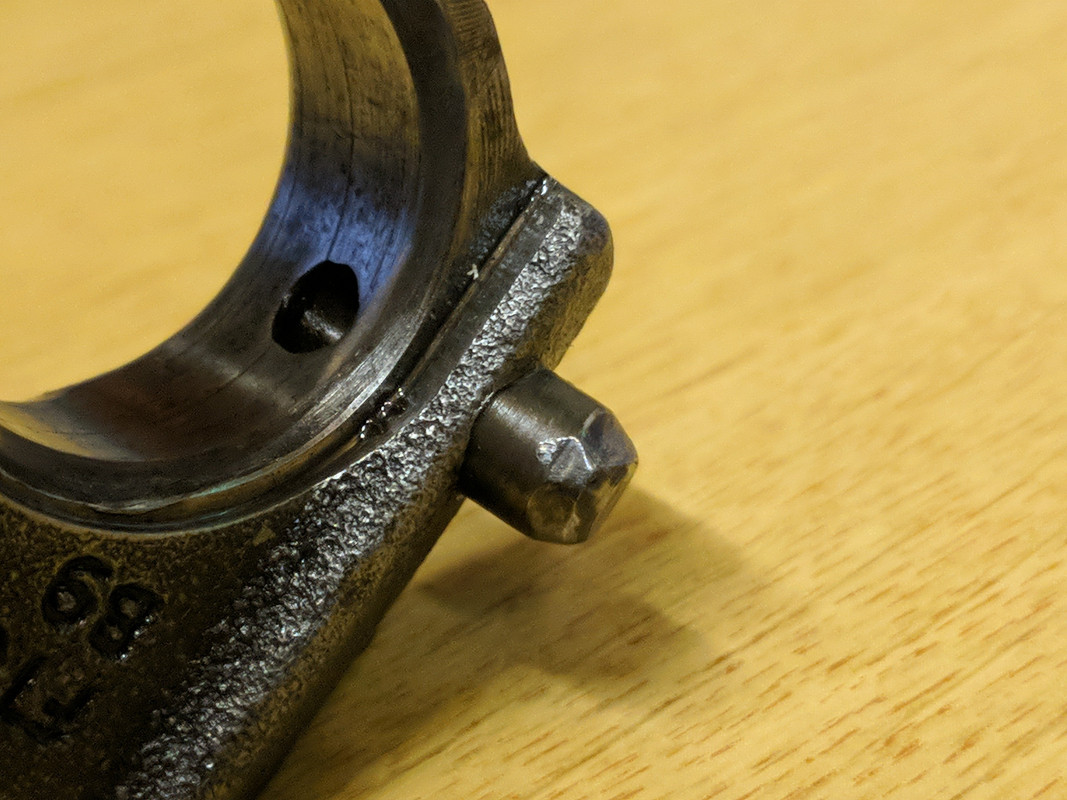

Better pics may help. Nipple below, if anyone knows how to replace that I would be grateful for a hint. No idea how it is removed or new one fitted.



This shows wear better, I see now (thanks jamesmartin). So that has worn against the reverse switch, just went and looked and i see that switch now, didnt notice it before.
Important question is, is this worn enough that it should be replaced or not? (I dont have a welder, it went bang a while back)

PS if anyone in the know reads this and thinks I am fussing over nothing, please shout. I really have no clue, I just see wear and think it needs replacing. Never opened top of gearbox before and not exactly and engineer so no idea how much impact this stuff actually has. if not much, i could just replace the bush, file the nipple a tad and let it fly as is.

jamesmartin said:
pins replaceable ftc1488
ill have a look tomorrow
Click to expand...

Just a reminder, unless I can find out how to replace the pin I will definitely be on the lookout for an FTC4247 if you have one. Please let me know if you get a chance to check. Thanks

Thanks, how would new one go in, just tap or some kind of glue...?
Still interested in the yoke if you come across one,. thanks

ok, so friction only and I only need a hammer, no pressing tools? I have a bench vice so maybe I could squeeze it in with that to avoid breaking anything. really don't want to damage that yoke any further considering the price of the new replacements!
Still hoping you have a spare yoke i can buy, will wait to hear. thanks

oh, ha, i was going to double check as I wan't sure. will get proper part number and grab a pin to play with hammer!
please let me know if you have FTC4247
thanks for help
