Clutch arm bushings

Is a replacement available for the nylon bush in the clutch release arm? I notives a crack running part-way along the bush in mine.

Also, does the end where the slave cylinder pin fits into have a bush? Mine is quite rusted, but it appears that it is a bush which can be removed. Am I right here, and is a replacement available?

The ball end of the pin is also quite rusty. I could probably do with a replacement pin as well.

Thanks for any info.

try googling 571161

Thanks for that James.

Does anyone know if the end where the pin goes in is a small steel bush or machined as part of the casting?

Also, are replacement pins available?

plastic seat is only replaceable part it other end is worn you need another arm

Does anyone know if the pin that connects the slave cylinder to the arm is easily available as a spare part?

try googling 576203

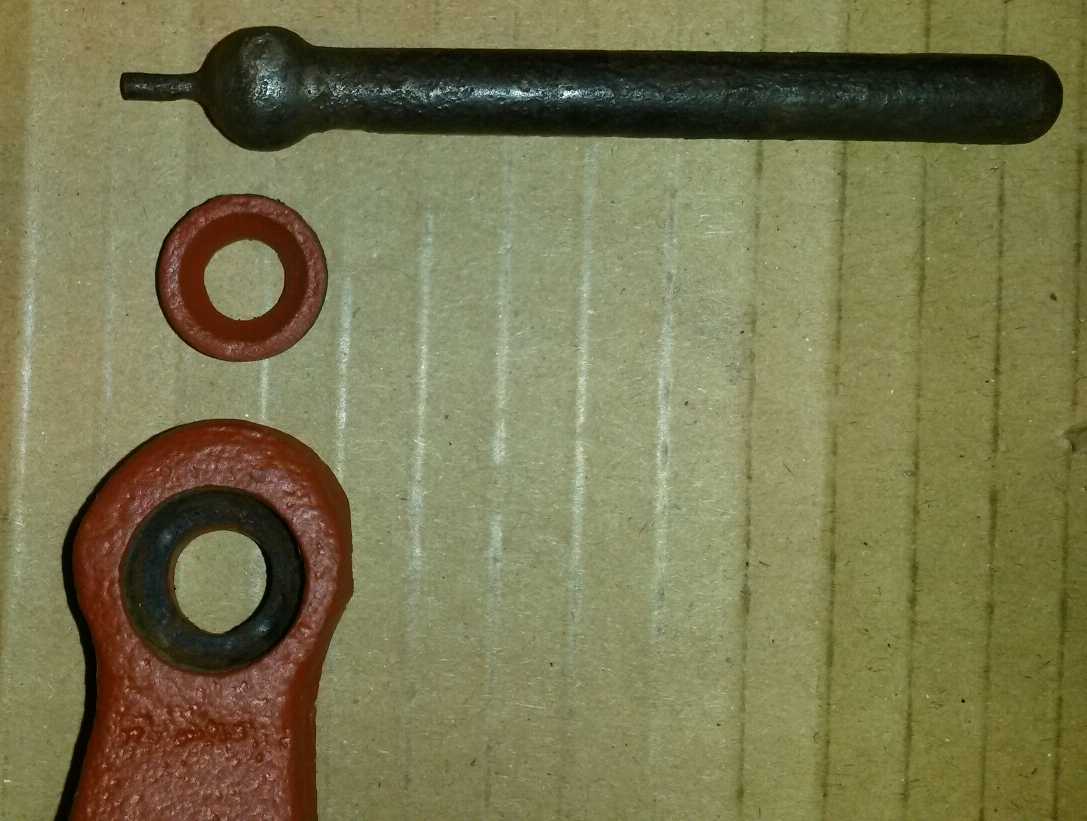

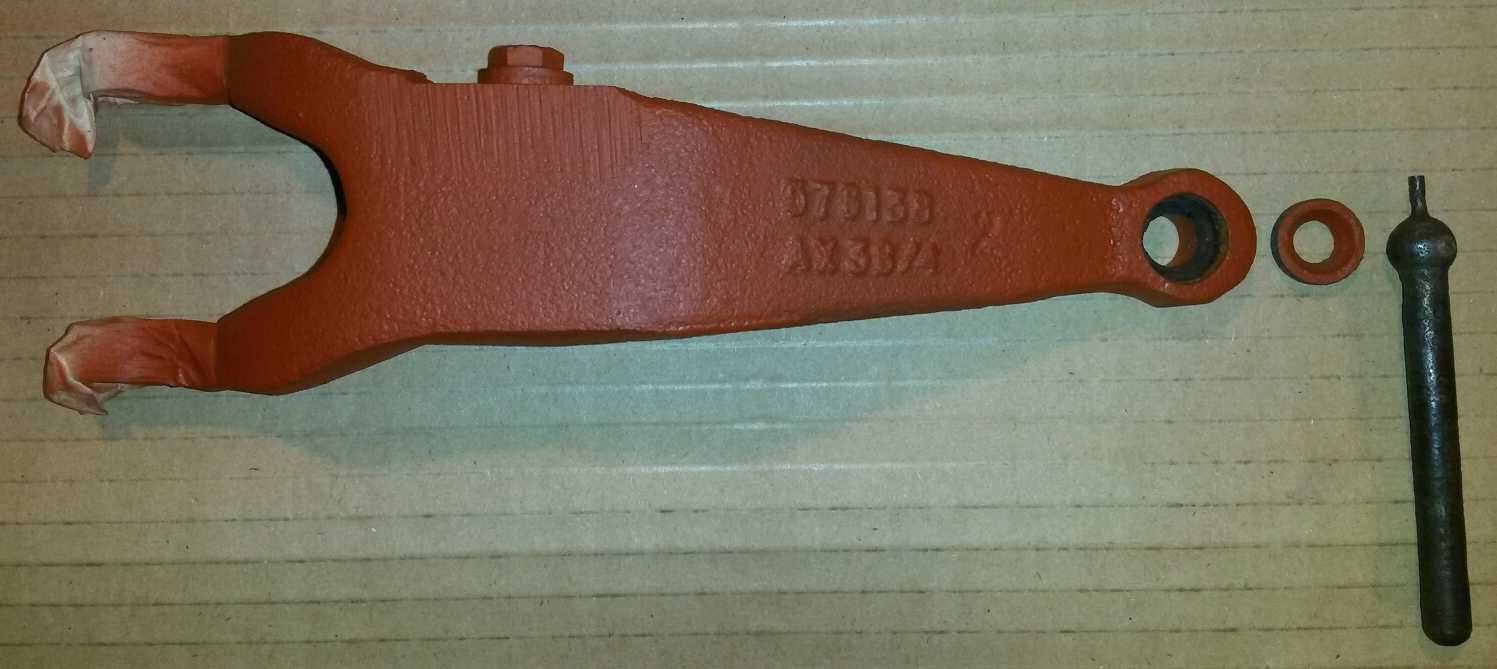

Here are a couple of photos. I have found that the part that the ball end of the pin fits into is a removable steel bush (see photo). If I can't get a replacement I might try turning one from steel bar.

I am looking for a replacement of the pin shown in the photo, not the plastic clip.

The arm looks new as I shot blasted it and gave it a coat of red oxide.

it wont be very hard then ,

pin is 576751 on all but 109 V8
Do a web search for Smithies landrover will bring up a NZ web site of interest.
