Disco 2 Climate control

Si Click

Well-Known Member

Posts

1,506

Location

Lincolnshire

• Oct 31, 2018

• #1

I have a TD5 D2 ES with dual climate control. With 18 degrees set it blows hot air, with 17 degrees set it blows cool air. I'm guessing a fault with the internal air temp sensor, which would be a 10 minute fix.
Is there anyway to diagnose/confirm the fault? Nothing shows on my Hawkeye.



Feathers McGraw

Well-Known Member

Posts

2,780

Location

Cumbria

• Oct 31, 2018

• #2

https://www.landyzone.co.uk/land-rover/discovery-2-heater-self-diagnostics.103487/



brian47

Well-Known Member

Posts

8,867

Location

Bridgend, Mid Glam. Somebody's got to live here.

• Oct 31, 2018

• #3

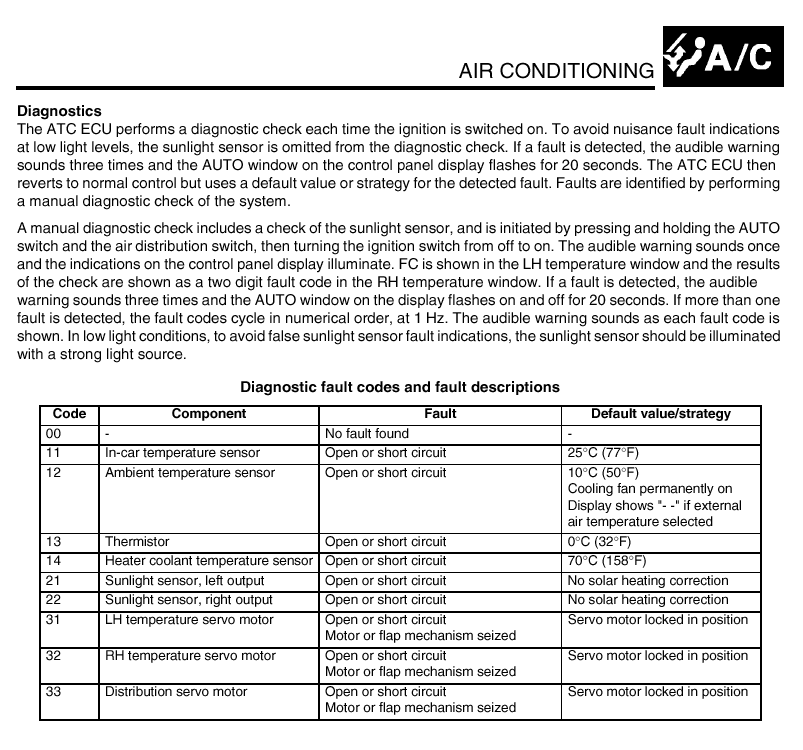

As @Feathers McGraw has shown above, the climate control has a stand alone self test built in.

Whether the climate control blows warm or cool will depend on a number of temperature inputs and settings to the system. When set to a particular temperature, the climate control will add warm or cool air to the cabin to maintain the interior temperature at the value set.



Si Click

Well-Known Member

Posts

1,506

Location

Lincolnshire

• Oct 31, 2018

• #4

Thanks for the replies. It turned out to be a 15 minute fix. 10 minutes to try to remove the sensor, realise that even if I could get the top screw out, my chances of getting it back in again were vanishingly small, and 5 mins to speculate that the problem was fluff on the sensor, squirt brake cleaner through the grille and test the system. Works beautifully.
