On't drum for shoe adjustment, and under electric window switches for cable adjustment...
Aint got an adjuster on't drum, av felt all round and looked in the place where it is on the defender and there aint one (had a torch) The cable goes into the drum on the disco on the passenger side so maybe I'll look under the switches as that may be the only one.
Ta, never thought of lookin there.
GRATCH
HUGE MEMBER
- Posts
- 15,501
- Location
- North Cheshire
on my d1 it's at the bottom of h/brake back plate in a recessed bit, looks just like a 17mm bolt head
stretchie_
Active Member
- Posts
- 476
- Location
- Gloucester
Oh right, my 98 disco 300tdi has a bolt on the drum (17mm I think) and can get to by getting on my hands and knees at the drivers door.
lerk
New Member
- Posts
- 1,763
- Location
- Creswell, Derbyshire UK
From RAVE...
CHECK SECURITY AND OPERATION OF PARK
BRAKE
Parking brake adjust
1. Select a gear or ’P’ in main gearbox.
2. Chock road wheels.
3. Release parkbrake lever.
4. Remove switch panel from centre console.
5. Underneath vehicle, rotate brake adjuster
clockwise until brake shoes are fully expanded
against drum.
6. Back off adjuster until drum is free to rotate.
7. Rotate adjustment thumbwheel below parkbrake
lever until parking brake is fully operational on
third notch of ratchet.
NOTE: Cable adjustment must ONLY be
used for initial setting and to compensate
for cable stretch. It MUST NOT be used to
take up brake shoe wear, which MUST be adjusted
at brake drum.
8. Operate parking brake to settle shoes. Recheck
parkbrake is fully operational on third notch of
ratchet. Readjust if necessary.
9. Refit switch panel.
CHECK SECURITY AND OPERATION OF PARK
BRAKE
Parking brake adjust
1. Select a gear or ’P’ in main gearbox.
2. Chock road wheels.
3. Release parkbrake lever.
4. Remove switch panel from centre console.
5. Underneath vehicle, rotate brake adjuster
clockwise until brake shoes are fully expanded
against drum.
6. Back off adjuster until drum is free to rotate.
7. Rotate adjustment thumbwheel below parkbrake
lever until parking brake is fully operational on
third notch of ratchet.
NOTE: Cable adjustment must ONLY be
used for initial setting and to compensate
for cable stretch. It MUST NOT be used to
take up brake shoe wear, which MUST be adjusted
at brake drum.
8. Operate parking brake to settle shoes. Recheck
parkbrake is fully operational on third notch of
ratchet. Readjust if necessary.
9. Refit switch panel.
No bolt heads whatsoever on the backplate, just the cable disappearing into the drum
- Posts
- 14,902
- Location
- Doncaster
Aint got an adjuster on't drum, av felt all round and looked in the place where it is on the defender and there aint one (had a torch) The cable goes into the drum on the disco on the passenger side so maybe I'll look under the switches as that may be the only one.
Ta, never thought of lookin there.
Mines is a 97 disco and it has one just a nut head sunk into the back plate, dont adjust them too much tho or it could pick up on reversing.
GRATCH
HUGE MEMBER
- Posts
- 15,501
- Location
- North Cheshire
take a piccie to show us
lerk
New Member
- Posts
- 1,763
- Location
- Creswell, Derbyshire UK
Richard Martin
Well-Known Member
- Posts
- 1,371
- Location
- Cardiff
have you scraped all the mud off? may be it's buried
GRATCH
HUGE MEMBER
- Posts
- 15,501
- Location
- North Cheshire
GRATCH
HUGE MEMBER
- Posts
- 15,501
- Location
- North Cheshire

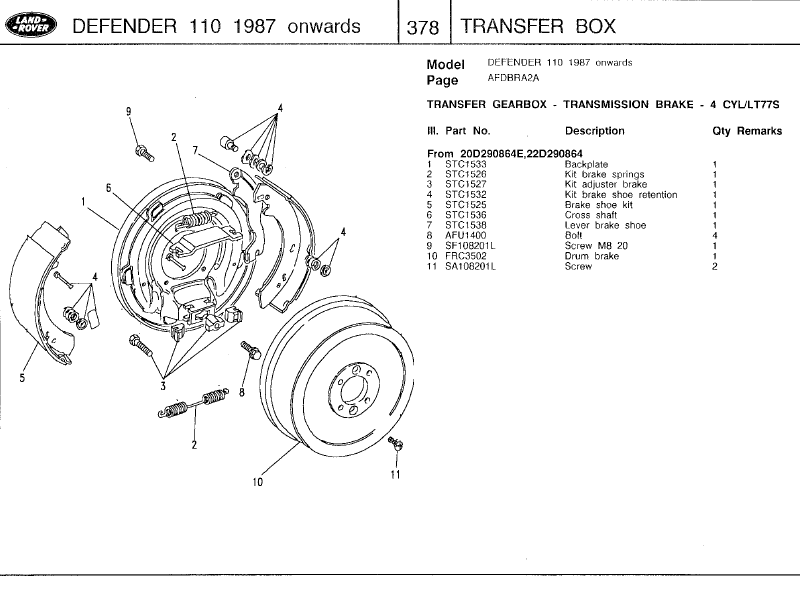

reet have a look here, i know it's fer a 110 but it's the same as me disco
items number 3
items number 3
You do realise the backplate is facing forwards?
Yup, been under today with the back end on stands and greased the prophafts, also had the front up and a lamp on it, cant find an adjuster. I'll have a look Mon or Tues..
No mud on it or oil tis nice and clean
Now dont be callin me photographic skills an all, yer cant be good at everythin
Attachments
reet have a look here, i know it's fer a 110 but it's the same as me disco
items number 3
Thats it but..
The cable comes in at a different place on mine, it's at the bottom nearside looking from the front with yer head restin on a greasy diff. And it come in at an angle, Maybe mine's an early one or maybe I need to go to specsavers.
GRATCH
HUGE MEMBER
- Posts
- 15,501
- Location
- North Cheshire
i'd wait till the fogs lifted before you look again, might find it then landowner
discool
Well-Known Member
- Posts
- 13,620
Went to adjust the handbrake on me Disco 1 today and tint the same as the defender so I'm at a loss.
Cant find a big nut anywhere and it annoys me cause it comes up too high.
Where is it please....??
If your hand brake is rod operated then you won't see a nut that's only for cable operated hand brakes. Instead you will see a round rubber grommet which must be removed to adjust the brake internally.
GRATCH
HUGE MEMBER
- Posts
- 15,501
- Location
- North Cheshire
right, this is a view looking toward the rear of my disco, the bolt head centre of pic is my adjuster
tranny box top, handbrake cable top right
tranny box top, handbrake cable top right
