Cant find the inertia switch
- Thread starter Heathereviemay
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
sierrafery
Well-Known Member
- Posts
- 17,905
- Location
- Arad/Romania

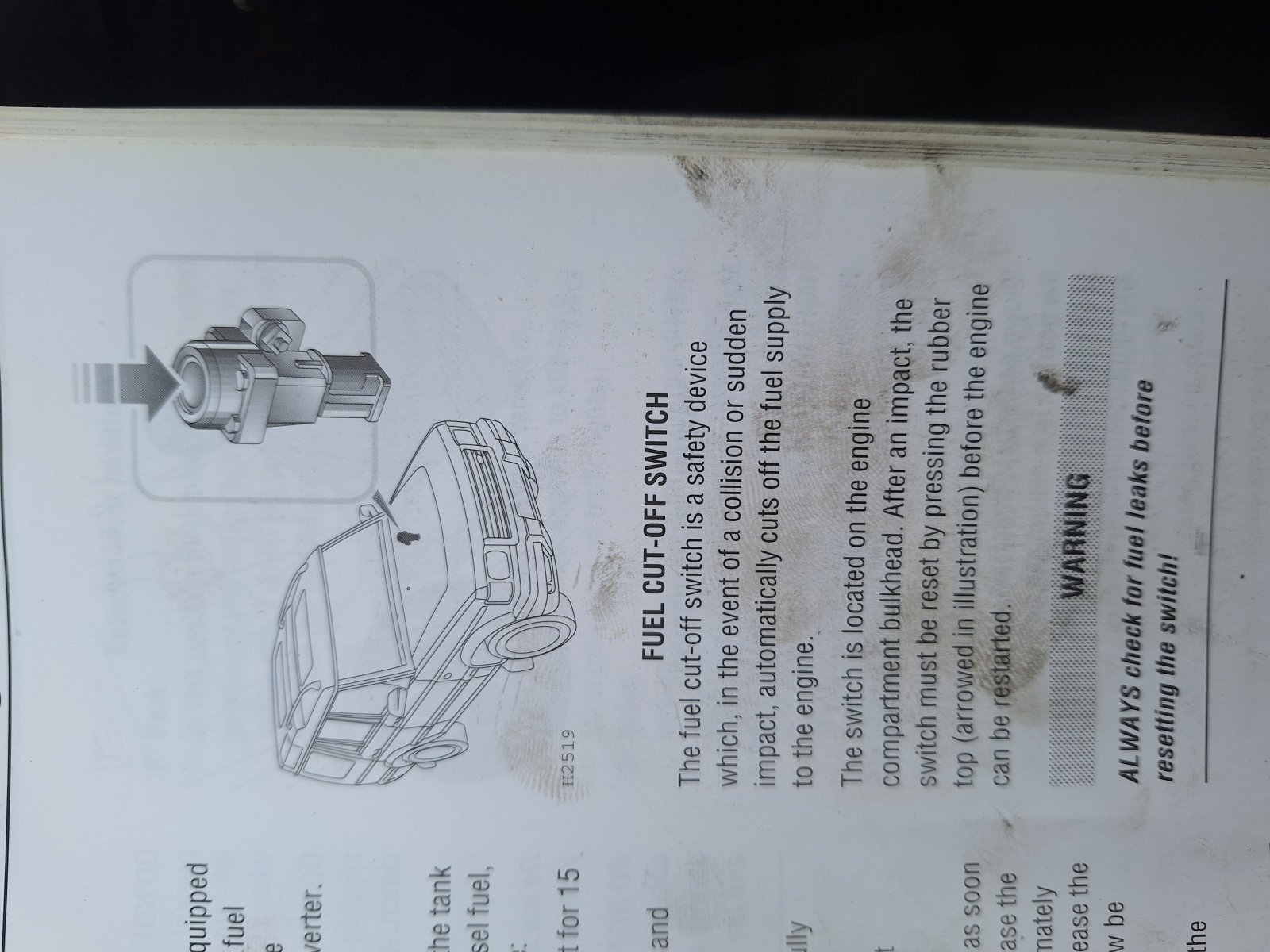

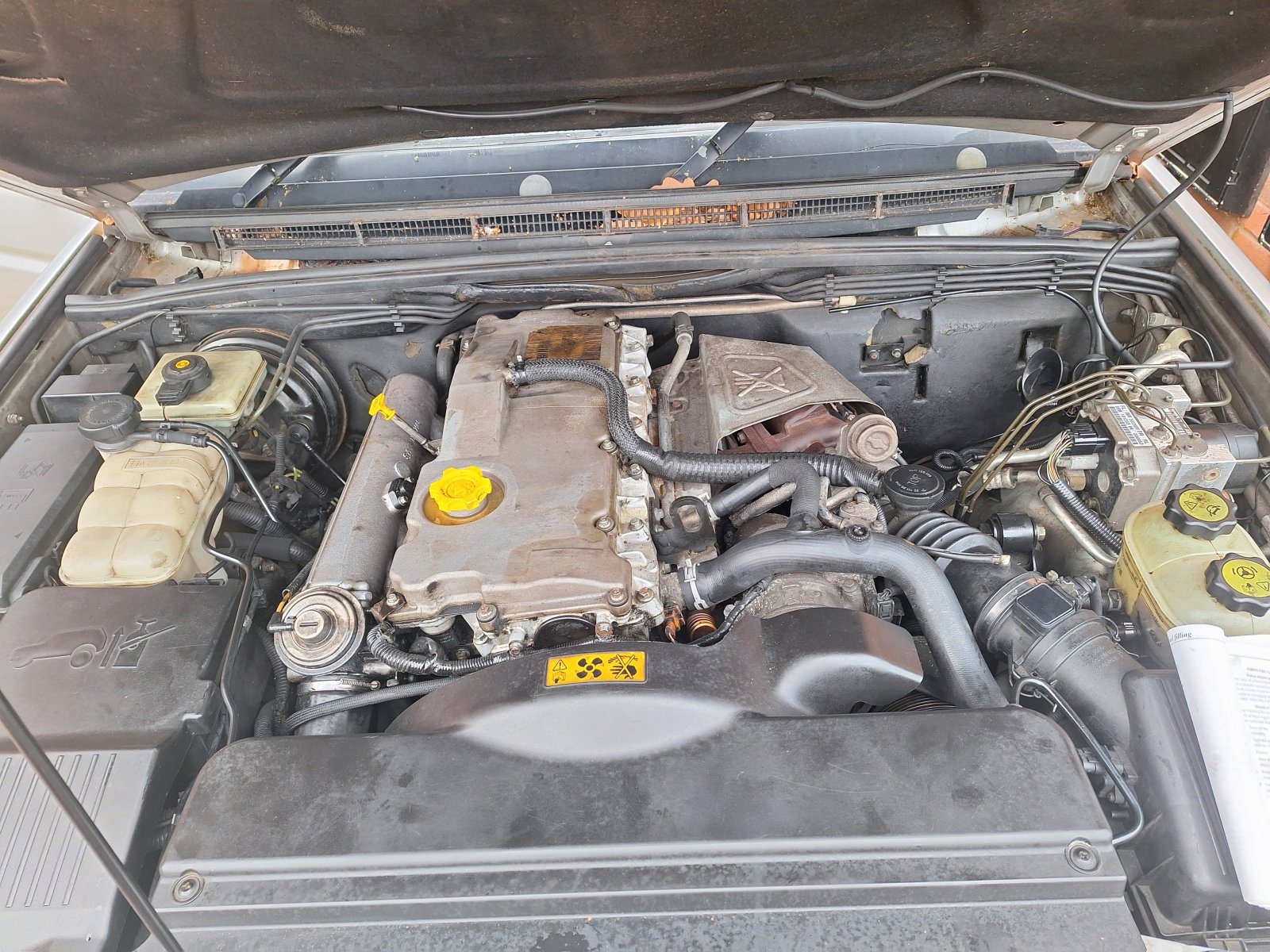

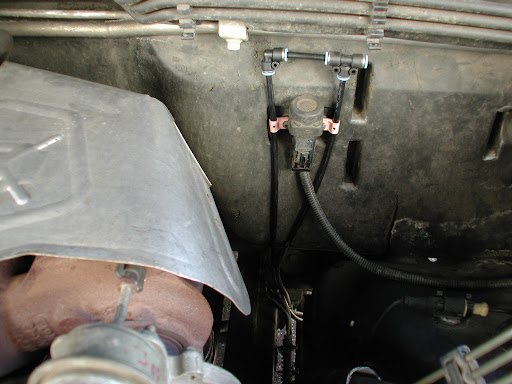

Should be where those two bolts are on the firewall abeam the turbo, neglect those pipes around it in the pic, those are retrofitted... seems that the PO bypassed it or relocated it. If it was the cause of your problem the hazards would have came on with ignition on 2... aamof what made you search that switch now? .... the fuel pump is completely silent when you turn ignition on or what?
Heathereviemay
Member
- Posts
- 14

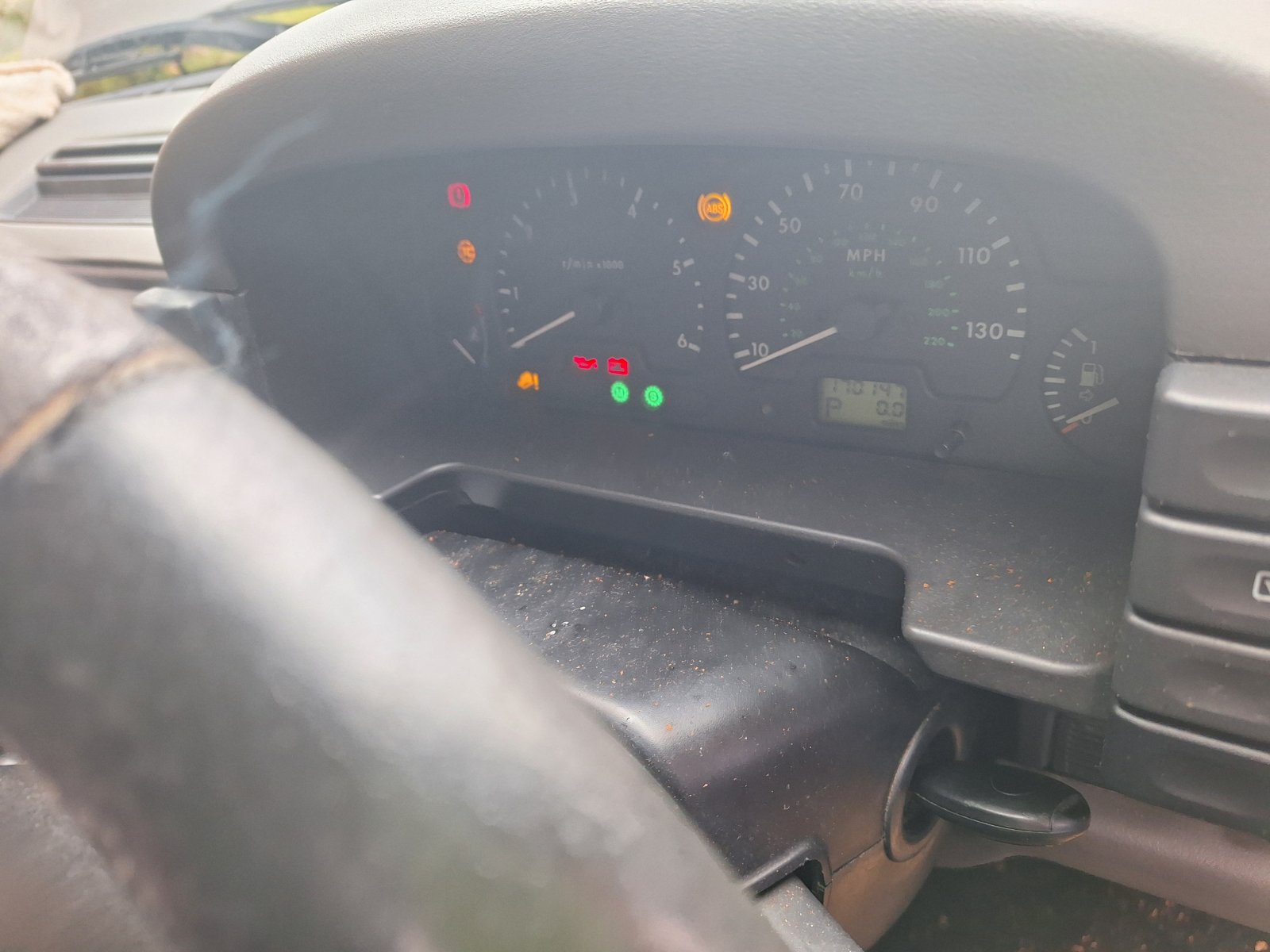

Thankyou for your reply. Yes the hazards do come on constantly. I don't have that switch on the back firewall and I can't locate it anywhere. The bracket is on there but like you said it looks like the original owner may have moved it. Thankyou.
sierrafery
Well-Known Member
- Posts
- 17,905
- Location
- Arad/Romania
If the pump is silent too then it seems that the circuit of the inertia switch is interrupted, search for a thin loom which comes out from beneath the fusebox toward that area, maybe it's hanging there... if you don't find it remove relay R9 and bridge the perpendicular cavities(where the contact goes) with a piece of wire, that will emulate the closed switch, then crank it for test
Last edited:
saxavordian
Well-Known Member
- Posts
- 9,346
Depending on the length of the cable to the switch button. Might be inside the passenger cubby box or shelf area. Could be used as a extra security measure like a cut off switch key. Can't think why you would disengage a vital unit.
