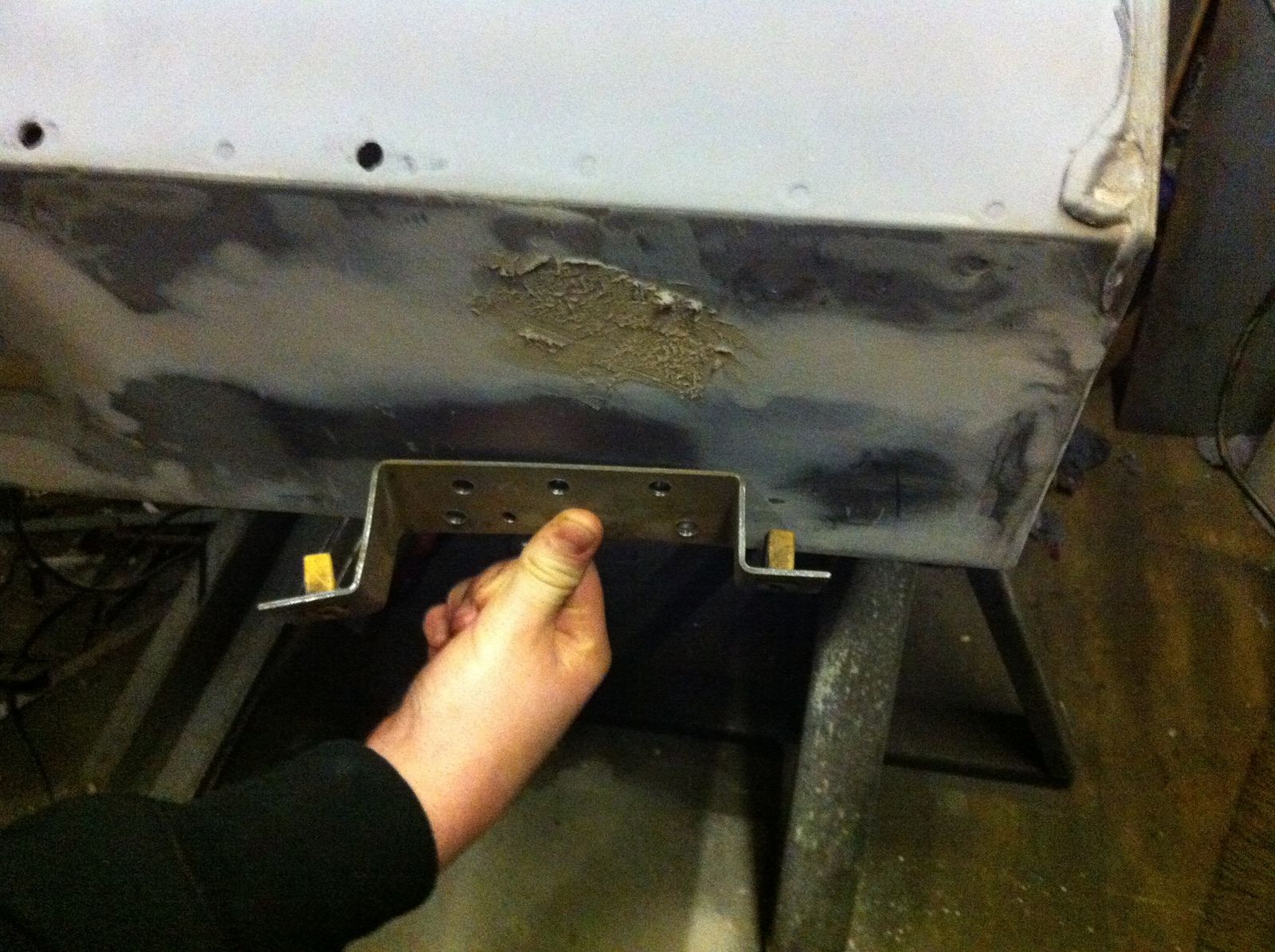

Hi, I'm new to the forum and in the middle of a full rebuild of a 1991 90 200tdi. At present i'm working on the bulkhead and after taking great care removing the bracket on the passenger footwell and taking the measurement which i have written down somewhere it has vanished. It would be greatly appreciated if anyone can help.
Bulkhead question
- Thread starter Ian1991
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Flossie
Well-Known Member
- Posts
- 10,719
- Location
- Shropshire
The one for the flexy hose for the clutch slave?
Flossie
Well-Known Member
- Posts
- 10,719
- Location
- Shropshire
I can try and measure mine tomorrow for you but the outside of my footwells may not be exactly the same as yours.
I cut mine out completely, made new ones out of thicker steel before having the bh galved.
Can't see it being that far out though, just depends if I can get to measure with all the junk in the way on a running truck.
I cut mine out completely, made new ones out of thicker steel before having the bh galved.
Can't see it being that far out though, just depends if I can get to measure with all the junk in the way on a running truck.
Flossie
Well-Known Member
- Posts
- 10,719
- Location
- Shropshire
I'm sorry, I just can't get at them to measure, too much stuff in the way.
BUT... and I'd forgotten I'd done this....I've bolted mine on after the bh was galved. I do recall (it was 12 yrs ago iirc) that I made it my mission to eliminate as many rust traps as possible.
Those brackets are spot welded on and were very rusty behind which was affecting the footwells. On the footwells themselves, which looked very good, was a ribbed double skin affair spot welded over the footwells to add strength to quite thin metal.
This is a real bad water trap because when I removed these ribbed reinforcements I found extensive rust hidden.
So I made thick single skin footwells to eliminate that problem and bolted those brackets on with stainless bolts.
Sorted!
Consider the same?
BUT... and I'd forgotten I'd done this....I've bolted mine on after the bh was galved. I do recall (it was 12 yrs ago iirc) that I made it my mission to eliminate as many rust traps as possible.
Those brackets are spot welded on and were very rusty behind which was affecting the footwells. On the footwells themselves, which looked very good, was a ribbed double skin affair spot welded over the footwells to add strength to quite thin metal.
This is a real bad water trap because when I removed these ribbed reinforcements I found extensive rust hidden.
So I made thick single skin footwells to eliminate that problem and bolted those brackets on with stainless bolts.
Sorted!
Consider the same?
greyhair
Well-Known Member
- Posts
- 1,303
- Location
- IN MY SHED
hello
I have 100 mm from the end of the foot well to the bracket
same both sides
I have 100 mm from the end of the foot well to the bracket
same both sides
Last edited:
Flossie
Well-Known Member
- Posts
- 10,719
- Location
- Shropshire
Oh yeahhh.... Just noticed this question was posted in the introduce yourself forum.
Naughty boy.
Naughty boy.
blue beasty
Leaks an prone to bits dropping off
- Posts
- 61,310
- Location
- Gloucestercotshirewolds
No worries but specific questions are better asked in the right section....if only because your likely to get more responses
