blue smoke!

Discussion in 'Land Rover Freelander' started by bluegrass, Jan 7, 2017.

  1. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Have a problem. Blue smoke belching out exhaust till engine is hot. any ideas

  2. davidsmith1307

    davidsmith1307 Well-Known Member

    Joined:
    Nov 21, 2014
    Posts:
    1,132
    Likes Received:
    218
    Location:
    Hull
    Thanks for all the clues...
    Year, engine, colour of smoke will help us help you.

  3. Hub

    Hub Active Member

    Joined:
    Feb 14, 2014
    Posts:
    389
    Likes Received:
    28
    Location:
    Along the embankment
    .......is it blue....?

  4. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    15,395
    Likes Received:
    1,041
    the smoke is

  5. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    47,395
    Likes Received:
    4,043
    Location:
    Preston Lancs.
    Burning oil.

  6. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Hi, its a 2006 with a 130,000 on the clock(march, last of the Mk1 series). have kept an eye on the oil level but seems to be stable, but is chewing diesel like it was going out of fashion. Probably on reflection the smoke is more greyish than blue but does leave an oily deposite on the ground.the smoke does disappear when the engine is hot. Iv'e also removed the ego and put in a blanker.

  7. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Sorry guys. Should have told you it's a 2ltr td4

  8. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    When was the crank case filter replaced and PCV valve cleaned? That's the most likely cause of blue smoke in the TD4 ;)

  9. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Is the crank case filter the one at the front of the engine looks a bit like a bottle (or old SU carb shape.) or is this just the oil filter?As you can probably tell i'm pretty new to all of this

  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    No, that's the oil filter. The crank case filter is under the cover on the top of the engine.
    It's built into cam cover.

  11. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Ok , gotcha , that one has been changed for one of the newer bow type so which is the pcv filter then

  12. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    That's the one. It's been done, although I prefer the foam filter myself.

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    Is the oil level correct? If so, when was it last changed?

  14. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Yes, oil level hasn't moved and was changed in july as soon as i bought it as there was no history with the vehicle Which was a bit of a concern
    so i got it checked by a mech but this has only started over the last 2/3 weeks

  15. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    Has the inlet manifold been removed for cleaning recently? If the inlet manifold is coked up, it will draw oil out of the crankcase breather circuit.

    It could be a sign that a turbo seal is beginning to fail.

  16. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    As far as i know the manifold has never been off. As i am new at this game, is it a difficult job to remove

  17. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    No. It's very easy to remove and should really be cleaned out properly every service. The EGR valve causes the inlet manifold to gunk up solid with thick soot. This is the most likely cause of blue smoke, if everything else is OK.

  18. Landydandytd4

    Landydandytd4 Member

    Joined:
    Dec 18, 2016
    Posts:
    96
    Likes Received:
    17
    Location:
    Northumberland
    I changed the pcv valve on mine when it was bleaching blue smoke when cold

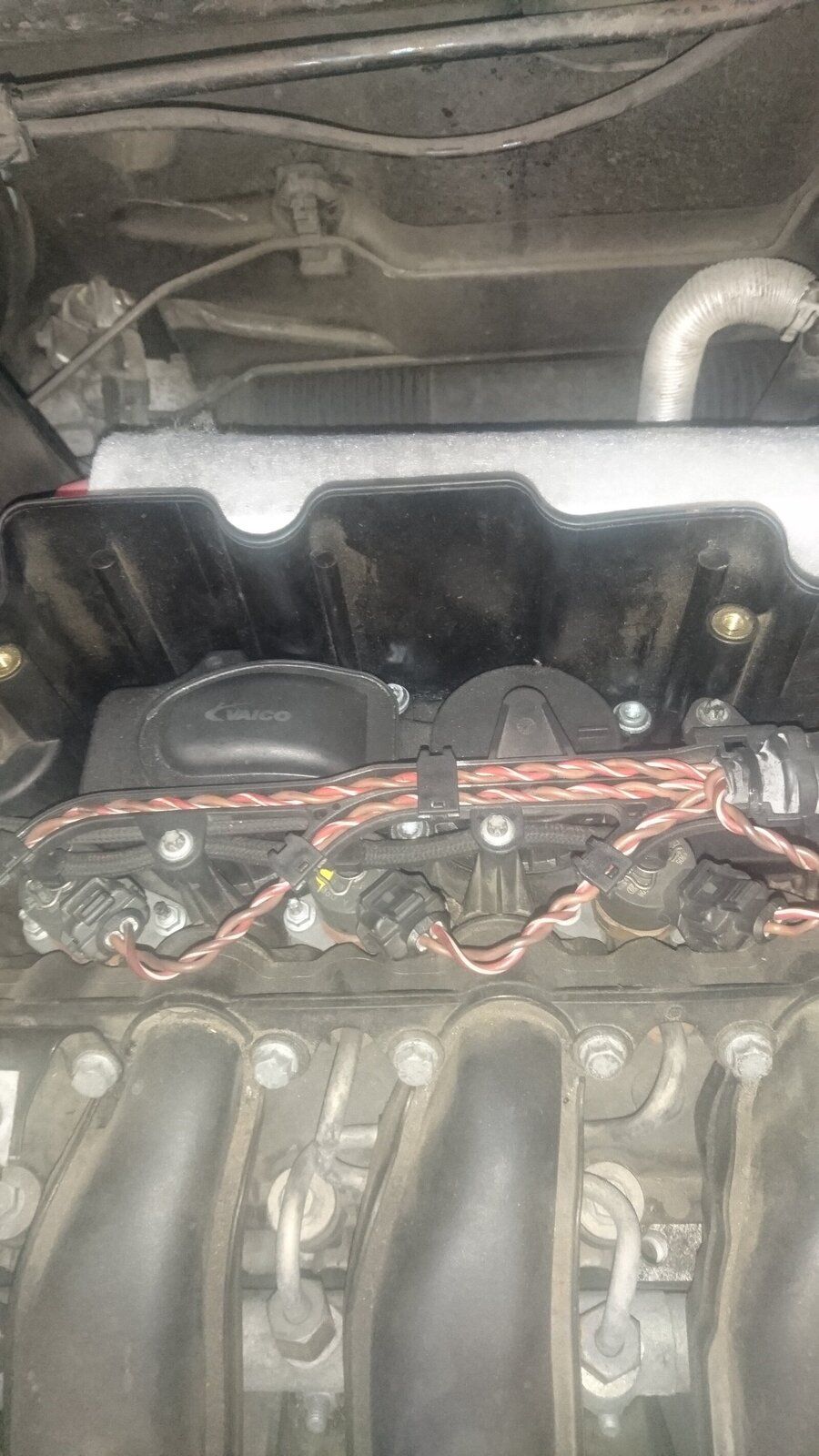

    Picture for help



  19. bluegrass

    bluegrass Member

    Joined:
    Jan 7, 2017
    Posts:
    31
    Likes Received:
    3
    Location:
    teesside
    Hi everyone. Thanks for being so helpful. Will start at square 1 and replace all filters (even though they've been done recently). I think the only filter that wasn't changed is the fuel filter so i'll start with that, then move on to all the other suggestions. will let everyone know how I get on. Thought i wouldn't be doing this after all these years .
    But hey ho, We never stop learning do we!.

  20. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    10,394
    Likes Received:
    1,234
    Location:
    Near Newquay
    Definitely clean out the inlet manifold. I expect it's clogged up, causing the engine to draw on the breather system instead.
