Rotary sponge attachment on a drill!
Bankz's 110 Double Cab
- Thread starter bankz5152
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Been fighting with the ABS trying to sort it all out.

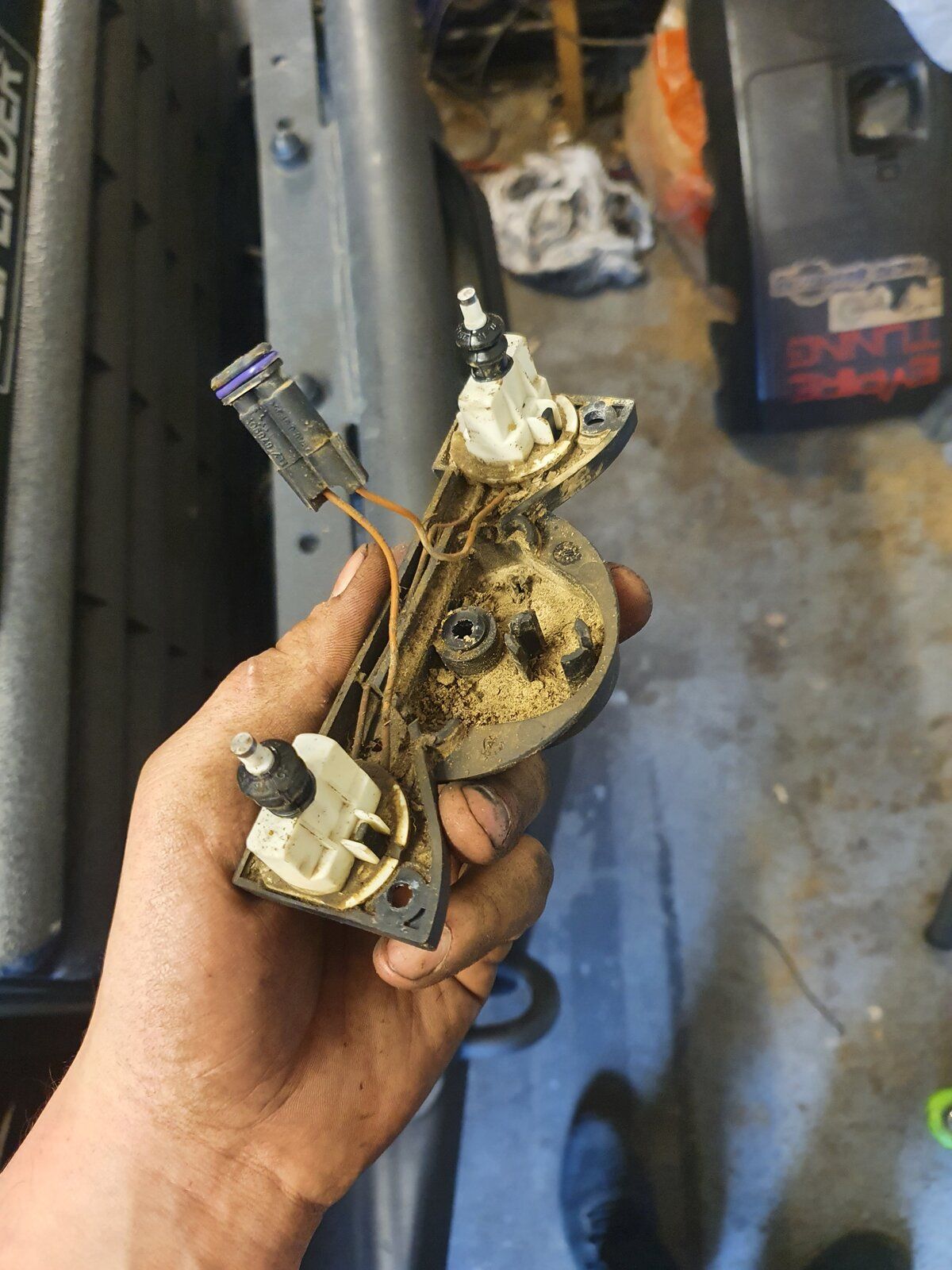

Changed the Shuttle Switch in the modulator, via the air intake hole and wheel arch. Right PITA!
Certainly seen better days, but didnt solve it.
Changed the king pin + new copper cage.
Appears to have solved it! We shall see.
Also finally bought a winch!
Rhino 13,500lbs, should do the job well enough and very cheap for what you get.
Changed the Shuttle Switch in the modulator, via the air intake hole and wheel arch. Right PITA!
Certainly seen better days, but didnt solve it.
Changed the king pin + new copper cage.
Appears to have solved it! We shall see.
Also finally bought a winch!
Rhino 13,500lbs, should do the job well enough and very cheap for what you get.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Got HD OME Springs, only around a year old and Koni HT Raid dampers. Should hold up fine! If not ill get some heavier duty front springs and turn up the damping a bit
- Posts
- 3,867
The winch is only 40Kgs, not that much really.
I have a Goodwinch (Kingone) on mine and have fitted medium duty Terrafirma springs, no sagging.
I have a Goodwinch (Kingone) on mine and have fitted medium duty Terrafirma springs, no sagging.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Took all day but winch is in!
Had to move the spots around a bit to get it to fit.

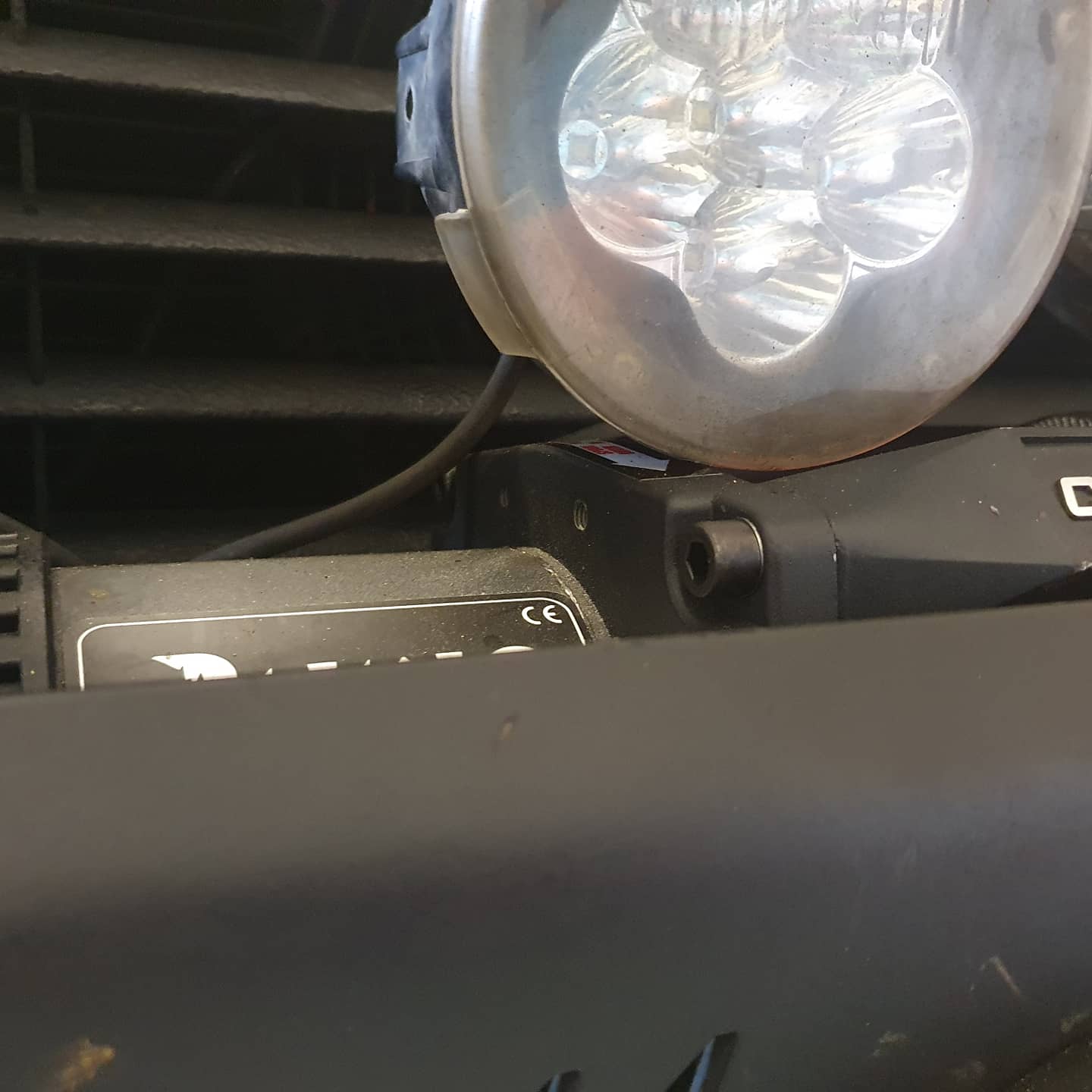

Very tight fit!
Even had to cut the freespool knob down so I could actually turn it.
Relocated the control box into the engine bay. Fabricated a bracket it secure it.
Isolator flush mounted in the seat box
Really pleased! Bit of a pig to run all the cable but got there in the end!
Now to get stuck
Had to move the spots around a bit to get it to fit.
Very tight fit!
Even had to cut the freespool knob down so I could actually turn it.
Relocated the control box into the engine bay. Fabricated a bracket it secure it.
Isolator flush mounted in the seat box
Really pleased! Bit of a pig to run all the cable but got there in the end!
Now to get stuck
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness

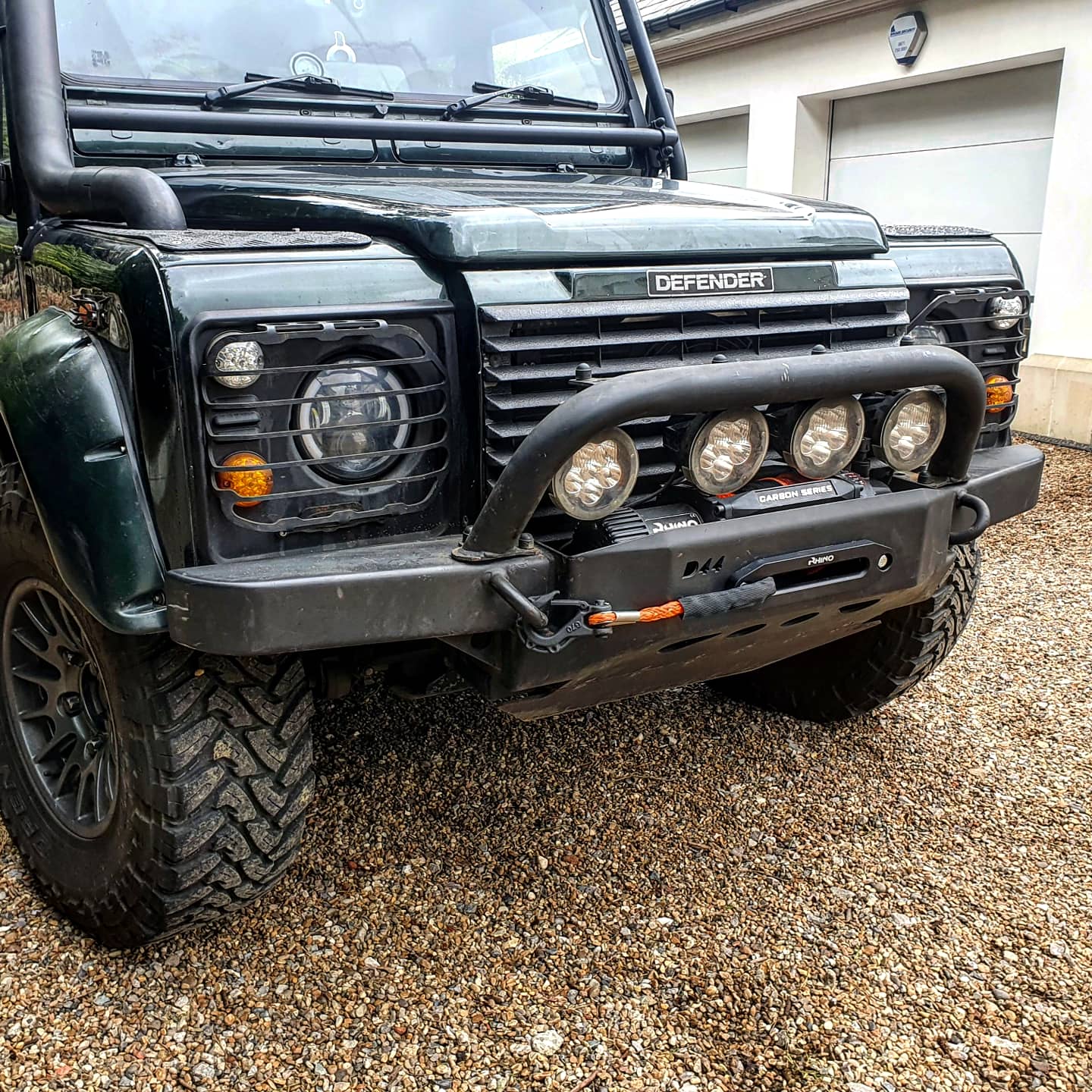

Took all day but winch is in!
View attachment 237801

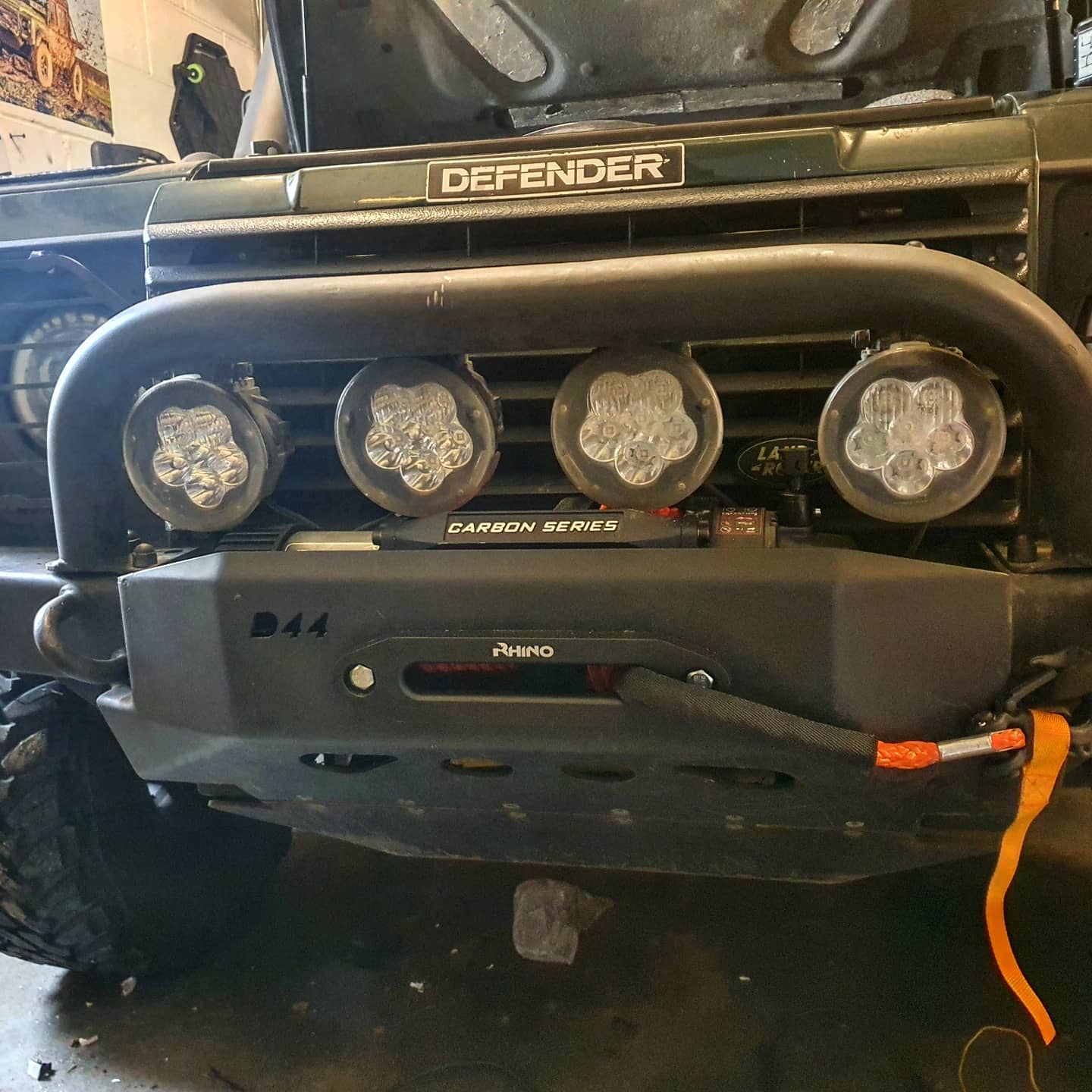

Had to move the spots around a bit to get it to fit.
View attachment 237802
Very tight fit!
View attachment 237803

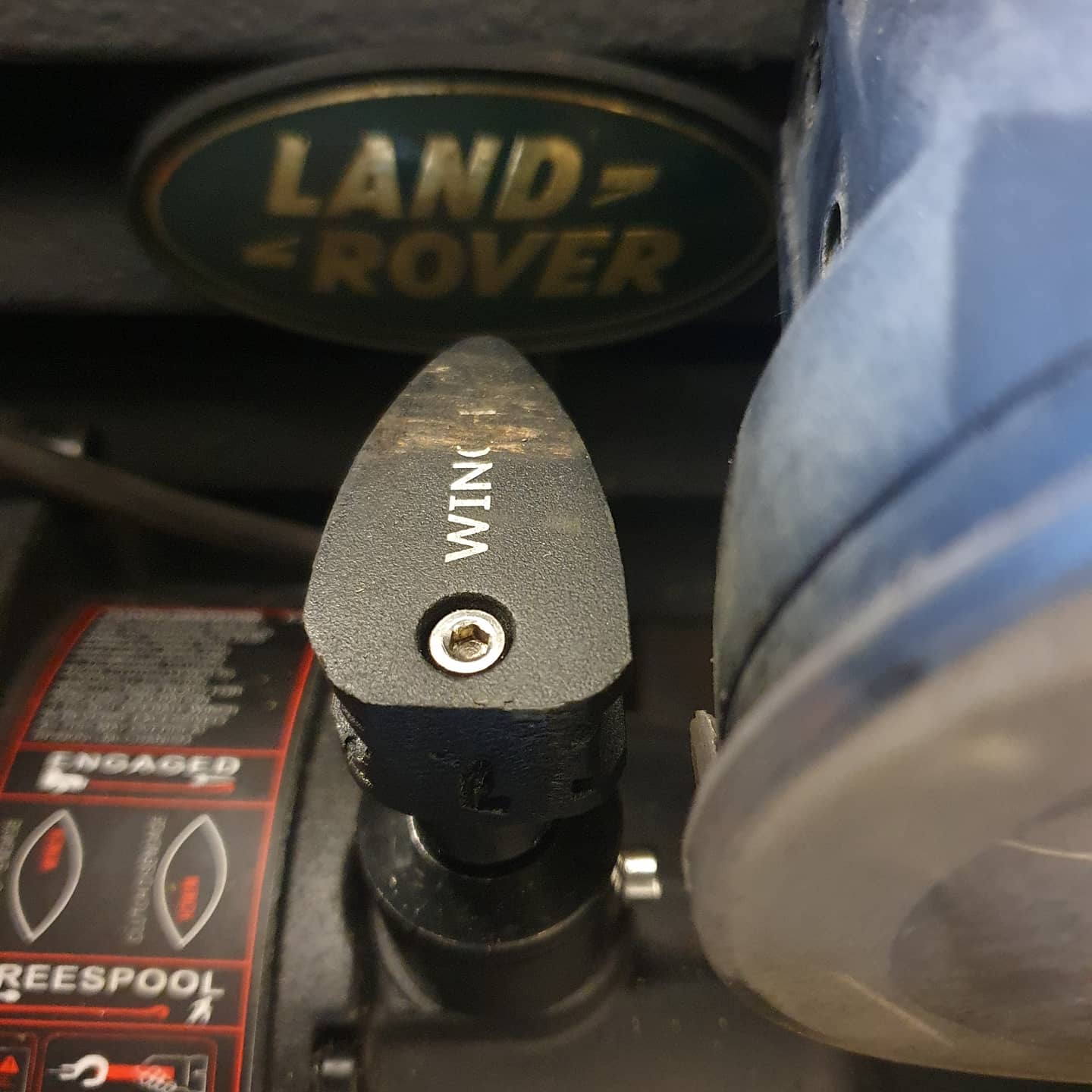

Even had to cut the freespool knob down so I could actually turn it.
View attachment 237804

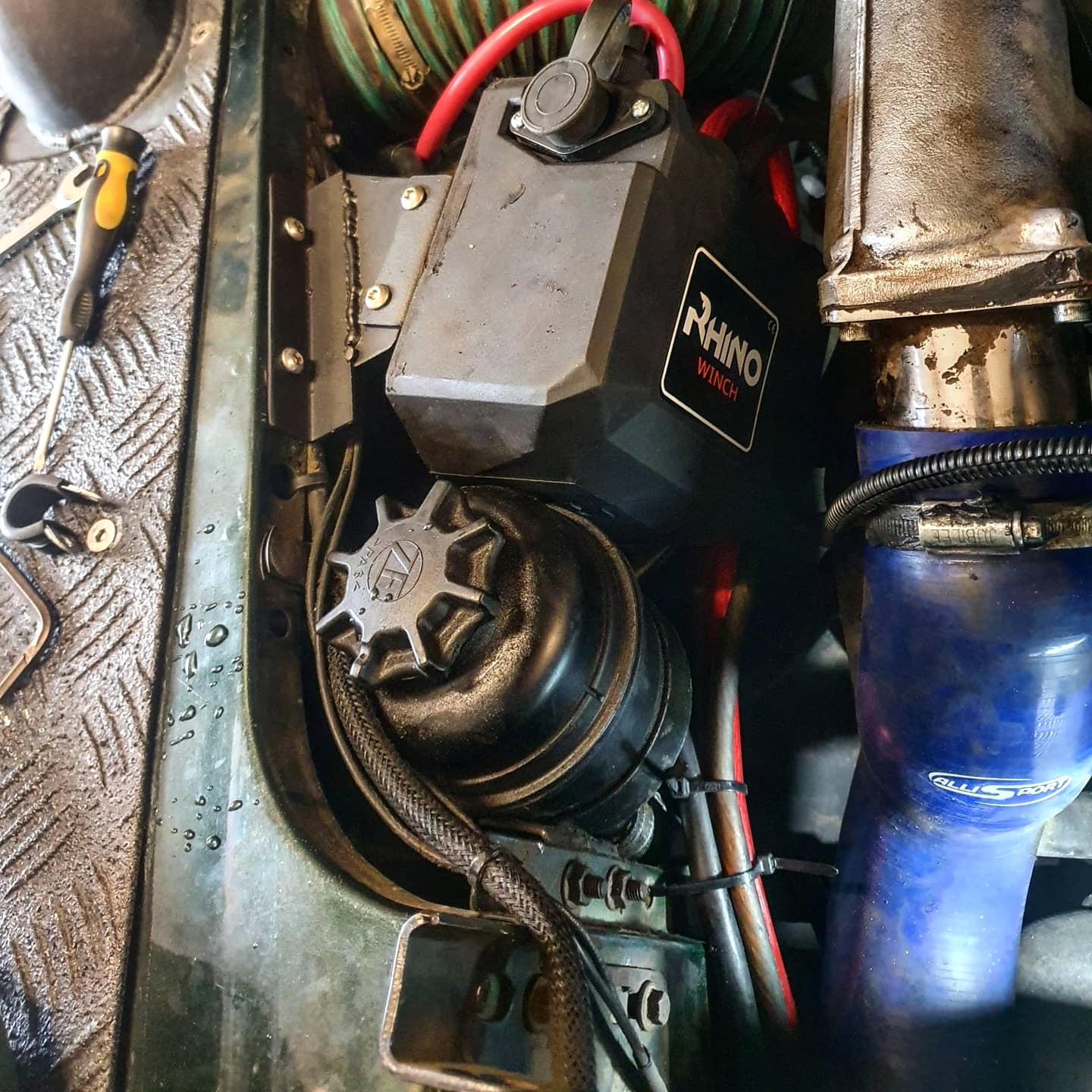

Relocated the control box into the engine bay. Fabricated a bracket it secure it.
View attachment 237805

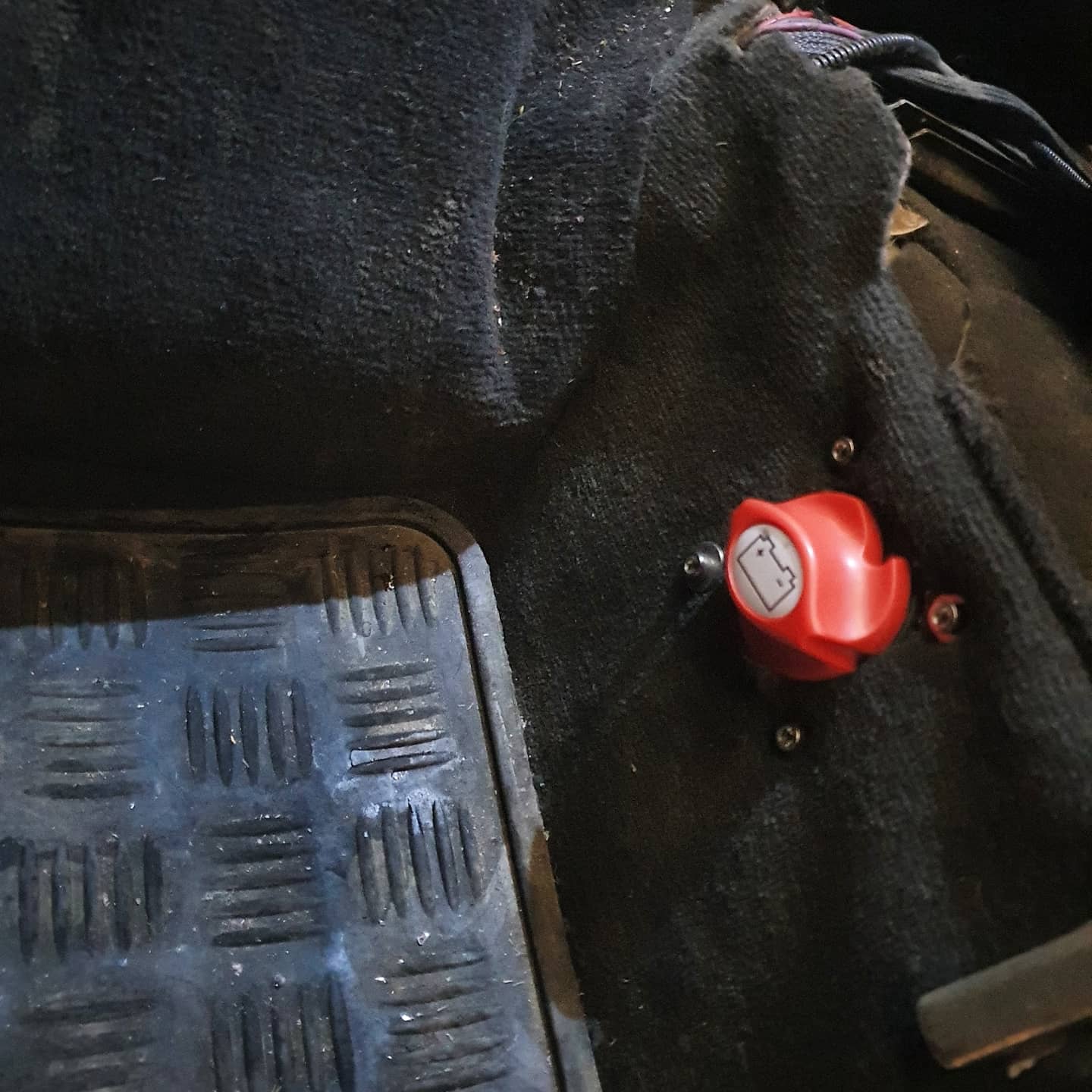

Isolator flush mounted in the seat box
View attachment 237806
Really pleased! Bit of a pig to run all the cable but got there in the end!
Now to get stuck
Very nice, remember to apply a little TLC to it, if you have left it a while after playing in deep mud and water. Otherwise you may find it is jammed up when you go to use it.
Cheers
doriz
Well-Known Member
- Posts
- 16,782
Loving your work as alwaysTook all day but winch is in!
View attachment 237801
Had to move the spots around a bit to get it to fit.
View attachment 237802
Very tight fit!
View attachment 237803
Even had to cut the freespool knob down so I could actually turn it.
View attachment 237804
Relocated the control box into the engine bay. Fabricated a bracket it secure it.
View attachment 237805
Isolator flush mounted in the seat box
View attachment 237806
Really pleased! Bit of a pig to run all the cable but got there in the end!
Now to get stuck
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Yeah i shall take care of it! Annoyingly cant fit the cover on with the lights haha
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Cheers dude! Pretty happy with how it came out!!
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Been working on this for a while. Finally had some time to put it together and see how it looks!

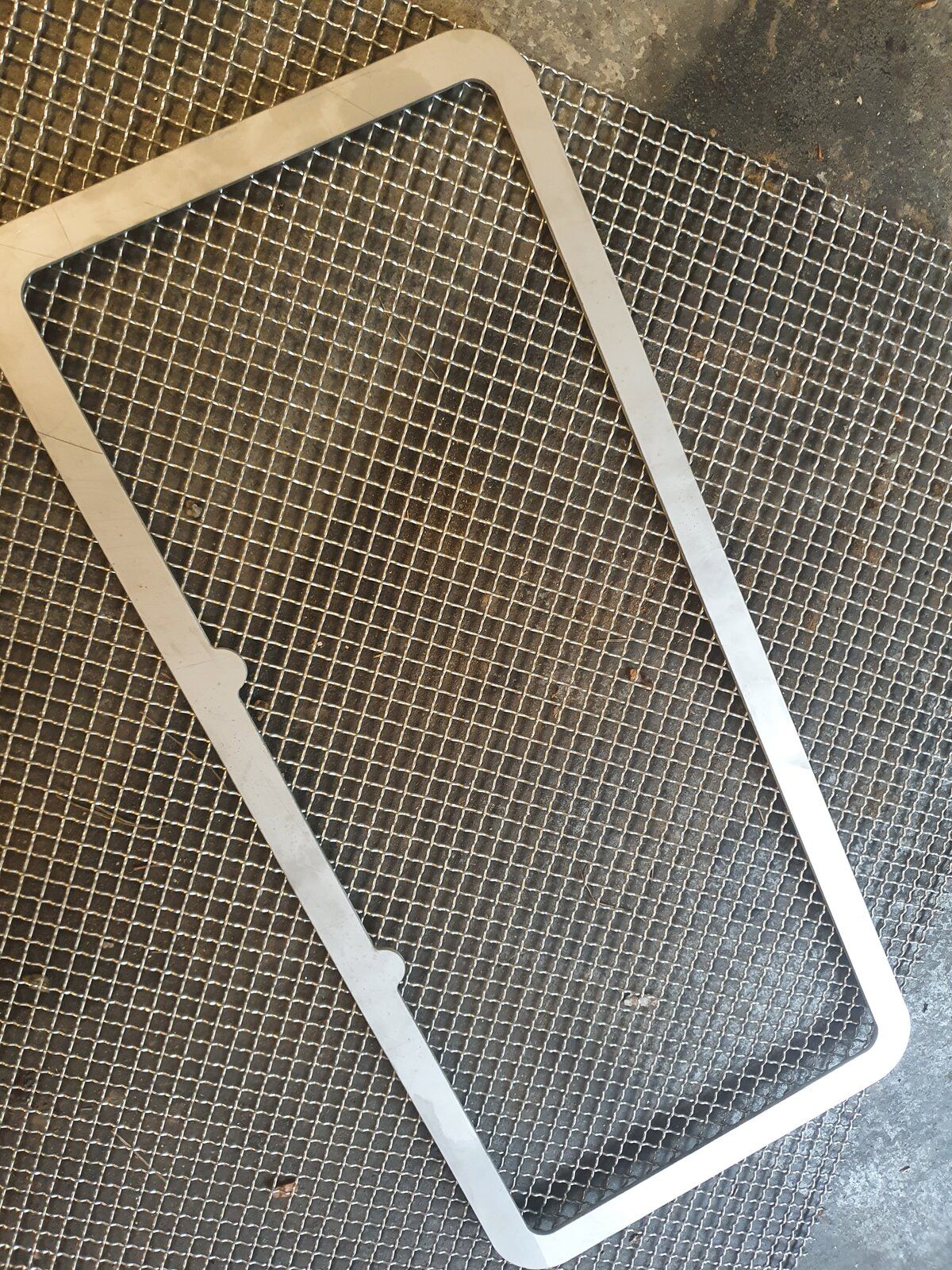

Surround was lasercut from A2 Stainless, from a drawing I had the designers at work do for me
The mesh isnt what I originally wanted but what I did want doesnt exist and was too expensive to laser cut. Audi style honeycomb.

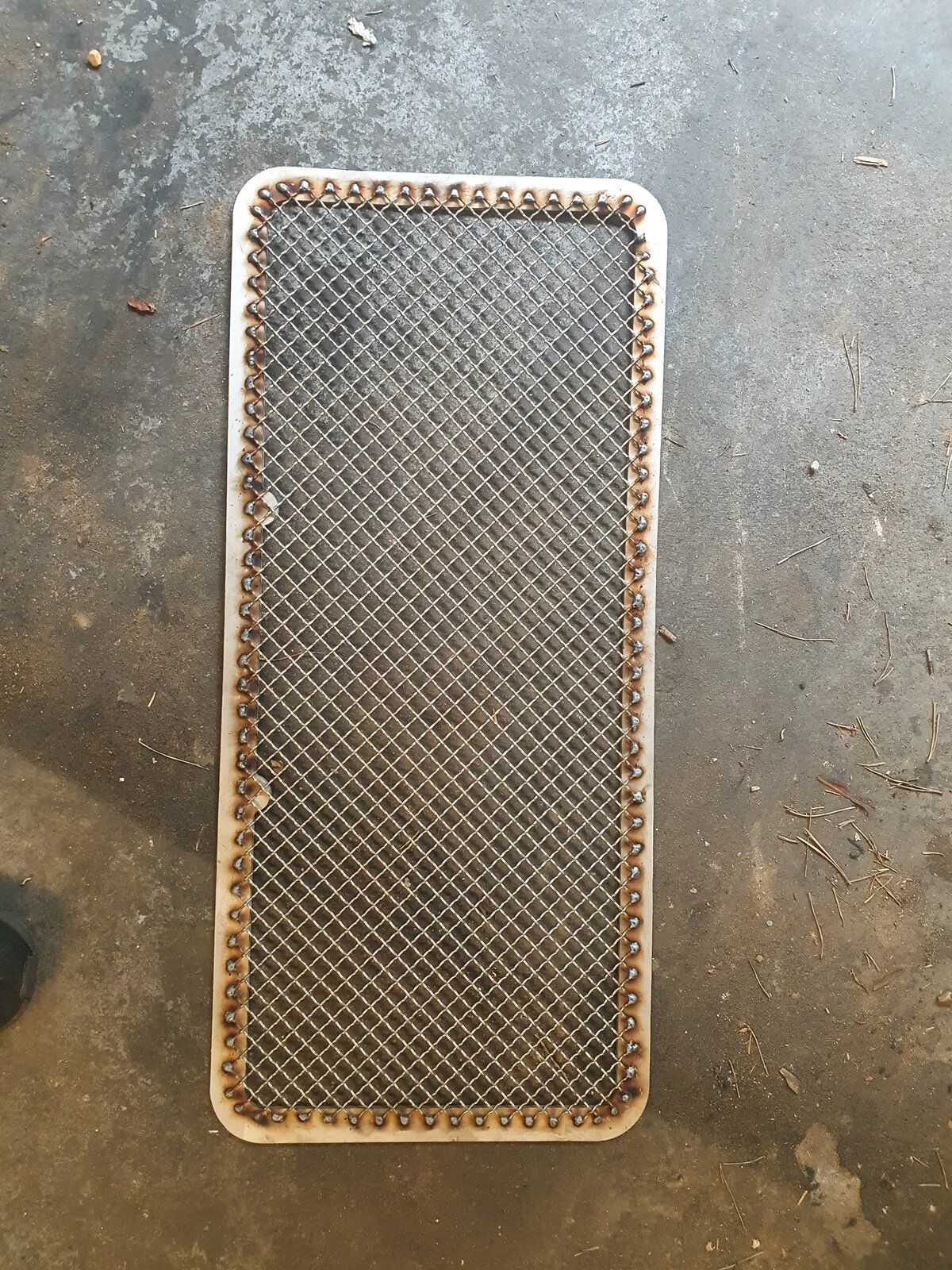

Mesh cut to size and welded in place.
Perfect fit!
Still got to strip the surround off and weld in the actual fixing points. Tops will be similar to standard, sides/bottom will be M8 studding welded in place.
Will be finished in CIO so matt black to make the rest of the trim.
All for a fraction of the cost of a Zunsport.
Surround was lasercut from A2 Stainless, from a drawing I had the designers at work do for me
The mesh isnt what I originally wanted but what I did want doesnt exist and was too expensive to laser cut. Audi style honeycomb.
Mesh cut to size and welded in place.
Perfect fit!
Still got to strip the surround off and weld in the actual fixing points. Tops will be similar to standard, sides/bottom will be M8 studding welded in place.
Will be finished in CIO so matt black to make the rest of the trim.
All for a fraction of the cost of a Zunsport.
Hicap phill
Well-Known Member
- Posts
- 15,381
- Location
- Wiltshire
What a good idea for a portable BBQ top.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Not a bad idea that! Like the old Military Series landys!
Hicap phill
Well-Known Member
- Posts
- 15,381
- Location
- Wiltshire
Except without the galvanised after taste
forkliftfred
Member
- Posts
- 41
- Location
- Benfleet, Essex
Could you have 3D printed the Audi style honeycomb? You may have had to print it in 3 pieces due to it's size.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
No chance. Would never be strong enough for a Defender, maybe a road going one but not mine.
That and i havnt got a printer lol
Should be able finish it Sunday.
Few tabs to weld on the top and a few studs on the bottom. Then ready for paint.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
Nice lil gift in the post
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
Haven't you got long armsBeen working on this for a while. Finally had some time to put it together and see how it looks!
Surround was lasercut from A2 Stainless, from a drawing I had the designers at work do for me
The mesh isnt what I originally wanted but what I did want doesnt exist and was too expensive to laser cut. Audi style honeycomb.
View attachment 240658

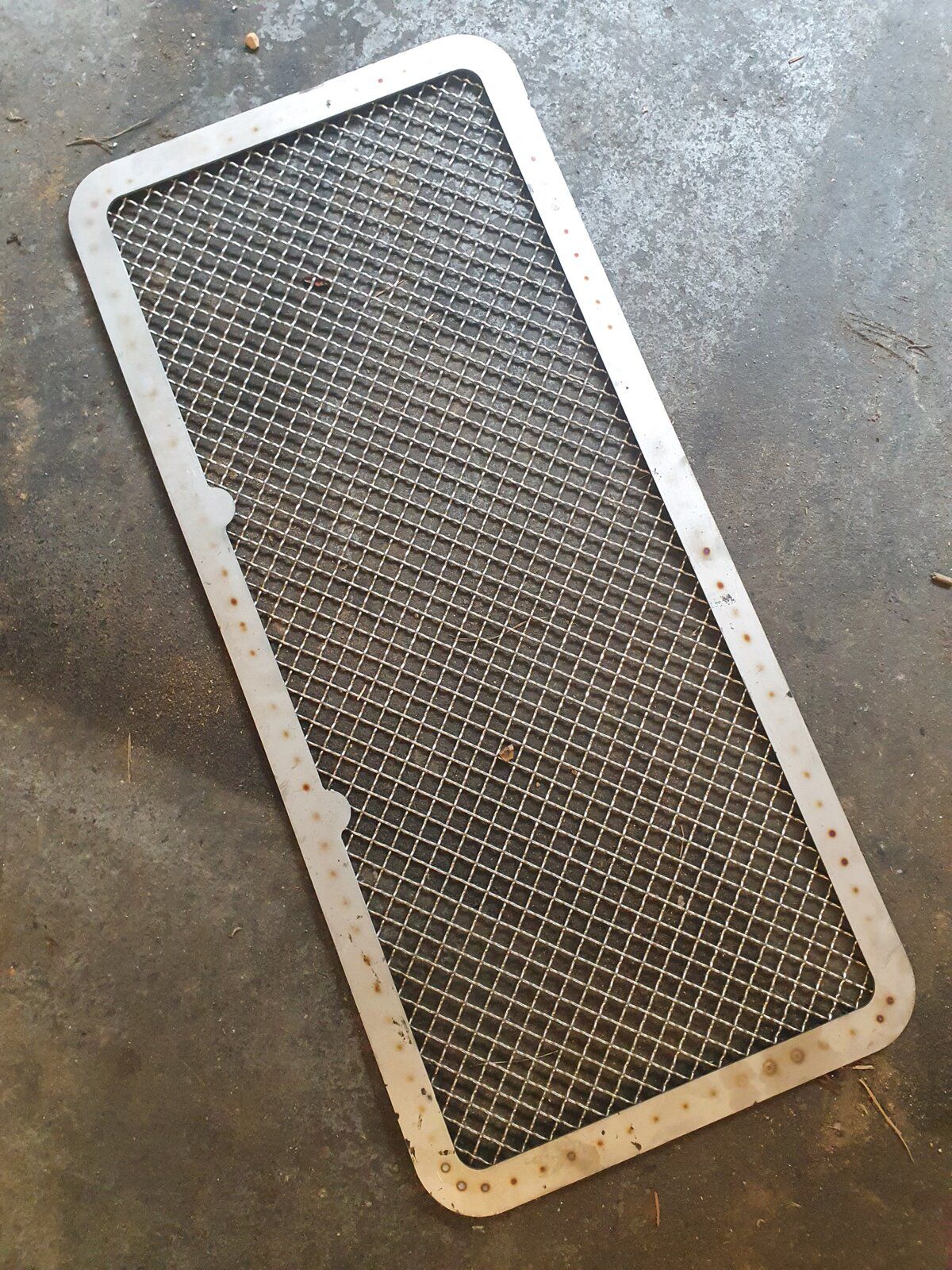

Mesh cut to size and welded in place.
View attachment 240659
View attachment 240660

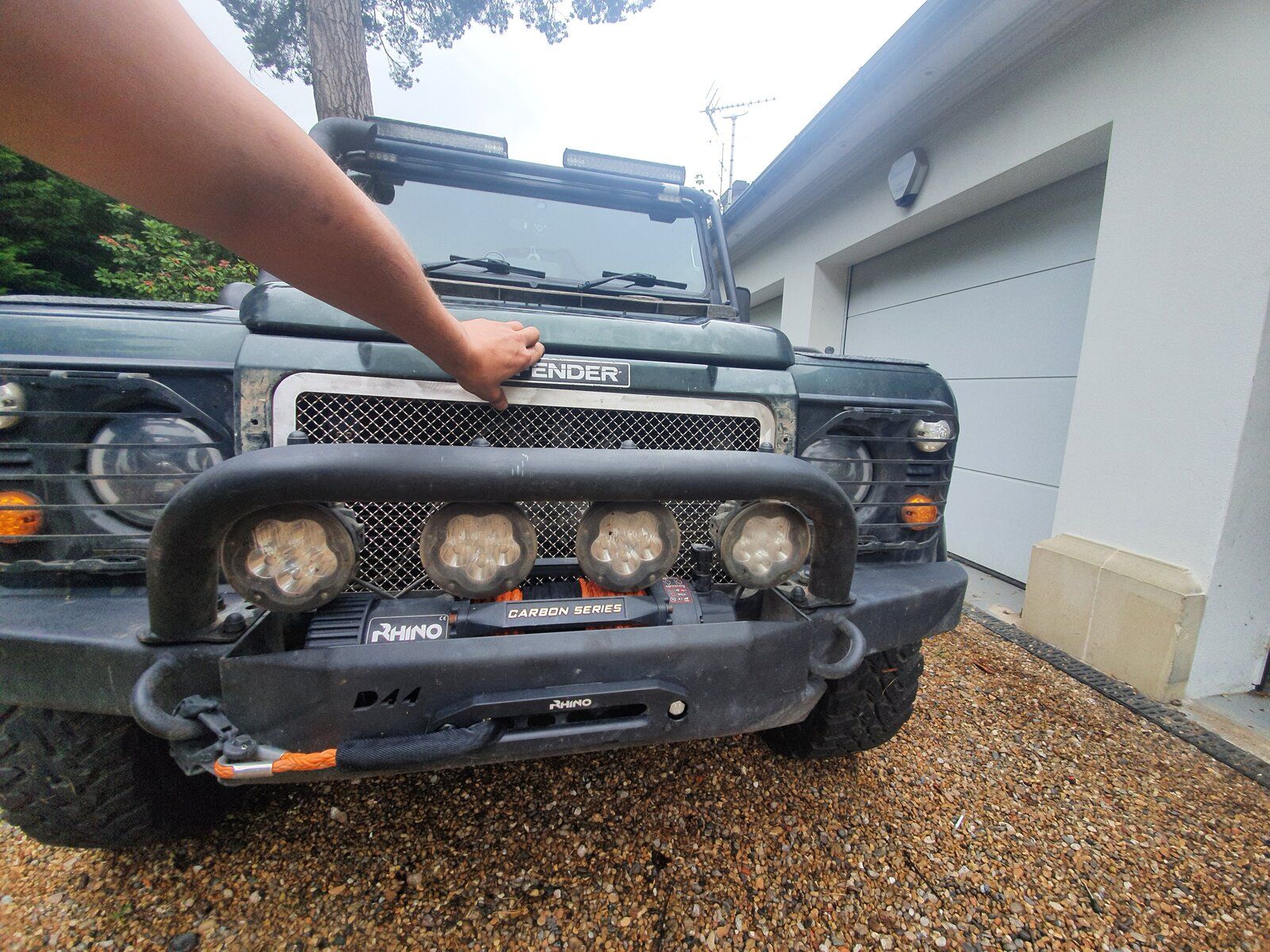

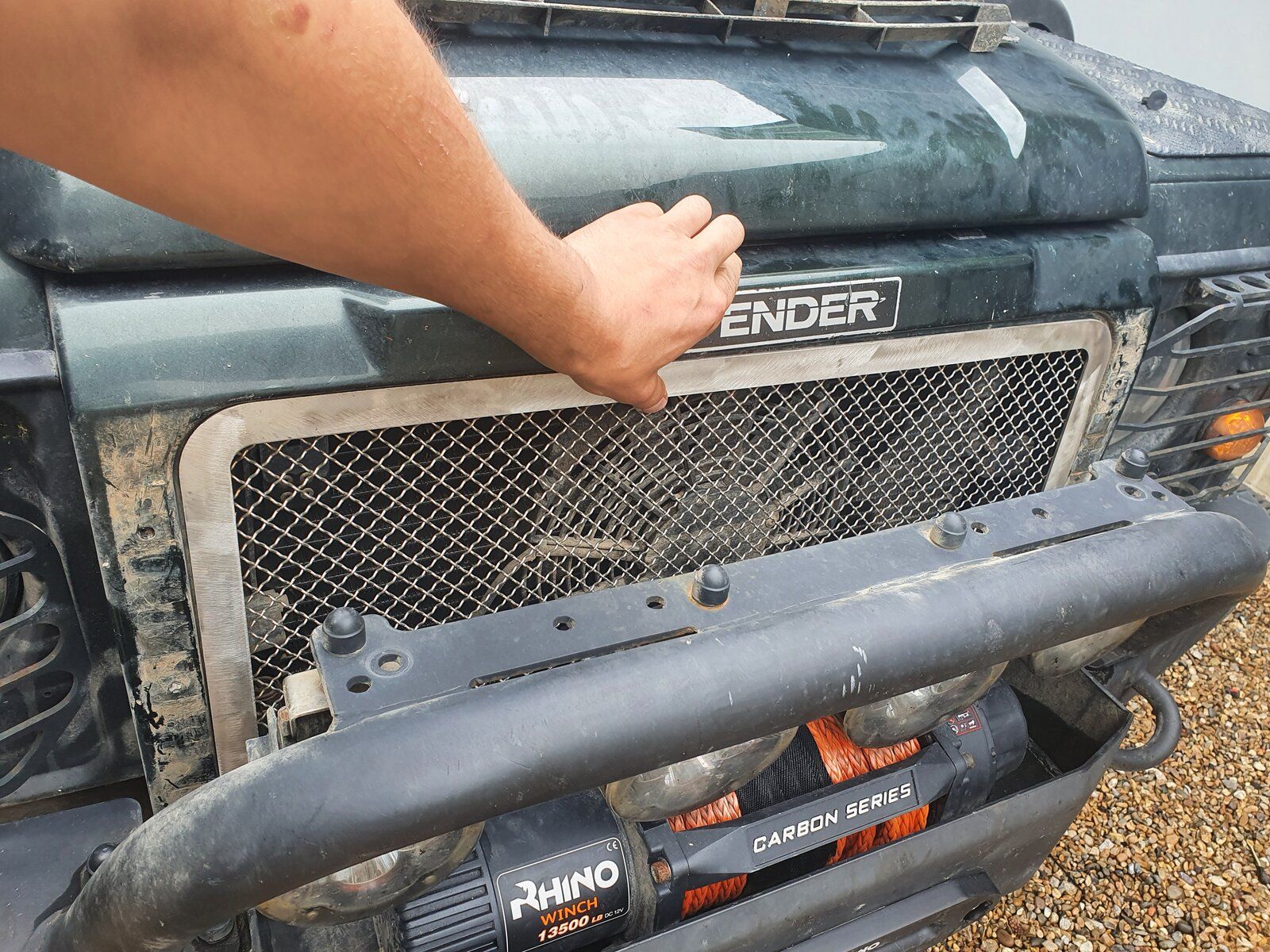

Perfect fit!
View attachment 240661
View attachment 240663
Still got to strip the surround off and weld in the actual fixing points. Tops will be similar to standard, sides/bottom will be M8 studding welded in place.
Will be finished in CIO so matt black to make the rest of the trim.
All for a fraction of the cost of a Zunsport.
bankz5152
Well-Known Member
- Posts
- 9,134
- Location
- South London/North Kent
I sure do
