Bankz's 110 Double Cab

Discussion in 'Members Vehicles/Projects' started by bankz5152, Oct 22, 2016.

< Previous Thread | Next Thread >
  1. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Ive already got a spare which is GKN and has a grease nip unlike the LR.

    On further inspection my gearbox mounts are quite heavily worn resulting in a fair bit of movement around the GB/TX box which cant have helped.

    Im wondering if the LSD has anything to do with it.

    Going to replace the badly worn UJ this weekend, GB mounts and such will be done with the new TX box/Clutch work. Ill give it 6 months and see whats happens. If the UJs are worn again it must be down to the lift and or the LSD and thus needs a wide angle prop!

    1988smithy likes this.
  2. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    3,816
    Likes Received:
    1,521
    Location:
    Buxton
    I'd suggest better grease :) - I use Castrol Pyroplex Red as a minimum in everything - if this doesn't do it, then I move up to Pyro Blue.... I'd also suggest you grease the joints before and after any serious off roading, and before any serious heavy work like heavy towing or high speed M-way - grease is cheap, relatively.....

    I stopped using "ordinary" grease years ago, and haven't had any problems since.

    There are better greases out there than the Red or Blue - BUT - they could be too good o_O - needle rollers require a certain amount of adhesion within the lubrication to make them rotate ..... if they don't rotate, they will fail in short order :eek: ..... :rolleyes:

    :)

  3. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Gotcha. Think last grease I used was JCB blue

  4. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    3,836
    Likes Received:
    3,072
    Location:
    Wiltshire
    Do you check the grease pops out each cup?
    Use a spanner to release pressure & allow grease to flow.

    dieseldog69 likes this.
  5. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Yup. Force the old grease out and new grease in.

    Never had this issue on my 90 (less kf a lift, no lsd) Changed the UJs for GKNs when the originals failed and they where greased every 4 months or so (less driving) and never had an issue.

    Hicap phill likes this.
  6. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    6,501
    Likes Received:
    4,692
    Location:
    Back in the UK, Sunny Hampshire.
    I grease after a day off road but as that is so frequent they get greased almost weekly when it's not cut up in bits on the drive.

    My guess is a lot of high speed motorway work.

  7. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    3,816
    Likes Received:
    1,521
    Location:
    Buxton
    IIRC, this is similar to Castrol Pyro Blue - BUT .... it's worth checking as it may simply be too good for the job at hand.

    ( FFS - you couldn't make this sh*t up :rolleyes: grease which is too slippy :eek: - I think it's called "fretting" when the needle rollers don't rotate - they simply move a little one way, and then a little the other way - as such, visual examination should reveal that they are now oval, and not round ..... of course, once they gain any percentage ovality - they sure as hell do NOT go round at all, ever :rolleyes: :confused::eek:o_O )

    I use Pyro blue on very high power PTO shafts on agri eqipment - by high power, I mean well over 100HP through any given UJ ( forage harvesters )

    Castrol technical are bl@@dy brilliant IME - worth a phone call :)

    bankz5152 likes this.
  8. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    6,501
    Likes Received:
    4,692
    Location:
    Back in the UK, Sunny Hampshire.
    As a heavy plant operator I can weigh in from personal experience, we have 2 basic types of grease on site, one a multi purpose lithium2 based grease and a EP (extreme pressure) moly grease, dumper drivers were not to touch the moly grease and were reprimanded for doing so for that exact reason, they greased the prop shaft UJs with the moly grease and is stead of rolling they would glide on the grease but then heat and "frett", the EP moly was only to be used by the excavators as it is a slow speed but high pressure application which it is designed to work perfectly in where as the UJs are a high speed but relatively low pressure application.

    I think you can get the same Morris Lubricants lithium grease as I use from any motorfactors and maybe even Halfords but I'm not 100% on that.

    From memory that is the same reason you should try your best not to let swivel hub CV grease get into your bearings and diff oil as it has a high percentage molybdenum in it which is the main additive in the EP "moly" grease, it is also an additive that goes into some engine oil additives as it helps the gliding of friction surfaces like engine components where there are no rotating bearings as such but components that glide round on a film of oil.

    bankz5152 likes this.
  9. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent

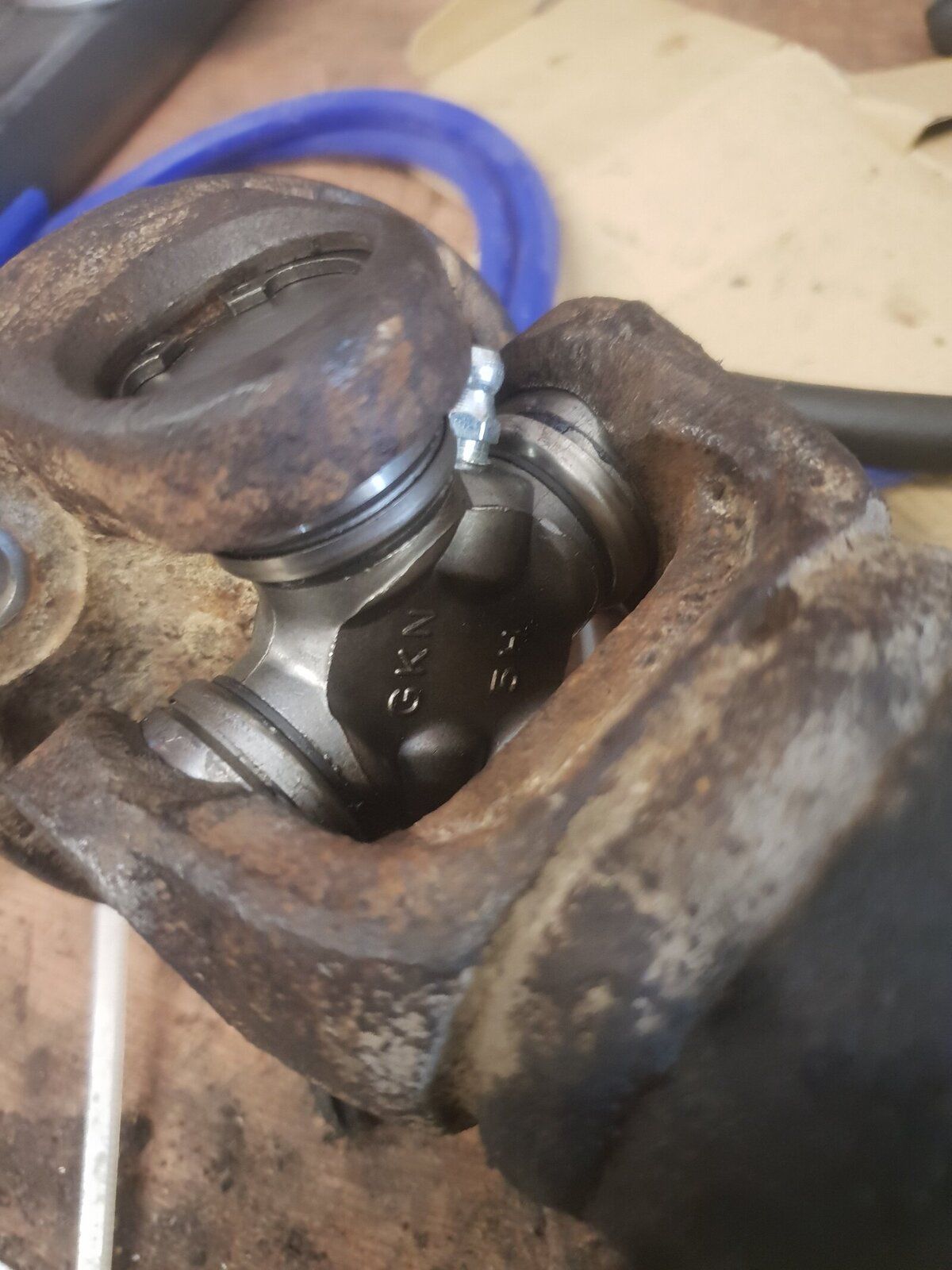

    Replaced the UJ today shall seehow it goes!

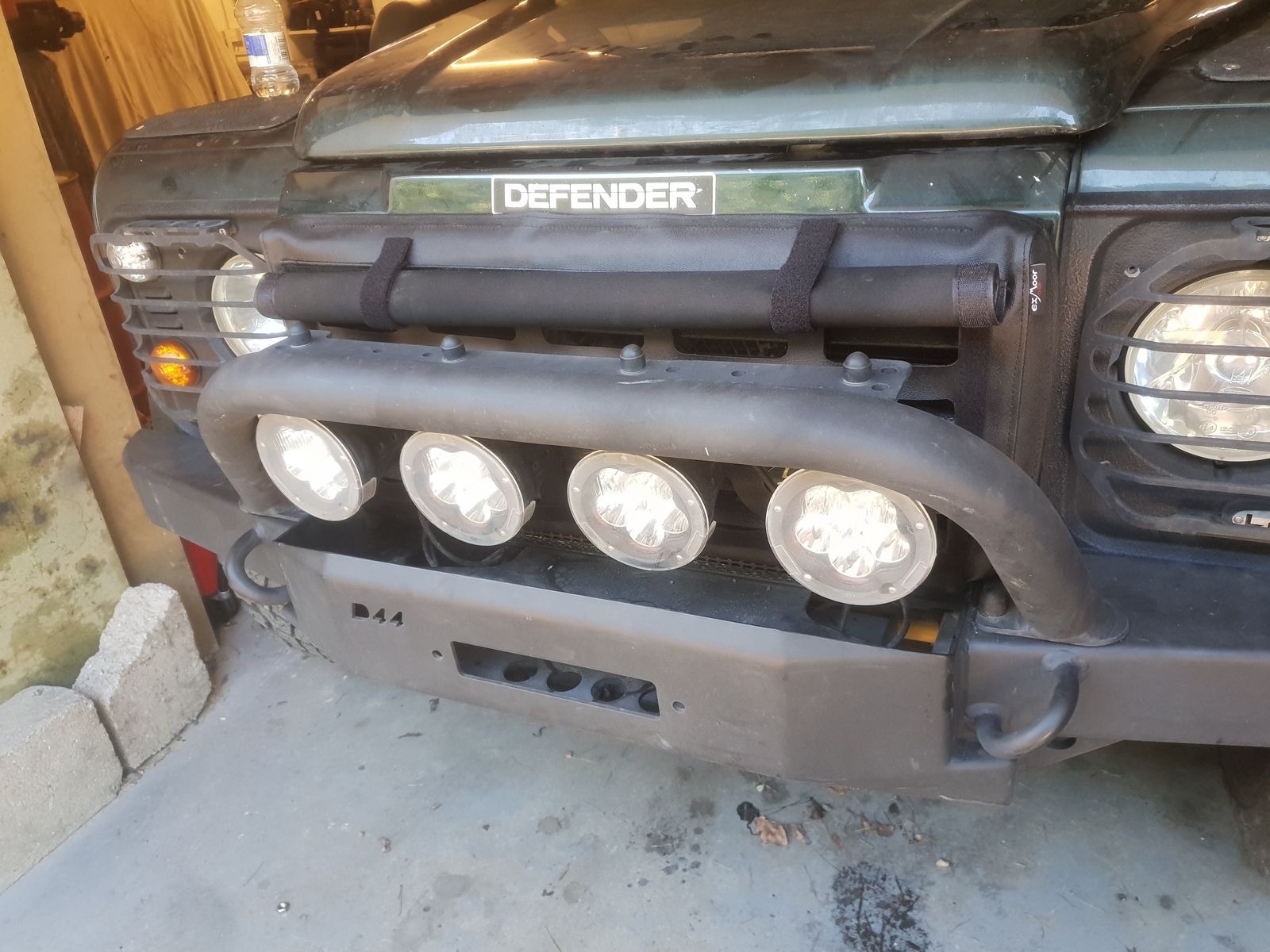

    Also fitted an exmoor trim wading blanket in prep for next weeks trip to Salisbury!

    Really good quality and a great fit

  10. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    3,836
    Likes Received:
    2,602
    Location:
    Hereford
    Marine grease is ideal for UJ's IMO..

    I usually pull the UJ's apart old or new and pack them manually..

    Marine grease is water RESISTANT so ideal for offroad conditions.

    I find lithium grease just disappears and/or turns to shít when exposed to any amount of water.. ;)

    bankz5152 likes this.
  11. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    6,501
    Likes Received:
    4,692
    Location:
    Back in the UK, Sunny Hampshire.
    Yes but the idea behind most maintenance regimes is routine preventative maintenance which would include prop shaft greasing every 50 hrs which is about once a week.

    If high speed motorway work is part of the driving regime then that is some pretty intense use considering that 285/75 r16 tyres are +/- 33" and with 3.54 R&Ps turn almost 2200 times per mile, so the addition of speed and distance into the equation along with the increased pressure on them from a less direct line of drive as a result of a suspension lift and that is a serious work out for UJs.

    Grease is cheap, very cheap when compared to good quality UJs and the time it takes to change them, I try to put a price on my time when it comes to things like this as it encourages me to keep on top of the maintenance ;)

    bankz5152, Henry_b and Hicap phill like this.
  12. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent

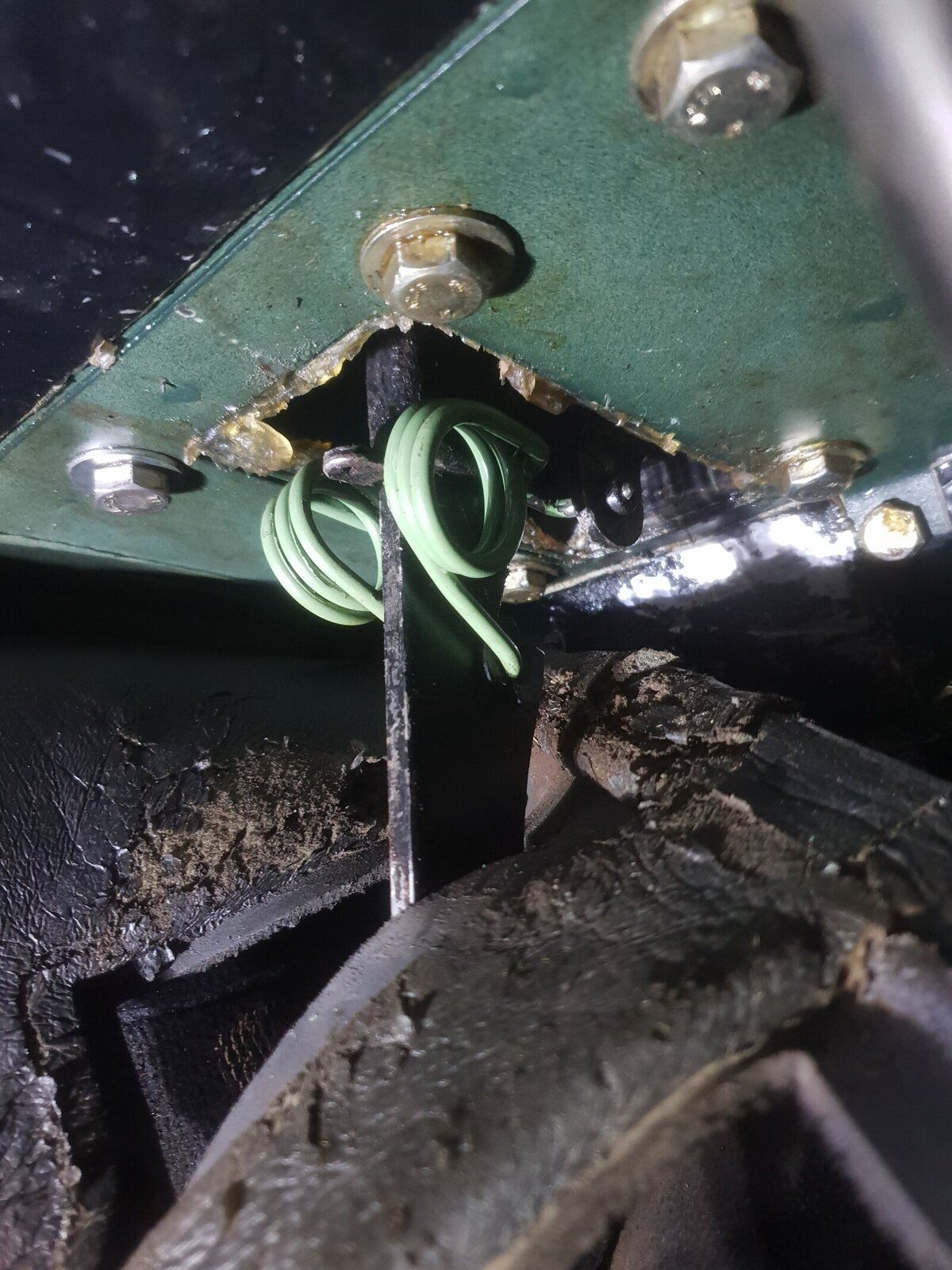

    Fitted the LOF POWERspring today. I always forget how much i hate fitting these. However well worth it.

    As stated it is almost half the weight of the Britpart/Bearmach pedal assist spring! I was sceptical about the claims but Luke does produce some quality products. The claims are correct. It does drop the weight by almost half! Going from the standard long spring to this would be an even better feeling!


    mick 1986, 1988smithy and neilly like this.
  13. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    16,706
    Likes Received:
    7,359
    Location:
    Oxfordshireness
    Looking to get one of those when I see him at one of the shows. Have heard good things.

    Cheers

  14. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Yeah can only add to it! Will save my leg given the traffic ive been in the past few weeks!

    Really pleased with it

    neilly likes this.
  15. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Wooooo finished work and all packed up ready for a lovely weekend in Salisbury!

  16. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Had a cracking weekend in Salisbury with the lads. My 110 does do damn well, 400 miles for work in a week, 120 miles to Salisbury followed by 2 days of driving though 1 - 2ft deep muddy water and everything else Salisbury could through at it. Drove back with a minor ABS fault. Even if the 110 did almost become a submarine o_Oo_O

    The ole girl is somewhat clean now, ready for another week at work.

    I'll get a few pics and vids up here later but all on instagram if you want to see now :)

    Was a very wet weekend!

    They are very hot on the illegal offroading now, we where stopped twice by the MoD security, reg recorded and the like. Very nice people but clearly sick of people being dicks (which we saw a few)

    dieseldog69 likes this.
  17. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    This one was deeper than expected! Still got through without issues :)


    mick 1986, Knappster and dieseldog69 like this.
  18. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Hmmm my landy is worrying me.

    Its driving REALLY well, huge power, quiet, smooth as anything.

  19. Shimsteriom

    Shimsteriom Purveyor of LZ Caps

    Joined:
    Feb 13, 2015
    Posts:
    15,648
    Likes Received:
    5,065
    Location:
    Isle of Man
    Prepare yourself! :eek:

  20. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,662
    Likes Received:
    1,757
    Location:
    South London/North Kent
    Im waiting :eek::eek::p

    Shimsteriom likes this.
