Axle Identification Problem

Naughty-Monkey

Member

Posts

30

Location

Guernsey

• Apr 29, 2020

• #1

Hi All
Can anyone help me with this one. I am trying to identify what my front axle is.
I want to buy a service seals kit from Paddocks but I dont know which kit to get as I cannot identify my Axle.

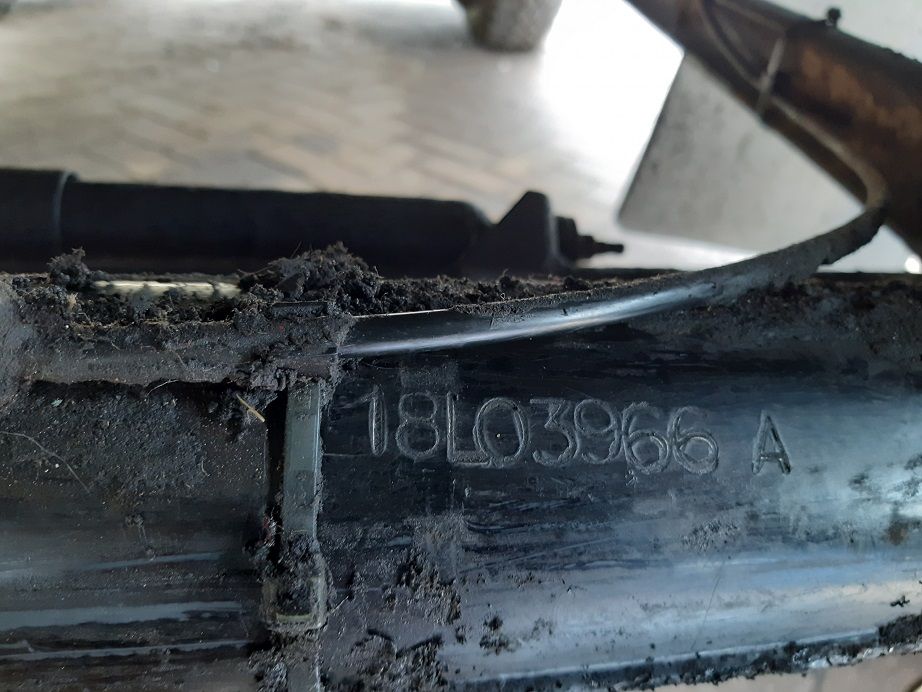

The serial number is very clear on the Axle. See pic.
18L03966 A
Any clues or ideas anyone.

Many thanks
James



kevstar

Well-Known Member

Full Member

Posts

23,062

Location

In the next Glen

• Apr 29, 2020

• #2

Paddocks online store is closed atm due to a high volume of online orders being placed recently.

Try the online chat with them & give them the axle serial number & chassis number/year ect.



Naughty-Monkey

Member

Posts

30

Location

Guernsey

• Apr 29, 2020

• #3

Hi
I did exactly that and they couldnt identify it. They suggested going to a forum to try and suss it out. So here i am.
Maybe I can identify it from the number of bolts or size or something. I will measure it all later and see if i can work it out.
But i am quietly confident someone here will know.....
Thanks



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Apr 29, 2020

• #4

Naughty-Monkey said:

Hi All
Can anyone help me with this one. I am trying to identify what my front axle is.
I want to buy a service seals kit from Paddocks but I dont know which kit to get as I cannot identify my Axle.
The serial number is very clear on the Axle. See pic.
18L03966 A
Any clues or ideas anyone.

Many thanks
JamesView attachment 207478

Click to expand...

need some better pics



Rougharse Racing

Well-Known Member

Posts

883

Location

The Grim North

• Apr 29, 2020

• #5

It's not on the list of Defender 90/110 serial numbers, so possibly a Discovery?
The steering damper is still fitted at the rear, so that corroborates the Discovery/Range Rover Classic theory.



Last edited: Apr 29, 2020

kevstar

Well-Known Member

Full Member

Posts

23,062

Location

In the next Glen

• Apr 29, 2020

• #6

Code..... 18L00001B is a Disco 1 v8



Naughty-Monkey

Member

Posts

30

Location

Guernsey

• Apr 30, 2020

• #7

Hi Guys,
Many thanks. I will take some more pics at lunchtime as someone asked for that. Just to be sure...

Thanks again.



Naughty-Monkey

Member

Posts

30

Location

Guernsey

• May 5, 2020

• #8

Hi Guys,View attachment 208132 View attachment 208133 View attachment 208134 View attachment 208135 View attachment 208137 View attachment 208132 View attachment 208133 View attachment 208134 View attachment 208135 View attachment 208137 View attachment 208132 View attachment 208133 View attachment 208134 View attachment 208135 View attachment 208137 View attachment 208132 View attachment 208132 View attachment 208133 View attachment 208134 View attachment 208135 View attachment 208137 View attachment 208132 View attachment 208133 View attachment 208134 View attachment 208135 View attachment 208137 View attachment 208132 View attachment 208133 View attachment 208134 View attachment 208135 View attachment 208137

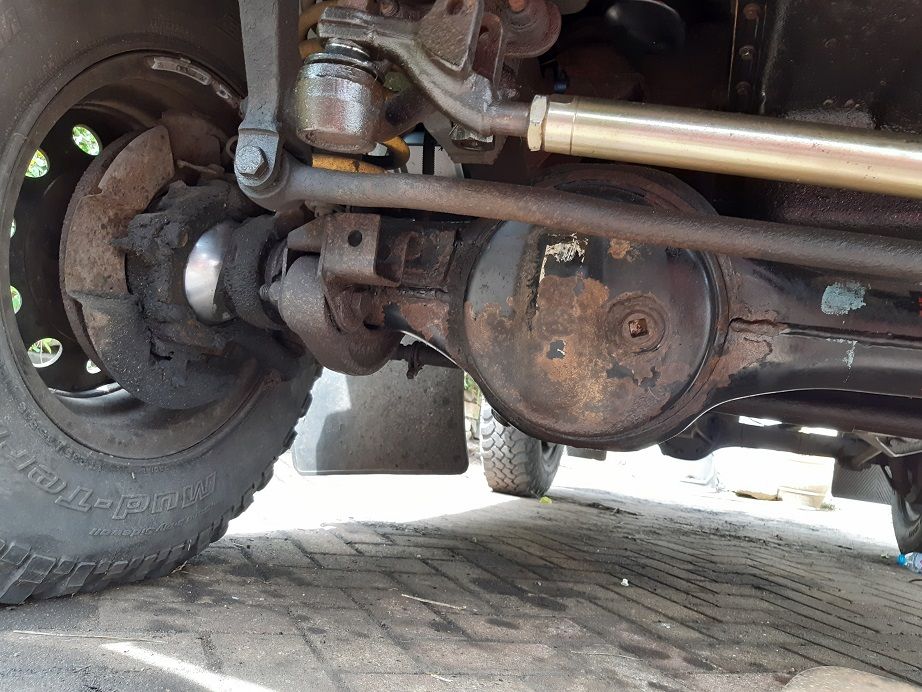

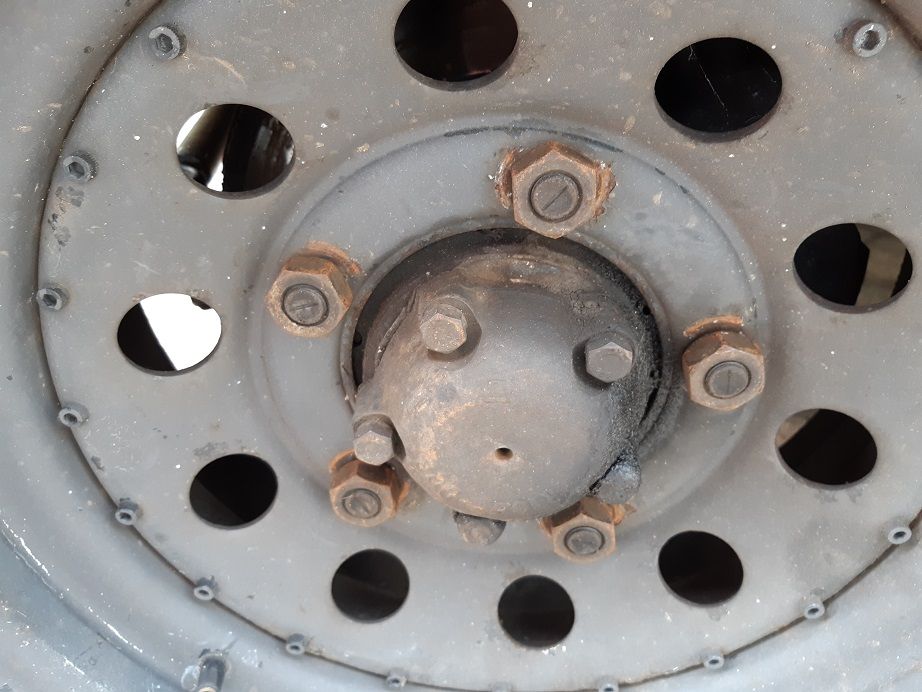

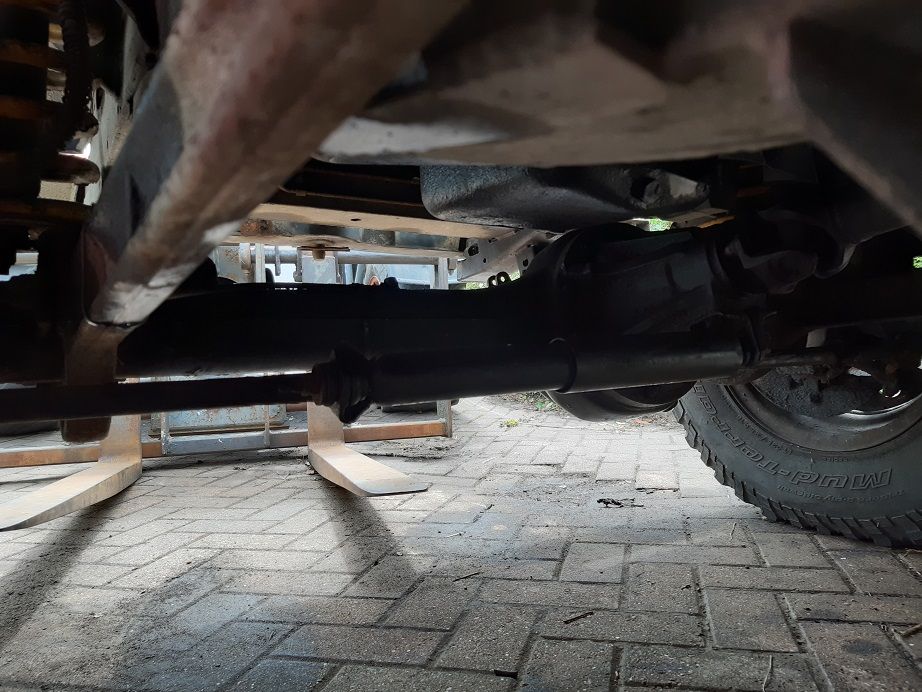

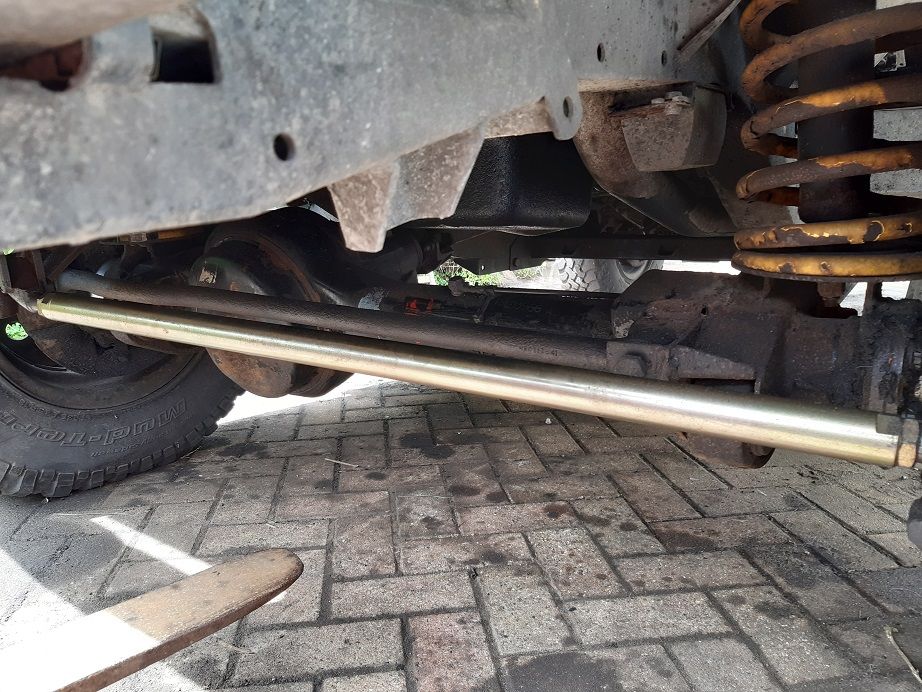

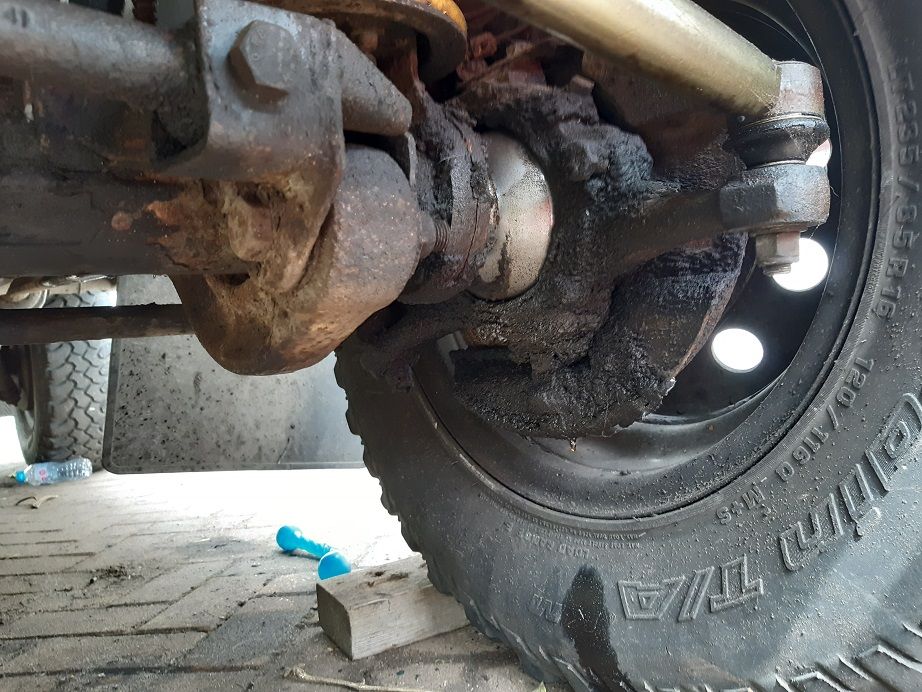

Sorry for delay, pics of axle in case anyone has any other suggestions. Disco 1 V8 ??



Naughty-Monkey

Member

Posts

30

Location

Guernsey

• May 5, 2020

• #9

Not sure what i did there.
I was trying to post several pics of the axle in case anyone has any other ideas
Im going with Disco 1 V8 as per Kevstar's post.
I will send the pocs again now/



Naughty-Monkey

Member

Posts

30

Location

Guernsey

• May 5, 2020

• #10



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• May 5, 2020

• #11

it is indeed a early disco or rrc axle,up to ja ,v8 cases at the time had a slightly different diff angle to the diesel case, denote by not having a hole in bottom of pandhard axle brackets,though parts are the same with diesel and the v8



Naughty-Monkey

Member

Posts

30

Location

Guernsey

• May 12, 2020

• #12

Thanks everyone for the help, much appreiated.
