3.9 throttle coolant pipes ???

Jonnyb1990 · Feb 22, 2017

hello chaps,

rebuilding/trying to make good my k reg RRC,

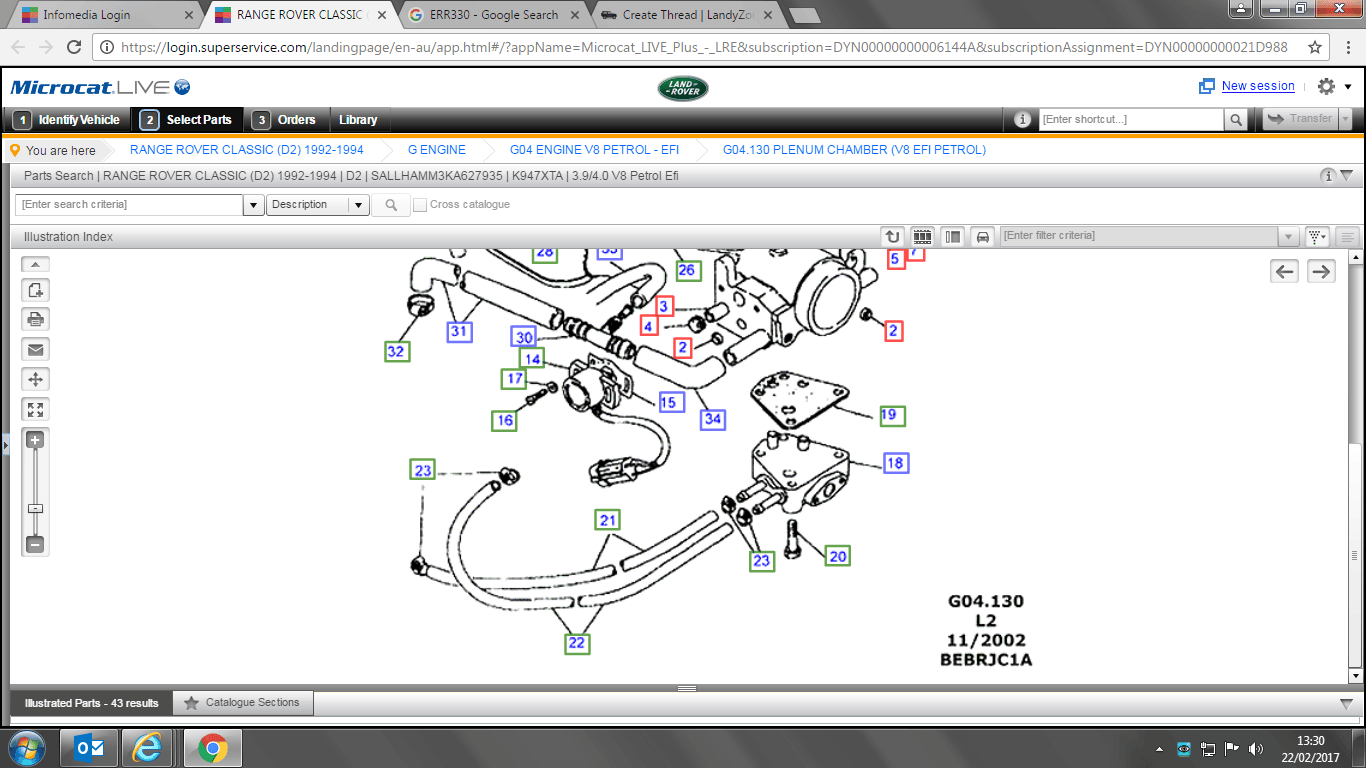

Where do these pipe (21/22) go to ?

discool · Feb 23, 2017

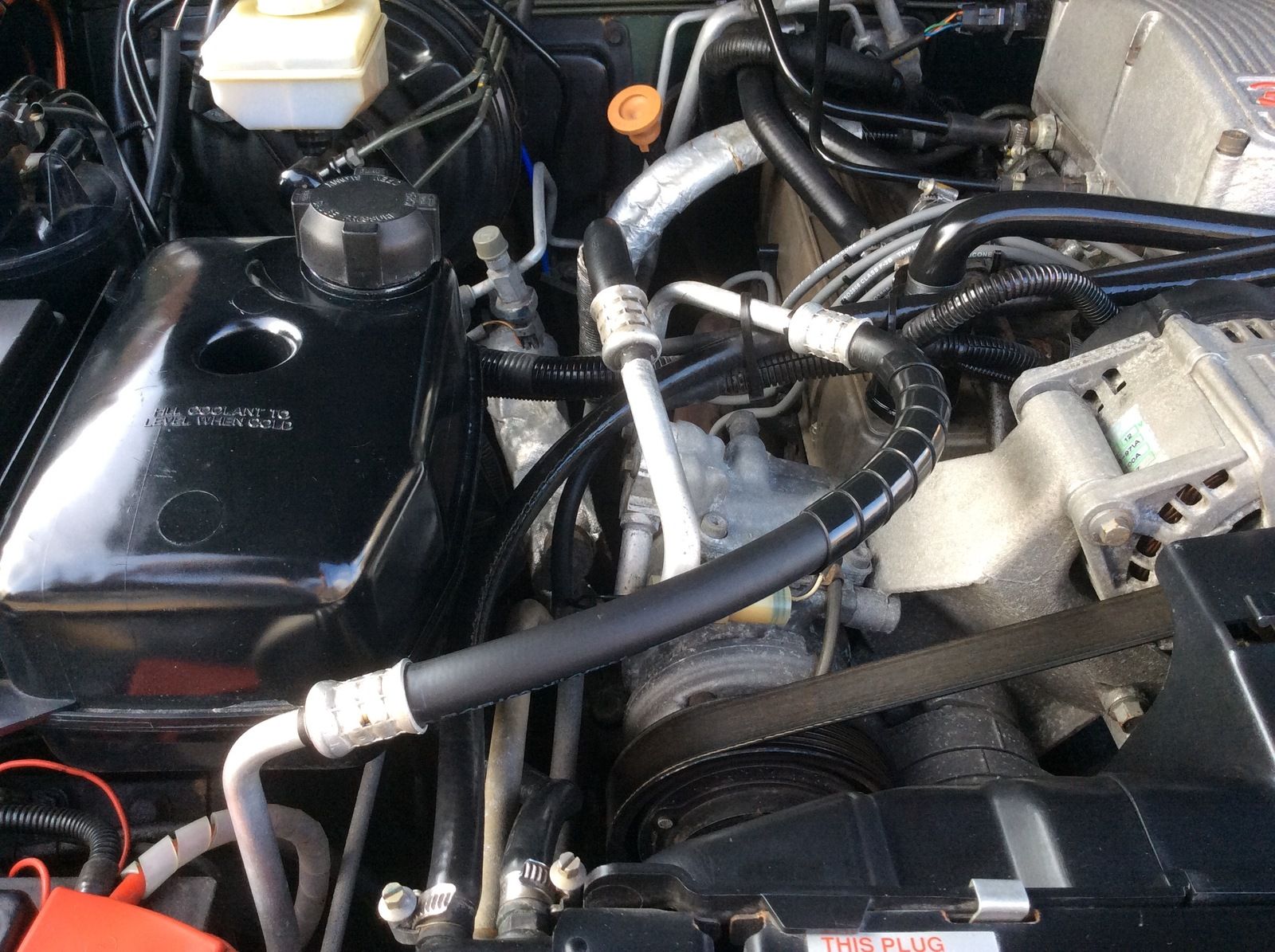

Facing the engine from the front, the LH pipe goes into the inlet manifold between the two temp sensors, the RH pipe crosses over to the LH side of the radiator and joins the rad just below the rad filling plug. Thats the left one of the two shown in bottom of the pic.

cooltide · Feb 23, 2017

Tits on a bull. Blank them

Jonnyb1990 · Feb 24, 2017

thought as much

Its a good idea on principle, however once the engines warm it can only sap power
