3.9 EFI relay help

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

rps88

Member
Posts
15

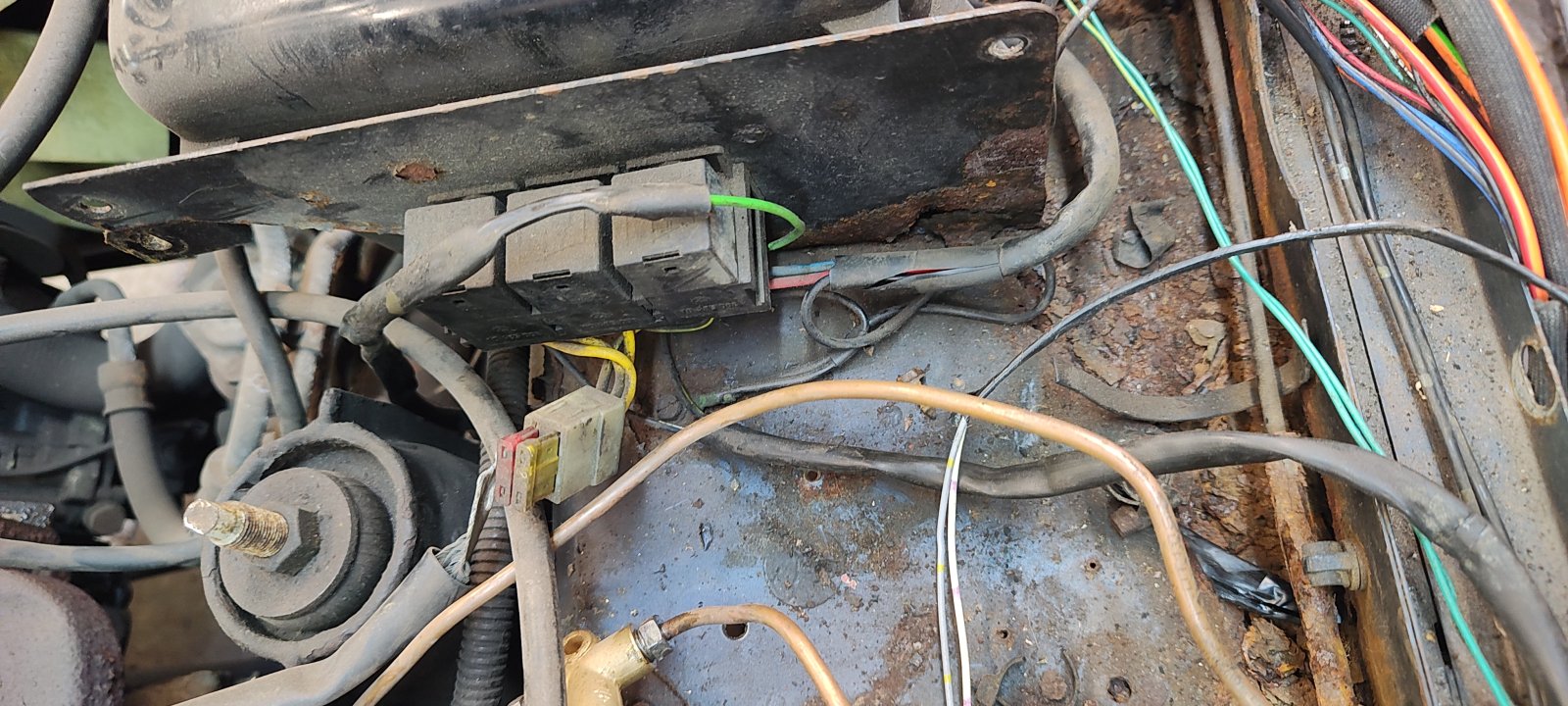

Hi guys im new on here, im currently restoring a 1993 3.9 efi classic and ive got the haynes manual, manual that came with the car and i have actually bought rave which i cant seem to get to work but im just trying to identify what these relays and fuses do behind the coolant tank, could anyone shed any light on these?

I think il do a build thread when i get chance as its a full ground up rebuild weve started incase anyones interested


Attachments

  • IMG_20231105_132342294.jpg
    303.7 KB · Views: 113
Thats brilliant thanks alot it will definitely come in handy seen as this is where we are at at the moment


Attachments

  • IMG_20231105_112107864.jpg
    220.7 KB · Views: 123
  • IMG_20231105_112550495.jpg
    247.1 KB · Views: 111
