Disco 2 wiring loom,

discodrivercumbria · Aug 28, 2019

are all Discovery 2's face lifts wiring loom all the same!
eg air sus v non air
ace v non ace etc etc
from fuse box to fuse box etc,
have a broken wire and are trying to trace it,

brianconwy · Aug 29, 2019

What colour and where about?

sierrafery · Aug 29, 2019

There is a huge variety of looms depends which loom you need, engine, chassis, body, main, etc .... select the proper link http://new.lrcat.com/#!/1232/36532/36727

discodrivercumbria · Aug 29, 2019

sierrafery said:
There is a huge variety of looms depends which loom you need, engine, chassis, body, main, etc .... select the proper link http://new.lrcat.com/#!/1232/36532/36727

ive 2 wires that go to the grey plug on the ecu, yellow/black /white platted together , what are they for?

sierrafery · Aug 30, 2019

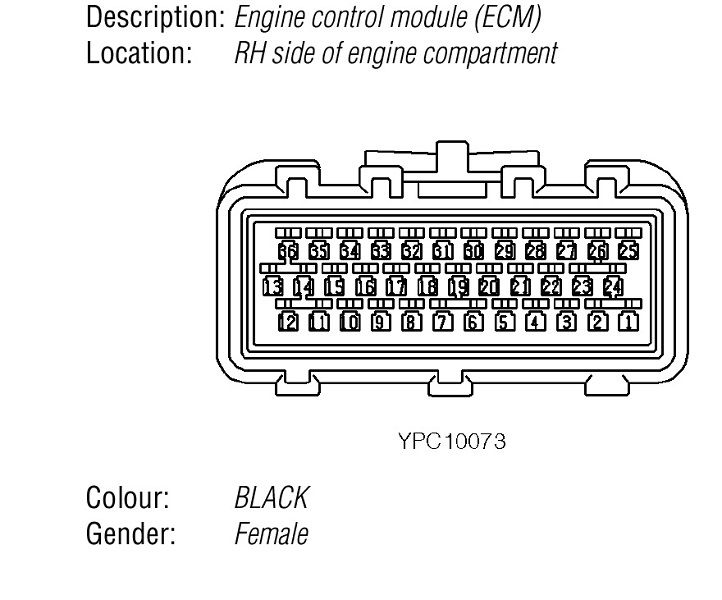

Grey plug on the ECU? i saw only black and red... if it's black according to the pic to which pins are those wires going cos i dont understand what you mean by

discodrivercumbria said:
2 wires that go to the grey plug on the ecu, yellow/black /white platted together

discodrivercumbria · Aug 30, 2019

the grey plug that fits near the black ecu plug, white/tellow wires,

brianconwy · Aug 30, 2019

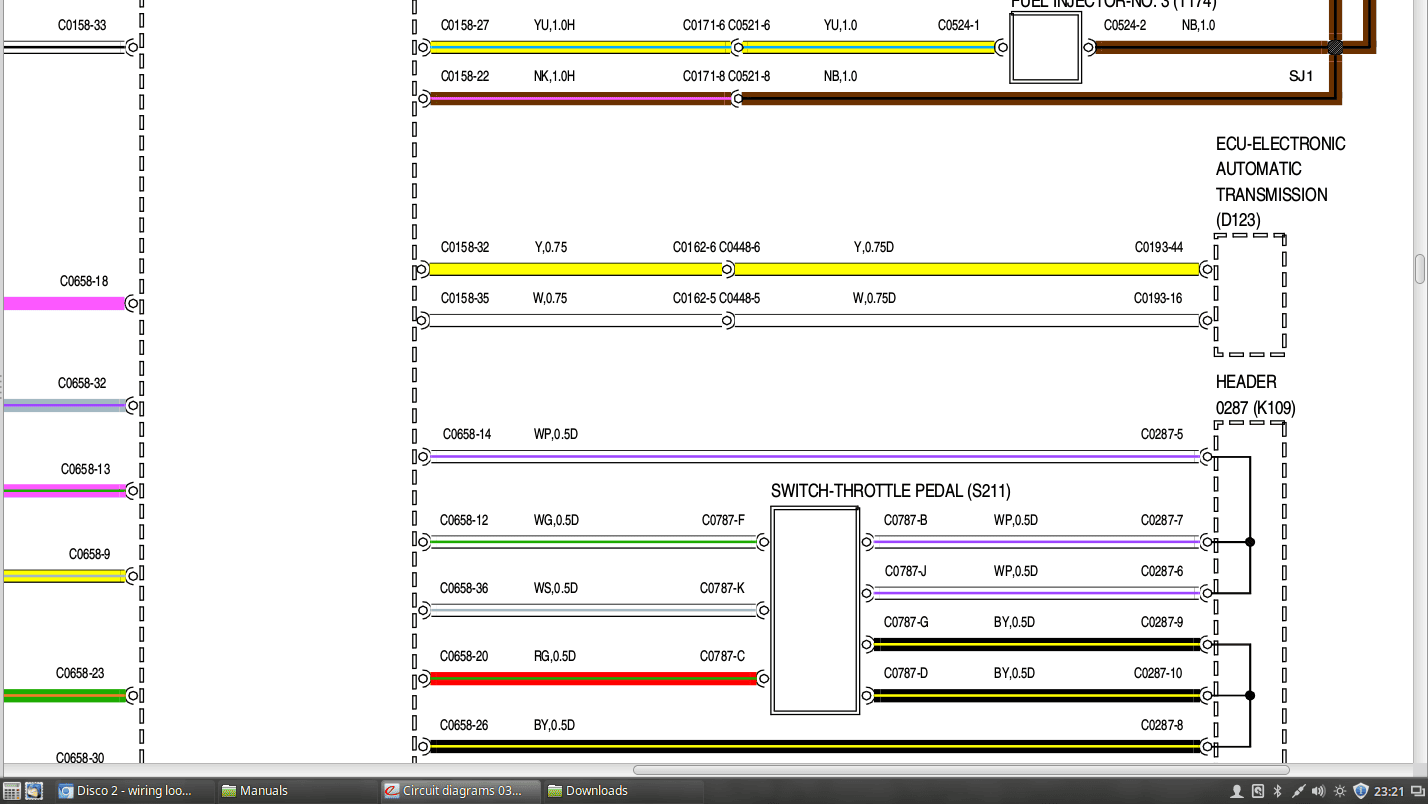

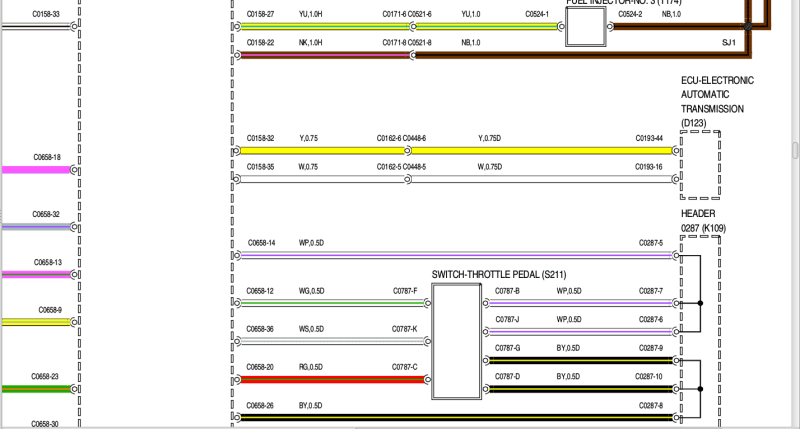

Is it an automatic? I can see a yellow and white wire on this TD5 circuit diagram but I don't know if they go to a grey plug as mine is manual and I just have a red plug and black plug at the ECU.

sierrafery · Aug 31, 2019

The grey plug is C0162 and white-yellow wires should be twisted and it's the CAN-bus... a fault on this circuit would trigger the flashing M+S and send it to limp mode... that circuit would not affect a manual
