Widening the track?

Discussion in 'General Land Rover Forum' started by dieseldog69, Mar 20, 2018.

< Previous Thread | Next Thread >
  1. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    Is there a way of widening the wheel track without spacers or massively offset rims?

  2. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,470
    Likes Received:
    9,785
    Location:
    Oxfordshireness
    Fit wider axles...............:D

    Cheers

  3. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    Ideally i would like Mog portals.

    But considering alternative options first.

  4. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,659
    Likes Received:
    2,545
    Location:
    South London/North Kent
    D2 axles

  5. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    Seems like a good option but not sure how much wider they are over D1 axles?

  6. nesponge

    nesponge Active Member

    Joined:
    Nov 20, 2008
    Posts:
    486
    Likes Received:
    43
    Location:
    Northumberland
    Jeep Wrangler axles (JK onwards) are wider

    Wrangler JK track width: 61.9 inches

    Defender track width: 58.5 inches

    Most American axles such as the Dana 60 found under Ford, Chevrolet and Dodge pickup trucks are between 67.5 and 69.5 inches wide.

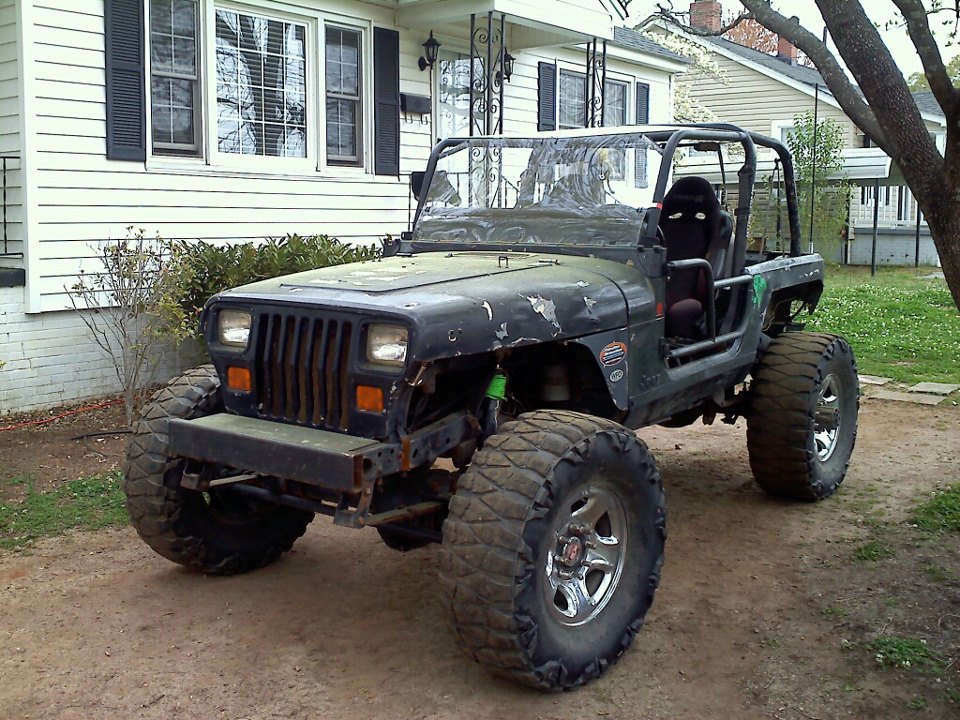

    Here's an early wrangler on Dana 60's

    [​IMG]

    Last edited: Mar 22, 2018
    dieseldog69 likes this.
  7. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    The sound of 67 to 69 inches sounds much better, rough it out at +5 inches a side and I think we could be on to a winner.

    Do you know if they run hardy spicers or CVs? I know a lot of the yank pick ups are part time 4X4!

  8. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    54,861
    Likes Received:
    20,266
    Location:
    Gloucestercotshirewolds
    No idea if tis relevant or not but wider track can be a real issue on rutted lanes.

    I followed WLM round some lanes we were checking out for a meet and his tyres were riding the outside walls of the ruts. He had very little idea whether his front wheels were straight and every now and then his tyres would bite the top edge of the ruts and stuff his nose in the hedge :)

  9. nesponge

    nesponge Active Member

    Joined:
    Nov 20, 2008
    Posts:
    486
    Likes Received:
    43
    Location:
    Northumberland
  10. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    48,188
    Likes Received:
    46,716
    Location:
    Continuously Cruising
    Not to mention narrow gateways and tight radius corners, as often found on Westcountry lanes.

  11. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    What axles is he running on then?

    Or is it a case of spacers and or massive offset rims?

  12. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    I'm hoping not exceed the body by much if at all, but gaining 3 inches each side would still keep my wheels inside the arches of the Disco I think?

    I still want to stay skinny on the tyres which will confuse many as they all end up gaining width outside the arches with wide tyres.

  13. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    54,861
    Likes Received:
    20,266
    Location:
    Gloucestercotshirewolds
    37's on massive offsets I believe, awesome in mud no doubt but quite a serious issue on narrow rutted lanes

  14. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    That's some serious rubber!

    What wheel and tyre combo are you running on the series if you don't mind me asking? It seemed to be getting you about in the snow over there over the bad weather period we had.

    I am keen to try and stay with skinny wheels and the Cooper STT stand at almost 32" and only 9" wide which suit me but after the little girl lost her life I am 100% off spacers!!!

  15. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    54,861
    Likes Received:
    20,266
    Location:
    Gloucestercotshirewolds
    7.50 Deestone Xtra Tracks on standard rims.

    You can still get 9.00s with fairly aggressive thread but they're not common and expensive

    dieseldog69 likes this.
  16. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    9,823
    Likes Received:
    18,490
    Location:
    Wiltshire
    Did have a set of early disco steels wheels where the centres were removed and re welded giving a wider off set.
    Did help with dad been a machinist
    And always up for a challenge.

    I think 101FC rims have a different offset to LR.

    dieseldog69 likes this.
  17. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    9,823
    Likes Received:
    18,490
    Location:
    Wiltshire
  18. Muppetdaze

    Muppetdaze Active Member

    Joined:
    Oct 4, 2014
    Posts:
    340
    Likes Received:
    83
    Location:
    Thanet
    So it's longer axles needed?
    I wonder.
    Someone probably can make standard axles longer.

  19. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    I have seen Disco steels with the centres flipped, there was a thread on it here somewhere?

    I wasn't blessed with a parent who liked anything mechanical, dad was a builder :(

    I on the other hand can't get enough of machining and mechanical engineering, electrics are a sh!t tho as I'm partially colour blind :confused:

    I'd rather try and keep the allys as I like them and was hoping there had been an advance in spacing the swivel further out than just lumps of alloy on the hubs or mad offset steel rims :(

  20. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,111
    Likes Received:
    6,738
    Location:
    Roaming the UK on assignments
    I want to retain the standard look with the alloys I have

    [​IMG]

    After the girl in Louth dying it has 100% put me off spacers and would like to regain some of my turning circle with having the taller 32" tyres on.
