Has anyone got a wiring diagram for the white blocks in n/s kick panel? need to invesigate a blue and purple wire. cheers
white blocks
- Thread starter gazzab79
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 16,475
rave......
gazzab79
New Member
- Posts
- 700
- Location
- manchester
i know but my pc is playing up and cant get to it
- Posts
- 58,170
- Location
- Preston Lancs.
There is no Blue/purple but there is a Purple/blue to pin 7. Goes from pin 4 height switch to pin 7 ECU and is spliced off to pin 9 BECM.
gazzab79
New Member
- Posts
- 700
- Location
- manchester
it was hangin out the block when i looked down there. but it doesnt have a wire coming out the other side if that makes sense. I will take a pic tomorrow and show! Wondered if it was causing my problems
- Posts
- 58,170
- Location
- Preston Lancs.
Well it should have routed as described, same all models.
gazzab79
New Member
- Posts
- 700
- Location
- manchester
gazzab79
New Member
- Posts
- 700
- Location
- manchester

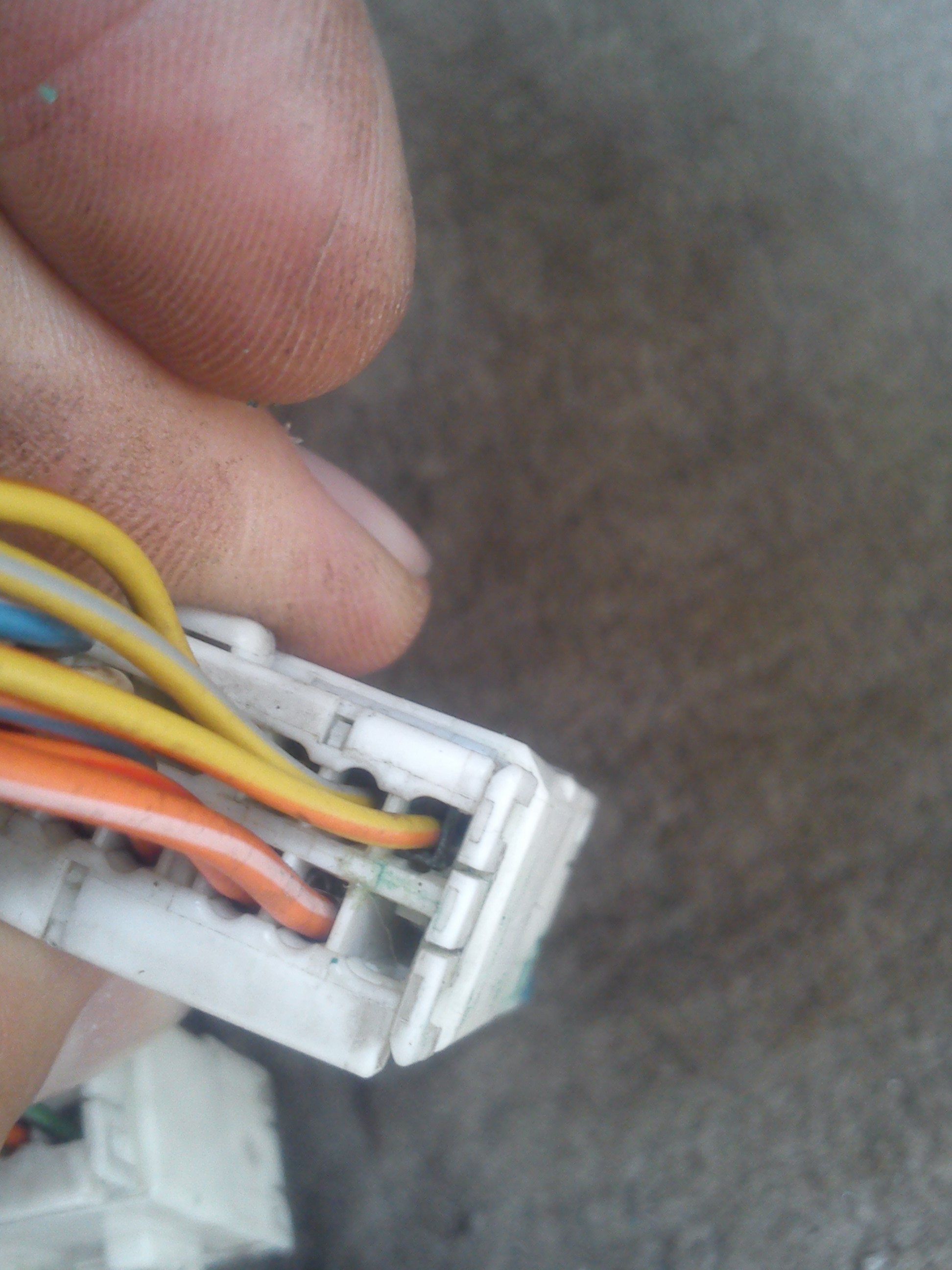

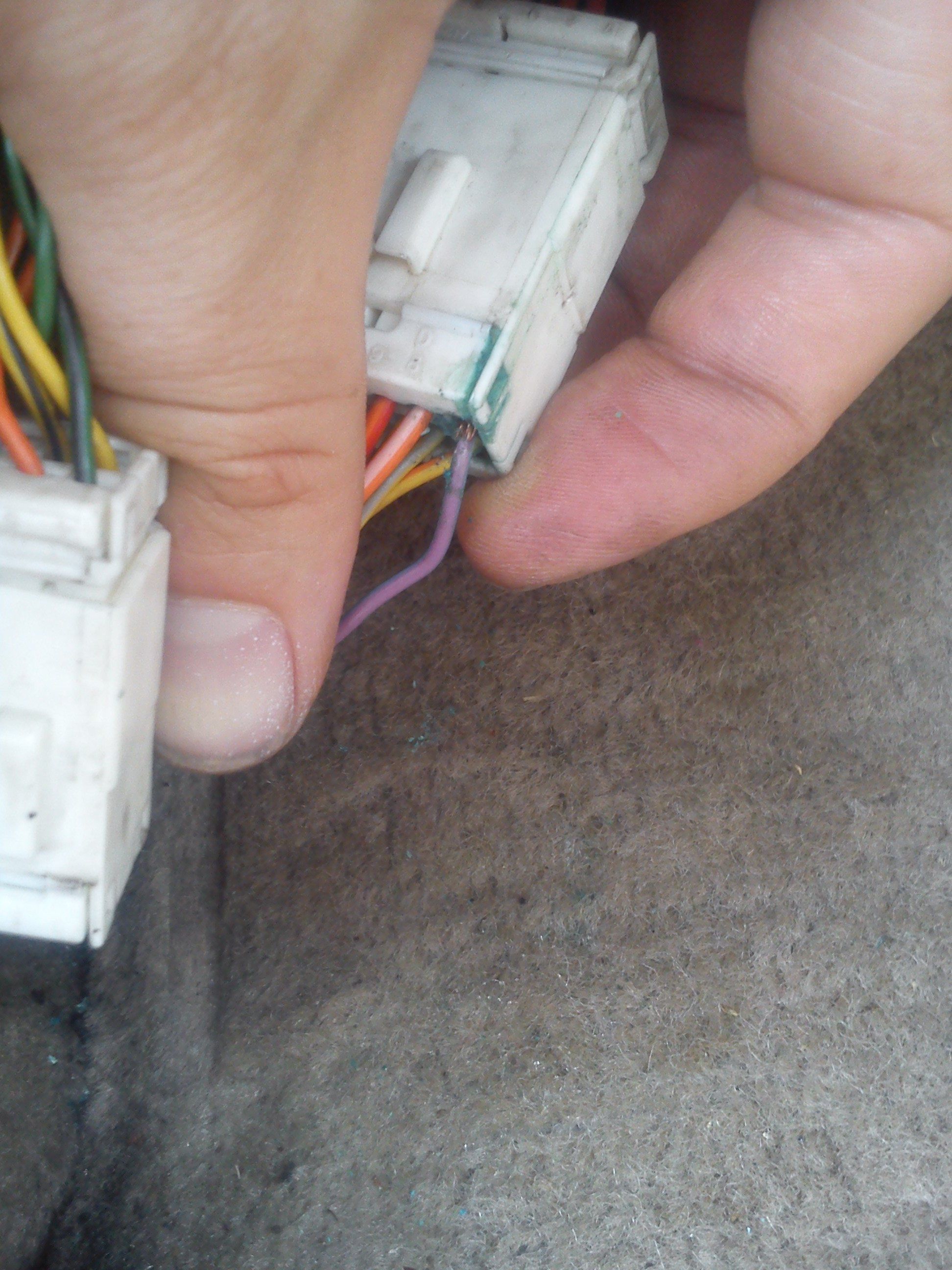

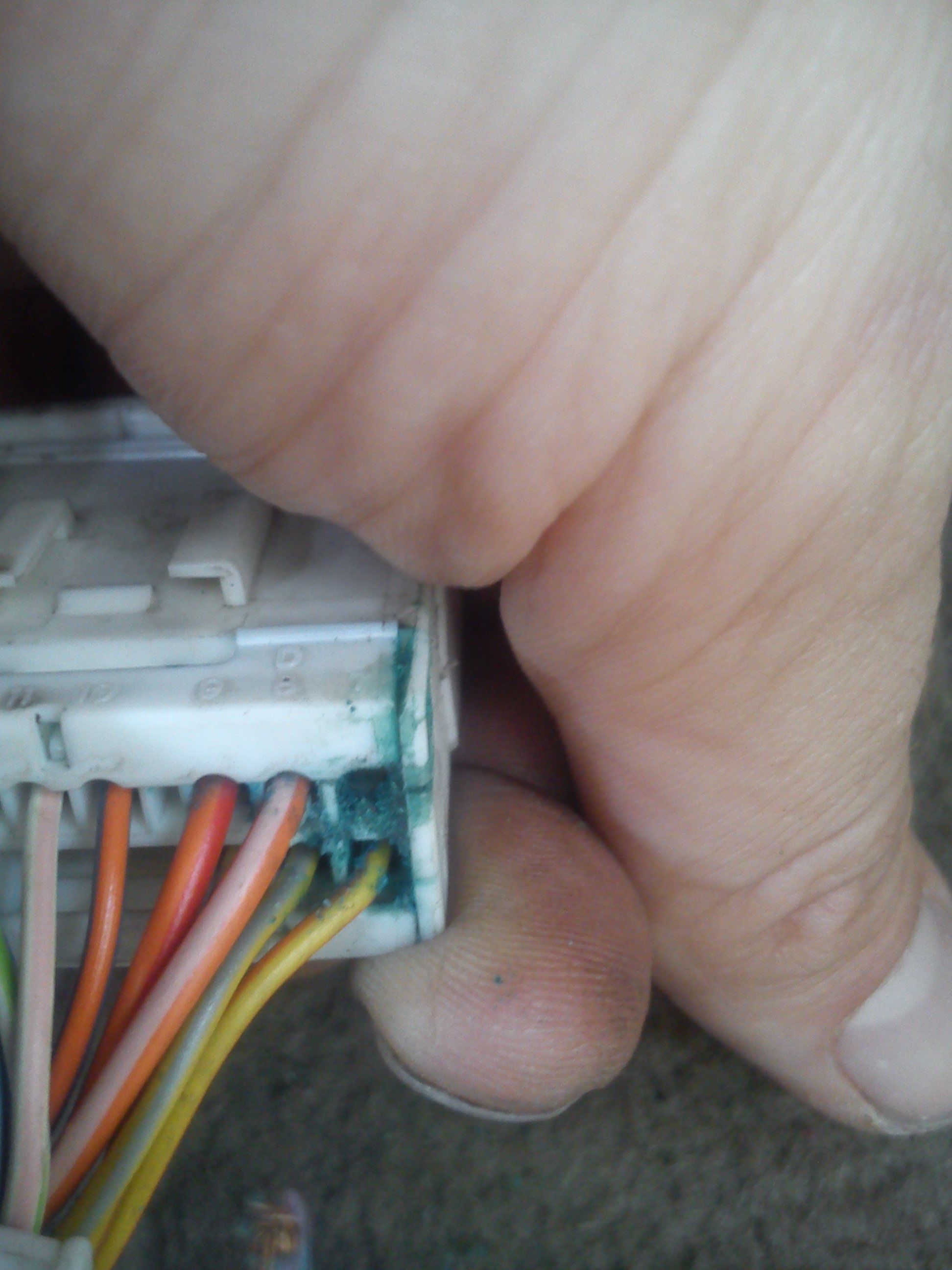

This is the wire I'm talking about. Anyone know what it's for? Also why there isn't one on other side of the block
Datatek
Well-Known Member
- Posts
- 44,002
- Location
- Near Poitiers SW France
One must assume it's a spare for a feature you don't have installed. If everything works I'd forget it.
gazzab79
New Member
- Posts
- 700
- Location
- manchester
Was hoping that. Everything seems ok. But it is a p38!!
- Posts
- 58,170
- Location
- Preston Lancs.
That is NOT a Blue/purple wire it is a Purple/blue wire as i described. Major colour first tracer second. According to RAVE wiring diagrams it goes from pin 4 on height selector switch, via pin 7 in plug and socket, to pin 7 on EAS ECU, with a splice at S120 to pin 9 BECM. Same all models with NO variance. Plug and socket are CO467 and CO469 strange as it may seem pin 7 on their face views is exactly as shown on your photo. If you have a problem that is why.
- Posts
- 3,313
- Location
- Near Heathrow.
While I was recently removing these connectors & soldering the wires, I found the same Purple/Blue wire only on one side of the connector pair as well.

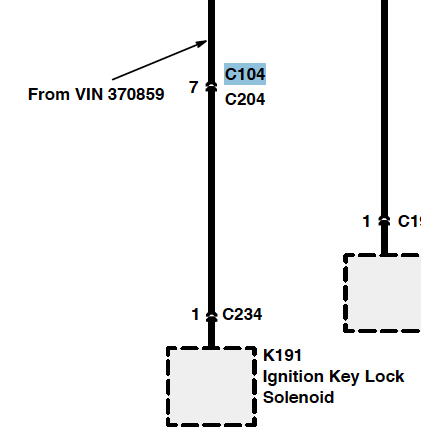

BUT, looking at my copy of Rave, it looks like it was added after VIN 370859, and is use for the Ignition Key Lock Solenoid. . . .so nothing to do with EAS. White connector numbers also change between 1998 & 1999 circuit.
Pete
BUT, looking at my copy of Rave, it looks like it was added after VIN 370859, and is use for the Ignition Key Lock Solenoid. . . .so nothing to do with EAS. White connector numbers also change between 1998 & 1999 circuit.
Pete
Attachments
gazzab79
New Member
- Posts
- 700
- Location
- manchester
Well mine is a 98.
Wammers sorry sir, I'm really clueless when it comes to electrics!! Maybe that's why I'm.a painter lol. What u just said makes no sense to me at all!
Wammers sorry sir, I'm really clueless when it comes to electrics!! Maybe that's why I'm.a painter lol. What u just said makes no sense to me at all!
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
- Posts
- 58,170
- Location
- Preston Lancs.
Makes no sense to me either. I am getting PU Purple/blue confused with UK Blue/pink. The circuit i described would be a Blue/pink wire. The other one is NAS only so will have no continuation so forget about it.
- Posts
- 58,170
- Location
- Preston Lancs.
Yep you are correct got me colour codes mixed. The circuit i described is code UK Blue/pink and runs through pin 4 of C104/204 and pin 4 of CO467/469. Purple/blue is NAS only i believe and runs through pin 7 of C104/204 but has no circuit through CO467/469.
pmallinson
Member
- Posts
- 94
- Posts
- 58,170
- Location
- Preston Lancs.
See the attaached and hope this helps
That is a good find, everybody needs to save that page. But note no connections to pin seven as that is the post 1999 diagram.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
See the attaached and hope this helps
So you managed to download a version of Rave with wiring diagrams then !
pmallinson
Member
- Posts
- 94
I got a copy on Disk and now its fine, hence me freely supplying hopefully useful information from it rather than just saying RAVESo you managed to download a version of Rave with wiring diagrams then !
