alarmfitter
New Member
- Posts
- 434
- Location
- romford essex
ok my 4.6 started running sick when first started so i changed the coolant temp sensor today and it feels like a new car but my temp gauge is not working any help please
what have i done now
- Thread starter alarmfitter
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 16,475
I could be wrong but doesn't the V8 use two temp sensors - one for the Engine ECU coolant sensor and one for the Temp Gauge??
Sure the Classics did, one was temp sender and the other was a Thermotime switch...
Sure the Classics did, one was temp sender and the other was a Thermotime switch...
alarmfitter
New Member
- Posts
- 434
- Location
- romford essex
where is the temp sensor
- Posts
- 1,478
- Location
- Buckinghamshire.

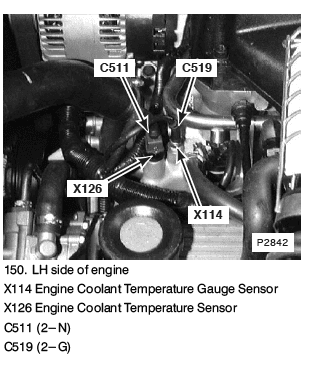

The one for the gauge is at the front of the engine on top, very near where the rubber large hose connects.
On my engine the plug is green plastic. The one for the ECU is brown and little further towards the back and left.
Attachments
jt_armstrong
Well-Known Member
- Posts
- 1,824
- Location
- Lake Forest, California
I think it depends on the age of vehicle. Post '99 Bosch models only had one temp sensor which I recall was black and located front an centre. I think the pre 99 GEMS Lucas models had two but can't be sure.
alarmfitter
New Member
- Posts
- 434
- Location
- romford essex
must be a dodgy sensor but a pain in the arse to get too
