What determines when a single flare or a double flare should be used. Is it to do with the Male/female fitting pushing down on the flare.
What flares on brake pipes?
- Thread starter mick the builder
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
as a rule on landys female union has a concave ie double flare a male fitting convex ie single flare,
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
Thanks again for the second time tonight, as I thought but wanted to get it right.
Last edited:
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
Apologies , is it true that u should only use double flares for brake lines plse
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs

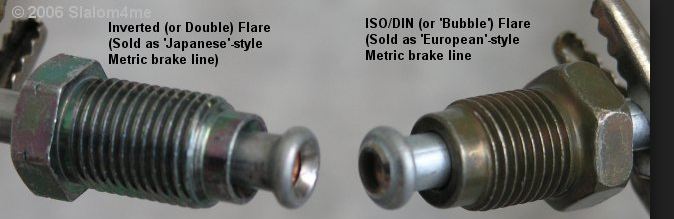

im not quite sure what you mean,but by double or single this is what is usually meant , on the left is a double ,right a single as its the first operation in making a flare whilst left takes two operations,the same type of joint is used for clutch lines and earlier oil coolers etcgstuartpost: 4380282 said:
im not quite sure what you mean,but by double or single this is what is usually meant , on the left is a double ,right a single as its the first operation in making a flare whilst left takes two operations,the same type of joint is used for clutch lines and earlier oil coolers etc
Apologises mate
Thks, I used the bubble flare on mine

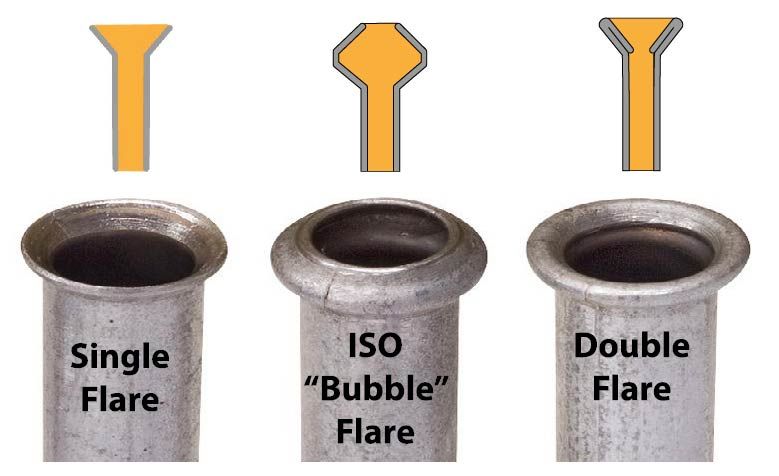

Managed to find a picture, so the far left one, “ the single flare “ I believe should never be used on a brake line
I’ll get my coat , lmao
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
theres an art in knowing what people are asking,youd struggle to make the single flare with a std brake flaring kit
Thks , know I don’t always make sense, lol

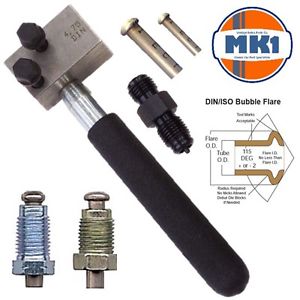

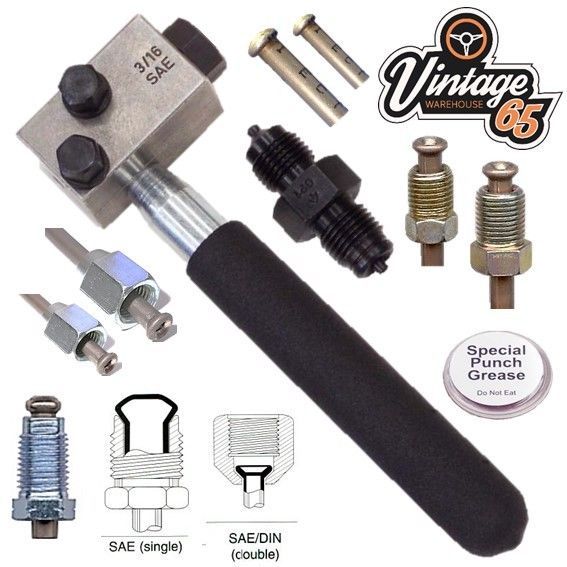

These were the flaring tools I bought , best ones I’ve used so far
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
it only makes 2 types of flare single ie bubble or double you couldnt make the other single
Indeed , is me getting the description wrong again , lol
Never used the flaring tool on metal brake lines yet
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
Is the first one not made by using the second operation in a double flare only!
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
second one is operation 1, 3rd one is the operation 1 and then 2
Is the first one not made by using the second operation in a double flare only!
Hi mate
Sorry if I confused matters , lol
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
It don't take much to confuse me these days
Oh blimey , glad it isn’t just me then, lol
I can’t remember what I just forget , or was it I keep forgetting what I can’t remember
