Welding PAS pipes?

congo181

Well-Known Member

Posts

519

Location

Maidstone, Kent, U.K.

• Sep 28, 2021

• #1

One of my PAS pipes has a leak where the bracket is on the front cross member.
Has anyone ever tried welding these pipes?
I’m not even sure what they’re made of…



H

Hicap phill

Well-Known Member

Posts

16,319

Location

Wiltshire

• Sep 28, 2021

• #2

Which 1 is damaged?
Pressured / unpressured



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Sep 28, 2021

• #3

If its steel, you can braze them, will most likely be to thin for mag or mig.



tottot

Well-Known Member

Posts

8,073

Location

west wales coast

• Sep 28, 2021

• #4

The oil remains within will contaminate the weld, not worth the trouble.



Flossie

Well-Known Member

Posts

11,048

Location

Shropshire

• Sep 28, 2021

• #5

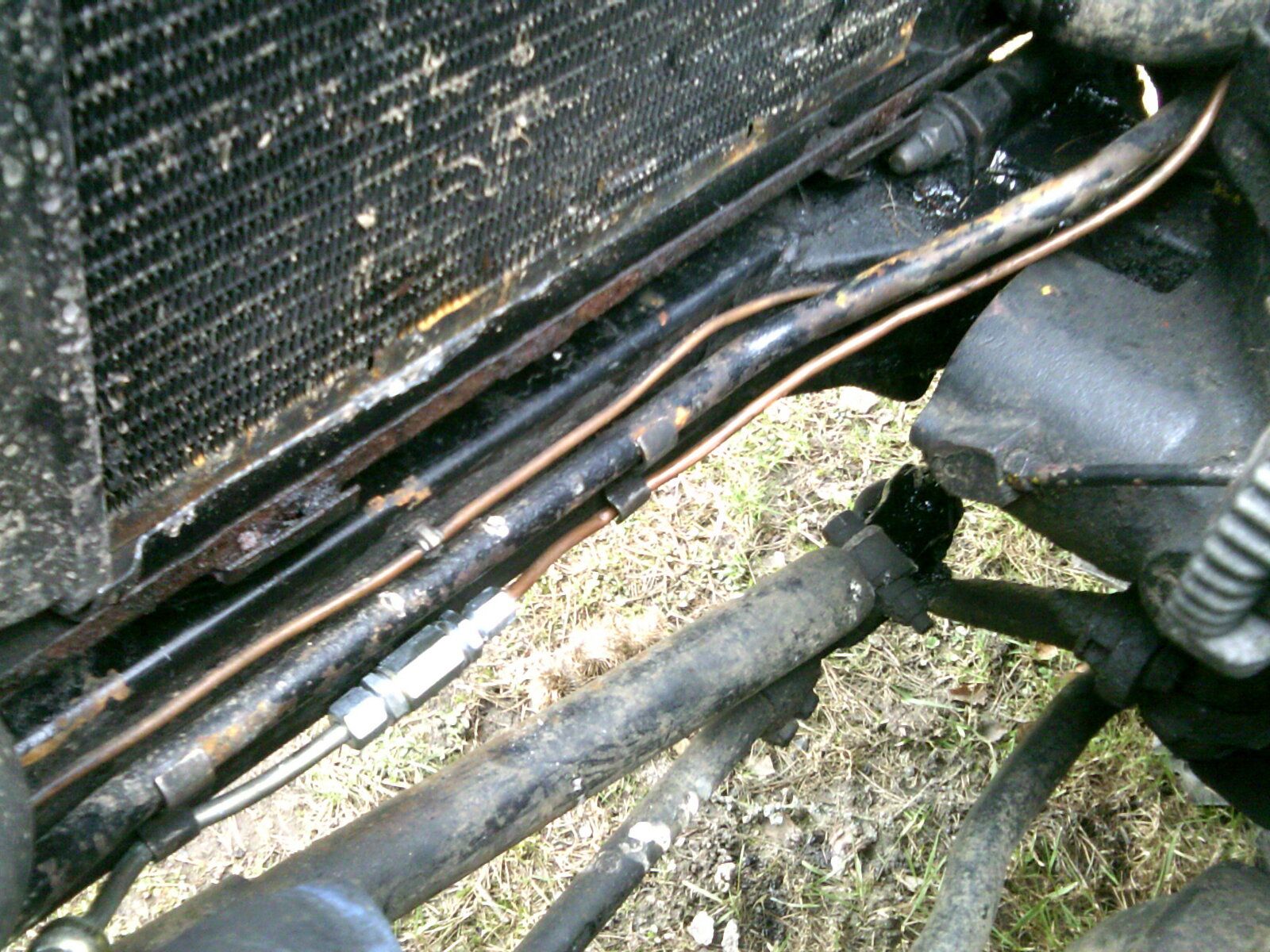

I extended my pipe for a 200tdi conversation using an off the shelf compression straight, think it was 10mm? So you could use one of them either side of the leak and chop the split bit out joining with a new bit of 10mm tube.



Beneagles

Well-Known Member

Full Member

Posts

6,404

Location

North Perthshire

• Sep 28, 2021

• #6

Flossie said:

I extended my pipe for a 200tdi conversation using an off the shelf compression straight, think it was 10mm? So you could use one of them either side of the leak and chop the split bit out joining with a new bit of 10mm tube.

Click to expand...

Similar



congo181

Well-Known Member

Posts

519

Location

Maidstone, Kent, U.K.

• Sep 28, 2021

• #7

Hicap phill said:

Which 1 is damaged?
Pressured / unpressured

Click to expand...

I think it’s the bottom one from how it came out but I’m not 100% sure. Not at home right now but I’ll check. Be interesting to try and fix it.



freelance

Well-Known Member

Posts

8,701

Location

essex and beyond

• Sep 28, 2021

• #8

Brazing or joiner, will repair, or just replace



Disco1BFG

Well-Known Member

Full Member

Posts

6,316

Location

Buxton

• Sep 29, 2021

• #9

IMO, the only welding process which stands any chance would be TIG, preferably TIG brazing ...., then Brazing ..

Possibly the easiest way is to use a proper, correctly sized compression fitting... which is what I did on my AT cooler pipes, despite having TIG.



congo181

Well-Known Member

Posts

519

Location

Maidstone, Kent, U.K.

• Oct 3, 2021

• #10

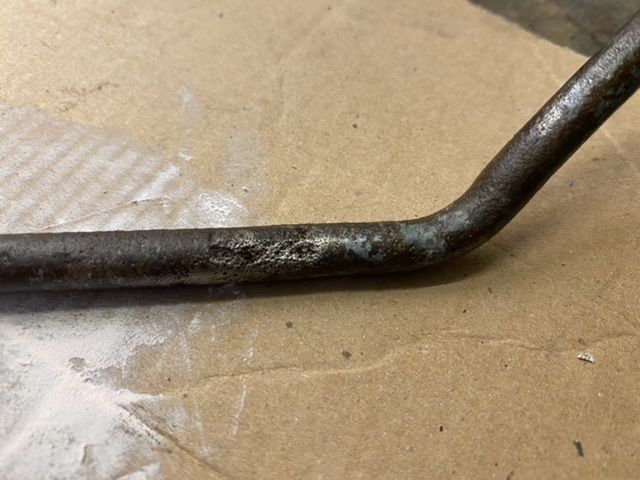

Well the pipe looks too far gone to be worth saving. Luckily the original part number label is still on it as I’ve been struggling to find the correct looking part on the online diagrams, but NTC5001 looks correct.



Attachments

•

  50.8 KB · Views: 58
•

  93 KB · Views: 54
