Water leak hunt

rojohex · Oct 16, 2021

So I had a little leak from my water pump, when that was replaced I then developed another, and I haven't been able to track it down.

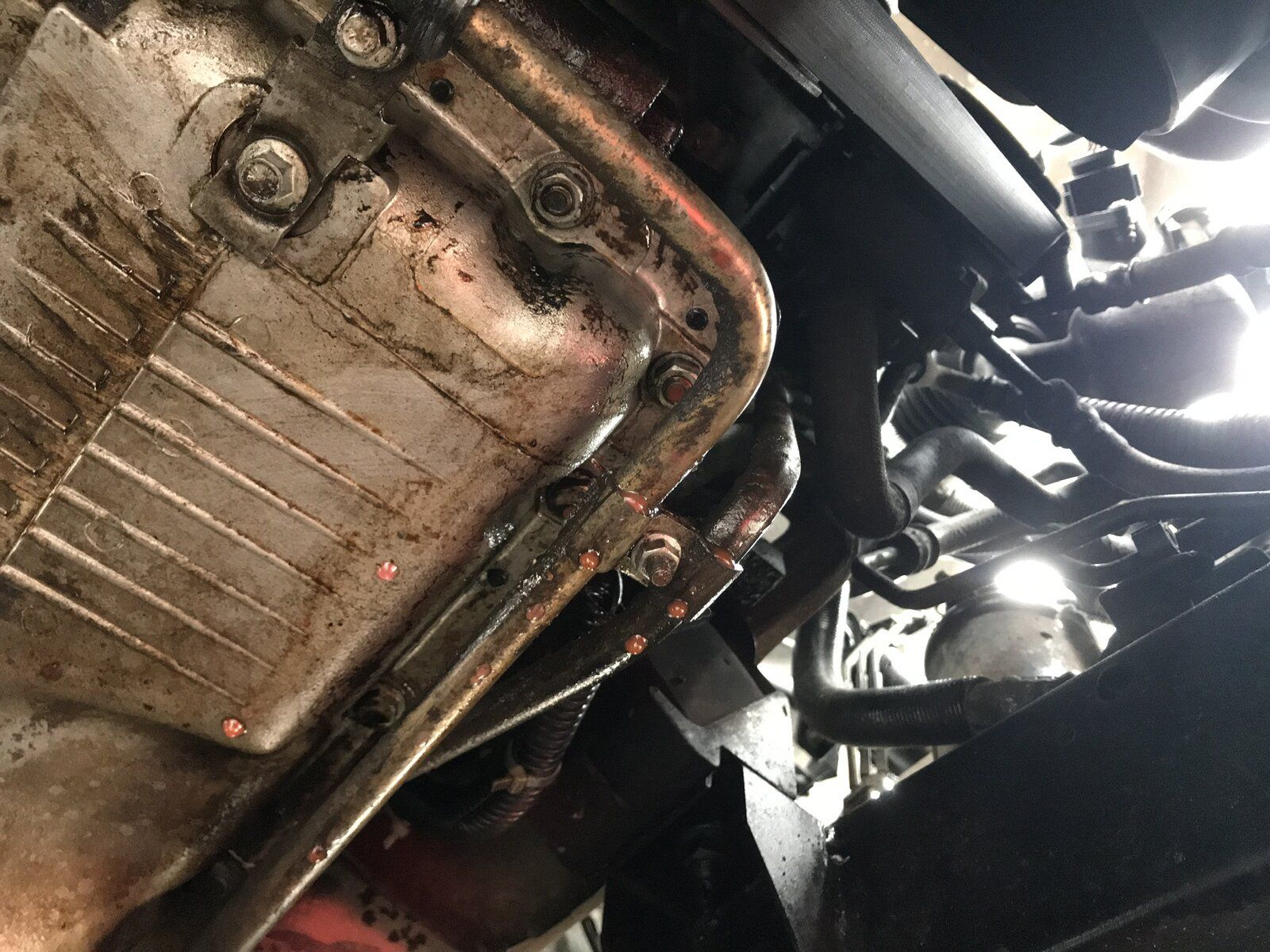

no signs of head gasket going on the V8 so far, and coolant seems to be running down and under the block to the sump in the pick. That’s the bottom beneath the ACE pump in the pic, and ideas where to check that could be an issue there?.

you can see the OAT fluid in the foreground and it must be running down and building up there. Never seem to spot it doing it, I loss about 1/2 a litre every 1/2 hundred miles or so.

Andy Warren · Oct 16, 2021

rojohex said:
So I had a little leak from my water pump, when that was replaced I then developed another, and I haven't been able to track it down.

no signs of head gasket going so far, and coolant seems to be running down and under the block to the sump in the pick. That’s the bottom beneath the ACE pump in the pic, and ideas where to check that could be an issue there?.

you can see the OAT fluid in the foreground and it must be running down and building up there. Never seem to spot it doing it, I loss about 1/2 a litre every 1/2 hundred miles or so.

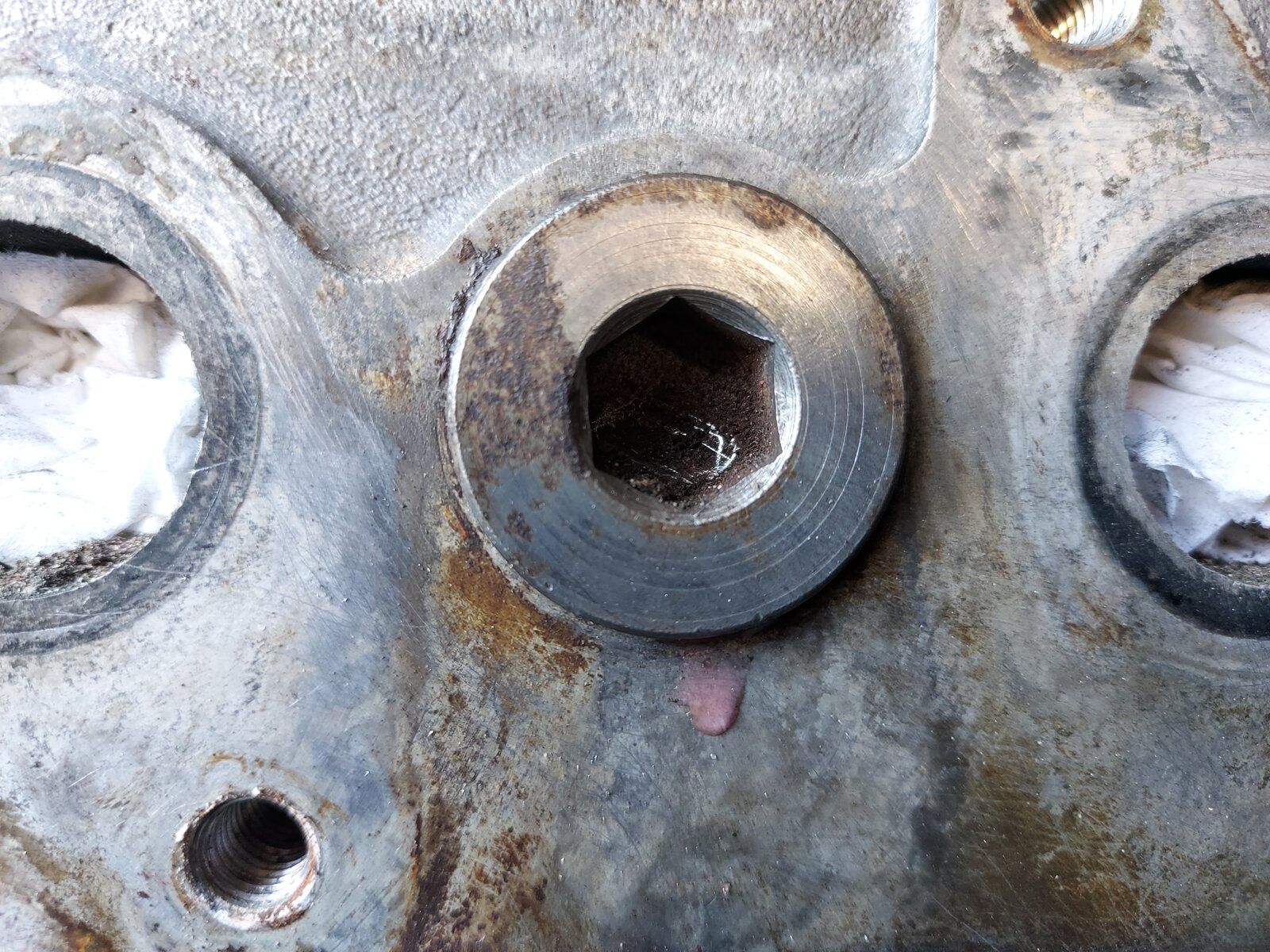

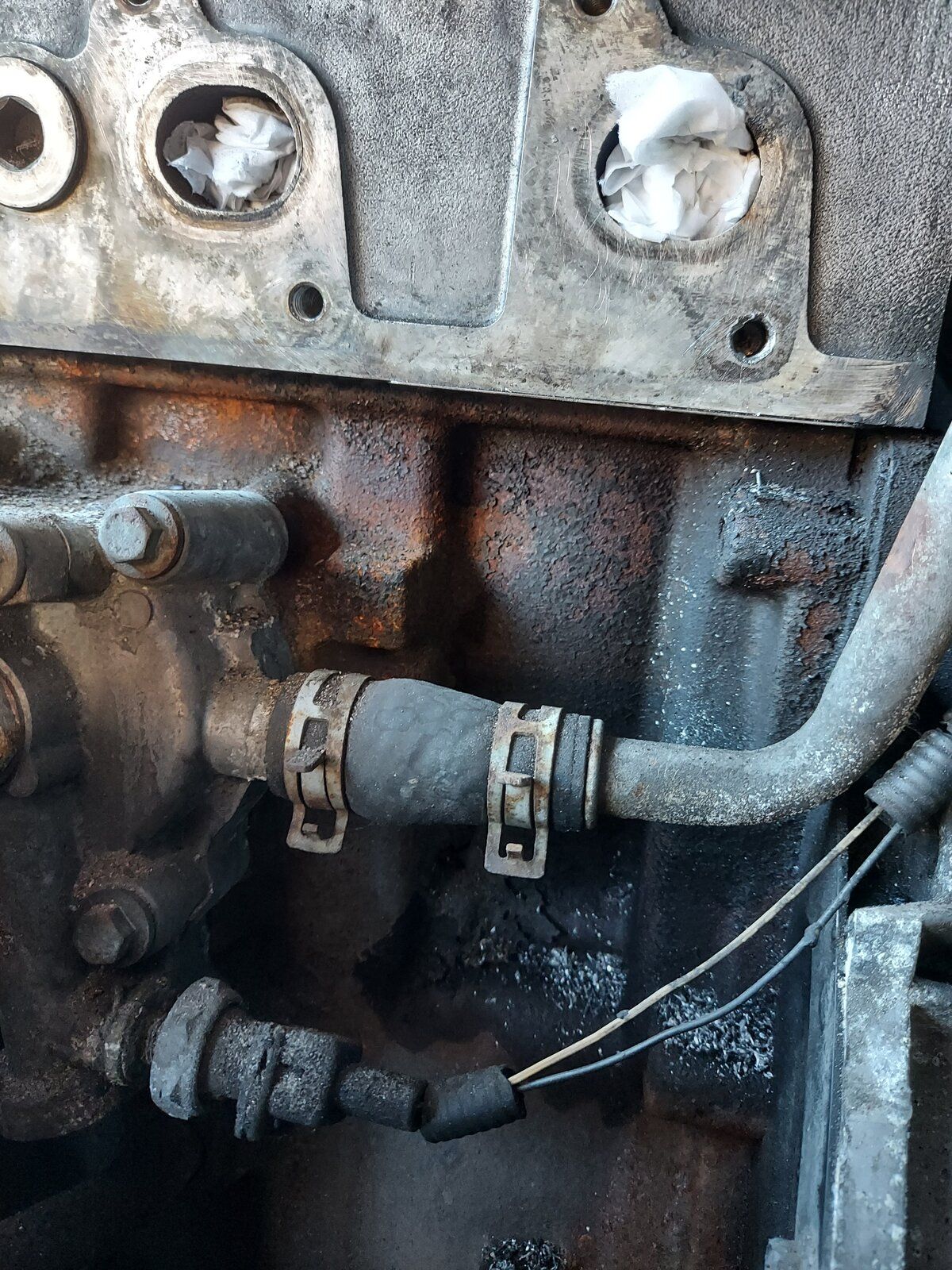

Hi it could be from a number of places but the metal coolant pipe/rail corrodes, there's a short rubber hose that goes to the oil cooler (below the ex. manifold/turbo) or the oil cooler itself + the core plug between 4&5 cyl's (see pics)

rojohex · Oct 16, 2021

Thanks Andy that’s very useful I will have a look there and see.

Andy Warren · Oct 16, 2021

rojohex said:
Thanks Andy that’s very useful I will have a look there and see.

Sorry just realised yours is a V8 (after reading your ACE/belt woes) so ignore my post as it's TD5 related

rojohex · Oct 16, 2021

Andy Warren said:
Sorry just realised yours is a V8 (after reading your ACE/belt woes) so ignore my post as it's TD5 related

rojohex · Oct 16, 2021

Sorry Andy just realised I never put V8. So I’m assuming there is no suck weak joint as mention on the fuel rail.

Andy Warren · Oct 16, 2021

No it's my fault, I've just read your first post & you did mention V8

discool · Oct 17, 2021

With that amount of coolant loss I would check the core plugs, a bit of a pain to get access to do that, plus the hoses to the water pump.

Dippypud · Oct 17, 2021

Dust the engine with talcum powder and see where the trails lead from ...

My old Disco had a pinhole leak, from the back of a heater hose, that ran to the bellhousing, that was a bastid to find ... only leaked when up to pressure too ...

discool · Oct 17, 2021

Dippypud said:
Dust the engine with talcum powder and see where the trails lead from ...

My old Disco had a pinhole leak, from the back of a heater hose, that ran to the bellhousing, that was a bastid to find ... only leaked when up to pressure too ...

Just like rubber hoses do… There’s a science behind that… so they say

rojohex · Oct 17, 2021

Thanks guys will have a look in these areas. It’s a real pain in the arse, now it’s ACE issues are fixed I can have a real dig around and find it.
