Vacuum pipe trauma

Allycat · Oct 20, 2019

Hi all, can anybody help me out with the M47 engine vacuum pipe arrangement. Got started replacing all the chaffed pipes then the mrs disturbs my train of thought with a shopping trip so we go on our bikes, she’s on scooter, me on ST1100, don’t do push bikes.
Anyway, gets back and under the bonnet and under the engine, pipe here, pipe there.......uh o...that’s not right....or is it. Bugger..I’m all confused now. Can any body help with diagrams or sketches or a written instruction on what goes where. I’m at a complete loss now. Cheers in anticipation.

websun · Oct 20, 2019

I am very curious in this as well as mine are in good enough position but never knew how they go.
I am tempted to put the turbo solenoid to vacuum one in the back on those clips.

andyfreelandy · Oct 20, 2019

https://www.landyzone.co.uk/attachments/freelander-vacuum-png.155243/

Might help you. From memory egr is on a T from the tank.

andyfreelandy · Oct 20, 2019

Just checked. Egr T off between vacuum pump output and reservoir input.

Allycat · Oct 20, 2019

andyfreelandy said:
Just checked. Egr T off between vacuum pump output and reservoir input.

That’s brilliant Andy, much appreciated.

gstuart · Oct 20, 2019

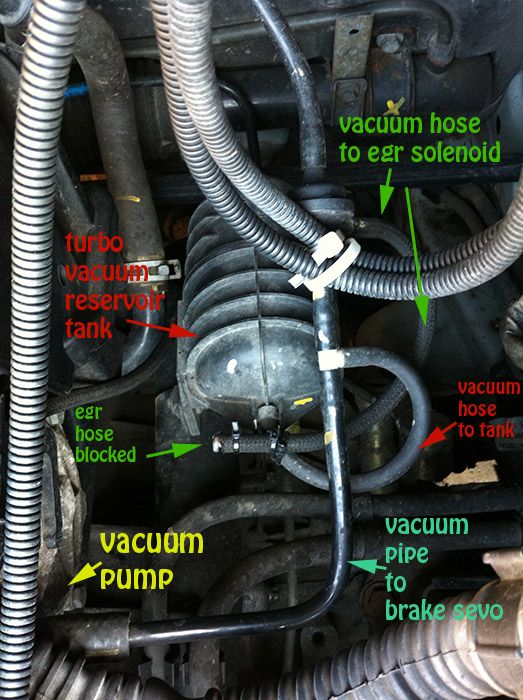

Hope this also helps

Allycat · Oct 20, 2019

gstuart said:
Hope this also helps

View attachment 192301

Many thanks, this will hopefully get me back on track.
