upgraded my blower motor

Made a start on fan casing for new blower.
Should end up with 4 speeds.

Blackburn said:

Made a start on fan casing for new blower.
Should end up with 4 speeds.

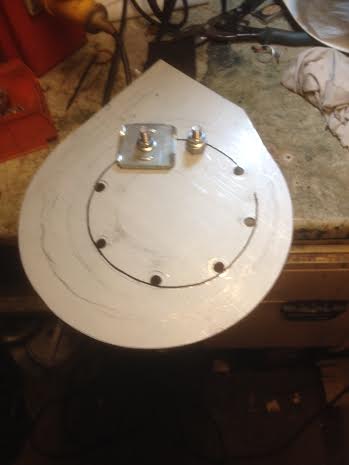

View attachment 52621

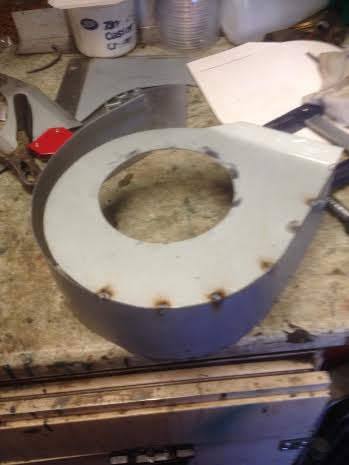

View attachment 52622

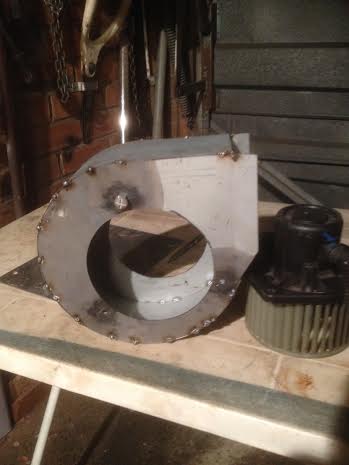

View attachment 52623

Click to expand...

looking good-anyone know where I can get new carbon brushes from for my old motor?

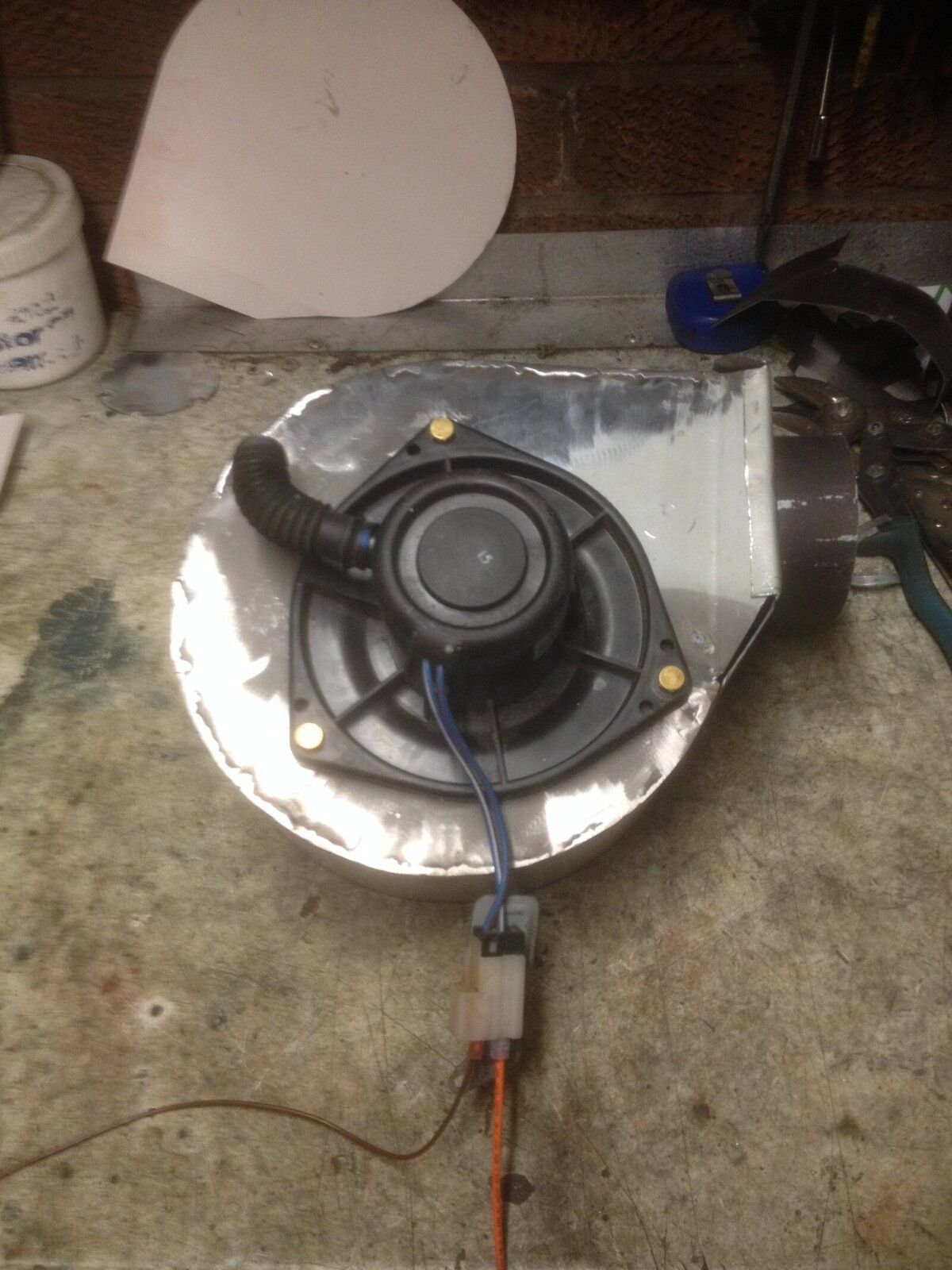

More progress just the end plate and brackets to weld on now added slot for resistor pack after taking these pics.
Tested it with no resistance in yesterday and air flow rate is brilliant.
Intend to set up with normal switch with two resistance values in and then have a second switch to short out resistance and give full flow when required.
The motor has a vent tube taken from casing to keep it cool same as LDV van it came from except that was a plastic case.

this looks like it'll fit-tad pricey though!!

Electrical products from Holden Vintage & Classic Lucas Car Spare Parts, Accessories & Belstaff Jackets from the UK | Mobile

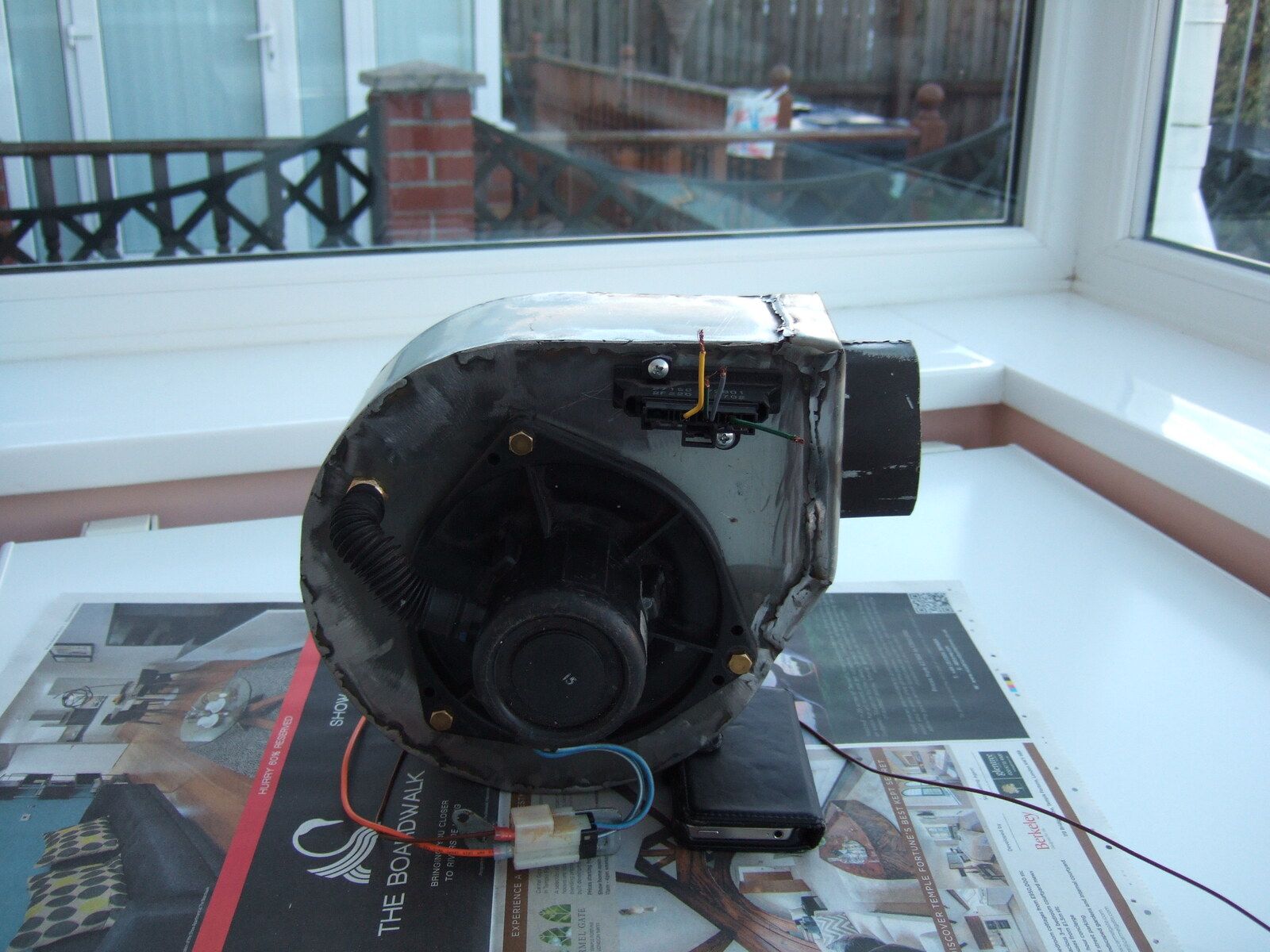

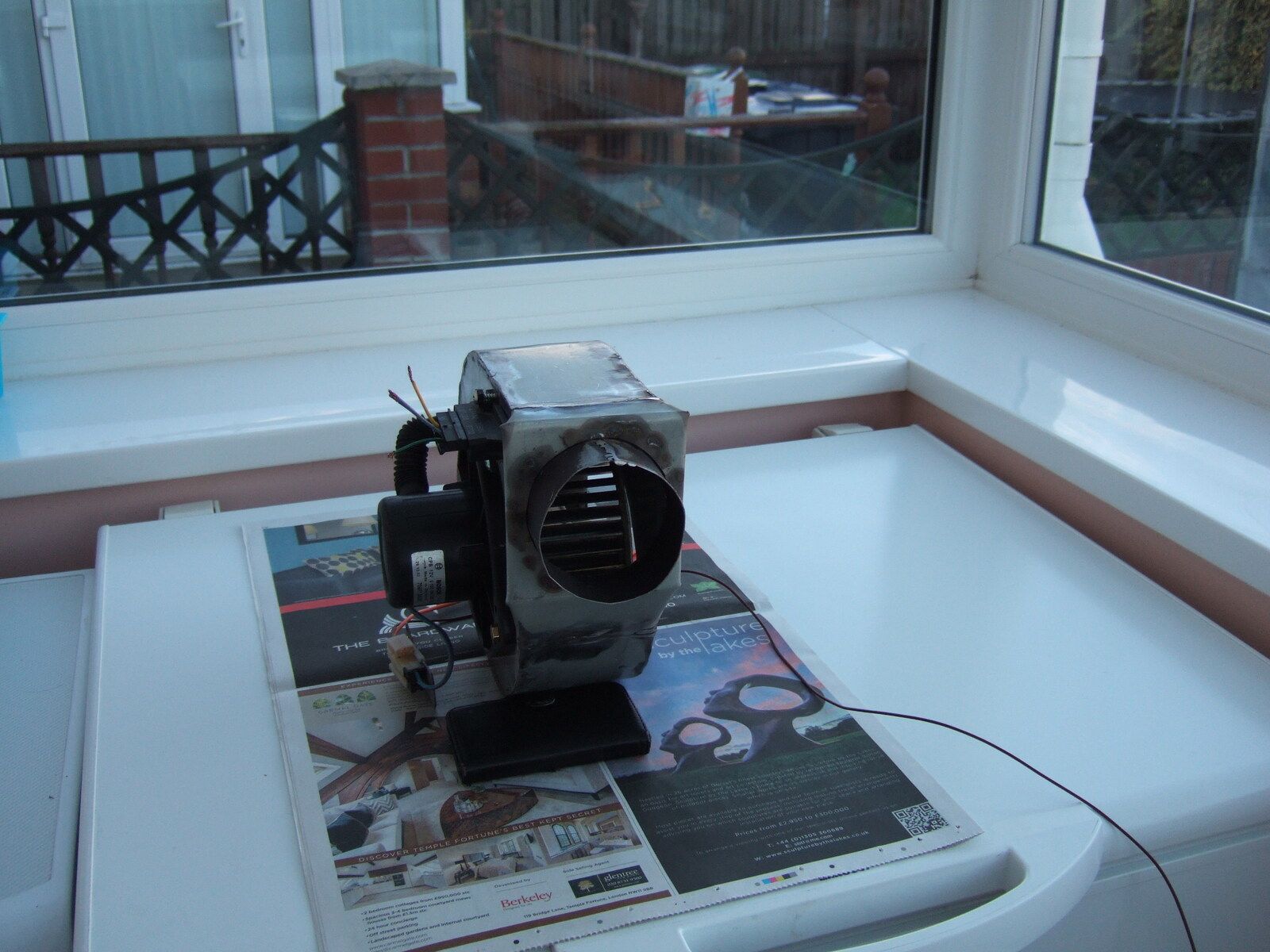

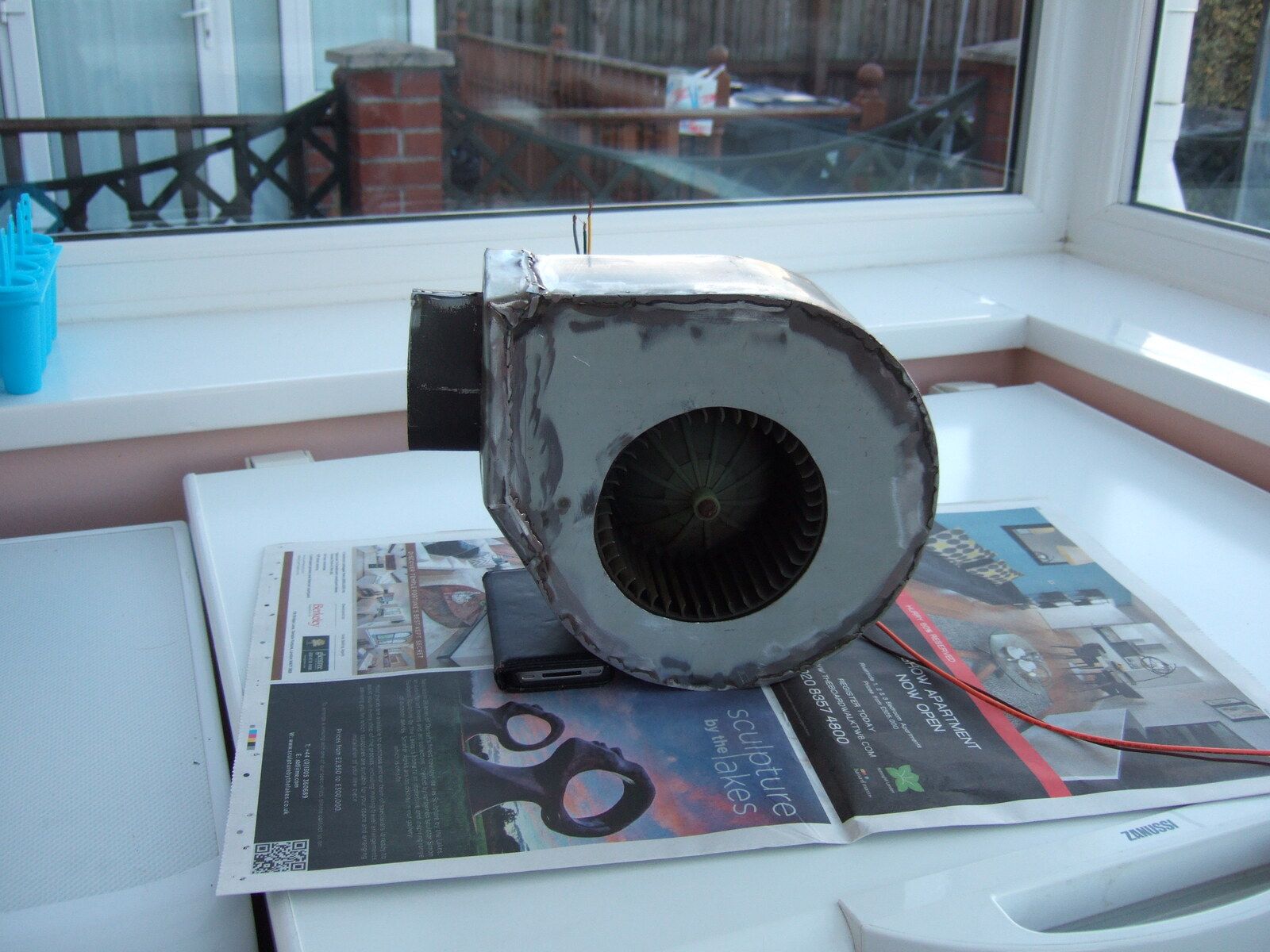

Have mine ready to paint then couple of brackets to make to fit it.

any idea what part number/ldv model the blower is at all or the fan blade dimensions?

Ve

Very interesting, very, very interesting....
and with the 4 inch fan?
yrs

Joe
Fan diameter 130mm other dimensions in here

View attachment Fan design.pdf
LDV convoy van

Blackburn said:

Joe
Fan diameter 130mm other dimensions in here

View attachment 53352

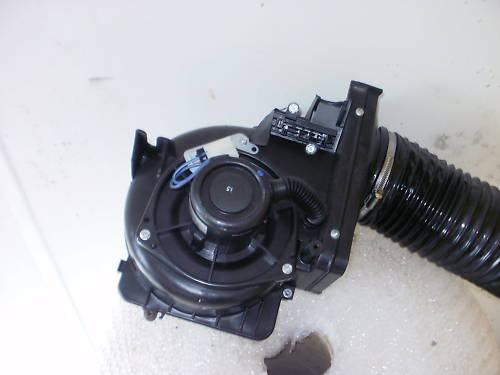

LDV convoy van

View attachment 53353

Click to expand...

cheers, I had a mass ordering session..
I now have a complete fan going spare and my old fan motor with new brushes

ebay here we come

I've got Dr_Evils spare heater box too so I'm going to double matrix up.

I might even fit spare blower somewhere
