Types of defender slam panels

E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #1

I bought a 19j/12j bonnet in Peterborough last year re welded the frame and and added supports for spare wheel needs new catches and spring
So the bonnet is going on a td5 which has a different catch system
Will a 200tdi and 300tdi slam panel work as i cant find a 19j one



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Aug 5, 2018

• #2

Evan farmer said:

I bought a 19j/12j bonnet in Peterborough last year re welded the frame and and added supports for spare wheel needs new catches and spring
So the bonnet is going on a td5 which has a different catch system
Will a 200tdi and 300tdi slam panel work as i cant find a 19j one

Click to expand...

in what way is it different ? ive altered puma bonnets to fit as they do differ



E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #3

jamesmartin said:

in what way is it different ? ive altered puma bonnets to fit as they do differ

Click to expand...

The catch on a 19j bonnet doesn't have a cable and you just pull lever to side
You pull cable and lift lever up on td5 /tdci



E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #4

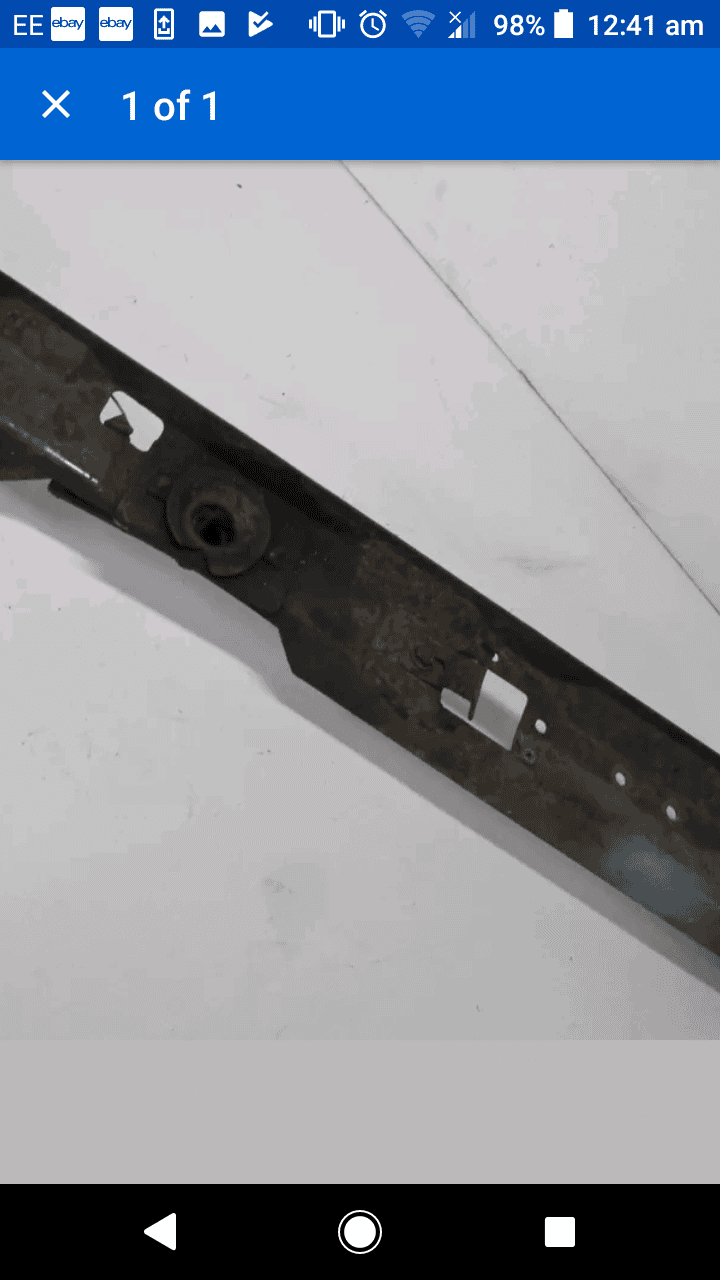

19j



Attachments

•

  76.4 KB · Views: 140

E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #5

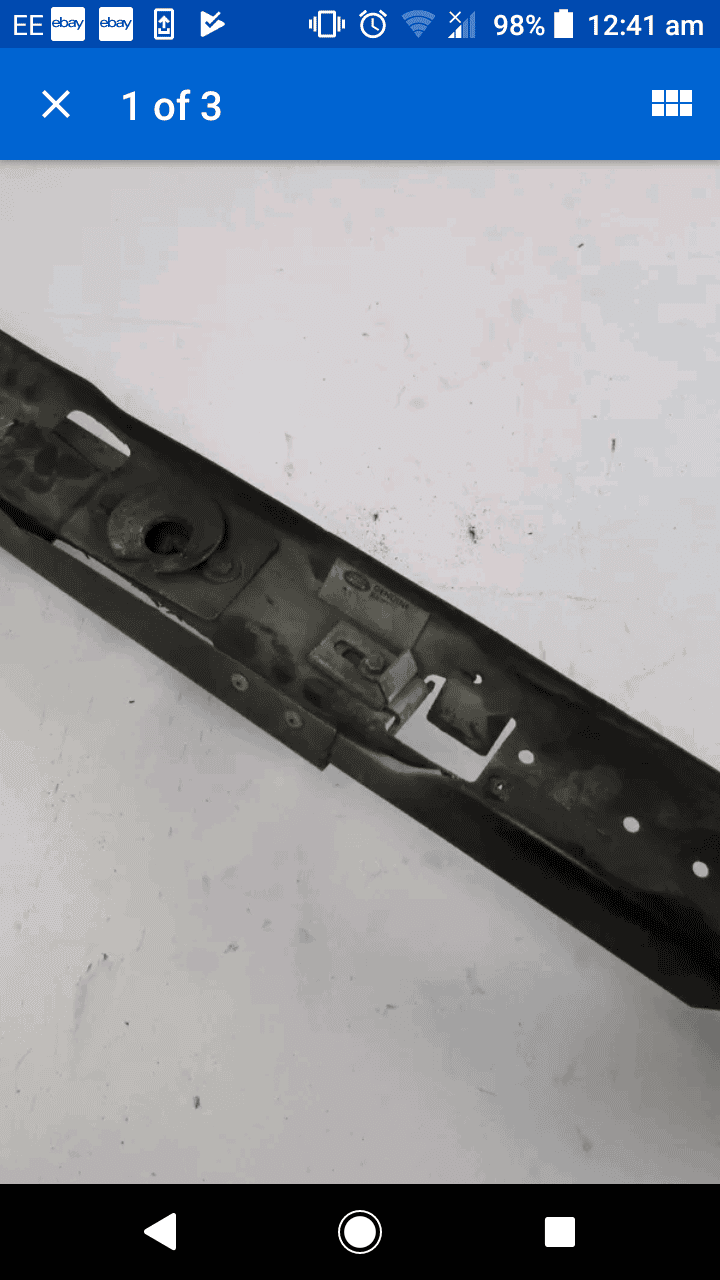

Td5



Attachments

•

  105.8 KB · Views: 135

jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Aug 5, 2018

• #6

Evan farmer said:

The catch on a 19j bonnet doesn't have a cable and you just pull lever to side
You pull cable and lift lever up on td5 /tdci

Click to expand...

the lever at front precedes 19j thats very early



E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #7

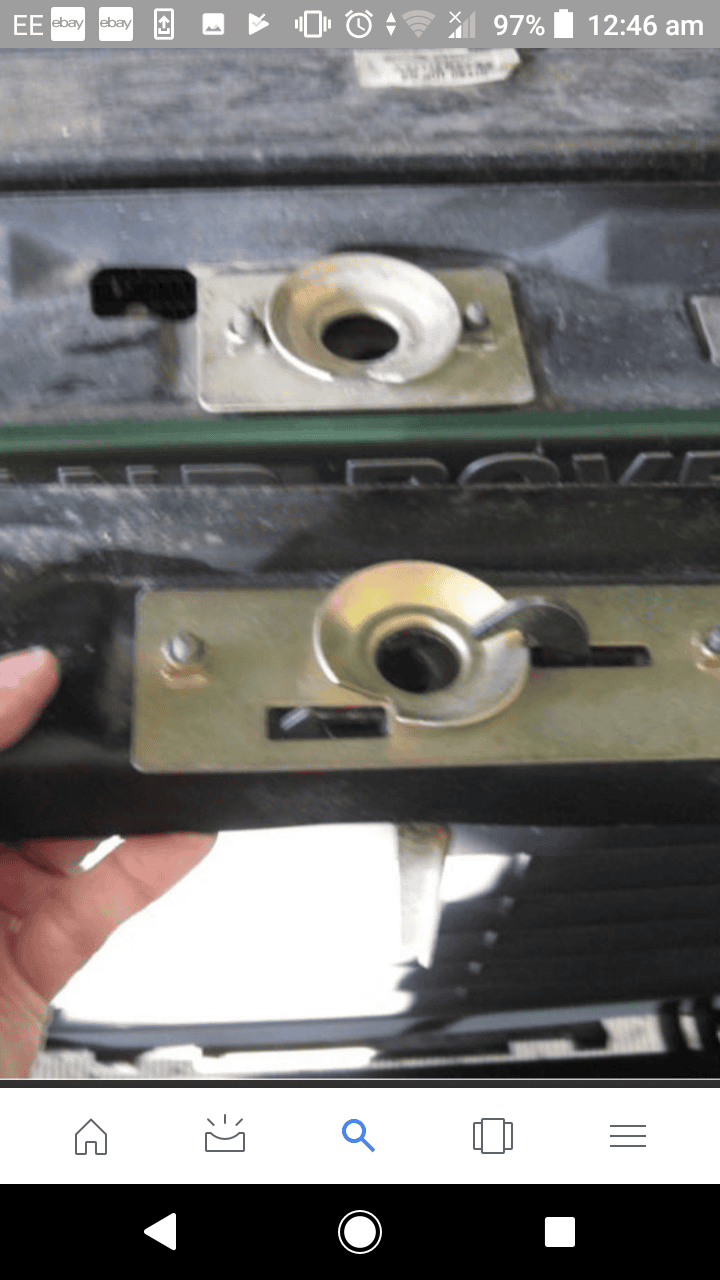

The one hes holding is 19j



Attachments

•

  213.1 KB · Views: 207

SteveSw

Member

Posts

41

Location

Shropshire

• Aug 5, 2018

• #8

My anecdotal evidence supports James Martin - i have a 'B' reg 110 making it pre 19J (it came out of the factory with a NA diesel) and it has the lever in the front grill. My brother has an 'E' reg 90 which still has its original 19J engine and it has cable release. I think the 19J engine came in at about 'D' reg.



E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #9

My 1985 90 "originally has 12j now has 19j



SteveSw

Member

Posts

41

Location

Shropshire

• Aug 5, 2018

• #10

Looking at the 2 types of bonnet i think you could get the earlier bonnet to fit a tdi slam panel but you wouldn't have the safety catch so it could blow open on the road if you hadn't closed it properly. To retrofit the safety catch you would have to cut off one of the four brackets which support the front of the bonnet.



E

Evan farmer

Active Member

Posts

782

• Aug 5, 2018

• #11

SteveSw said:

Looking at the 2 types of bonnet i think you could get the earlier bonnet to fit a tdi slam panel but you wouldn't have the safety catch so it could blow open on the road if you hadn't closed it properly. To retrofit the safety catch you would have to cut off one of the four brackets which support the front of the bonnet.

Click to expand...

Td5 and tdi slam panels same
