Torque Converter blown (twice)

Discussion in 'Range Rover' started by WorRen, Nov 15, 2018.

< Previous Thread | Next Thread >
  1. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    53 Plate L322 Petrol 4.4 V8
    When I bought the car, one owner from new, full main dealer history, 98k miles, it had a known gearbox problem (no drive) owner said it was a transfer box problem.
    However when inspected the gearbox was removed and refurbished and the torque converter was mashed up and so was the pump, so both were replaced with refurbished ones, so:
    Refurbished grearbox, pump and torque converter. at the time he said that he had never seen anything like it happen before. (and he is very well experienced in these gearboxes)
    It drove fine, though there was a slight noise sounding like a UJ or a brake disk binding corresponding with about once per wheel revolution, it didn't seem major though.
    1000 miles on and with no warning at all, all drive lost - when it went the feeling was just like a blown manual clutch - suddenly no drive whatsoever.
    Back to the transmission specialist and he has removed and stripped it - exactly the same as before.

    So the question is - what is likely to have caused it to fail?
    He has suggested crankshaft end float, though the engine runs as sweet as a nut.
    Any ideas please?
    Thx


    Attached Files:

  2. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,840
    Likes Received:
    3,239
    Location:
    Hereford
    Lack of oil?

    Converter not fitted correctly?

    Thor 1950 likes this.
  3. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,581
    Likes Received:
    2,096
    Location:
    wirral and triquivijate
    Well the crank endfloat will be easy to measure with the gearbox out.

    freelance and 8ha like this.
  4. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    31,697
    Likes Received:
    1,314
    Location:
    Near Poitiers SW France
    Debris in the oil cooler circuit perhaps?

  5. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    Shouldn't have been debris as he is very well known in the midlands and recommended by most if not all of the independents, so unless he didn't flush it out properly last time...
    Also had no oil leaks on the drive either before or after the failure.

    What end float would be permissible?

    Thx

  6. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,840
    Likes Received:
    3,239
    Location:
    Hereford
    I would of replaced the Lines and cooler as part of the tranny refresh..

    It's possible there is old clutch material and debris running through the new gearbox.

    Thor 1950 likes this.
  7. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    I appreciate that that could damage the gearbox, however its the torque converter that's been knackered.. They are pretty basic devices and it's the drive end into the gearbox that's gone again....

  8. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    31,697
    Likes Received:
    1,314
    Location:
    Near Poitiers SW France
    Torque convertor not correctly located in the oil pump on the box when the unit was installed.

    freelance likes this.
  9. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,840
    Likes Received:
    3,239
    Location:
    Hereford
    There is a clutch in the converter,

    Fluid also passes through the converter and is contained in it ;)

  10. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    Just trying to understand why would that damage the outside / end of the converter, I can understand the inside clutch getting damaged.

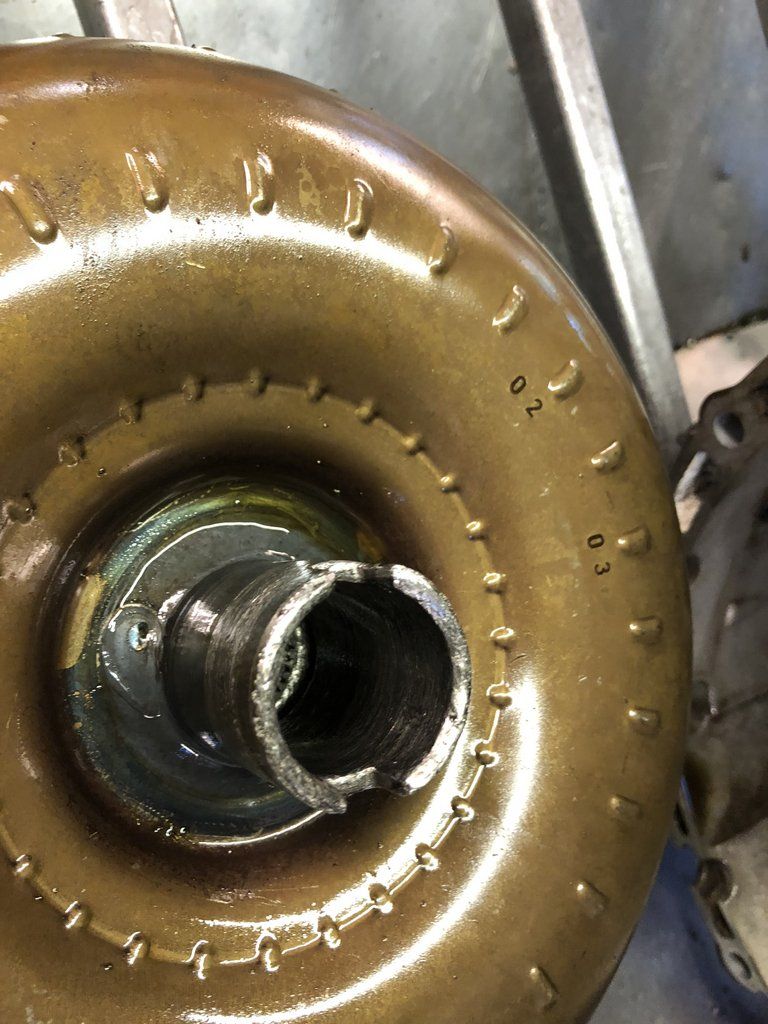

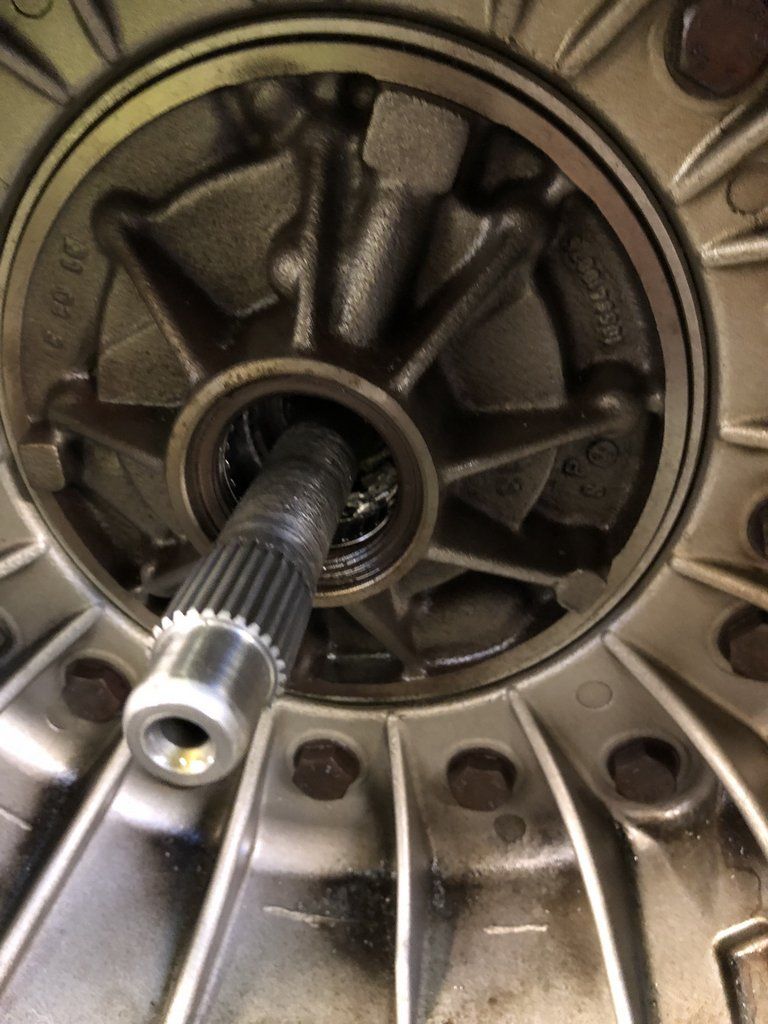

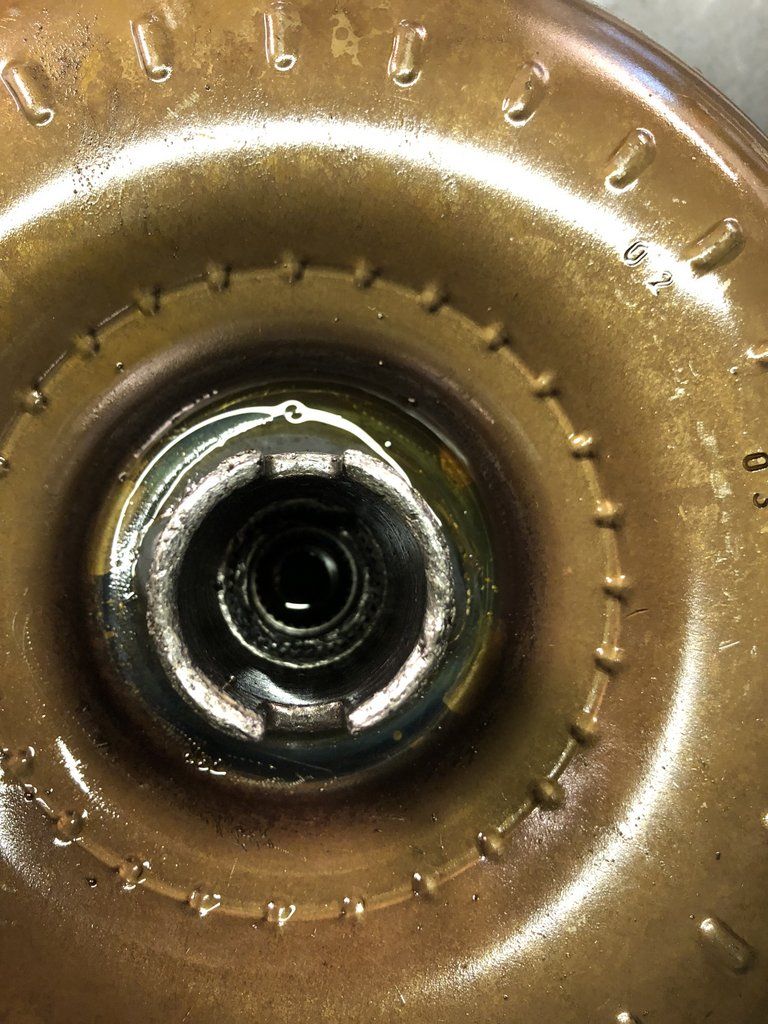

    See the photos of the end of the unit and the bearing it should sit in in the gearbox.

    Is there anything else that could have caused it - after all what caused it first time round ?......

  11. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,840
    Likes Received:
    3,239
    Location:
    Hereford
    Converter Incorrectly fitted ;)

  12. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    Hi Henry_b, appreciate your replies, thx.
    OK so that could cause the 2nd failure, but what about the first time?
    As that is also an unusual failure.
    Could it be anything in the drivetrain - Transfer Box, Propshaft UJ's Driveshaft dampers, Diffs, is there a any type of balancing device on the flywheel / crank?
    is the 'binding'' sound at once per wheel revolution anything to do with it or just something else that needs to be investigated and fixed sometime.

  13. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,840
    Likes Received:
    3,239
    Location:
    Hereford
    The 1st time is common the 5hp24 isn't really suited to the l322 and it suffers from internal clutch and TQ isses.

    2nd time was more than likely an incorrectly fitted TQ, not located on the pump properly.

    Binding noise could be brake related..

  14. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    15,815
    Likes Received:
    1,731
    Location:
    Surrey - Near the middle, close to some green bits
    Maybe if I tag @Bemble he will pick up this post and give you a definitive answer - and when I say definitive, I truly mean definitive. He is the de facto Leading Authority in the UK on the ZF 5HP24 box, and there is absolutely no-one else in the country, not even Mackies, JPAT, Sussex Autos et al can hold a candle to our man the legend that is RRPhil (Bemble) (no offence to them, they are awesome geniuses in themselves I admit).

    kds and gold rover like this.
  15. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    3,422
    Likes Received:
    962
    Location:
    sud ouest France
    It would have to be a lot of crank end play??
    Where are the smashed parts from?

  16. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    3,422
    Likes Received:
    962
    Location:
    sud ouest France
    What about a bent drive plate?
    Mind you, there would be vibration throughout the transmission...

  17. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    Thanks all, appreciate the responses, be good to hear from @Bemble
    The parts are from my box :(
    Sussex provided the refurbed TQ, the work was done by Ken at Transmission Technologies in Knowle (Solihull) he came highly recommended by 3 different local independent land rover specialists.

  18. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK

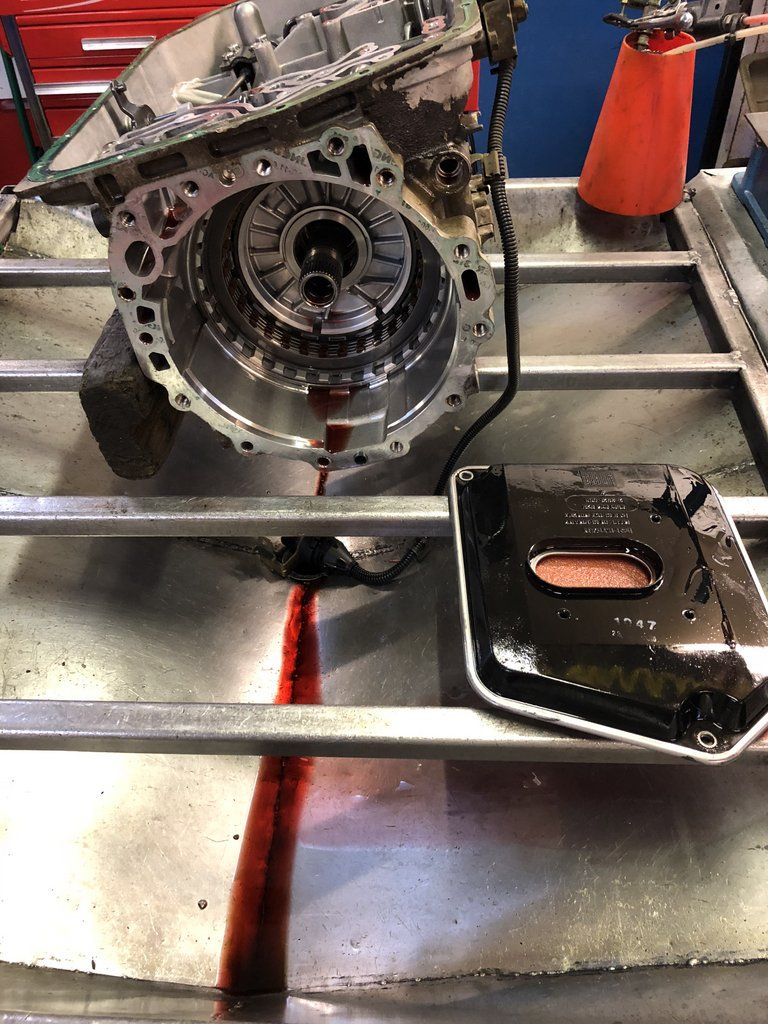

    Been and looked at it currently all dismantled, it’s the pump that has failed.
    And the end of the torque converter that engages with the pump has been mashed up.
    There is no swarf whatsoever floating around the gearbox it’s completely in pieces at moment, trans-fluid and filter clean as a whistle, all valves work et cetera
    No issues with crankshaft end float.
    And they've checked that the drive plate is all good too.
    The experts are currently flummoxed as they are getting on doing a complete rebuild (at their cost ) though they also want to find the cause so it doesn’t happen again.
    ....

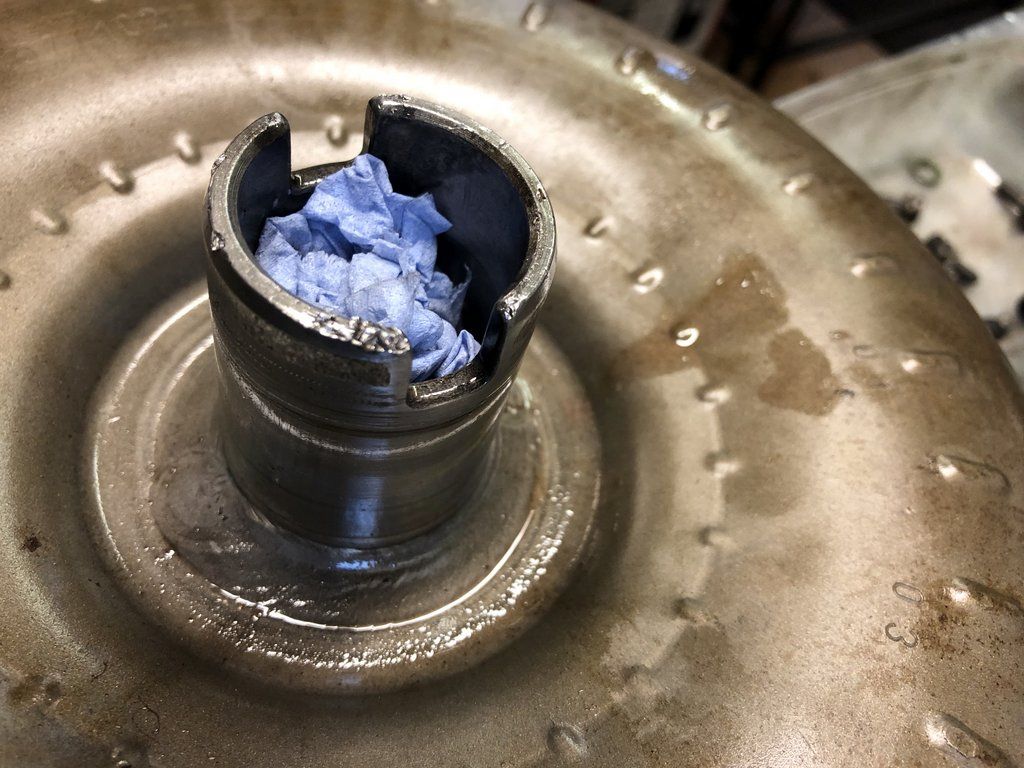

    IMG_0864.JPG IMG_0867.JPG

  19. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    79,542
    Likes Received:
    10,624
    Location:
    louth lincs
    looks like t/c protrudes too far into the box earlier t/cs can be adjusted by adding or removing shims to position distance from engine t/c is

  20. WorRen

    WorRen New Member

    Joined:
    Nov 15, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    Evesham, UK
    Yep, that's why they were thinking crankshaft end float and or drive plate.
    Thinking that when the engine develops power / torque the tq is pushed into the pump - as on the first failure / posting / group of photos the pump is smashed internally.

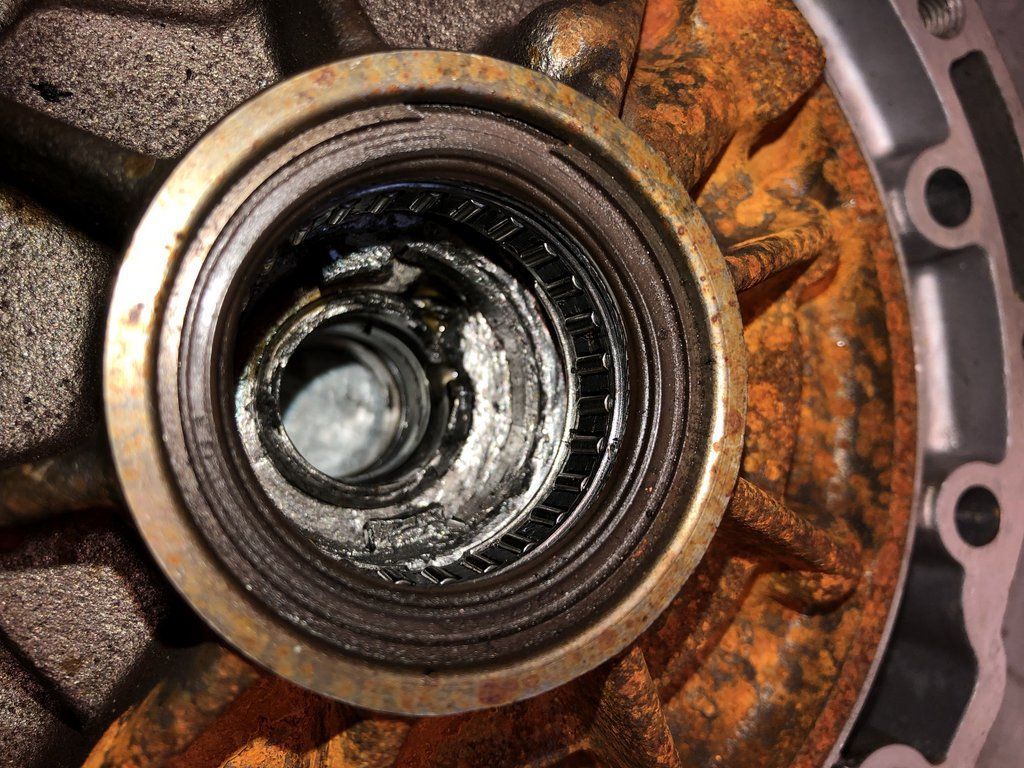

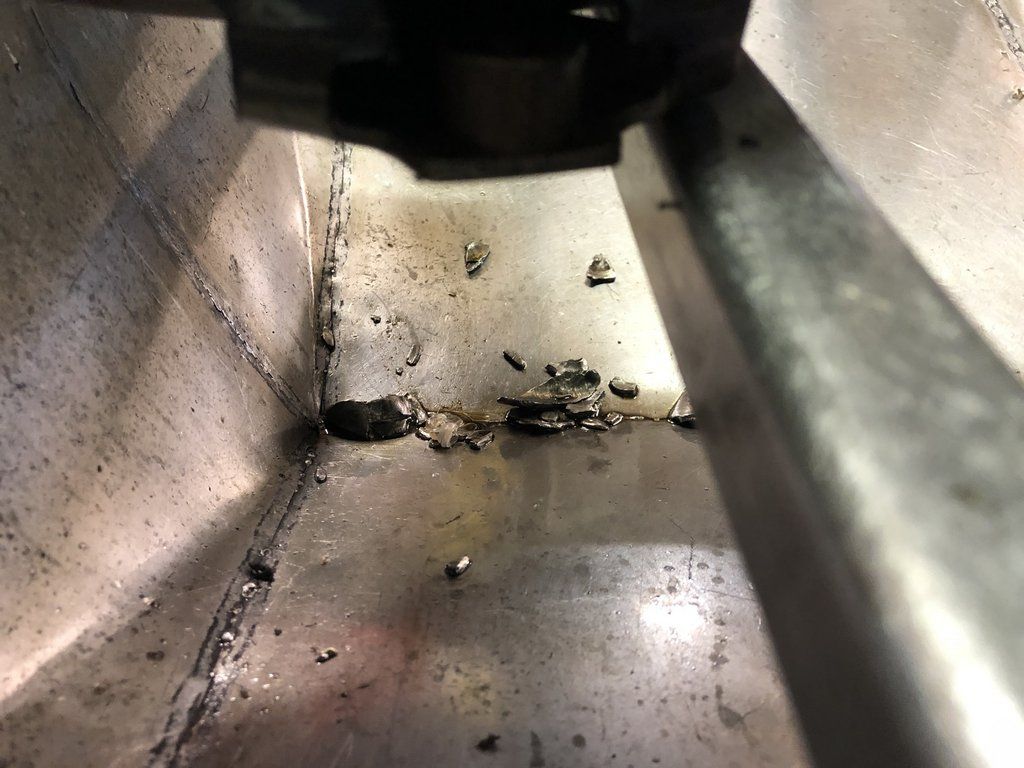

    he still had the old pump in the scrap bin (that's why ot has rust on it now :) - see photo below
