The resurrection of Tufftee - Part Deux :o

Discussion in 'Members Vehicles/Projects' started by The Mad Hat Man, May 11, 2018.

< Previous Thread | Next Thread >
  1. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    317
    Likes Received:
    104
    Location:
    Wiltshire
    Ah right - yet to get there. The modification makes a lot of sense!! Hopefully water/mud just runs out. I'm liking how properly this is being done! No corner cutting

  2. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    One more for good luck!

    Did have an “ooops” moment today.......

    Had my own mini “Yorkshire” :eek:.

    dieseldog69, Paul D and Hicap phill like this.
  3. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    3,755
    Likes Received:
    2,474
    Location:
    Back in the UK, Hayling Island.
    That bit of scorched earth will come back greener than the rest ya know :rolleyes:

    Good to see my welds were good and strong, albeit in the wrong place :oops:

    Ready for Friday?

    Monster weldathon coming up me finks, I got the scaff pole butt clamp for the roll bar in the back of the van, we could cut it in two, test fit the sill and get it welded on to the box section good and strong before it goes back in?

  4. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    I ain’t touching yo butt clamp.
    Slow but steady methinks ;)

    I forgot to order the front body supports for the offside, but they can wait for a while.

  5. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    First Fit For Friday....


    dieseldog69, flat and resto_d1 like this.
  6. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    3,755
    Likes Received:
    2,474
    Location:
    Back in the UK, Hayling Island.
    Cool, how far did you go with the other sill? Did you just tack it on or fully weld it up?

    Are you out tomoz? Just in case I escape early ;)

  7. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    just tacked the end on and cleaned it up.
    will txt you.

    Last edited: Jul 12, 2018 at 9:35 PM
  8. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    but more panel manufacturing today....

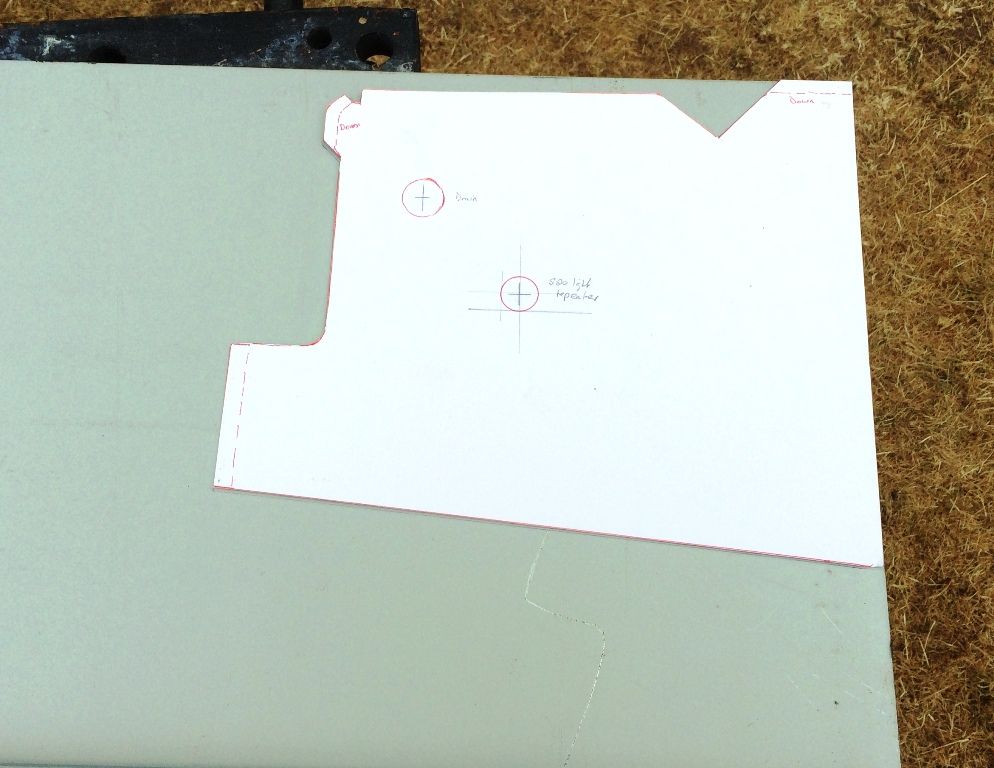

    Template made
    Bulkhead side panel 1.JPG

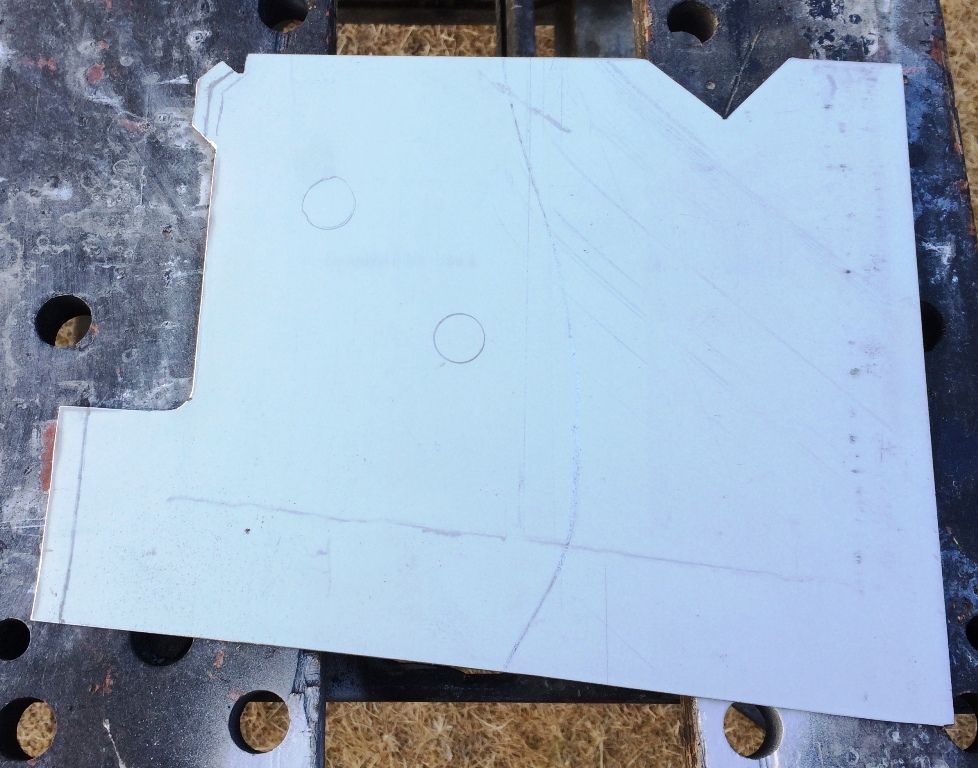

    Panel cut out
    Bulkhead side panel 2.JPG

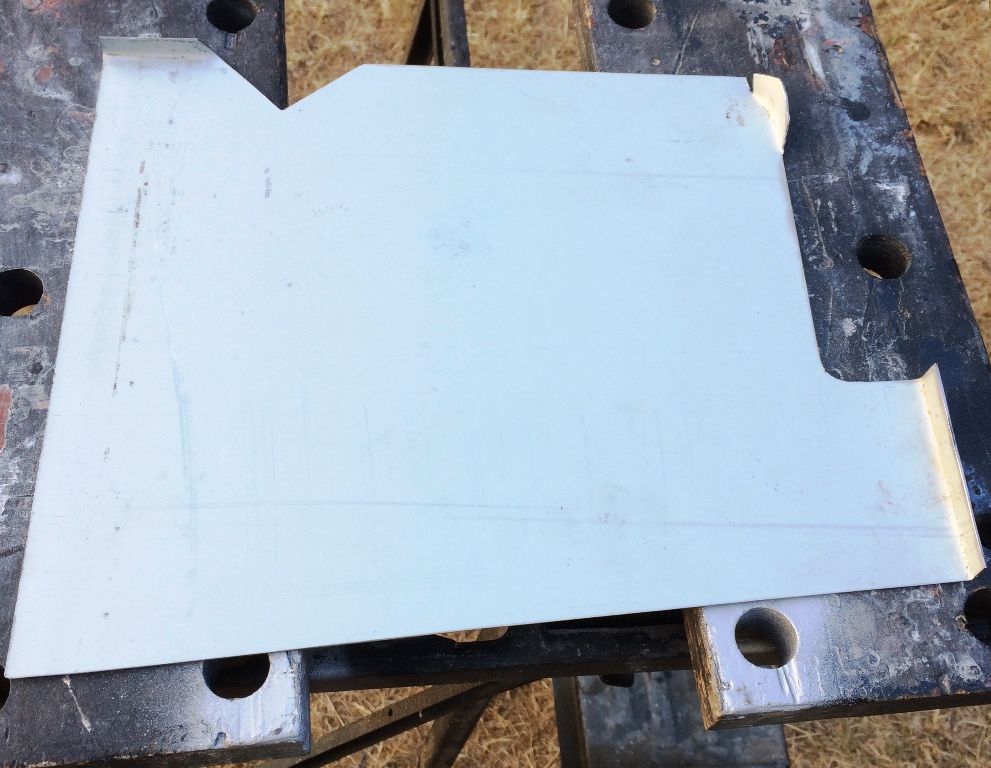

    Tabs bent up
    Bulkhead side panel 3.JPG

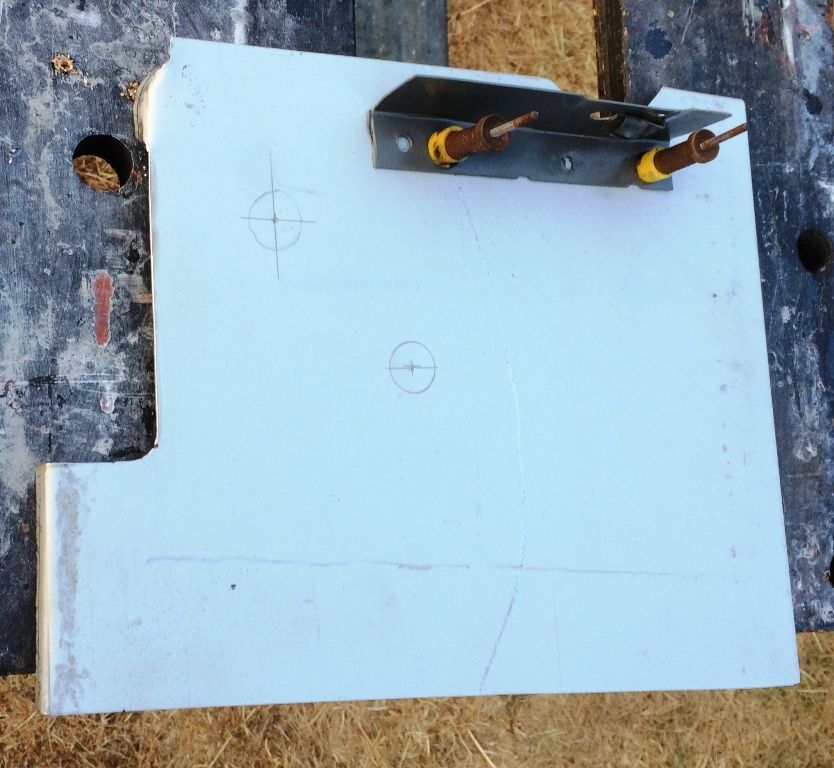

    wing mounting bracket first fit (Rivet pins are ideal for lining parts up, prior to welding)
    Bulkhead side panel 4.JPG

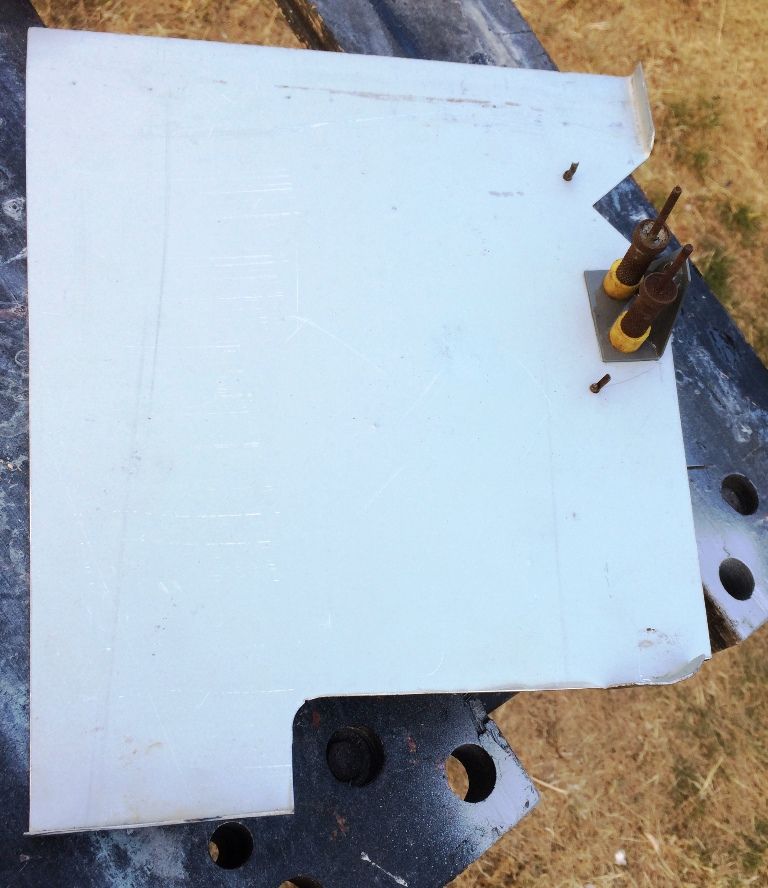

    Inner bracket first fit
    Bulkhead side panel 5.JPG

    flat likes this.
  9. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    3,755
    Likes Received:
    2,474
    Location:
    Back in the UK, Hayling Island.
    Just going to the van, think the phone might still be in there :oops:

  10. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    3,755
    Likes Received:
    2,474
    Location:
    Back in the UK, Hayling Island.
  11. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    There’s no particular hurry. I am happy to get it as good as possible

  12. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    317
    Likes Received:
    104
    Location:
    Wiltshire
    Did you cut that out with a die grinder, angle or dremel? Seriously clean fab work!

  13. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    4.5” cutting disk, file and g clamp

  14. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    317
    Likes Received:
    104
    Location:
    Wiltshire
    Nicely done that is! As you know and I'm learning the tidier and neater the fit and panel, the better the weld and end result. Looking forward to seeing these go on.

  15. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    An interesting evening tonite.
    Repositioning the sill and tacking the body mounts in place. Making sure they lined up with the outriggers and making seat mounting holes in the floor, ready for the main floor support.
    pics laters.

  16. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    3,755
    Likes Received:
    2,474
    Location:
    Back in the UK, Hayling Island.
    Sorry, no pics, they are all blurry an look proper carp, gonna bring my Sony camera next time.

    Really hoping to blaze it all together and get it fitted.

  17. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    Patience Grasshopper. All will be sorted in due course. ;)

  18. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,171
    Likes Received:
    5,879
    Location:
    Embasinga stocæ
    A couple more pics. Nothing looks much different, but the sill is positioned one inch further forward, as otherwise it wont allow for the A pillar attachment.

    Because of this, the front support bracket also had to be moved back. All tacked into position now except for the centre floor support and the small floor support panel, which is usually used as a sill closure.

    We are getting there :).

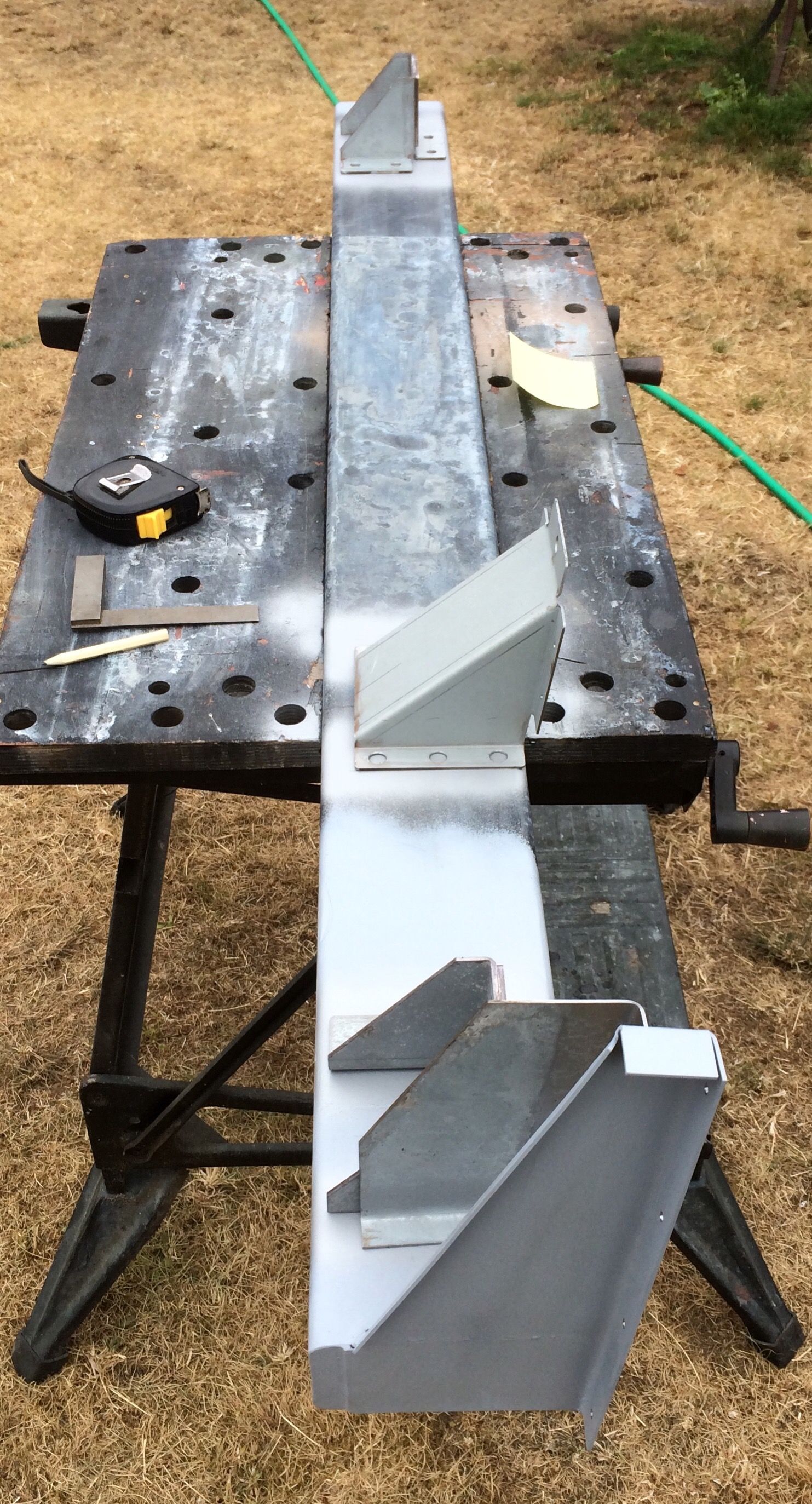

    NS Sill & front closure panel-5.jpg NS Sill & Body Mounts.jpg
