The best purging procedure?

Discussion in 'TD5' started by sierrafery, Mar 10, 2011.

< Previous Thread | Next Thread >
  1. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    3,766
    Likes Received:
    1,040
    Location:
    North Perthshire
    Hmmm......I did change them one by one at the tank end : see pics
    It was, however, a lot of months later when the other ends were connected, but they did strike me as idiot-proof as they all fitted according to length.
    Not clued up on the LP and HP aspects so the flow from the filter may or may not be as required.


    Attached Files:

  2. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,404
    Likes Received:
    1,542
    Location:
    West of Transylvania
    According to your pic the pipes are not well connected cos they should be white - green - blue - black while your's is white - blue - green (unless i'm daltonist)... i'm sure that's your problem

  3. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    3,766
    Likes Received:
    1,040
    Location:
    North Perthshire
    Strange - car was running fine before I started....and the pic taken through the hole in the boot floor was they way they were before I started. I took the pic to make sure I connected the new one up the same way.
    Can you tell me where the blue and the green ones connect at the other end...in case they were originally swapped?
    Cheers

  4. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,572
    Likes Received:
    8,078
    Location:
    Oxfordshireness

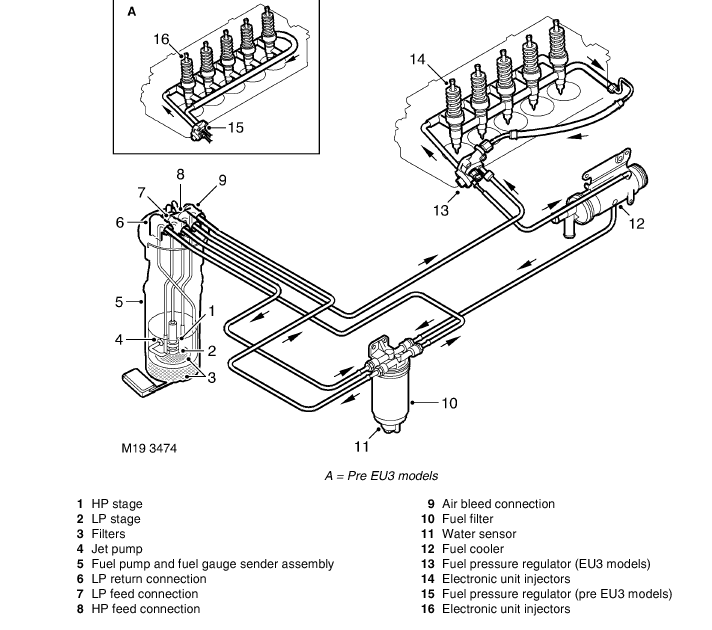

    +1 on what SF as said, I wrote mine down when I did a fuel pump change, same as what he said. The story gets interesting.

    upload_2019-9-29_18-50-35.png upload_2019-9-29_18-50-5.png upload_2019-9-29_18-50-35.png
    Cheers

    raywin and sierrafery like this.
  5. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,404
    Likes Received:
    1,542
    Location:
    West of Transylvania
    Yes, Neilly gave you the diagram which should enlighten you

  6. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    3,766
    Likes Received:
    1,040
    Location:
    North Perthshire
    Thanks gents. Guess I will switch the middle 2 over and see if that helps!
    Cheers

  7. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,404
    Likes Received:
    1,542
    Location:
    West of Transylvania
    Yes. That would be an easy test, off course run the purging sequence after that...if no joy follow the diagram and make sure that the pipes are OK at the filter too just to make sure that they are not mixed up all around

  8. Beneagles

    Beneagles Well-Known Member

    Joined:
    Oct 27, 2009
    Posts:
    3,766
    Likes Received:
    1,040
    Location:
    North Perthshire
    She churns....she chugs....she runs!!!!!!!!!!!!!!!!! :D:D:D:D:D
