TD4 EGR Valve

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
titchfield9

titchfield9

Member
Posts
74
Location
Forest of Dean
Hi all, my EGR valve is frozen solid closed. was going to use the EGR delete, then realised its an automatic fail on the MOT now since May to replace the EGR.

I have a pierburg 7.28264.00 the price is crazy. Rimmer Bros quotes over £150 copy £500 gen
Found Landy part LR005791 or WAV000040 is this the same item?

Have an mot later this month so want it working. The EGR delete would show out like a saw thumb.

Google is your friend. I bought a second hand egr after blanking mine and not keeping the EGR valve for just over £20.

Been on google was first point of call checking the Pierburg number 7.28264.00 on the body. Other is a BMW part number and you just add zeros for them.
Found a new LR005791 for £45 hence rather buy new than second hand. Think that's what Rimmer Bros offered me. Yes they are on there but its if they work or not.

They are usually guaranteed for at least a few months. Long enough to pass an mot then blank again.

titchfield9 said:
Hi all, my EGR valve is frozen solid closed. was going to use the EGR delete, then realised its an automatic fail on the MOT now since May to replace the EGR.
mine has past its MOT last week with an EGR blank still fitted
I guess its were you take it and if they are bothered to look
Click to expand...

Someone correct me if I'm wrong, but blanking the EGR is not an MOT failure as far as I know. However, dicking around with the DPF, if fitted, is.

Apparently it is from May, you can not alter the original vehicles emissions control on any year.
If its picked up, its a Dangerous fail and the car can not be driven, hence looking for a new EGR, otherwise would have left as is as its jammed with the divert closed.
It doesn't have a DPF so that's ok, also it has to meet its original emission rating as well not the previous higher rating.

Heard some have passed and others have failed.

As you can clearly see it wasn't going to take a chance.

If there is an MOT tester on here would be good to clear this up.

Remove the EGR from your car and give it a good clean, do the manifold also, and the MAP sensor, I can not see why it will not then pass the MOT.

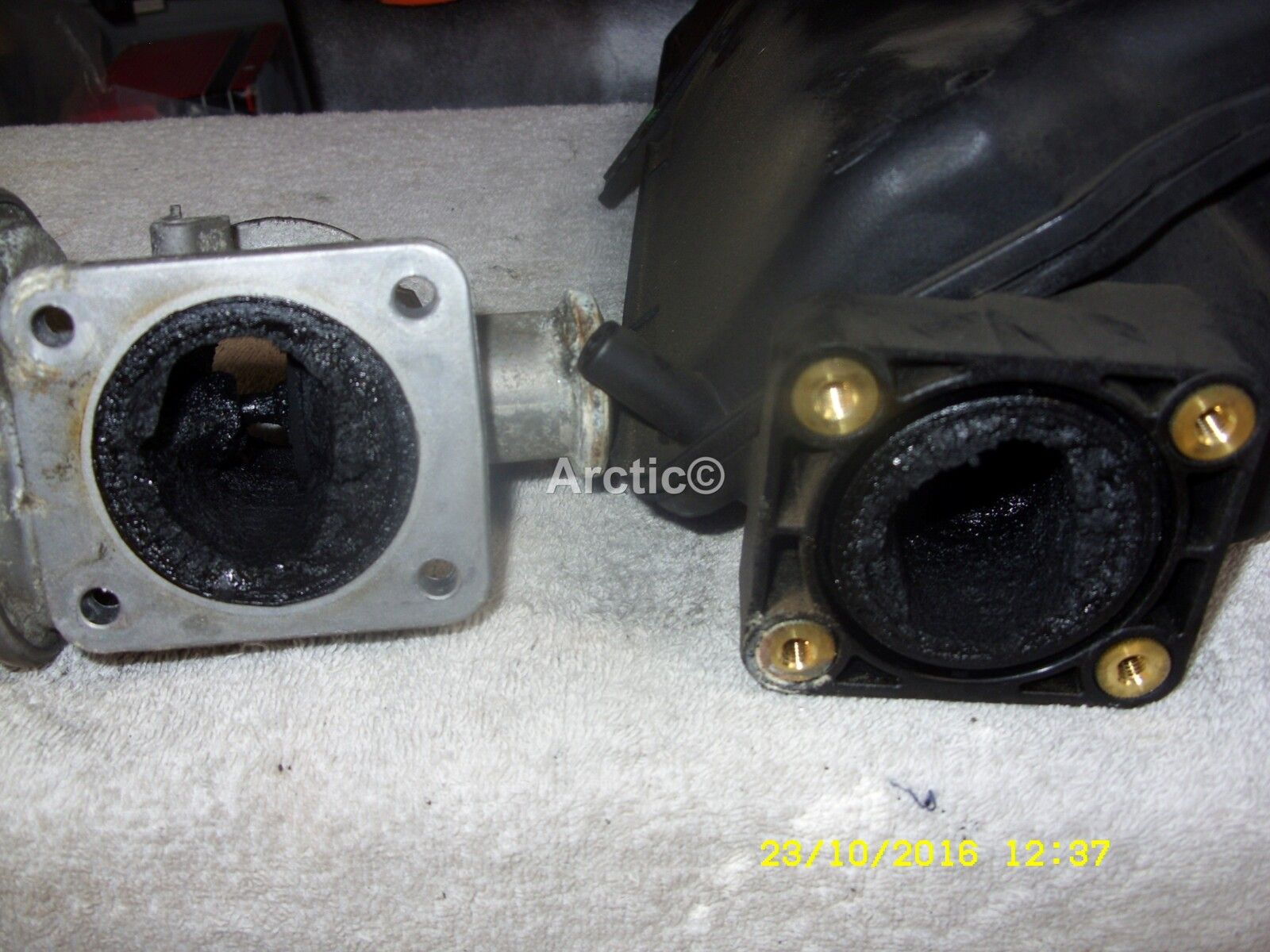

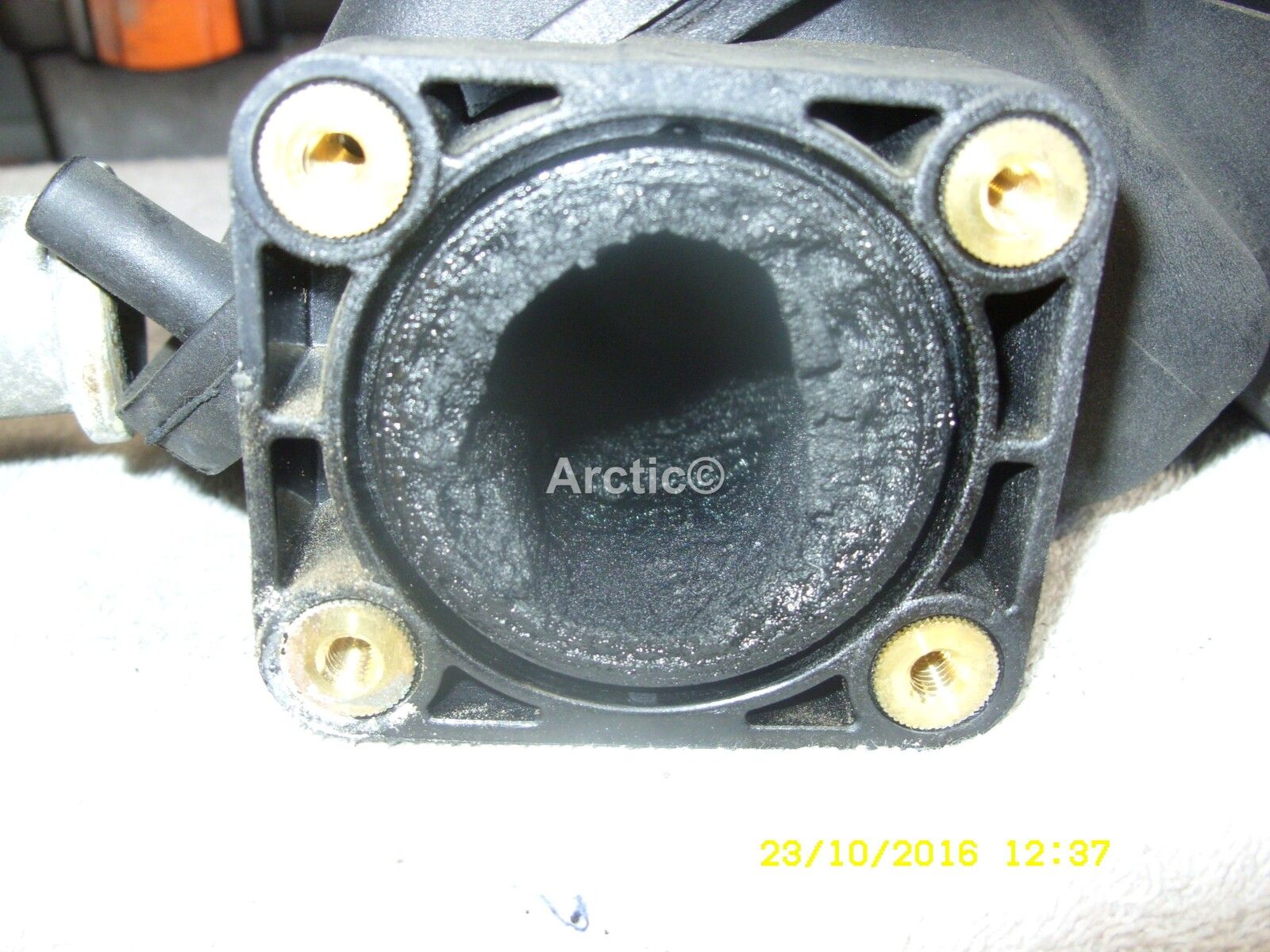

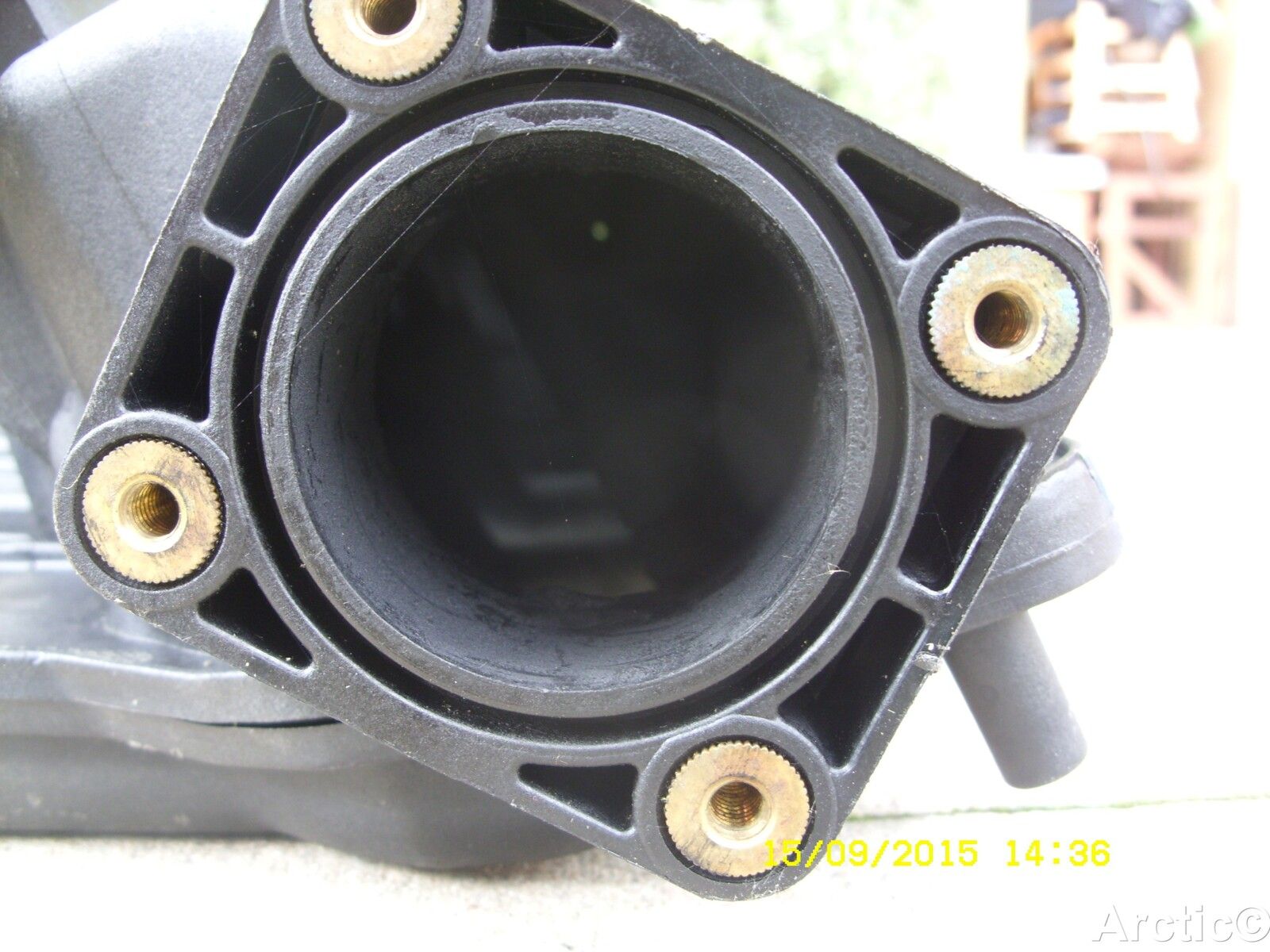

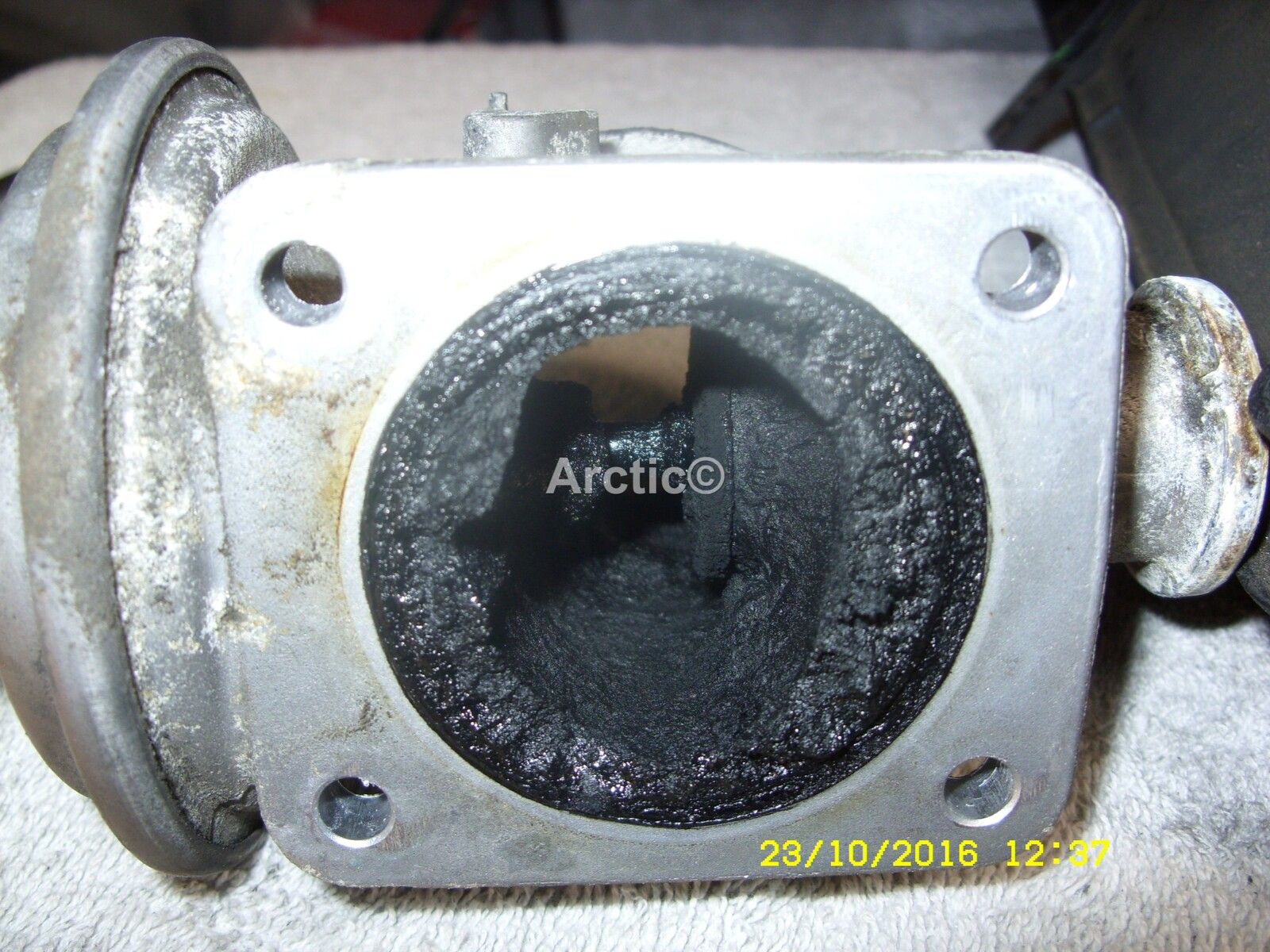

Your EGR and manifold could look something like these below and once they are cleaned properly will still work as they should, worth a go.

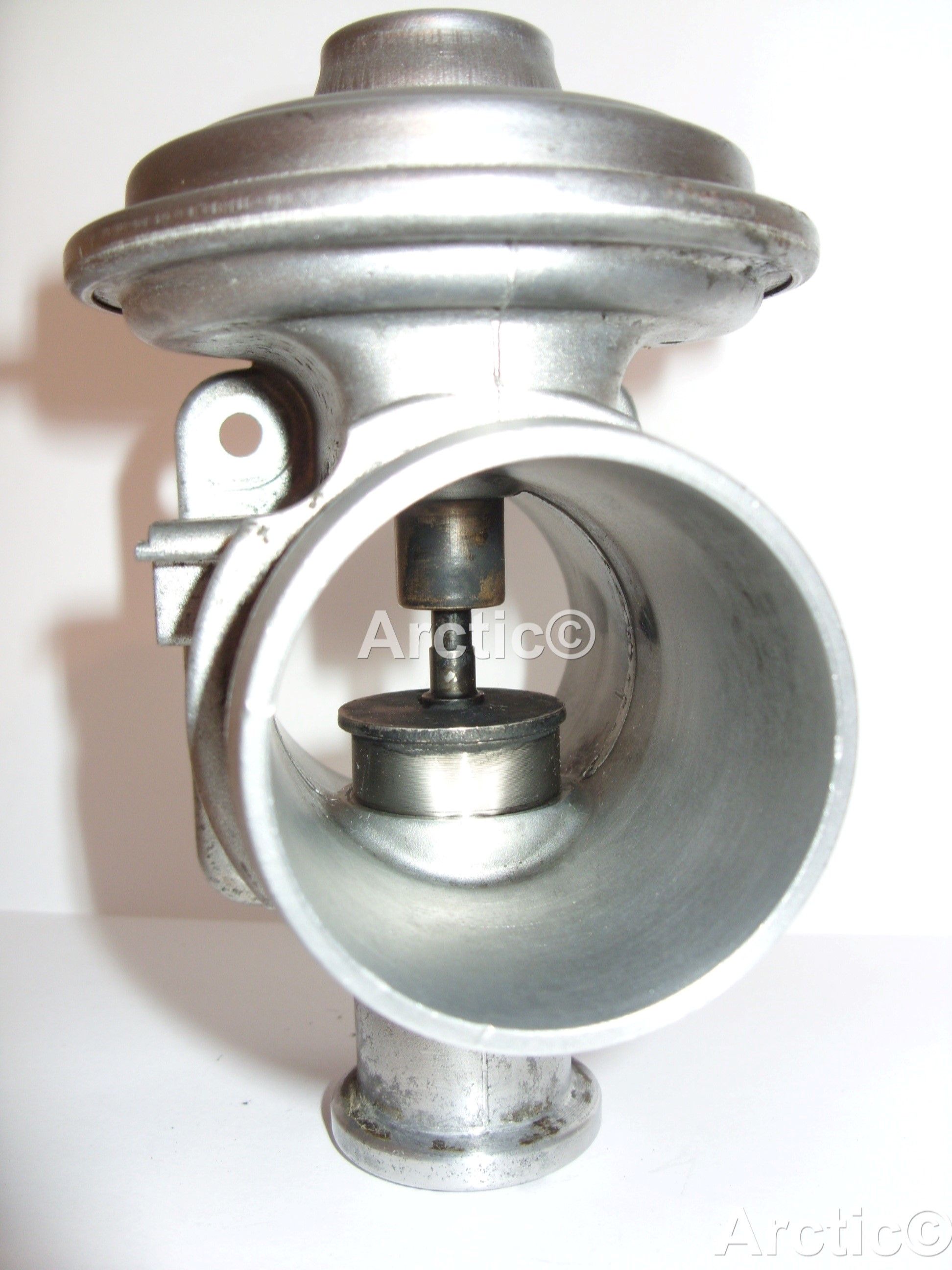

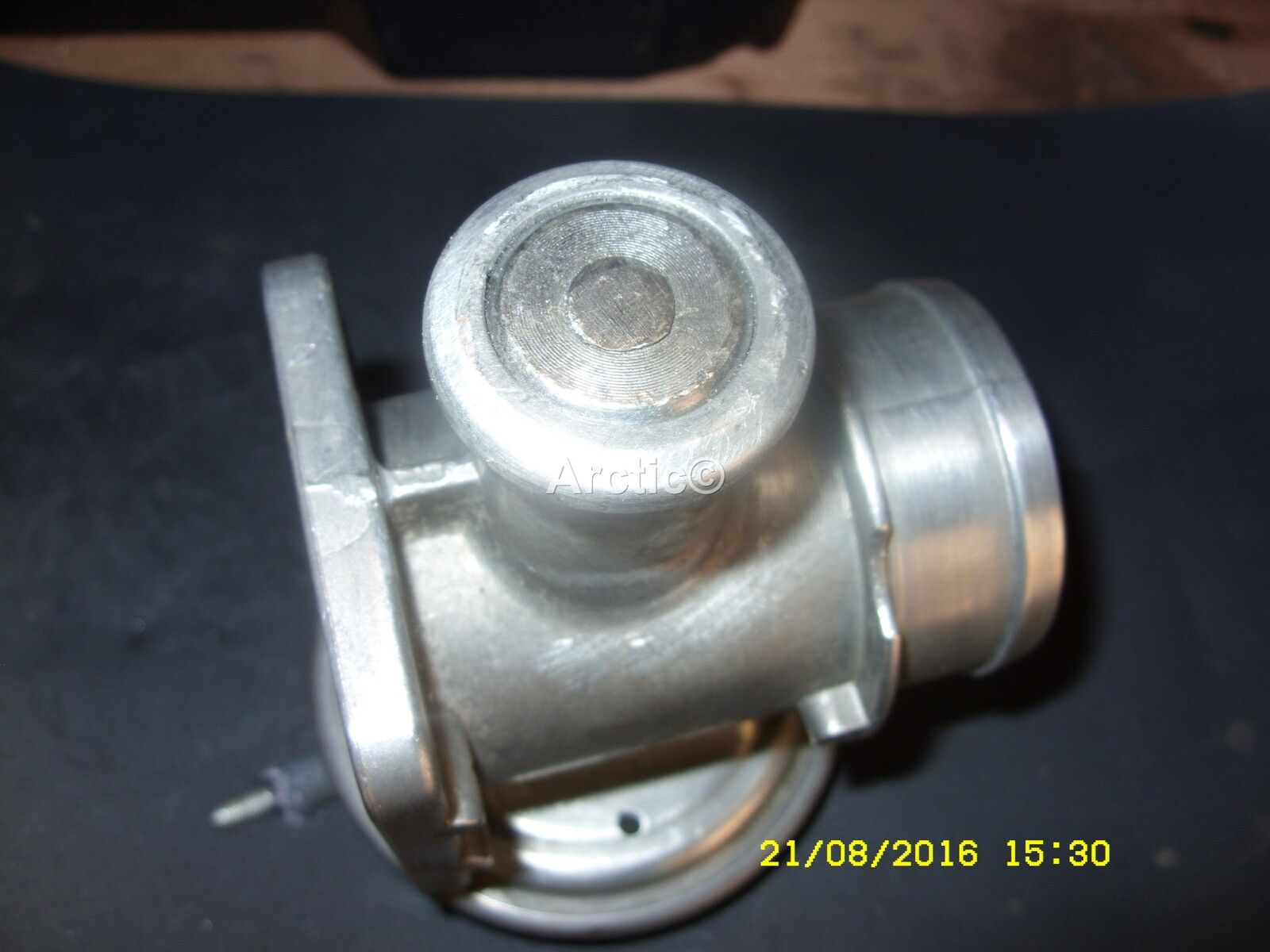

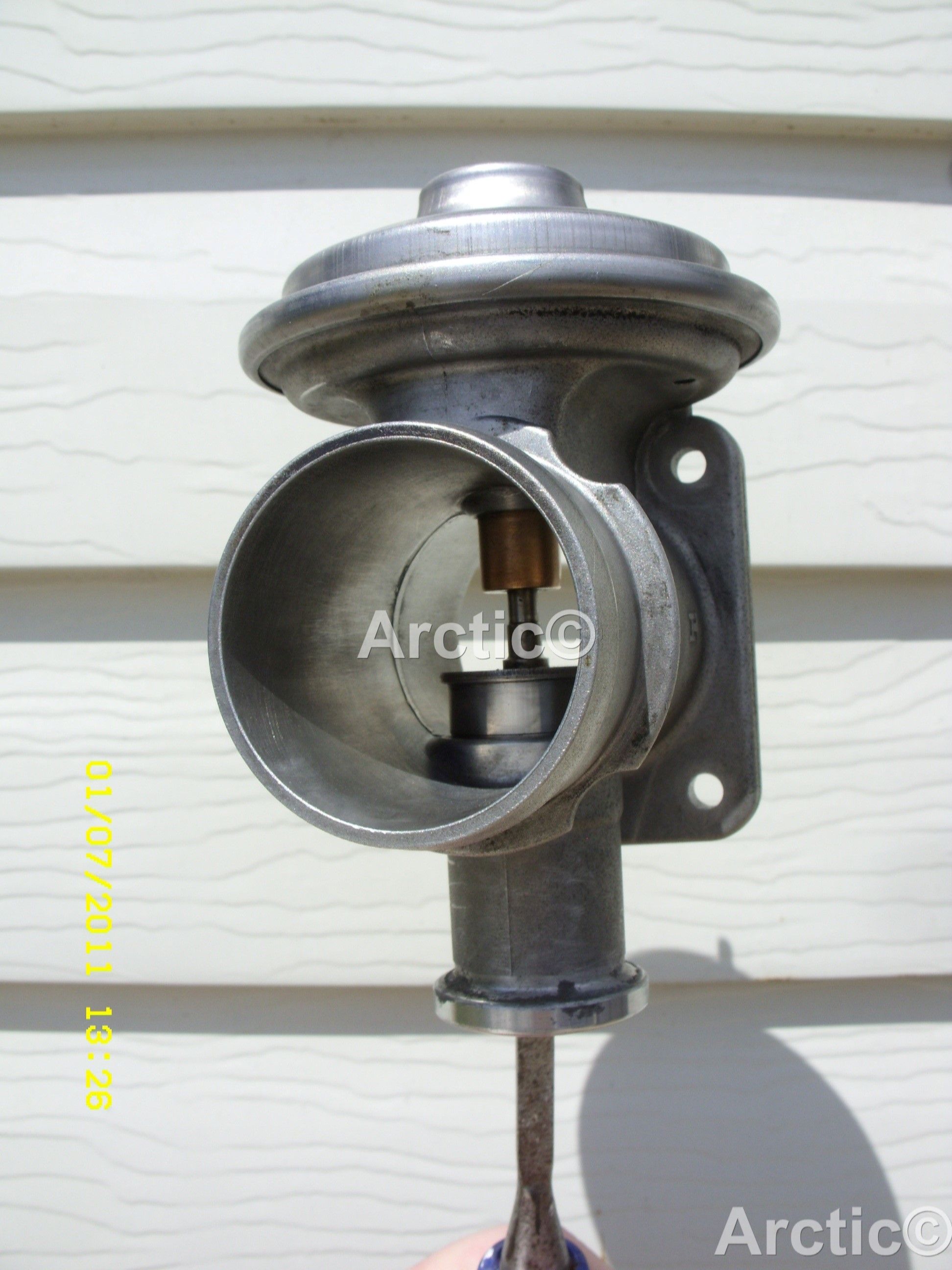

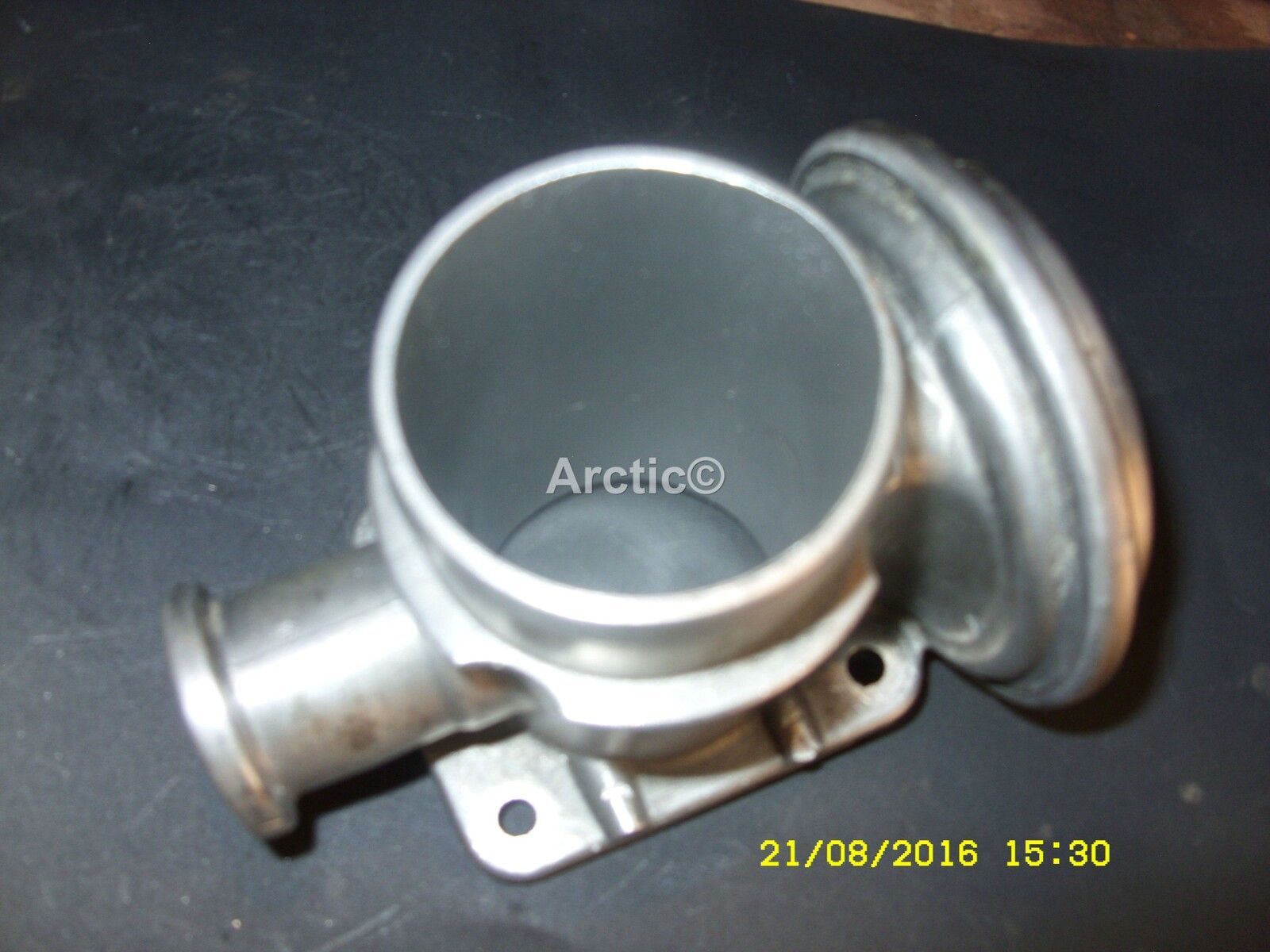

You could also gut your original EGR and turn it into a EGR bypass last photo's below


Attachments

  • SDC18090.JPG
    239.4 KB · Views: 152
  • SDC18091 (2).JPG
    SDC18091 (2).JPG
    326.6 KB · Views: 129
  • SDC18092 (2).JPG
    SDC18092 (2).JPG
    272.8 KB · Views: 166
  • SDC11401.JPG
    223.3 KB · Views: 154
  • 535 (2).JPG
    535 (2).JPG
    376.3 KB · Views: 163
  • SDC12332 (2) - Copy.JPG
    SDC12332 (2) - Copy.JPG
    366 KB · Views: 162
  • SDC17305.JPG
    158.2 KB · Views: 140
  • SDC17306.JPG
    163.3 KB · Views: 146
Thanks Artic2

Its off the car and been cleaned, its was so bad, scrapped the crap out but its stuck solid in the bypass closed position. Its been soaking all night with WD40 but no joy in freeing it up. Will clean the others, I here oven cleaner boxes the manifold the world of good.
Have found a Pierburg EGR from Germany that's a more acceptable price of sub £100

The pictures you posted are the item I have. was just very surprised at the cost of these things for the size and what they are.

titchfield9 said:
Thanks Artic2

Its off the car and been cleaned, its was so bad, scrapped the crap out but its stuck solid in the bypass closed position. Its been soaking all night with WD40 but no joy in freeing it up. Will clean the others, I here oven cleaner boxes the manifold the world of good.
Have found a Pierburg EGR from Germany that's a more acceptable price of sub £100

The pictures you posted are the item I have. was just very surprised at the cost of these things for the size and what they are.
Click to expand...

When you say stuck solid how have you tried to move it, because if you try to move it by pushing it I doubt you will, it needs a vacuum to make it work, I have never heard of one failing completely very puzzling.

Devilish said:
I know Arctic has done several of these, If I remember correctly, he converted the original EGR on SWMBO's into a bypass.
Click to expand...

Arhh did it pass the MOT though :) I bet the tester never knew, the intercooler set up is better on the R40 in my opinion less turns and bends, :rolleyes:

Clean the EGR out, refit it, and block the vacuum pipe with a ball bearing/small screw before pushing it back on.

The reason I want it working is to pass the mot emissions as its been reduced for my 2005 car from May and I don't know what it did last time only have its smoke test result.
Don't want to take any chances with it not passing.

Its a shame as got a by pass on and its running far better.
Do have a new Pierburg one coming from a friend in the trade, got it at a very good discount for £75

We had it on a vacuum pump in the workshop and sat WD40 in the bypass and nothing would soak through so taken its knackered.
Had to near on chisel the crap out of it.

If the EGR valve is stuck shut, the just fit in place of the bypass.
The MOT doesn't test the EGR functions, just that it's not been tampered with or removed.
