TD 4 Auto fuel filter.

Semtexsam · Mar 26, 2011

Hi

Time to get the old girl sorted for the summer months and firstly i have to address couple of problems that have kept her off the road. Going to replace the fuel filter,used the search facility here. As a result i removed the rear wheel and liner and did not see anything that looked like a fuel filter. Had a look under the bonnet and think i forund it.

Is this it in the middle of the picture ar am i completely lost.Ta for any help.

Alan.

zoolander · Apr 7, 2011

How olds your Freelander? My 2005 fuel filter is just above the drivers side rear wheel arch

jamesmartin · Apr 7, 2011

between two cannisters at top is screw if undone filter will swing out and can be removed

AllanI · Apr 8, 2011

Your search should have revealed that early TD4s had under bonnet fuel filter and later ones have it under the rear wheel arch. As James says ^^^^ for removal but be careful when disconnecting the pipes, they can break if you're hamfisted with them.

Allan

willo · Apr 8, 2011

Semtexsam said:
Hi

Time to get the old girl sorted for the summer months and firstly i have to address couple of problems that have kept her off the road. Going to replace the fuel filter,used the search facility here. As a result i removed the rear wheel and liner and did not see anything that looked like a fuel filter. Had a look under the bonnet and think i forund it.

Is this it in the middle of the picture ar am i completely lost.Ta for any help.

Alan.

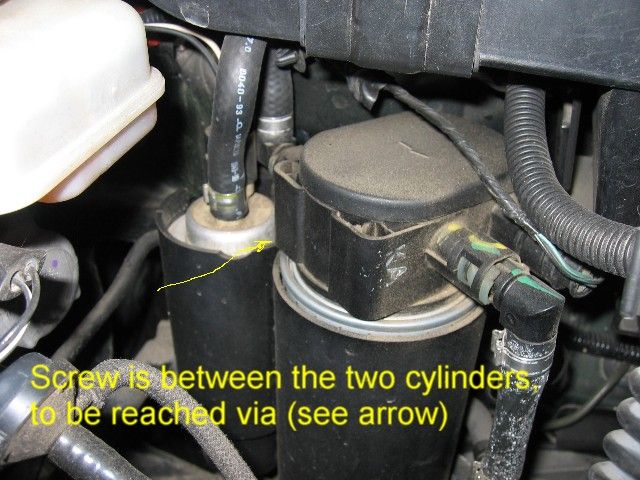

It's a double canister and on mine (my2001) it's the front one being the fuel filter, the thick canister. As jamesmartin says the whole is kept solid with a screw, with a bit of luck you can see the location of it on the attached picture.
