tail gate lock cylinder

D

Doog69

New Member

Posts

10

• Feb 10, 2010

• #1

I am replacing the tail gate door handle on my Freelander after some numpty decided it would look better broken off. How do i relocate the lock cylinder as it looks to be integral to the handle it's self.
Any ideas would be greatly appreciated as i need this done asap for my MOT.
Doog69



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Feb 10, 2010

• #2

Hi Doog69 hope these are of help



Attachments

•

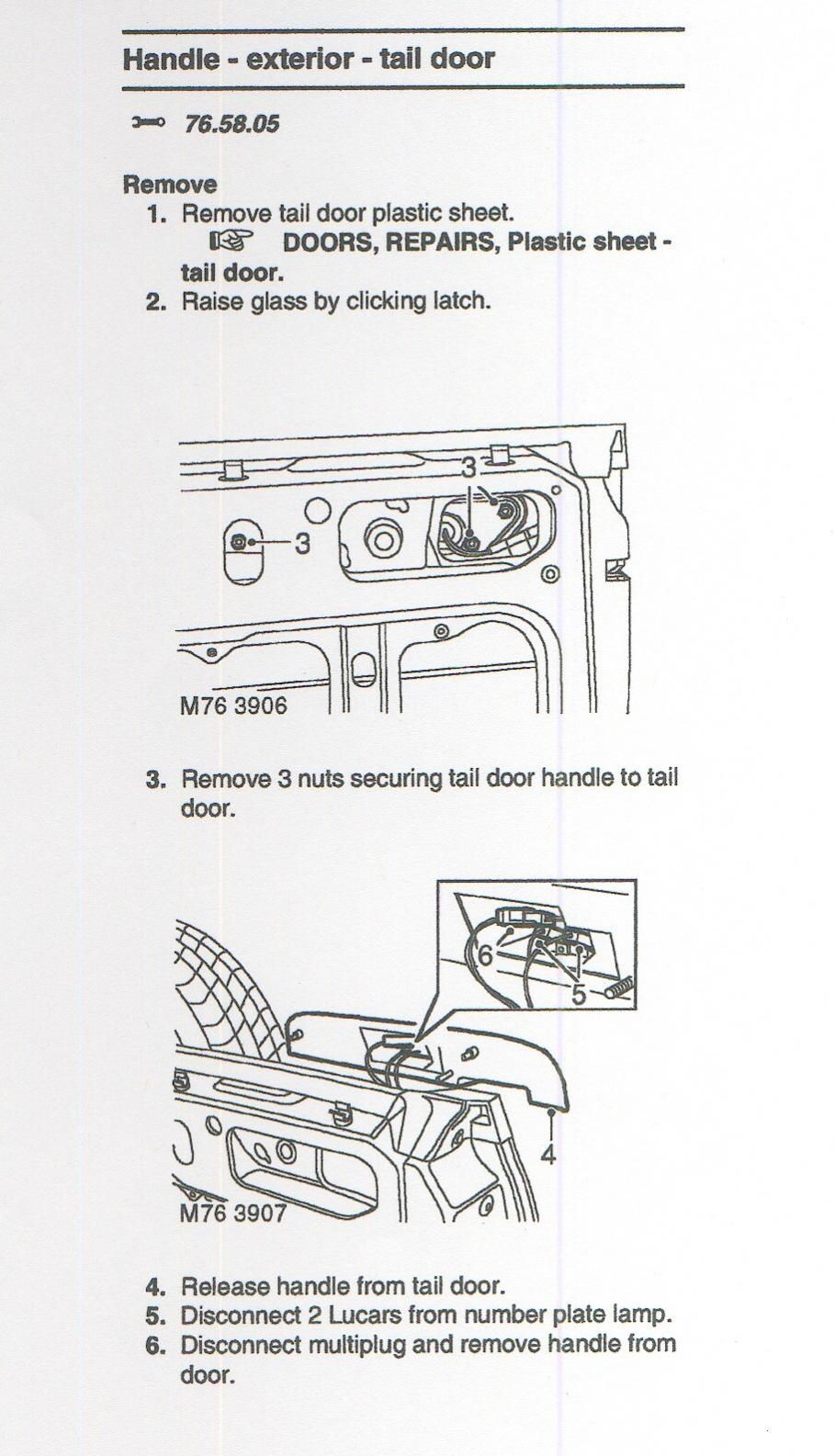

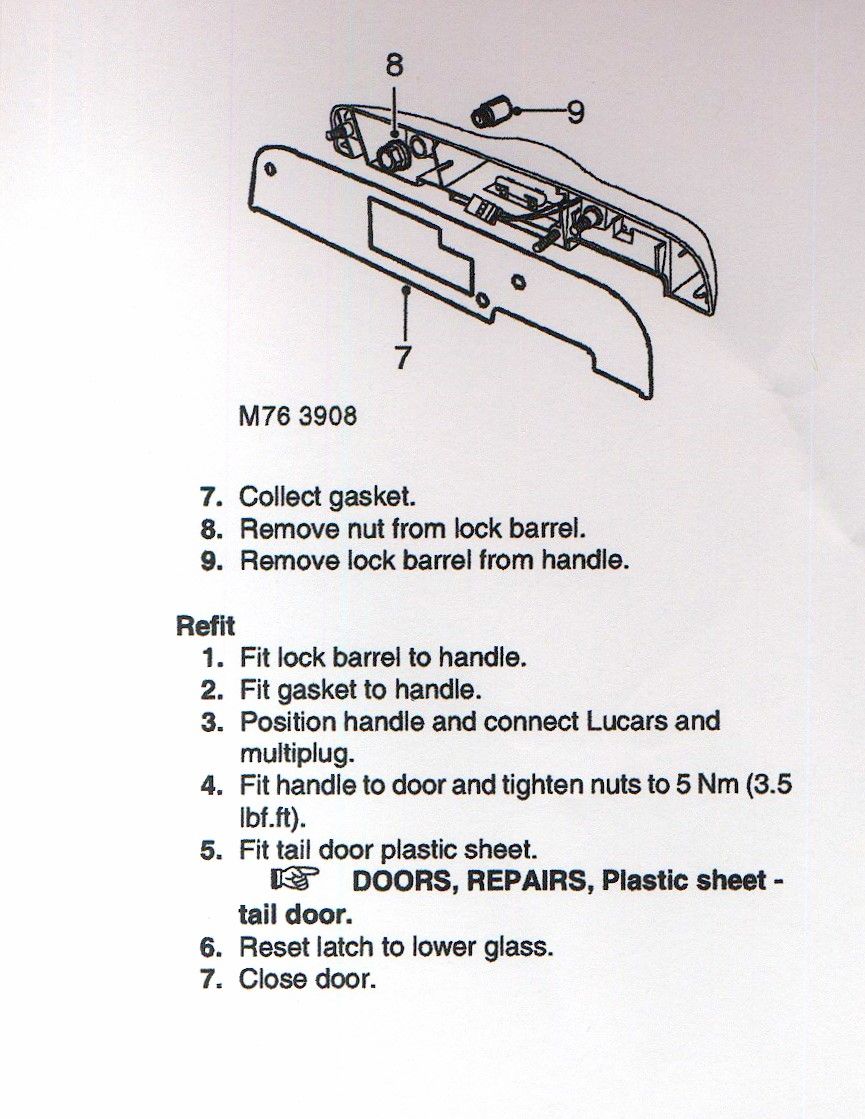

  rear door1.jpg

  137 KB · Views: 287
•
  rear door.jpg

  157.8 KB · Views: 265

GasFiredDisco

New Member

Posts

480

Location

In that cloud of smoke over there

• Feb 10, 2010

• #3

If you pull the the rubber off the back it becomes obvious. Pair of pliers and it pops out nicely .

Oh and be careful re-fitting it, the nuts have a nasty habit of jumping down inside the door. I managed to lose one somewhere in the door, found one the right size in a box of nuts/bolts in the garage which wasn't too bad.



Last edited: Feb 10, 2010
