Disco 2 SVS mod

Nearly 4 hours and not finished.

Soldering to do to finish.

What went wrong?

An Allen bolt rounded. Had to break up the old switch. Then over 90m to molegrip it out.

At least errors are gone

That was bad luck ... i hope that at least you cut out the connector and prolonged out the wires from the switches not spliced into the circuit to the plug

I had prepared a new one 4 years ago but it kept working but was getting worse so had to

MJI said:

Nearly 4 hours and not finished.

Soldering to do to finish.

What went wrong?

An Allen bolt rounded. Had to break up the old switch. Then over 90m to molegrip it out.

At least errors are gone

Click to expand...

Oh my God!
I have this job to do since a few days ago and from the loads of posts about this I got the message that you have to splice into two wires under the block, prolong one out to earth and the other to the yellow and green wire going to the plug.
Is this wrong? and if so, what should I do? i have read @sierrafery 's question to you and am now totally in the dark.
If you don't want to reply to me at length, could either of you put up a link which i can understand, me being Mr Thicko when it comes to electrickery?

Stanleysteamer said:

Oh my God!
I have this job to do since a few days ago and from the loads of posts about this I got the message that you have to splice into two wires under the block, prolong one out to earth and the other to the yellow and green wire going to the plug.
Is this wrong? and if so, what should I do? i have read @sierrafery 's question to you and am now totally in the dark.
If you don't want to reply to me at length, could either of you put up a link which i can understand, me being Mr Thicko when it comes to electrickery?

Click to expand...

Cabling is correct but I had great problems with the allen bolts. If I did it again I would get plenty of brake fuild and take the block out completely.

You may be lucky.

SF will recommend a guide

MJI said:

Cabling is correct but I had great problems with the allen bolts. If I did it again I would get plenty of brake fuild and take the block out completely.

You may be lucky.

SF will recommend a guide

Click to expand...

Ta mate, and thanks for the quick reply!
I unfortunately only have the one of everything and am in France.
(why does it ALWAYS feck up only when I am here?)
I can get hold of brake fluid, no probs, Is the procedure for bleeding the brakes/abs block, on RAVE do you know? Or even Haynes (I must be mad to think that!)
I DO have a Foxwell which may well have it on, if that is the only way to do it.
Ta again for the reassurance re the wiring.

If you can get the bolts out good luck but I would convert new switches as the plastic is brittle. A ratchet allen key would be brilliant if one is made

Stanleysteamer said:

Oh my God!
I have this job to do since a few days ago and from the loads of posts about this I got the message that you have to splice into two wires under the block, prolong one out to earth and the other to the yellow and green wire going to the plug.
Is this wrong? and if so, what should I do? i have read @sierrafery 's question to you and am now totally in the dark.
If you don't want to reply to me at length, could either of you put up a link which i can understand, me being Mr Thicko when it comes to electrickery?

Click to expand...

Hi Stanley, there are tutorials where they splice into the wires from switches to the plug on the SVS pack, that's WRONG, you have to cut out the switch and prolonge the wires out to YG wire and earth also cut the YG wire not splice in it as the modulator's internals to be completely bypassed... see attachment, you can neglect that additional connector from the first pic, it seems unnecessary to me and do as in the 2'nd and 3'rd pics with the wires, it's irrelevant which goes to earth and to YG wire

@Stanleysteamer , I followed the method that SF posted above, works well.
Ideally you'd take the block out, but there is just about enough room underneath the loosened off valve block to get the switch pack out, and it's better than having to bleed all the brakes after.

Spong said:

@Stanleysteamer , I followed the method that SF posted above, works well.
Ideally you'd take the block out, but there is just about enough room underneath the loosened off valve block to get the switch pack out, and it's better than having to bleed all the brakes after.

Click to expand...

As long as you don't ruin an Allen bolt.

They are pretty tight and the back one does not have enough room for my socket.

Had to use molegrips roughly 90 min for me to remove.

Thanks for all your advice guys.
I have looked at all the stuff on bleeding the block should I absolutely have to, including a post from @sierrafery yesterday on another forum and although i have a Foxwell i hope I don't have to do this!
It appears that I should completely remove the central switch of the three and simply wire one of the other two to earth/ground and the other to the YG wire, which seems simple enough.
I note the YG wire should be cut, All I am worried about is that I wire my wire from the switches under the block to the correct part of the cut YG wire. I take it the correct part would be the bit that leads to the plug on the block? It isn't obvious, as I 'm not looking under the bonnet. And the pics in the Adobe thing don't make it clear altho bizarrely he makes it incredibly clear where to earth the other one.
Anyway, thanks for all your help guys. I'll let you know how I get on, once I pluck up the courage to do it.

Stanleysteamer said:

I take it the correct part would be the bit that leads to the plug on the block?

Click to expand...

You have to connect the wire from the SV switch to the part of the YG wire which goes toward the ECU not to the modulaor as the signal must get to the ECU and the modulator side free: https://www.landyzone.co.uk/land-ro...ring-mod-option-b-graphic-explanation.272156/

sierrafery said:

You have to connect the wire from the SV switch to the part of the YG wire which goes toward the ECU not to the modulaor as the signal must get to the ECU and the modulator side free: https://www.landyzone.co.uk/land-ro...ring-mod-option-b-graphic-explanation.272156/

Click to expand...

Cheers @sierrafery .
I lay in bed last night and although I don't yet fully understand how the block works or what is in it, I eventually worked out that I was probably wrong to think any signal had to go back to the block.
So thanks for making this clear to me!
I'll have a look at the link now and see if I can understand a bit more.
Ta mate!!

sierrafery said:

You have to connect the wire from the SV switch to the part of the YG wire which goes toward the ECU not to the modulaor as the signal must get to the ECU and the modulator side free: https://www.landyzone.co.uk/land-ro...ring-mod-option-b-graphic-explanation.272156/

Click to expand...

Having read this and , I have to admit, only partially understood it, I see there are critical resistances.
Does this mean I should check my connections with my multi-meter, before putting it all back together? Or do you think this is unlikely to cause a problem?
I would of course disconnect the batt before doing any thing like this but I don't want to cause any problems by doing this as I know modern stuff is ever so sensitive to unexpected or misplaced voltages.
I should say that I am used to checking connections on looms as I do this whenever I build a loom for a kit car, not wanting to have a connection buried in a loom and hidden in a car that later causes a problem.

switches £50, I paid nothing like that, more like 30

Stanleysteamer said:

Does this mean I should check my connections with my multi-meter, before putting it all back together? Or do you think this is unlikely to cause a problem?

Click to expand...

You have to measure SVS resistances as shown in the tutorial, nothing else

Happy to report that, thanks to warnings on here, I managed to get the offending base unit of the block this afternoon.
Heeding remarks as to the difficulty of undoing the Allen headed bolts I made (well modified) two existing tools into one that did the job.

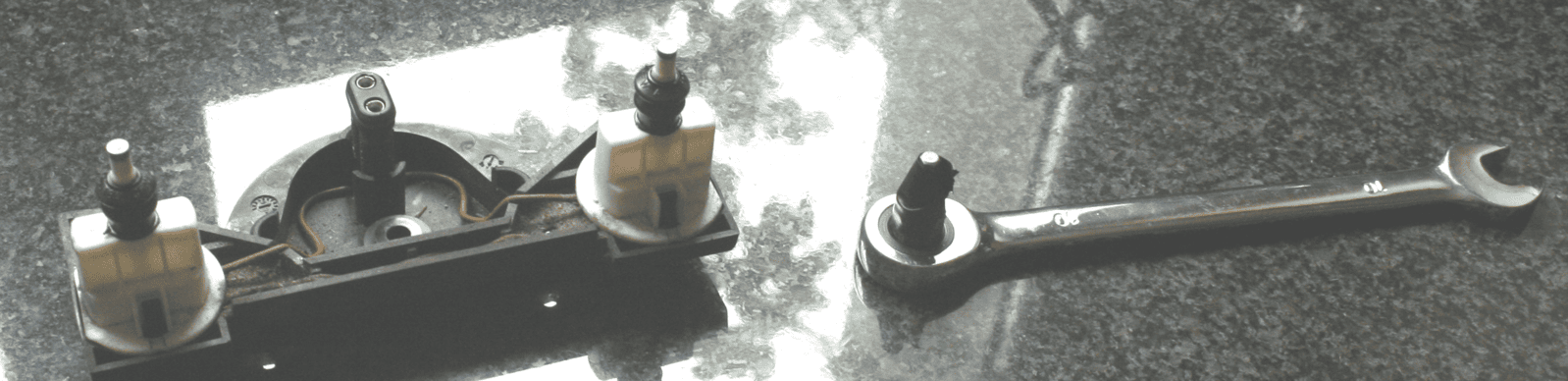

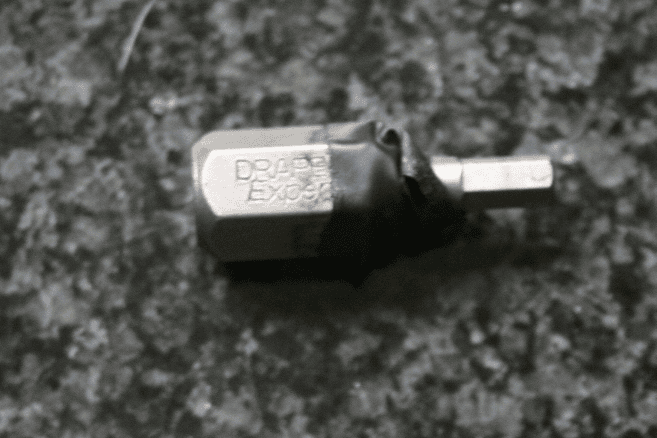

So to the left we have the offending item and to the right a 10mm ratchet spanner with a 4mm Allen key thing in it. I put tape round it to stop it slipping through the head of the ratchet.

Have to agree it's a right PITA to do this.
Disconnected the main plug on the "unit" then the cylindrical one on the side, no idea what it's for.
Then took the lines from the top of the "unit" off the clips on the bulkhead, which were not easy, until I sprayed them with WD. Some of the plastic bits bust, as you'd expect but there's enough left to clip em in even if I have to use tie-wraps.
More skinned knuckles etc than I've had for ages. Plus dropped tools, for which I am very grateful for my extendable magnet!
Oh and my "mirror on a stick" (thanks step-dottir for the pack of these things)!
Now comes the soldering. I was a bit shocked at the skinnyness of the wires, and then had to cast about for suitable wire to solder to them. Not being in the UK I have no automotive wire though I have tons of household stuff, but most of it solid, not thin, wound stuff. But I did find some which will have to do.
Thanks for all your help and yes, without my "ratchet Allen key" the job would have been far more of a feckin nightmare as it took ages to wind each one out even with my homemade tool!

Stanleysteamer said:

Happy to report that, thanks to warnings on here, I managed to get the offending base unit of the block this afternoon.
Heeding remarks as to the difficulty of undoing the Allen headed bolts I made (well modified) two existing tools into one that did the job.
View attachment 264348
So to the left we have the offending item and to the right a 10mm ratchet spanner with a 4mm Allen key thing in it. I put tape round it to stop it slipping through the head of the ratchet.
View attachment 264349
Have to agree it's a right PITA to do this.
Disconnected the main plug on the "unit" then the cylindrical one on the side, no idea what it's for.
Then took the lines from the top of the "unit" off the clips on the bulkhead, which were not easy, until I sprayed them with WD. Some of the plastic bits bust, as you'd expect but there's enough left to clip em in even if I have to use tie-wraps.
More skinned knuckles etc than I've had for ages. Plus dropped tools, for which I am very grateful for my extendable magnet!
Oh and my "mirror on a stick" (thanks step-dottir for the pack of these things)!
Now comes the soldering. I was a bit shocked at the skinnyness of the wires, and then had to cast about for suitable wire to solder to them. Not being in the UK I have no automotive wire though I have tons of household stuff, but most of it solid, not thin, wound stuff. But I did find some which will have to do.
Thanks for all your help and yes, without my "ratchet Allen key" the job would have been far more of a feckin nightmare as it took ages to wind each one out even with my homemade tool!

Click to expand...

Well done!

For the wire, I stripped a bit of domestic (0.5mm?) mains flex and used the green/yellow for the YG connection and brown for the "ground", purely for camouflage.

Stanleysteamer said:

Happy to report that, thanks to warnings on here, I managed to get the offending base unit of the block this afternoon.
Heeding remarks as to the difficulty of undoing the Allen headed bolts I made (well modified) two existing tools into one that did the job.
View attachment 264348
So to the left we have the offending item and to the right a 10mm ratchet spanner with a 4mm Allen key thing in it. I put tape round it to stop it slipping through the head of the ratchet.
View attachment 264349
Have to agree it's a right PITA to do this.
Disconnected the main plug on the "unit" then the cylindrical one on the side, no idea what it's for.
Then took the lines from the top of the "unit" off the clips on the bulkhead, which were not easy, until I sprayed them with WD. Some of the plastic bits bust, as you'd expect but there's enough left to clip em in even if I have to use tie-wraps.
More skinned knuckles etc than I've had for ages. Plus dropped tools, for which I am very grateful for my extendable magnet!
Oh and my "mirror on a stick" (thanks step-dottir for the pack of these things)!
Now comes the soldering. I was a bit shocked at the skinnyness of the wires, and then had to cast about for suitable wire to solder to them. Not being in the UK I have no automotive wire though I have tons of household stuff, but most of it solid, not thin, wound stuff. But I did find some which will have to do.
Thanks for all your help and yes, without my "ratchet Allen key" the job would have been far more of a feckin nightmare as it took ages to wind each one out even with my homemade tool!

Click to expand...

Hi Stan, as pop pops says well done & I hope it sorts everything. Do you know if this mod is only for the three amigos ? As on mine prior to me doing the o/s fr. hub I had that farting noise from the modulator & the TC light illuminate briefly when reversing off my drive on full lock or going over the odd pot hole. It seemed ok for a month or so but ever since it's been doing the same thing & the Foxwell tells me it's to do with low pressure in the modulator (or something like that) on the o/s rear circuit.
Do you think this mod will cure my problem ? I've never had the ABS or HDC lights on just that noise, TC light & a vibration on the brake pedal like the ABS is cutting in. All the best.

Andy Warren said:

Hi Stan, as pop pops says well done & I hope it sorts everything. Do you know if this mod is only for the three amigos ? As on mine prior to me doing the o/s fr. hub I had that farting noise from the modulator & the TC light illuminate briefly when reversing off my drive on full lock or going over the odd pot hole. It seemed ok for a month or so but ever since it's been doing the same thing & the Foxwell tells me it's to do with low pressure in the modulator (or something like that) on the o/s rear circuit.
Do you think this mod will cure my problem ? I've never had the ABS or HDC lights on just that noise, TC light & a vibration on the brake pedal like the ABS is cutting in. All the best.

Click to expand...

The mod is for the SVS or shuttle valve switch error, I don’t think it is for other errors, but it does seem to need doing on all eventually.
