sump guard

S

silly boy

Member

Posts

51

Location

york

• Apr 6, 2019

• #1

morning all I am removing the sump guard so that I can do an oil change BUT some moron before me has pop riveted the plastic guard were the bolts should be not a problem as I have drilled them out but how do I remove it from the front looks its fitted under the alloy piece across the front do I have to take that off any help please as stuck



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Apr 6, 2019

• #2

silly boy said:

BUT some moron before me has pop riveted the plastic guard were the bolts should be

Click to expand...

That'll Land Rover.

The rivets are supposed to be there. You unbolt the whole assembly with alloy frame from the vehicle, not try to disassemble the sump guard.



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Apr 6, 2019

• #3

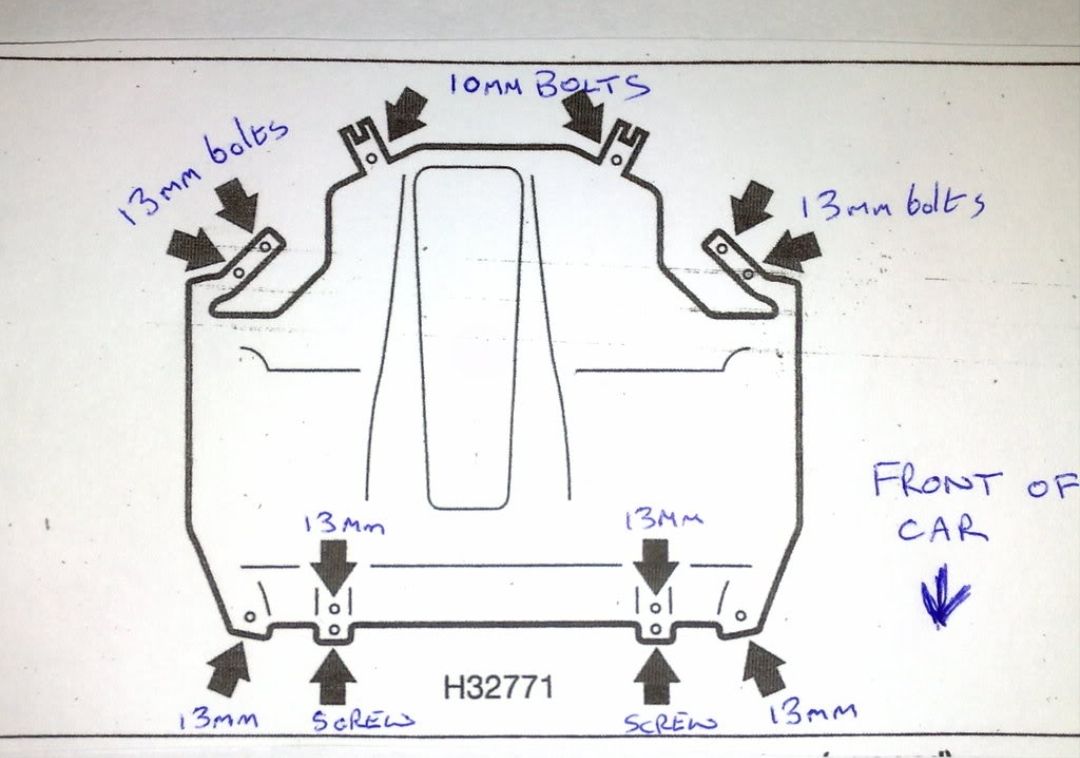

You unbolt it where marked, in the helpful picture.



S

silly boy

Member

Posts

51

Location

york

• Apr 6, 2019

• #4

THANKS buddy I can replace pop rivets not a problem and just found were the bolts are to remove the frame going drill access hole for drain plug so no messing about next time SILLY ME



S

silly boy

Member

Posts

51

Location

york

• Apr 7, 2019

• #5

sorted buddy there were no 10mm bolts some one had put tie straps there job now done MANY THANKS
