Sump guard/shield bolts?

Parv

Active Member

Posts

66

• Apr 3, 2024

• #1

Hi guys,

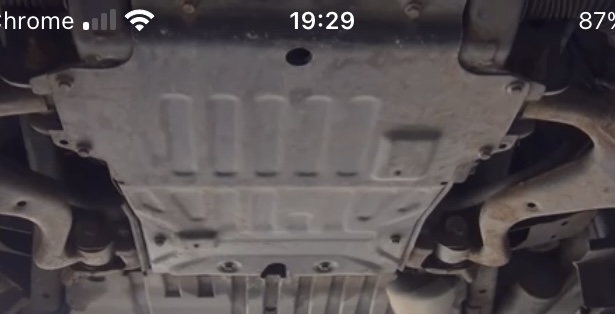

I noticed on my MY10 Disco 4 the other day, that I was missing the big (metal) underbody sump guard/shield / skid plate?

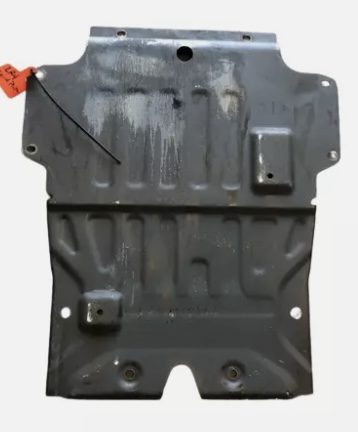

I purchased one from fleebay (pics attached)

Can anyone let me know the part number (s) for the bolts I need to put this on please

In the picture, it looks like I need 10 in all.



sierrafery

Well-Known Member

Posts

17,912

Location

Arad/Romania

• Apr 3, 2024

• #2

M10 x 25 https://britcar.com/product.php/148...y_3_and_4___freelander_2___range_rover_sport_ ... (HB1) for the two bigger holes near the bottom of your pic you need 2 x HB3 and the spacer HM1 too: https://parts.jaguarlandroverclassic.com/parts/index/part/id/15.51636.51722.35475/brand/land-rover/ the layout is for D3 but seems that it's the same



gstuart

D3 Grandad

Full Member

Posts

30,792

Location

Kent

• Apr 3, 2024

• #3

plus 1 to the above



Parv

Active Member

Posts

66

• Apr 3, 2024

• #4

sierrafery said:

M10 x 25 https://britcar.com/product.php/148...y_3_and_4___freelander_2___range_rover_sport_ ... (HB1) for the two bigger holes near the bottom of your pic you need 2 x HB3 and the spacer HM1 too: https://parts.jaguarlandroverclassic.com/parts/index/part/id/15.51636.51722.35475/brand/land-rover/ the layout is for D3 but seems that it's the same

Click to expand...

Ah,
Thank you so much
