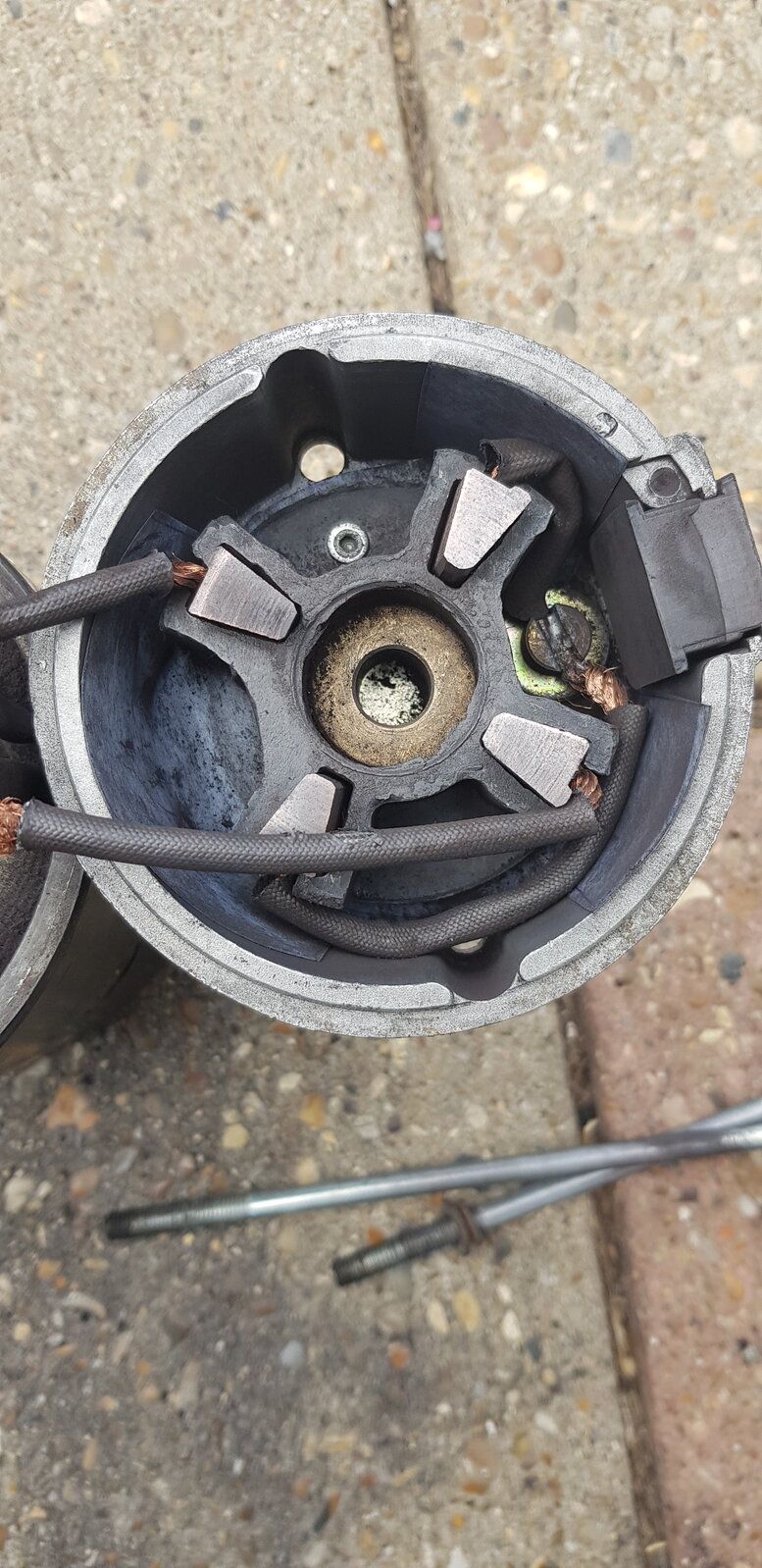

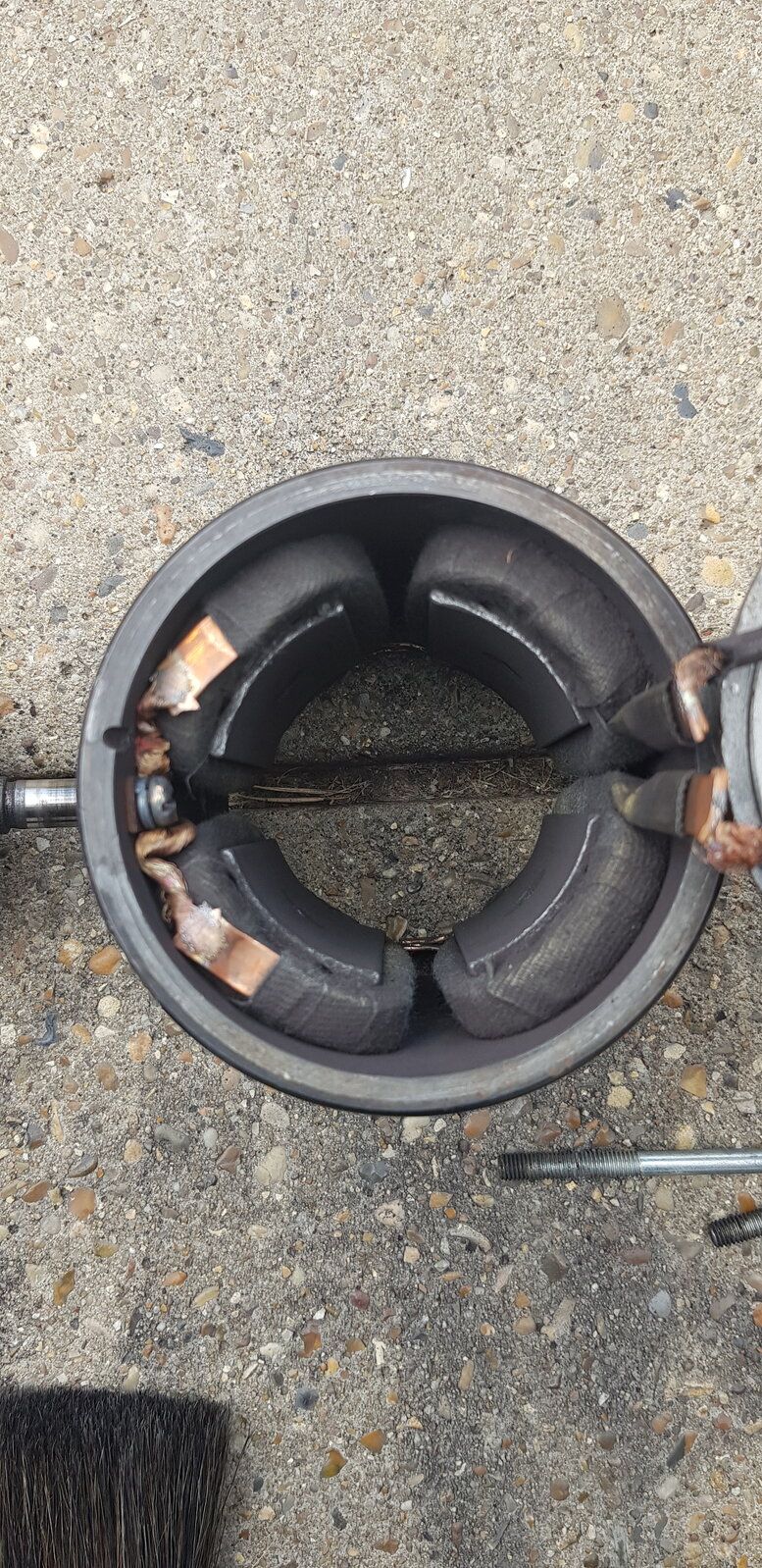

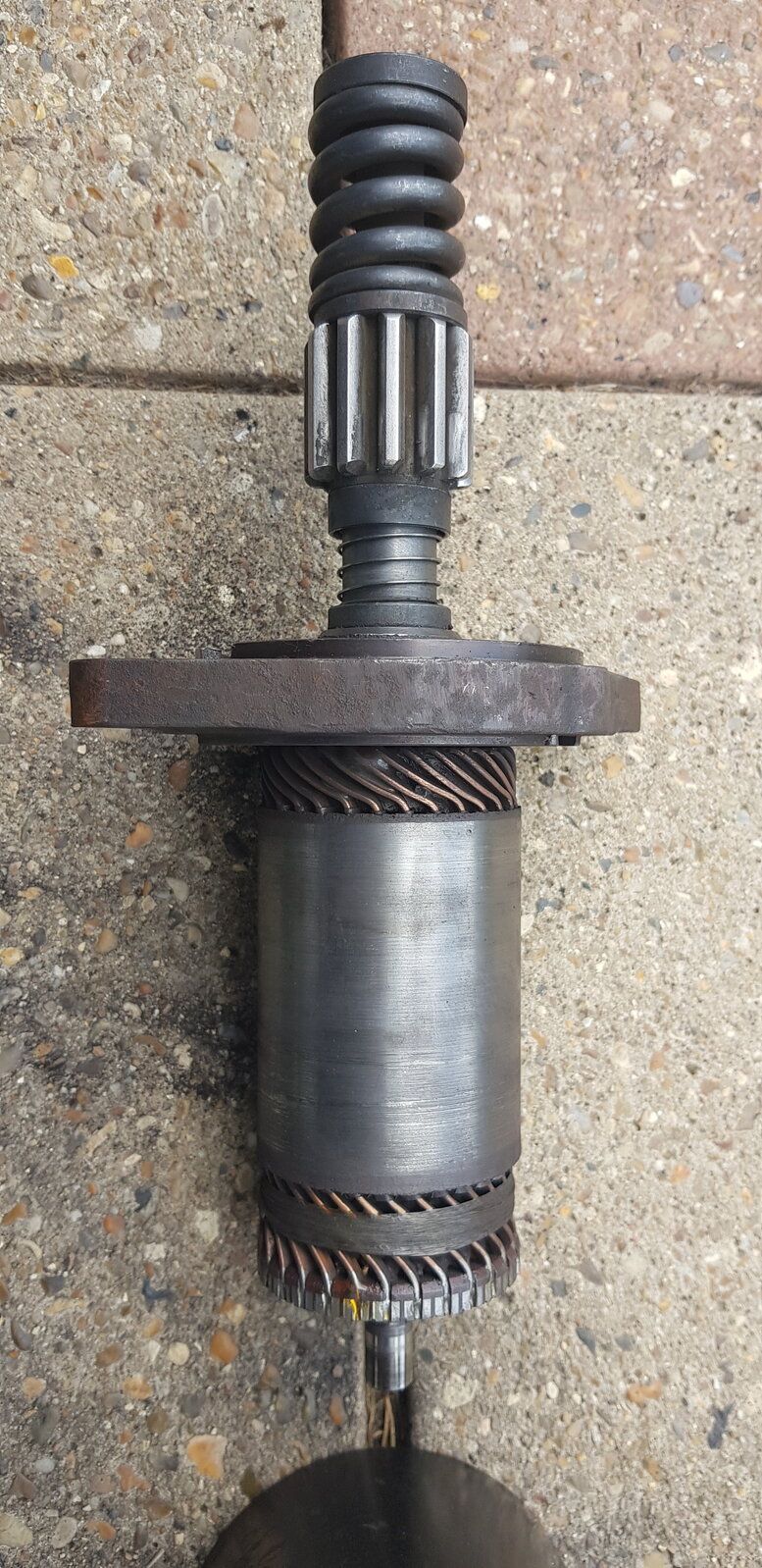

Stripped my starter motor today, it had been turning over a bit on the sluggish side, quite a few hammer marks on the side of it, so I gather it had played up a bit before I got it. The brushes seem ok, free to move on the springs, the wiring for them doesnt seem too great, quite a few stray strands poking out here and there, I think I'll replace them anyway. It was quite filthy inside, carbon everywhere that I cleaned out. Are there any readings I can take on the rest of it. Or can anyone see anything obvious that is wrong with it that I am missing. There isnt a manufacturers plate or stamp on it either.


Attachments

  • 16608327799137242154721625106749.jpg
    237.5 KB · Views: 86
  • 16608328112277874874383289938590.jpg
    419.2 KB · Views: 102
  • 16608328403364303487244578757654.jpg
    299.6 KB · Views: 92
  • 16608328683803226281148686354617.jpg
    195.4 KB · Views: 106
Colthebrummie said:

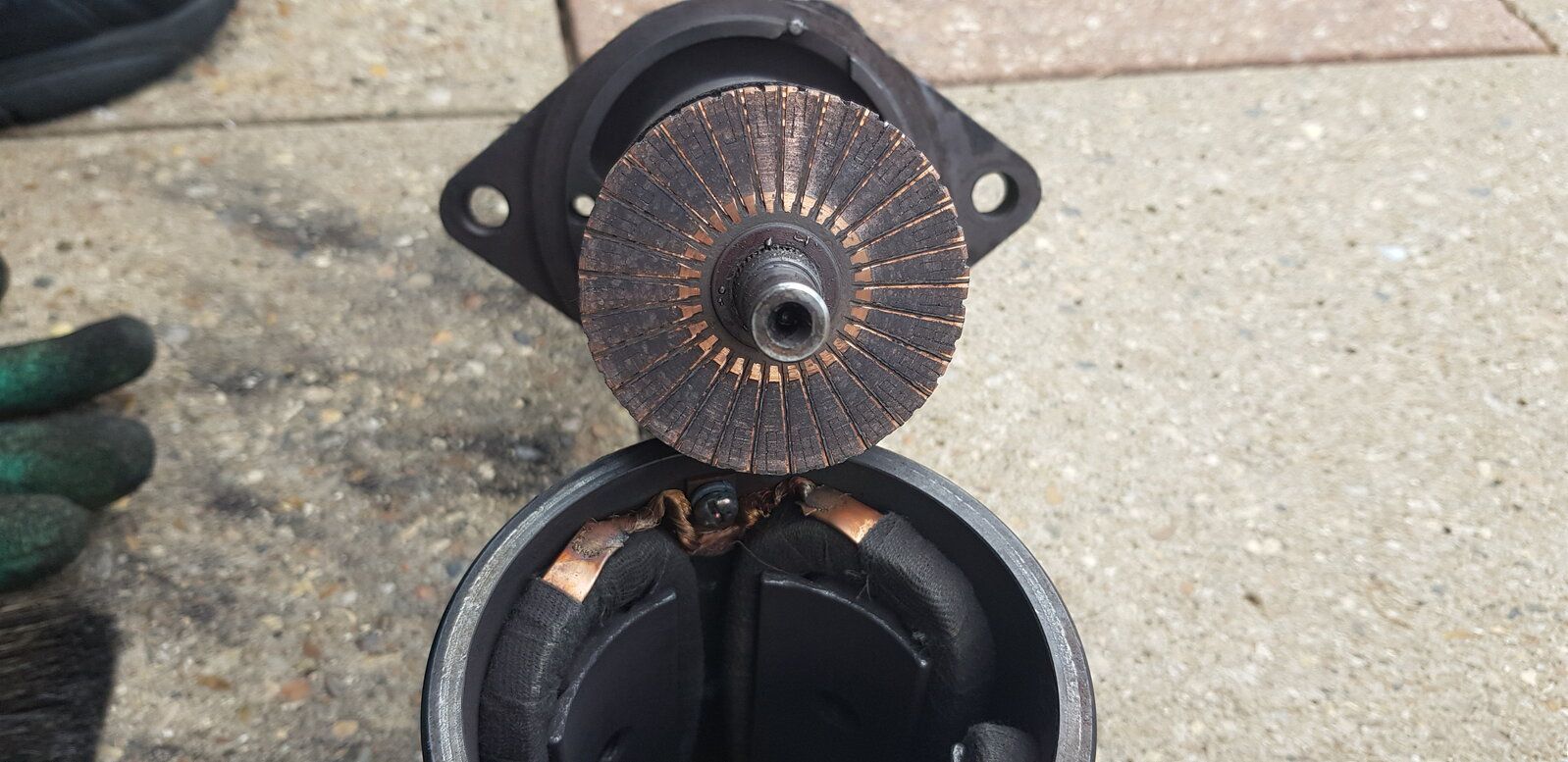

The commutater in pic 4 looks pretty grim, was the pic taken before you cleaned it?

Col
Click to expand...
I had brushed the loose carbon deposits away with a paintbrush, been looking at what to do with it, aside from getting it cleaned up on a lathe or polishing it with a bit of Emery cloth, a new one is the only other option.

Jon.

jrose said:
I had brushed the loose carbon deposits away with a paintbrush, been looking at what to do with it, aside from getting it cleaned up on a lathe or polishing it with a bit of Emery cloth, a new one is the
Colthebrummie said:
The commutater in pic 4 looks pretty grim, was the pic taken before you cleaned it?

Col
Click to expand...
Just cleaned it up with some contact cleaner and a bit of scotchbrite, thinking found the problem with it, 3bof 4 brushes were 14mm in length, the 4th was 10mm and the way it had been soldered to the post had made it stick a bit.
Click to expand...


Attachments

  • IMG-20220824-WA0004.jpeg
    208.7 KB · Views: 92
jrose said:
I had brushed the loose carbon deposits away with a paintbrush, been looking at what to do with it, aside from getting it cleaned up on a lathe or polishing it with a bit of Emery cloth, a new one is the only other option.

Jon.
Click to expand...
I don't think Emery cloth is recommended.

I would think new brushes and cleaned up, that will run again.
If you can get them, new bearings can't do any harm either, but the one I can see in the pic looks like it will still work.
