Disco 2 Steering Fluid leaking

Discussion in 'Land Rover Discovery' started by mad85, Jan 11, 2019.

< Previous Thread | Next Thread >
  1. mad85

    mad85 Member

    Joined:
    May 28, 2018
    Posts:
    60
    Likes Received:
    2
    Location:
    Malta
    Hi, So next problem :rolleyes: : I have a considerable power steering leak coming from under the battery compartment area. It is leaking considerably since it needs weekly-monthly top ups. What am I looking at, in terms of repairing it? :eek:

  2. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,148
    Likes Received:
    2,502
    Location:
    Shropshire
    You need to find where it's leaking exactly. I'm not familiar with your vehicle but it could be just a simple split hose or loose fitting.

  3. joojar

    joojar Active Member

    Joined:
    Aug 22, 2012
    Posts:
    150
    Likes Received:
    17
    Location:
    Derbyshire
    There's a pair of steel PAS pipes that run through there to the box, from the other side of the vehicle. Pipe run is under the rad/cooler group, along the top of the chassis crossmember. Mine were very corroded when I changed them a couple of years back.

  4. mad85

    mad85 Member

    Joined:
    May 28, 2018
    Posts:
    60
    Likes Received:
    2
    Location:
    Malta

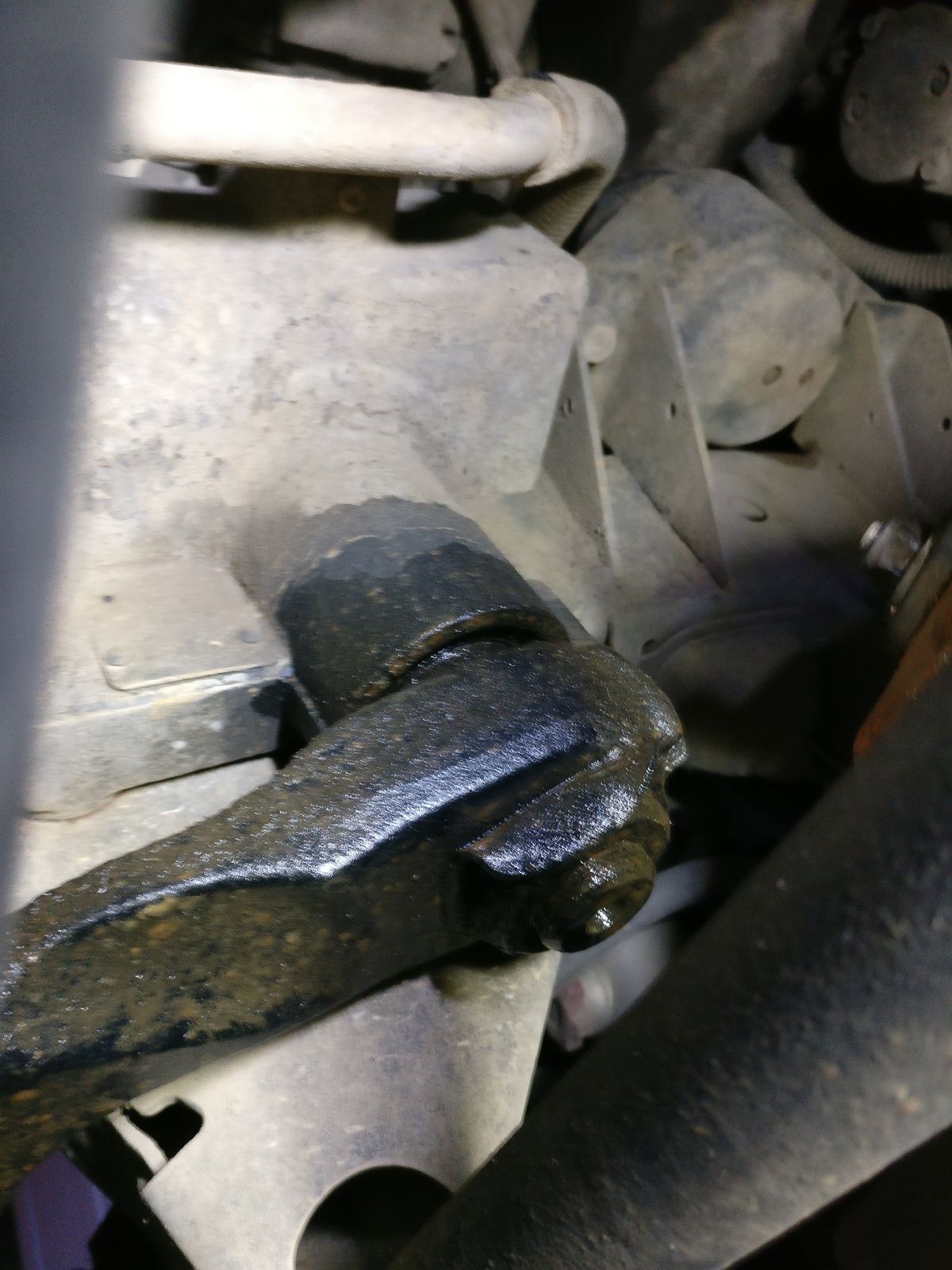

    This seems to be the source of the leak


    Attached Files:

  5. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    77,104
    Likes Received:
    9,182
    Location:
    louth lincs
    you can either swap the box or replace the seal

  6. mad85

    mad85 Member

    Joined:
    May 28, 2018
    Posts:
    60
    Likes Received:
    2
    Location:
    Malta
    hmm, I see there are many seal kits. Will check how difficult they are to do though :) while there is the steering box out, are there any other components that would be worth changing? I am thing of the steel pipe that seems to be very prone to corroding from what others are saying...
