Steering column removal

joe27979 · Jun 28, 2010

chaps..

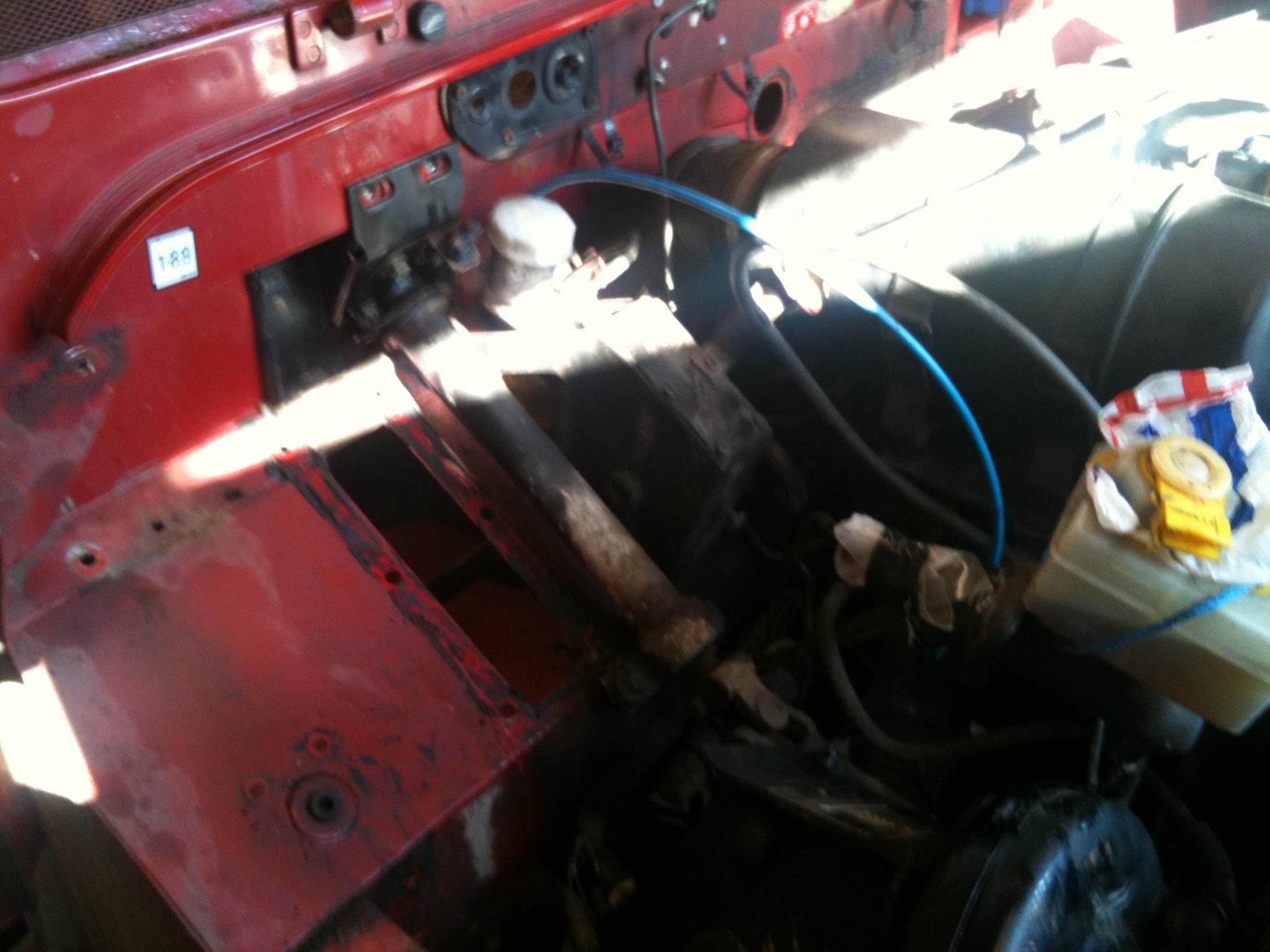

Got the wiring loom out this evening,

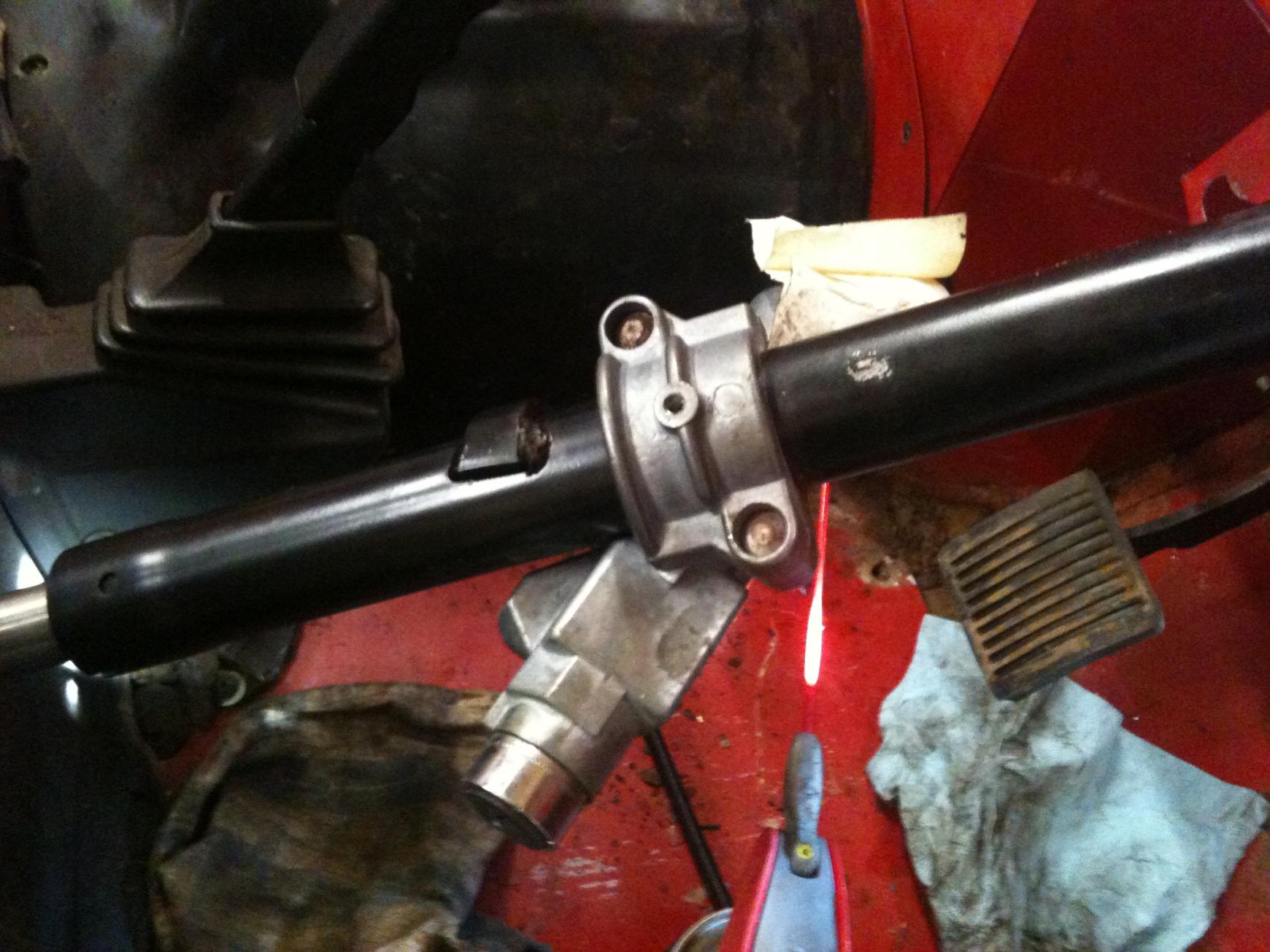

Got the coupling removed on the steering column but now how do i remove it from the bulkhead?

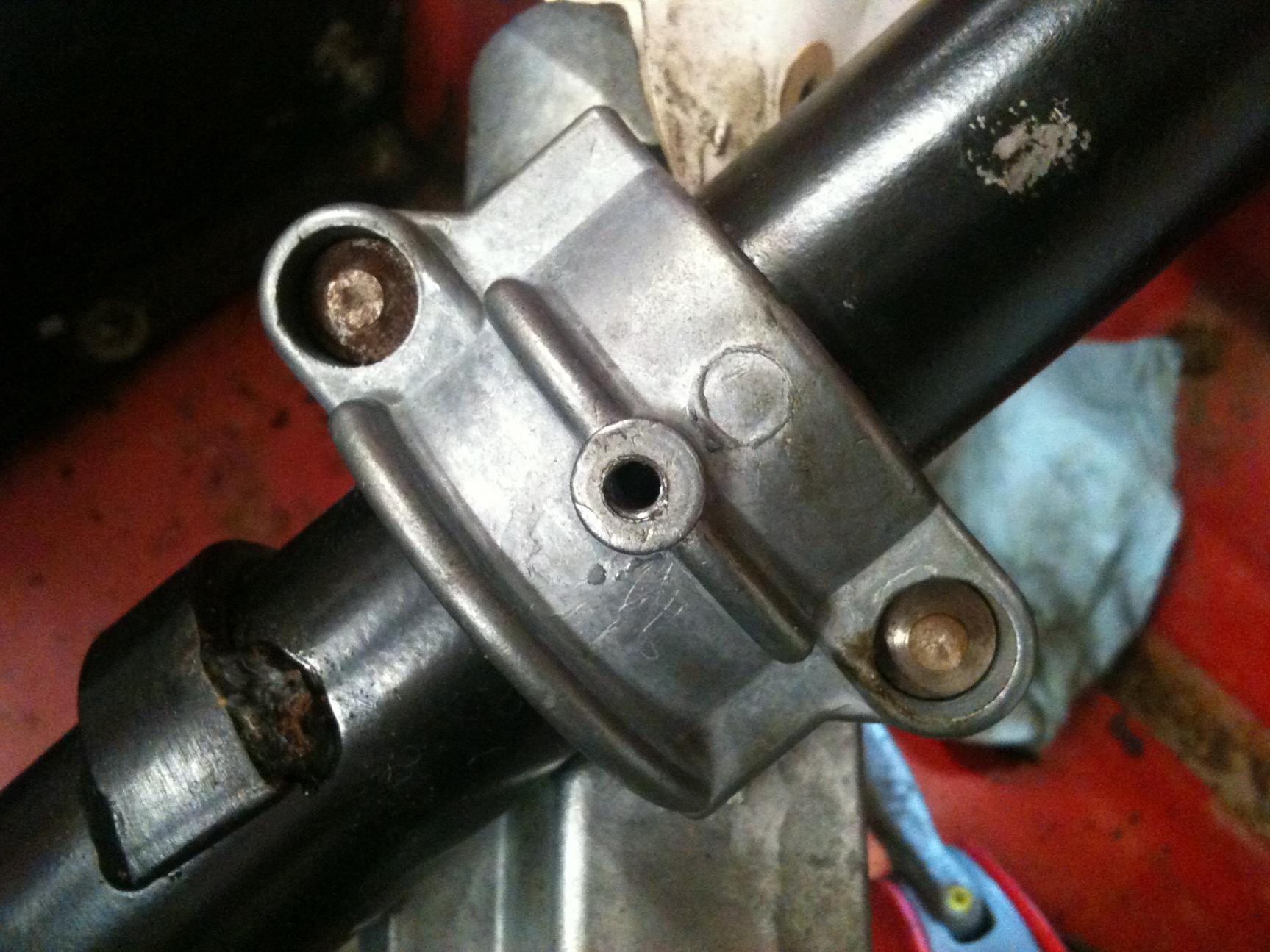

The sterring lock has security bolts securing it to the shaft and the bottom bearing end is welded to the outer sheath....so it aint going anywhere without some drilling...

which bits do i drill to remove it?
Thanks

Discoandy · Jun 28, 2010

you have 2 options that i know of

1) try and tap them round with a punch or the like.

2) and the way i do them, 1mm cutting disk, to make a slot across the head and undo with a flat screw driver. it dosce meen you have a cut across the clamp but i fid it stll works fine.

if you feel you need them clap and new bolts are £5

joe27979 · Jun 28, 2010

Cheers Andy, appreciate your advice and time in replying mate.

joe27979 · Jun 29, 2010

It worked!
Filled top with wd40 overnight then today I got a pin punch and tapped each one undone-tight to break free but once you overcome the initial break out torque they unscrew with tip if finger :0)

Just clutch pedal to remove now!

bustersbus · Jun 29, 2010

joe27979 said:
It worked!
Filled top with wd40 overnight then today I got a pin punch and tapped each one undone-tight to break free but once you overcome the initial break out torque they unscrew with tip if finger :0)

Just clutch pedal to remove now!

Bugger! Ah missed this last night:doh: Anyways, glad ye got thum off... and ye're right, it's just the initial freein' up and away ye go

Dunno if this is any guid tae ye...

http://www.landyzone.co.uk/lz/f41/clutch-pedal-box-pipe-removal-75684.html

joe27979 · Jun 29, 2010

bustersbus said:
Bugger! Ah missed this last night:doh: Anyways, glad ye got thum off... and ye're right, it's just the initial freein' up and away ye go

Dunno if this is any guid tae ye...

http://www.landyzone.co.uk/lz/f41/clutch-pedal-box-pipe-removal-75684.html

Buster - im starting to see you as my personal mentor for my bulkhead removal task....it is very much appreciated and kind of you to give ya time up tapping away on ya keyboard for me

)

These forums are great for people venturing into the unknown and you are a testament to the good nature of people who take time to help each other out....

in months to come when anyone asks for bulkhead advice im gonna try and beat you to a response

bustersbus · Jun 29, 2010

joe27979 said:
Buster - im starting to see you as my personal mentor for my bulkhead removal task....it is very much appreciated and kind of you to give ya time up tapping away on ya keyboard for me )

These forums are great for people venturing into the unknown and you are a testament to the good nature of people who take time to help each other out....

in months to come when anyone asks for bulkhead advice im gonna try and beat you to a response

Nae wurries joe, just glad tae help if ah can

HAHAHAHAHA! Ye'll have tae be quick
