Spigot bush?

mikeh501 · Oct 6, 2015

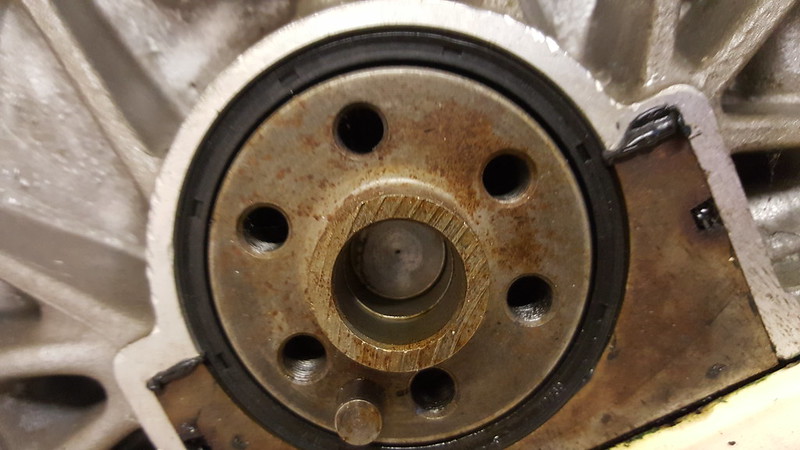

guys, on the pic below i take it that the little recess in the hole isnt a spigot bush? i assume it should be much bigger diameter?

jamesmartin · Oct 6, 2015

theres no spigot bush in there ,did it have an auto box fitted

mikeh501 · Oct 7, 2015

Thanks. Are they easy to fit? Just whack it in like a bearing?

It's a new engine from rpi and came with an auto flex plate. I take it that autos don't have a spigot?

jamesmartin · Oct 7, 2015

autos dont use a spigot bush, you need 549911 bush just taps in with a suitable flat faced tool, a suitable sized socket used the wrong way round may do it

mikeh501 · Oct 7, 2015

Thanks. Your a star

mikeh501 · Oct 10, 2015

So I've stuck the spigot bush in and then tried to fit the flywheel..... It doesn't fit because of the dowel in the end of the crank. Do I have an incorrect flywheel? I've read people remove the dowel (grind it off) but it seems a bit drastic!

jamesmartin · Oct 10, 2015

if you look at the back of the fly wheel there should be a hole for the dowel ,flywheel will only fit in one position

mikeh501 · Oct 10, 2015

But the flywheel doesn't have a hole for the dowel. Just six holes for the bolts.

jamesmartin · Oct 10, 2015

in which case you will have to pull it out or grind it off

mikeh501 · Oct 10, 2015

Do they not make a flywheel with the hole? JE supplied the flywheel to me?
