sailsburry axel help

Hi guy can any body tell me if this is a sailsburry axel sorry about spelling

no it's not. they have a different shape to the diff pan.

EDIT:

Like this:

http://www.lrseries.com/resources/u...851d/FRC9995-REAR-SALISBURY-AXLE-ASSY-110.jpg

Rover axle

Cheers guys well help full

Blackburn said:

Rover axle

Click to expand...

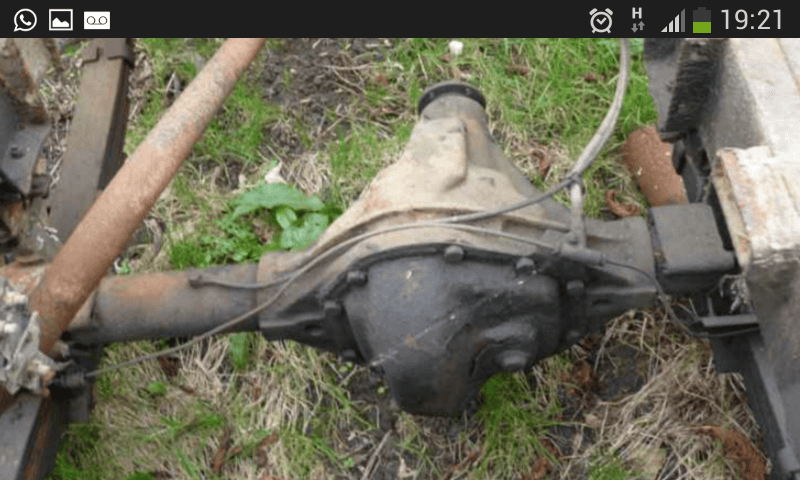

Hi Blackburn would you say this is a sailsbury axel ?? Cheers for advise

dandit1200 said:

Hi Blackburn would you say this is a sailsbury axel ?? Cheers for adviseView attachment 98620

Click to expand...

that is indeed a salisbury

Yep

Buzzing just hope I can get it at the right price cheers guys also what sort of money should I be looking to spend just as a guide

jamesmartin said:

that is indeed a salisbury

Click to expand...

Hi there can I pick your brains on the axel I have bought a s3 1977 sailsbury rear axel will I be able to fit it to a 2a with a standard front axel is there any difference on the ratio I pick the axel up the weekend at a cost of £165 and It needs a refurb. Cheers for your help and advise in advance .dan

dandit1200 said:

Hi there can I pick your brains on the axel I have bought a s3 1977 sailsbury rear axel will I be able to fit it to a 2a with a standard front axel is there any difference on the ratio I pick the axel up the weekend at a cost of £165 and It needs a refurb. Cheers for your help and advise in advance .dan

Click to expand...

ratio is the same ,you need a shorter prop as diff nose is longer

dandit1200 said:

Buzzing just hope I can get it at the right price cheers guys also what sort of money should I be looking to spend just as a guide

Click to expand...

Depends what you want to do with it. And what sort of order it is in. Arguably it's pretty redundant unless you do a lot of towing and heavy hauling. Which is why Land Rover fitted them to 109's... 88's don't have the loading capacity or tow rating to really worry about it. Rover diffs get a bad rap, but tbh for 'normal' use they are fine. And you can beef them up if need be.

As for the spelling, it's easy...

Named after the place, which is almost directly south of you.

Hi James Martin if I could pick your brains again plz I'm off to look at a pile of rear props for series 109 do you know ow the correct length of the prop needed to run the Salisbury rear axel .really appreciate your help .kind regards dan

300bhp/ton said:

Depends what you want to do with it. And what sort of order it is in. Arguably it's pretty redundant unless you do a lot of towing and heavy hauling. Which is why Land Rover fitted them to 109's... 88's don't have the loading capacity or tow rating to really worry about it. Rover diffs get a bad rap, but tbh for 'normal' use they are fine. And you can beef them up if need be.

As for the spelling, it's easy...

Named after the place, which is almost directly south of you.

Click to expand...

Hi there its going on my recovery truck .check out my other thread series 2a 109 recovery truck.

dandit1200 said:

Hi there its going on my recovery truck .check out my other thread series 2a 109 recovery truck.

Click to expand...

In that case, very cool.

300 mile trip today shopping in Devon in a farmers field for land rover Salisbury axel and some other goodies ......heaven springs to mind hahaha haha. ........

Hi guys so I got my Salisbury axel and the correct prop but I'm missing a drum so I email a guy who has some drums and he tells me that they never made axes for the series 2 or 2a also I have been told the differentials are not the same ....The axel I have came off a series 3 with leaf springs so do I have to match up diffs and any ideas what drum I will need ?? All help is well appreciated guys and is soaked up like a sponge not wasted

Salisbury axles were not fitted to series 2'a I have a very late 2a which has its original axles and they have a reinforced rover axle. Which is plenty strong enough. I'm running a 200tdi with 3.54 diffs and recently towed 3 tons up a 15% gradient in high 2 wheel drive and the world didn't stop spinning and luckily neither did the diff so pulled the 3 tons the 6 mile trip home. The differentials are completely different, the rover type is a separate unit where as the diff in a Salisbury is built into the axle casing.
Any series Salisbury axle except stage one will be 4.7:1 ratio same as the front

I would've stuck with the rover type sure 109's are slightly bigger and heavier but not by a huge amount. And pre 1993 90's had 10 spline rover diffs just with a higher ratio and have a higher towing capacity than a 109. Yes they are permanent 4 wheel drive which spreads the load but if you are towing a heavy weight most likely you'll be in low range if you have a standard series engine which engages four wheel drive.
The rover axle isn't weak and I've never thought of upgrading to Salisbury and my 109 regularly tows and carries heavy loads on and off road.

109inches said:

Salisbury axles were not fitted to series 2'a I have a very late 2a which has its original axles and they have a reinforced rover axle. Which is plenty strong enough. I'm running a 200tdi with 3.54 diffs and recently towed 3 tons up a 15% gradient in high 2 wheel drive and the world didn't stop spinning and luckily neither did the diff so pulled the 3 tons the 6 mile trip home. The differentials are completely different, the rover type is a separate unit where as the diff in a Salisbury is built into the axle casing.
Any series Salisbury axle except stage one will be 4.7:1 ratio same as the front

I would've stuck with the rover type sure 109's are slightly bigger and heavier but not by a huge amount. And pre 1993 90's had 10 spline rover diffs just with a higher ratio and have a higher towing capacity than a 109. Yes they are permanent 4 wheel drive which spreads the load but if you are towing a heavy weight most likely you'll be in low range if you have a standard series engine which engages four wheel drive.
The rover axle isn't weak and I've never thought of upgrading to Salisbury and my 109 regularly tows and carries heavy loads on and off road.

Click to expand...

Hi there the main reason for the axel is I have a series 2a recovery truck an I intend on using it to tow lift recover tree work .....everything ....Thank you for your info it's well appreciated an will be used so at the most I will need to change front different. ? I need to get my head round the ratio bit more education

dandit1200 said:

Hi guys so I got my Salisbury axel and the correct prop but I'm missing a drum so I email a guy who has some drums and he tells me that they never made axes for the series 2 or 2a also I have been told the differentials are not the same ....The axel I have came off a series 3 with leaf springs so do I have to match up diffs and any ideas what drum I will need ?? All help is well appreciated guys and is soaked up like a sponge not wasted

Click to expand...

they were to vehicle suffix h onwards, so they were an option on 2as,
drum is 576973
ratio is the same

dandit1200 said:

Hi there the main reason for the axel is I have a series 2a recovery truck an I intend on using it to tow lift recover tree work .....everything ....Thank you for your info it's well appreciated an will be used so at the most I will need to change front different. ? I need to get my head round the ratio bit more education

Click to expand...

Have you got a standard front differential or have you upgraded it to a 3.54 from a defender, discovery 1 or Range Rover classic?

If your Salisbury axle is a pre stage 1 axle it will be a standard series ratio at 4.7:1 and will be fine if used with the standard front axle.

If your front axle has been upgraded to a higher ratio then you will have to change the front to a standard 4.7 ratio or upgrade the Salisbury to 3.54 by using parts from a defender Salisbury axle.
