Rv6 engine pipes

foxy1 · Apr 12, 2019

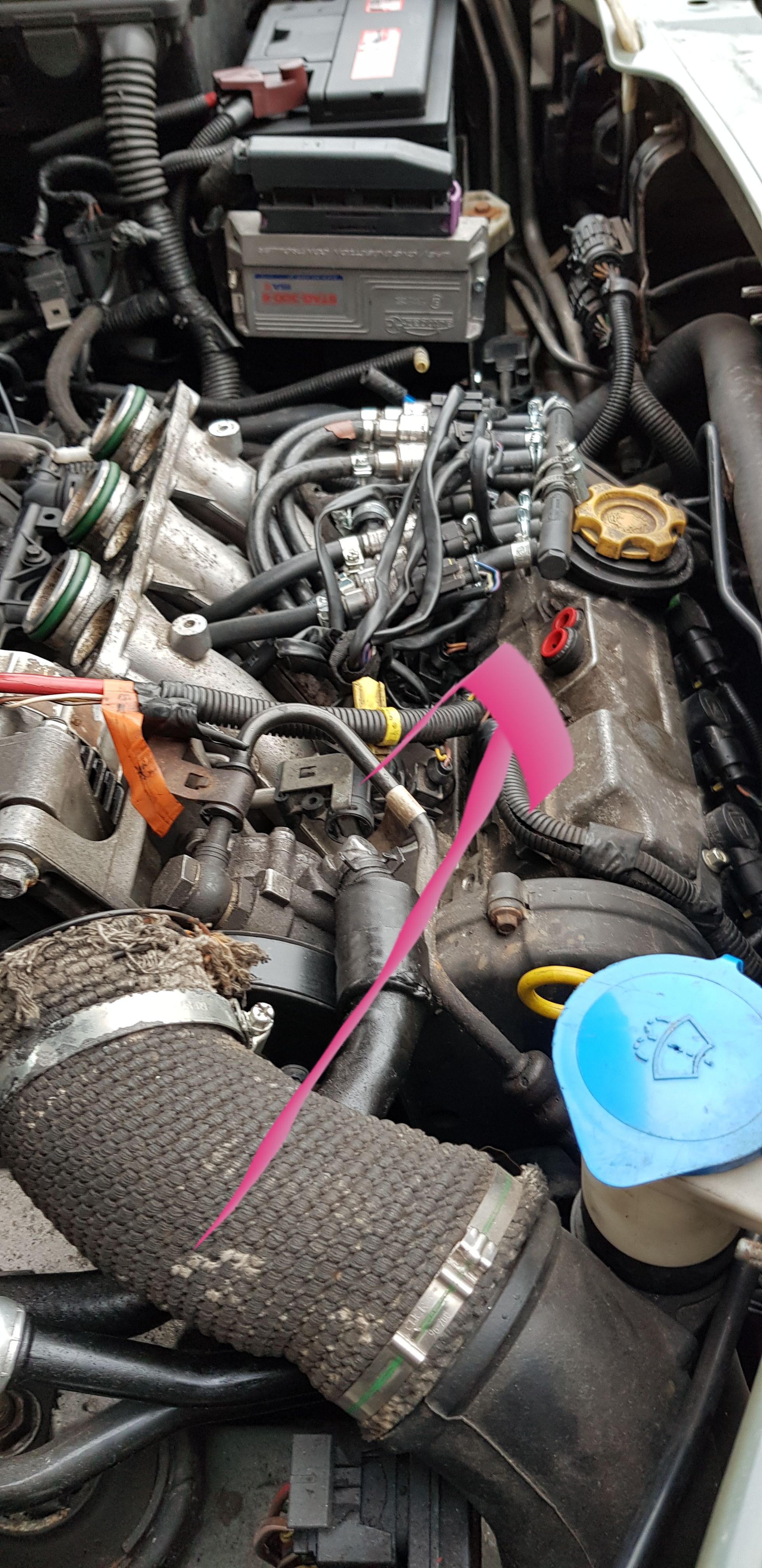

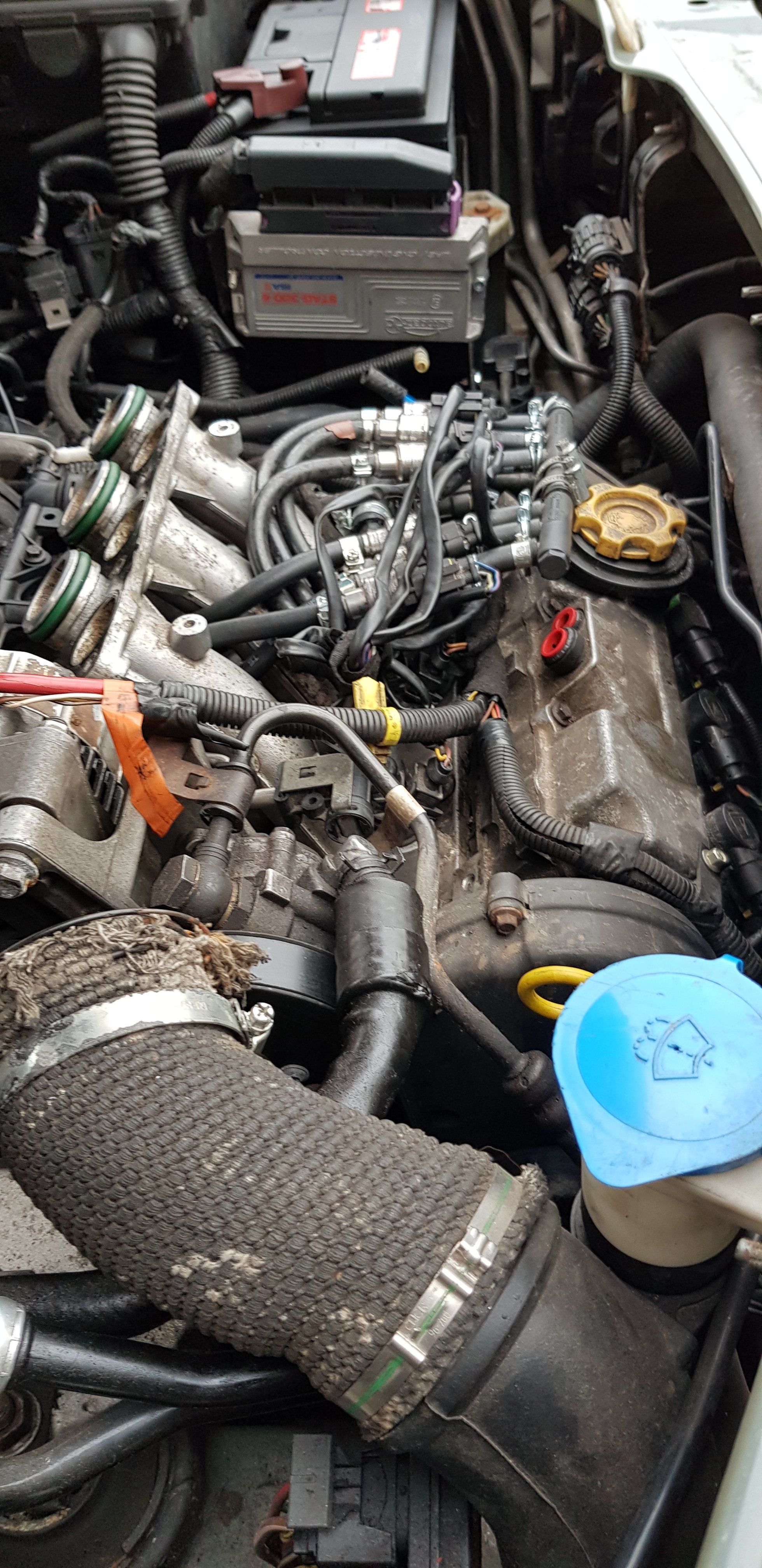

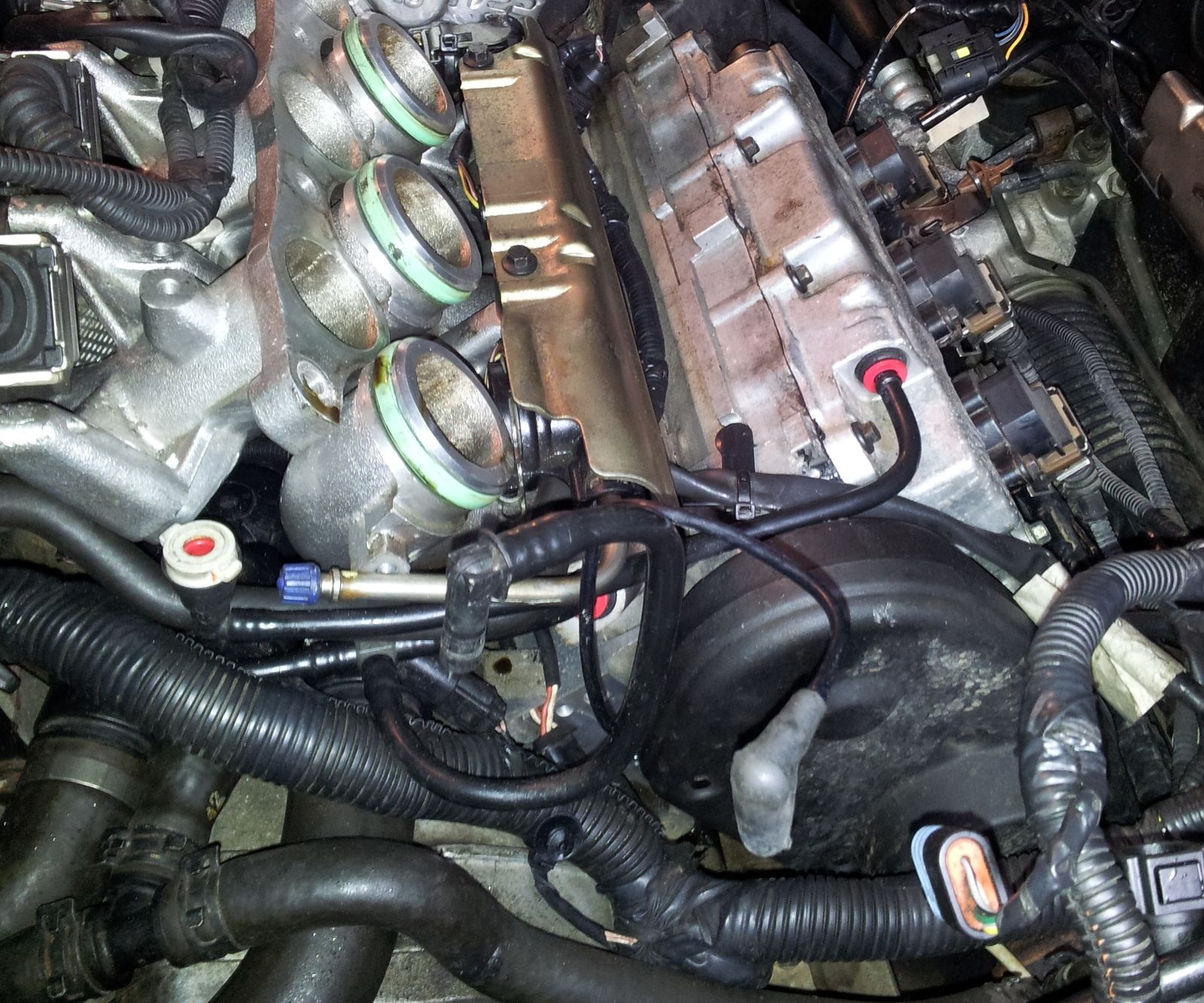

Hi, can anyone tell me what /where this pipe goes to -the person that had it before me has put mastic in the end !! Under inlet box on right hand side

foxy1 · Apr 12, 2019

foxy1 said:
Hi, can anyone tell me what /where this pipe goes to -the person that had it before me has put mastic in the end !! Under inlet box on right hand side

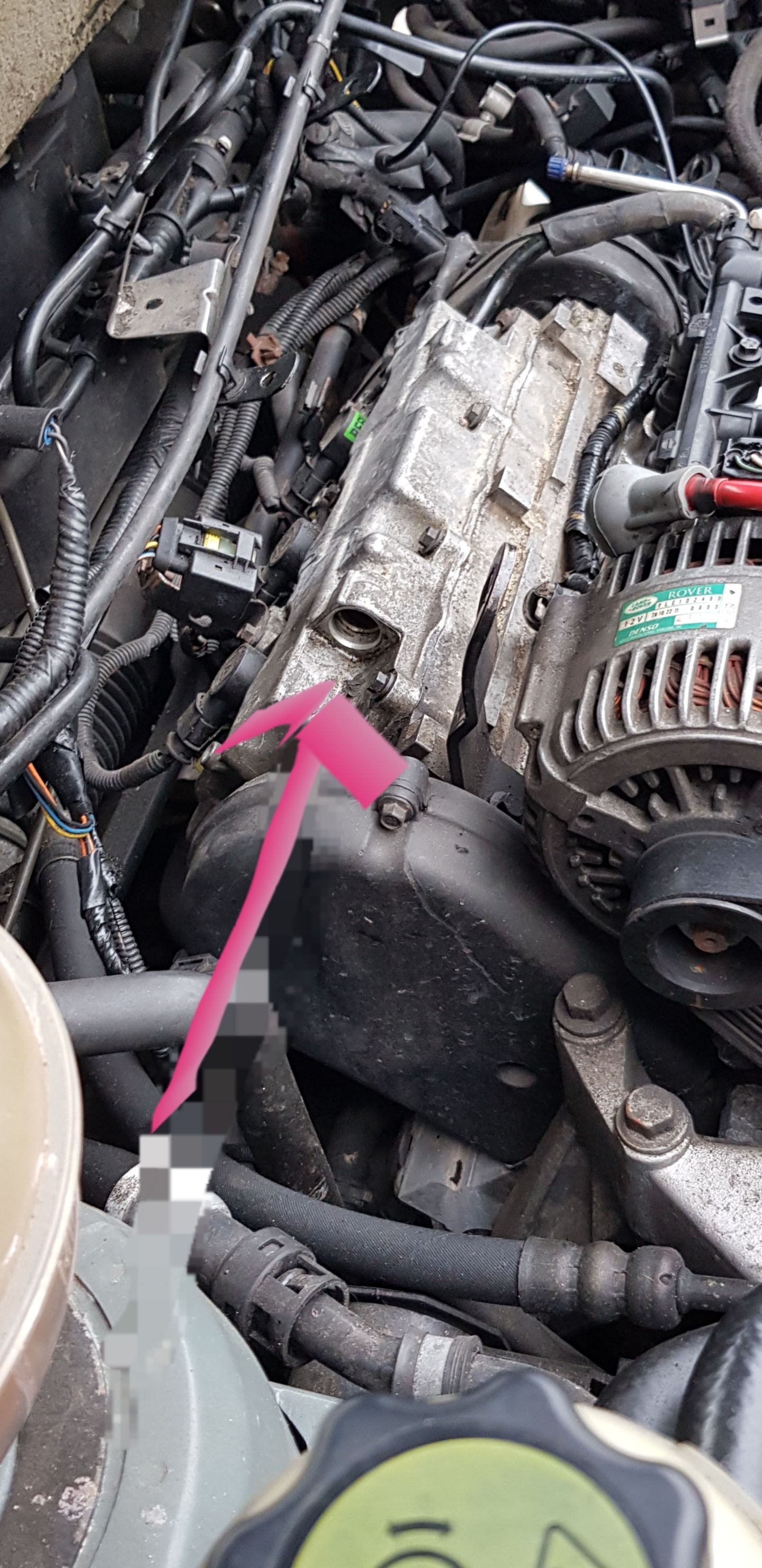

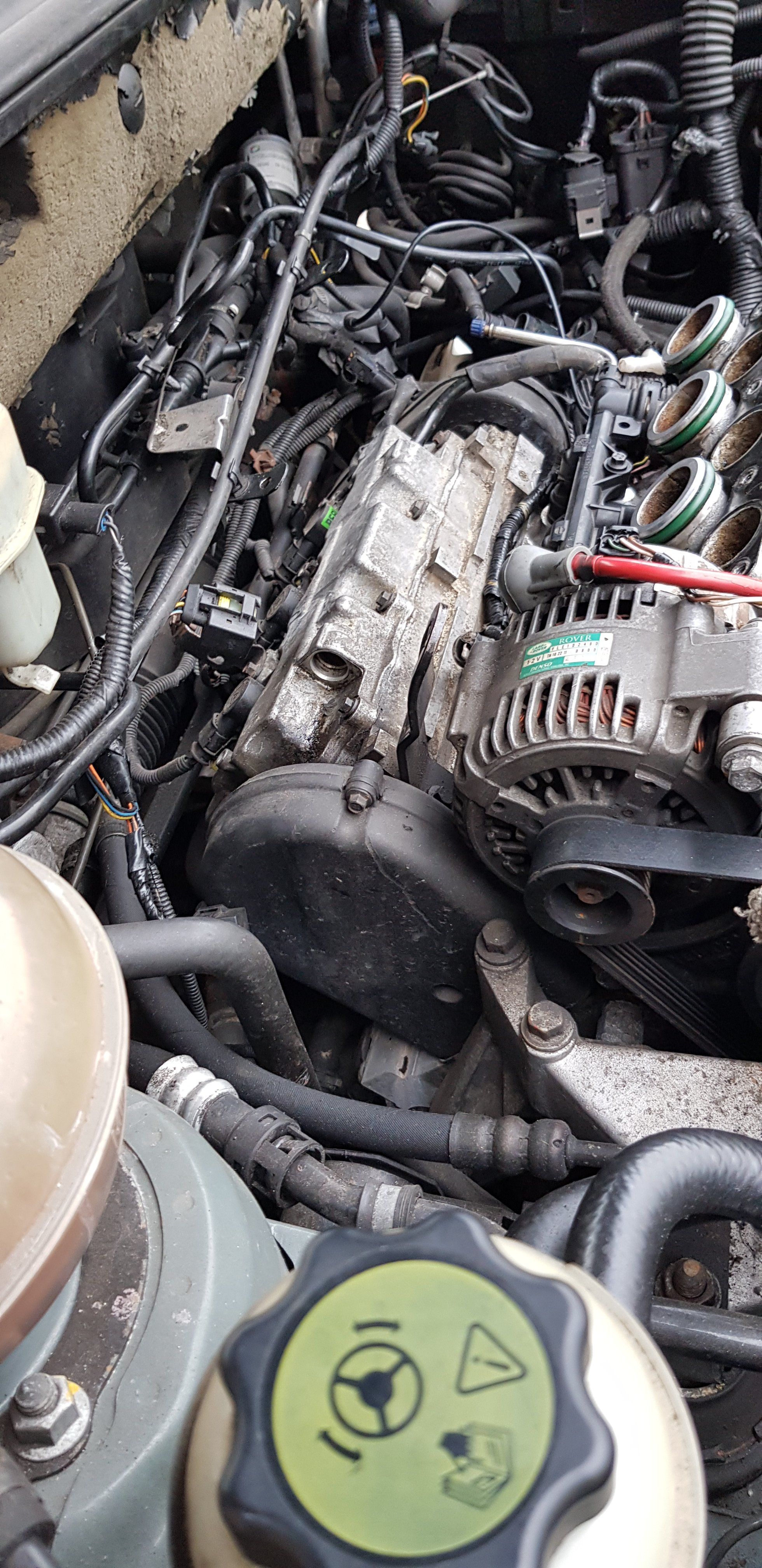

And the other one where does it go - under inlet box to right side

Nodge68 · Apr 12, 2019

The first picture is of the breather pipe.
The second picture is too localised, to be able too tell. Take some high resolution pictures of the engine and host them here directly.

foxy1 · Apr 12, 2019

Nodge68 said:
The first picture is of the breather pipe.
The second picture is too localised, to be able too tell. Take some high resolution pictures of the engine and host them here directly.

foxy1 · Apr 12, 2019

Where does breather pipe go to ?

foxy1 · Apr 12, 2019

foxy1 said:
Where does breather pipe go to -does it join here?

Nodge68 · Apr 12, 2019

foxy1 said:
Where does breather pipe go to ?

The rear and front breathers link together and go into the inlet plenum, just behind the throttle body.
You can just make the pipes route out in this picture.

Nodge68 · Apr 12, 2019

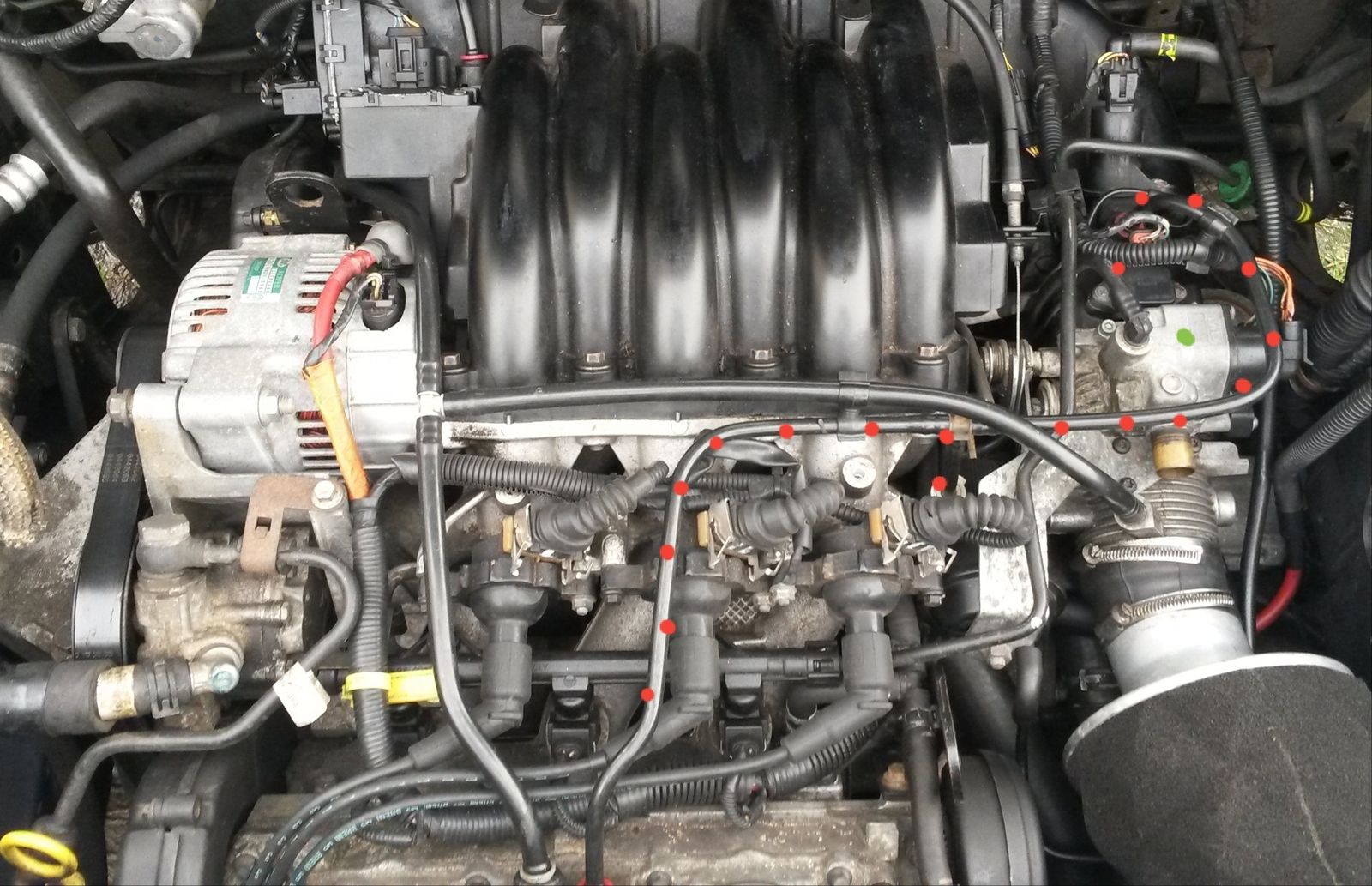

This shows negative crankcase breather route.

foxy1 · Apr 12, 2019

thank you these pics are great will let you know how I get on, thanks for the info

foxy1 · Apr 12, 2019

foxy1 said:
thank you these pics are great will let you know how I get on, thanks for the info

foxy1 · Apr 12, 2019

foxy1 said:
thank you these pics are great will let you know how I get on, thanks for the info

foxy1 · Apr 12, 2019

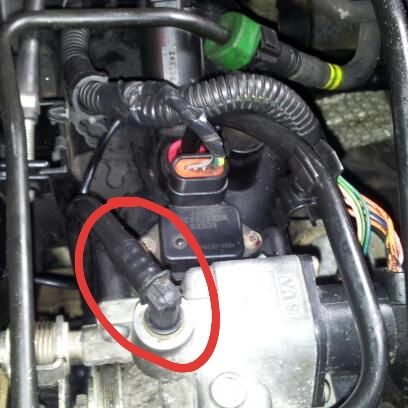

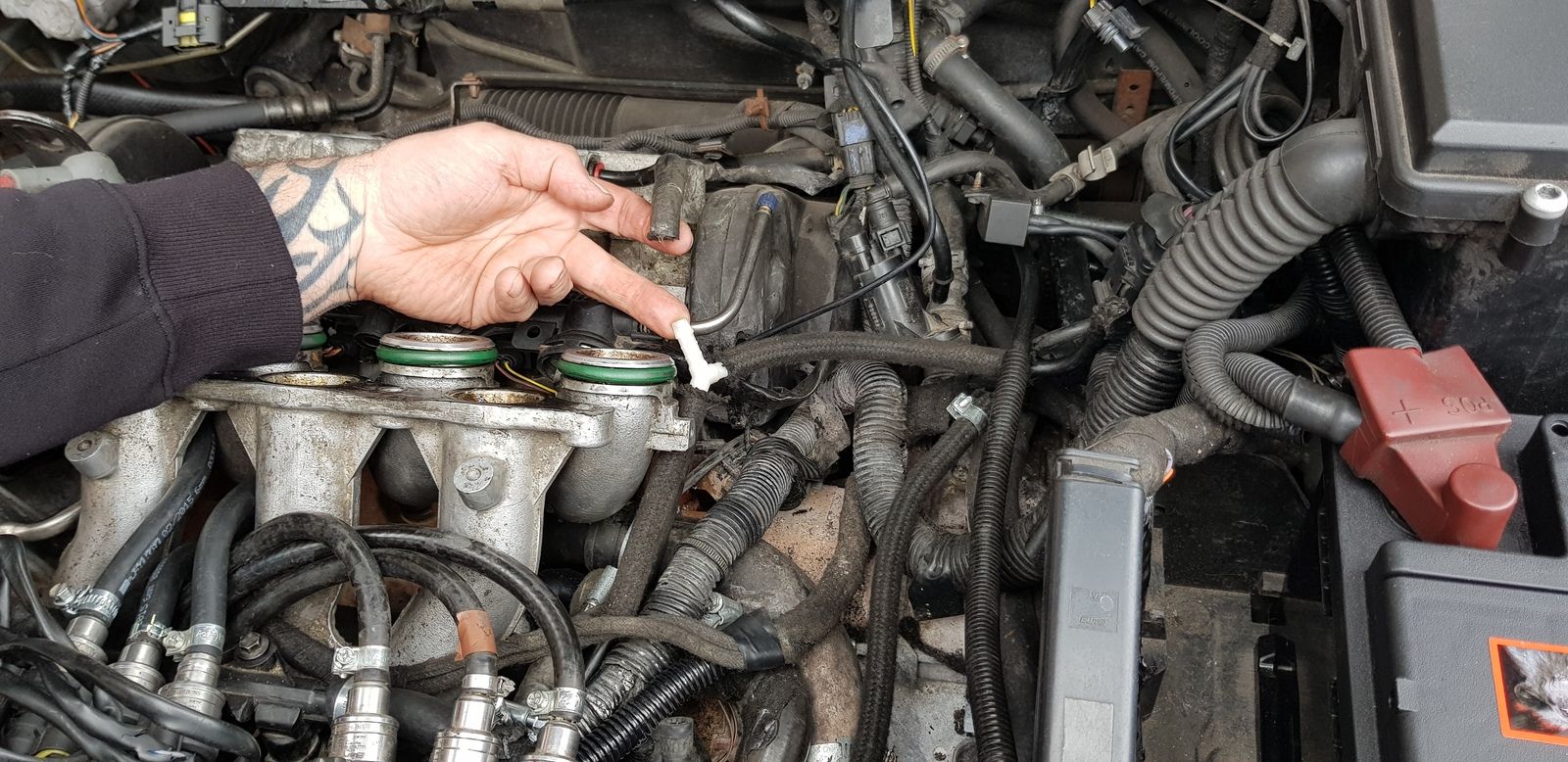

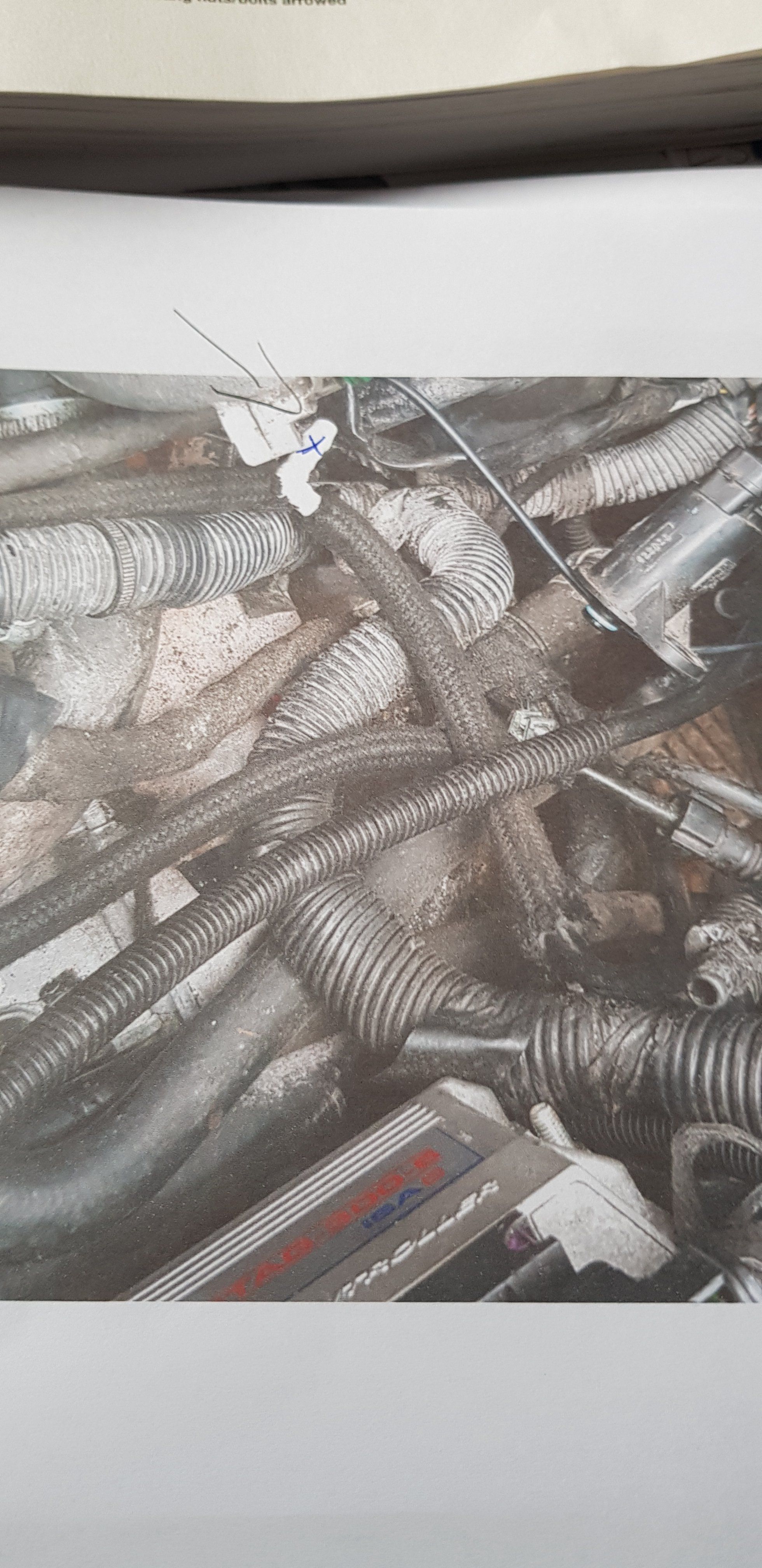

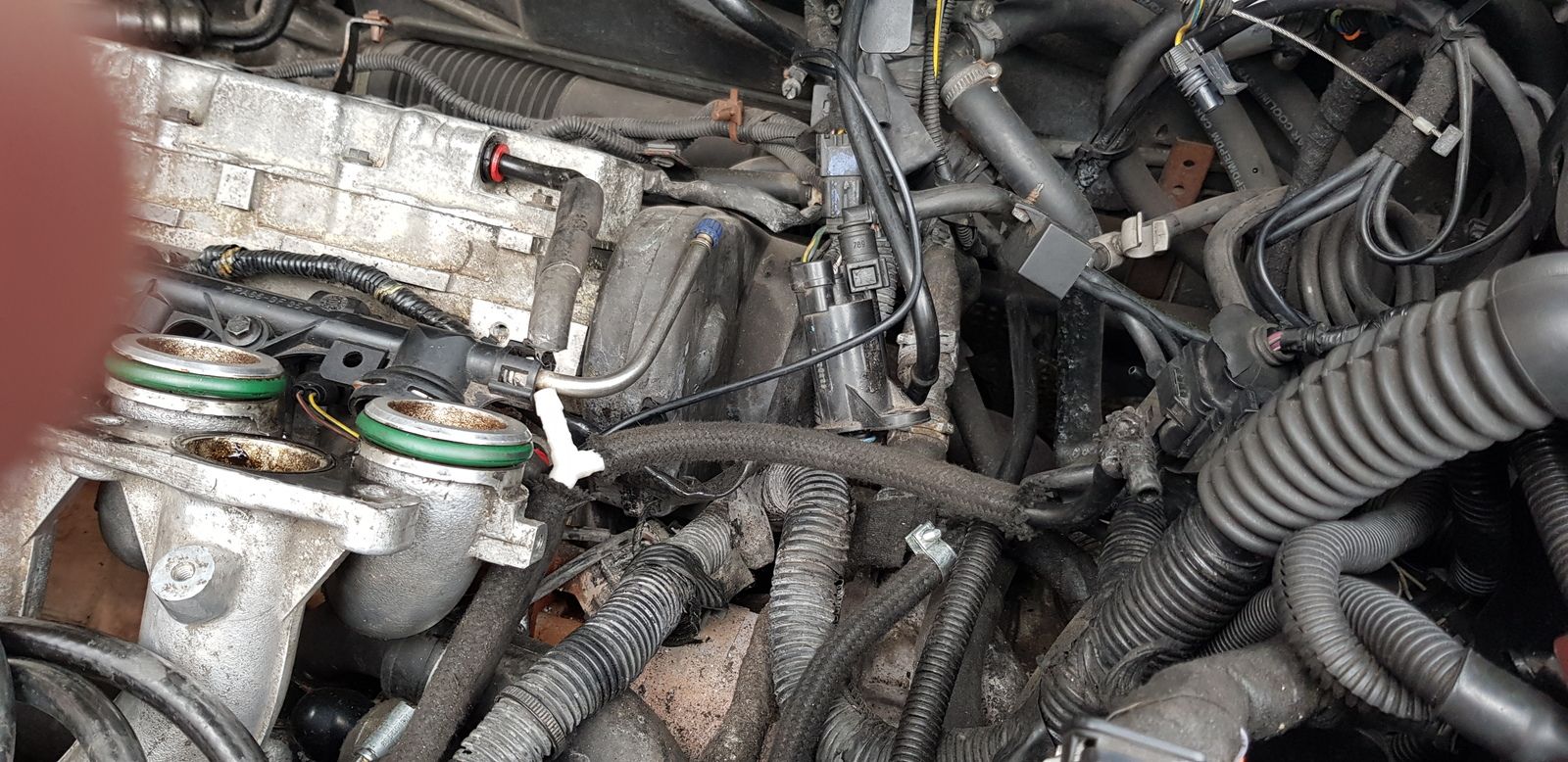

I have narrowed on these pics - is the hole on the pic meant to have one of the red bangs on the next pic? Also what is this ,where does it go if needs connecting

Nodge68 · Apr 13, 2019

foxy1 said:
is the hole on the pic meant to have one of the red bangs on the next pic? Also what is this ,where does it go if needs connecting

It's the positive crankcase breather. It has a quick fit coupler.
See this picture.

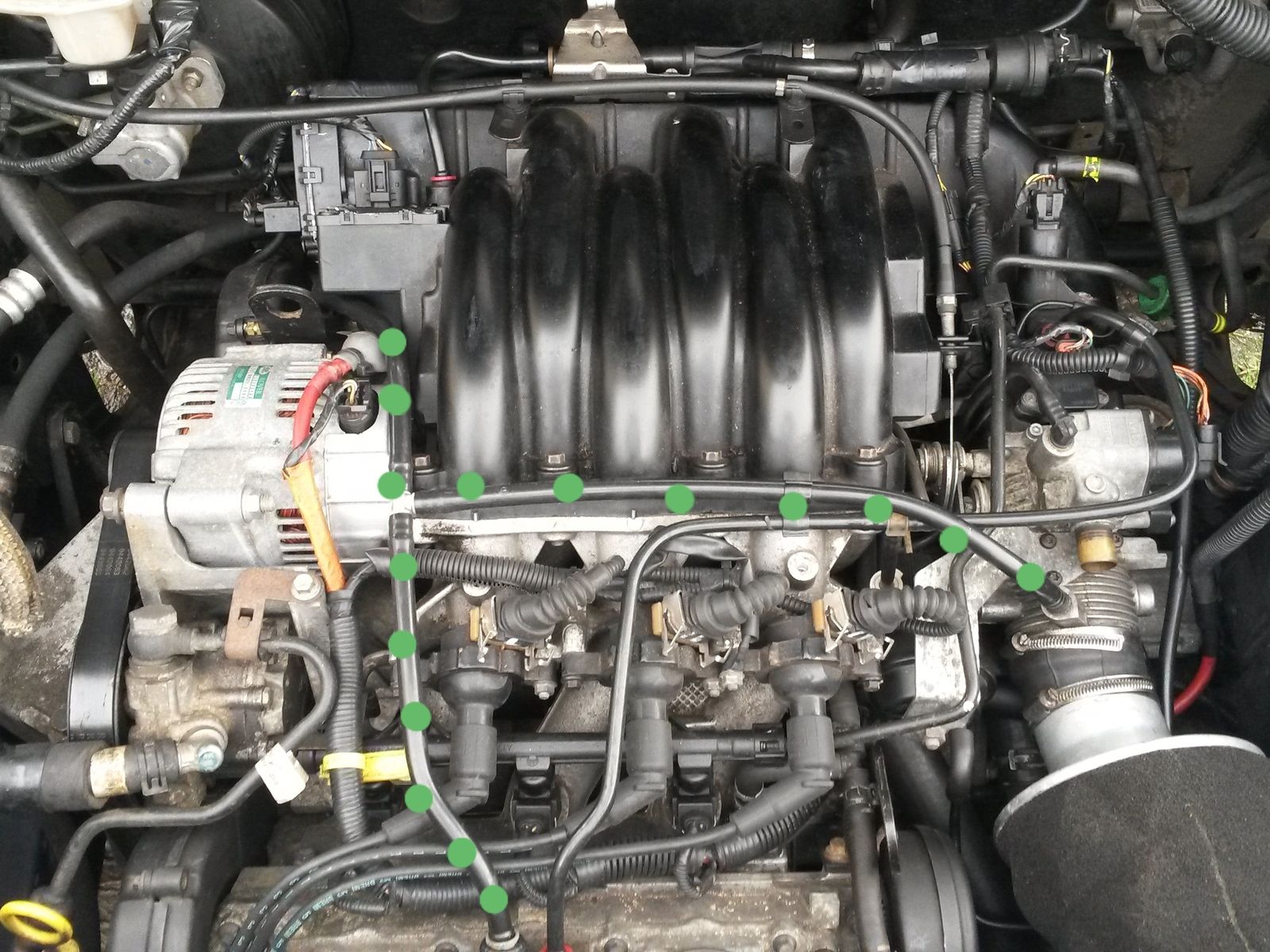

The positive crankcase breather route is marked with green dots in this picture.

Yours looks like it's had some modification, which I'm not convinced has been done too well.

foxy1 · Apr 13, 2019

foxy1 said:
I have narrowed on these pics - is the hole on the pic meant to have one of the red bangs on the next pic? Also what is this ,where does it go if needs connecting

Nodge68 said:
It's the positive crankcase breather. It has a quick fit coupler.
See this picture.
View attachment 175220

The positive crankcase breather route is marked with green dots in this picture.View attachment 175221

Yours looks like it's had some modification, which I'm not convinced has been done too well.

It definitely has, can you tell me what the bottom red connector is for is on passenger side

Nodge68 · Apr 13, 2019

foxy1 said:
can you tell me what the bottom red connector is for is on passenger side

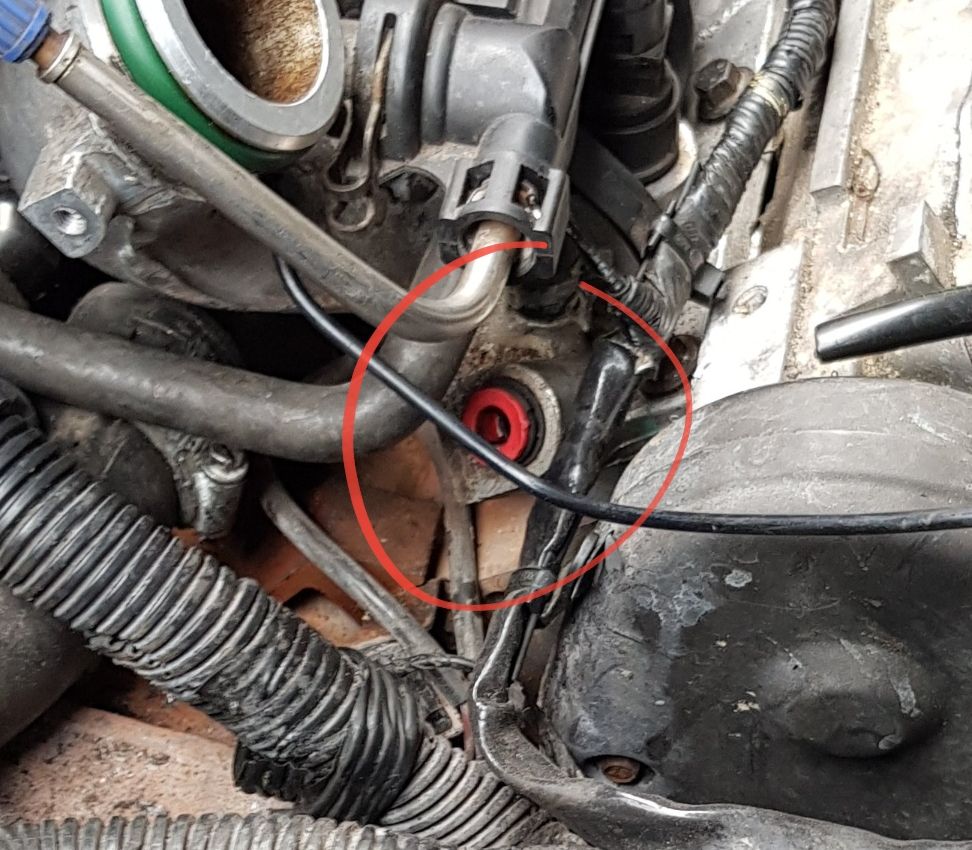

This part?

Screenshot_20190413-162149_Samsung Internet.jpg

If so, then it's the air inlet for the air assisted injectors.

foxy1 · Apr 14, 2019

where does the other end attach? on the injectors

Nodge68 · Apr 14, 2019

foxy1 said:
where does the other end attach? on the injectors

The air assisted injector feeds link up to the throttle body.

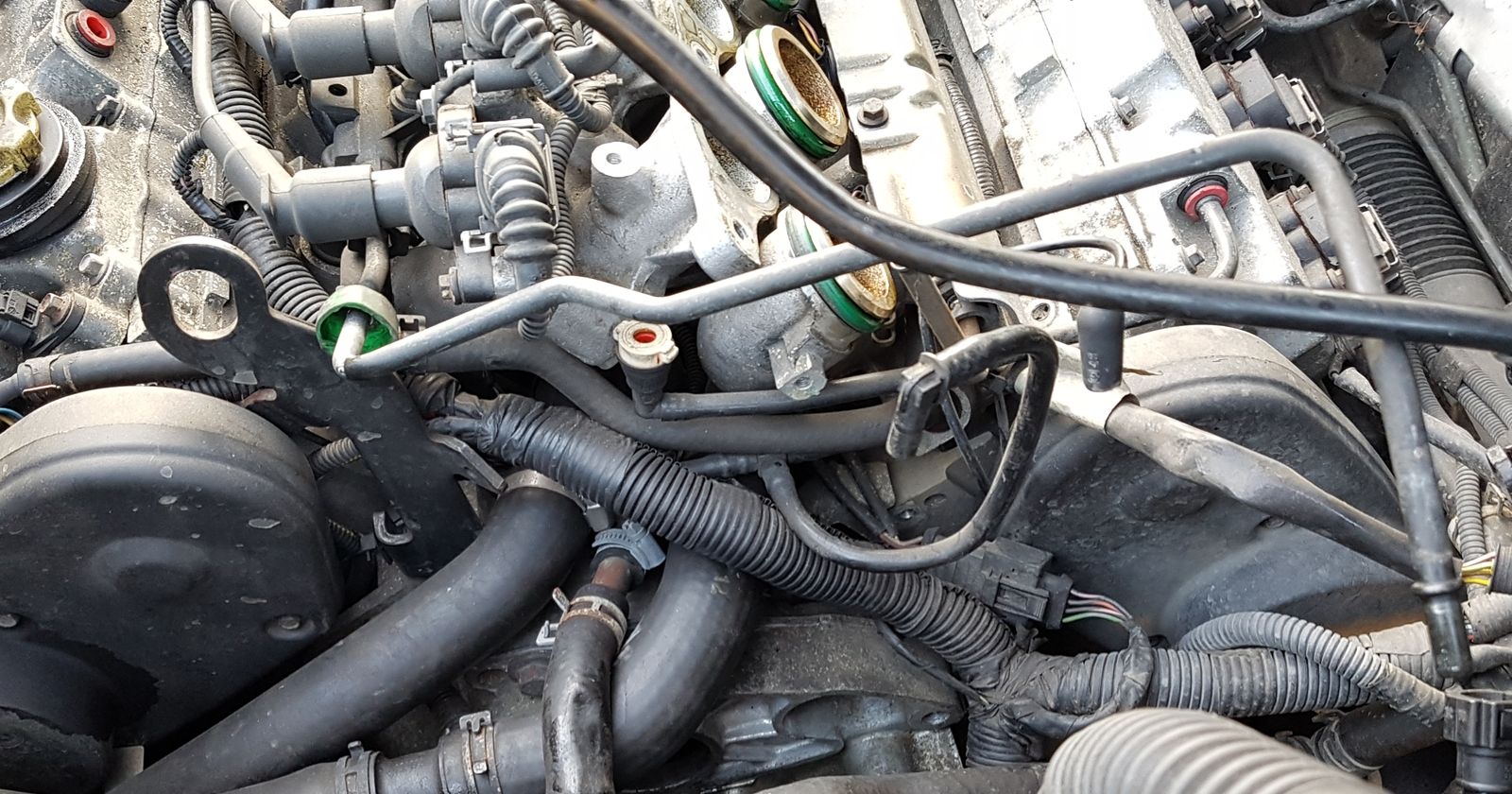

Look at these pictures, so you can follow the piping.

foxy1 · Apr 14, 2019

Thank you, have now put pipes in correct place,will see how it runs now
